Dowell high speed 1000g/hour 1600mm 1000mm large format industrial 3d printing machine impresora 3d
- Category: >>>
- Supplier: Luoyang Dowell Electronics Technology Co. Ltd.
Share on (1600810096085):
Product Overview
Description
Dowell high speed 1000g/hour 1600mm 1000mm large format industrial 3d printing machine impresora 3d

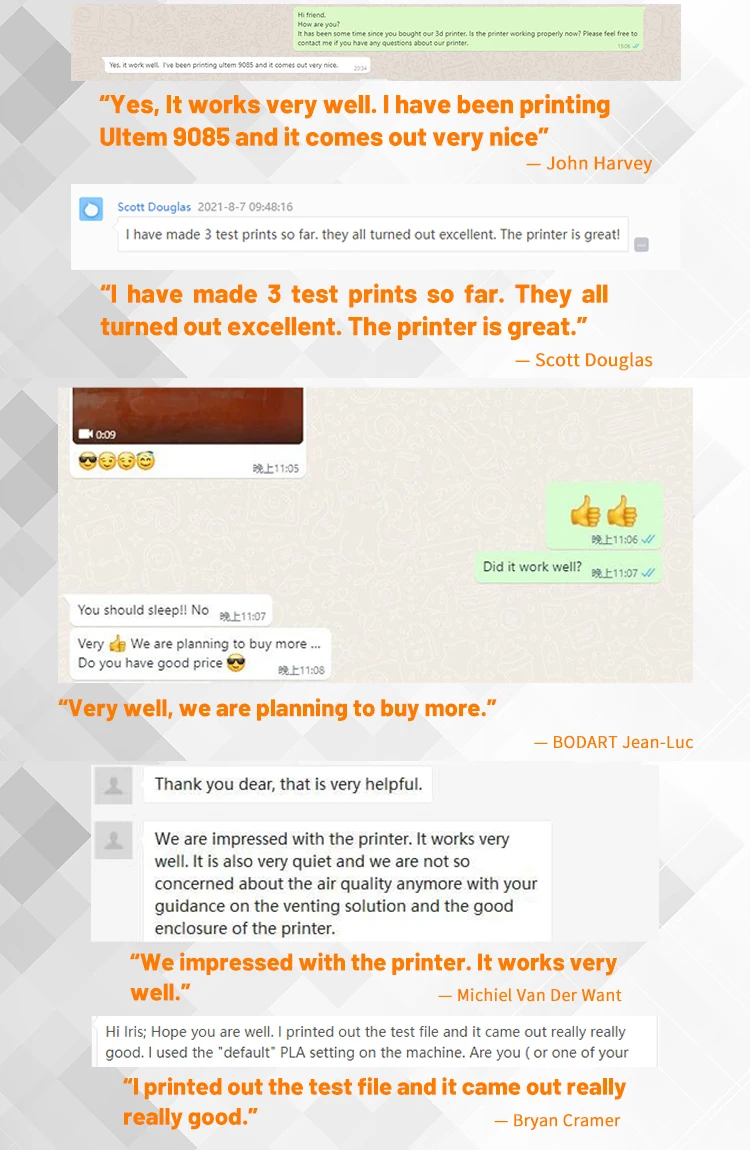

User's Feedback
Product Description
Model | DM10-16Pro | ||
Printing size | 1000*1000*1600mm | ||

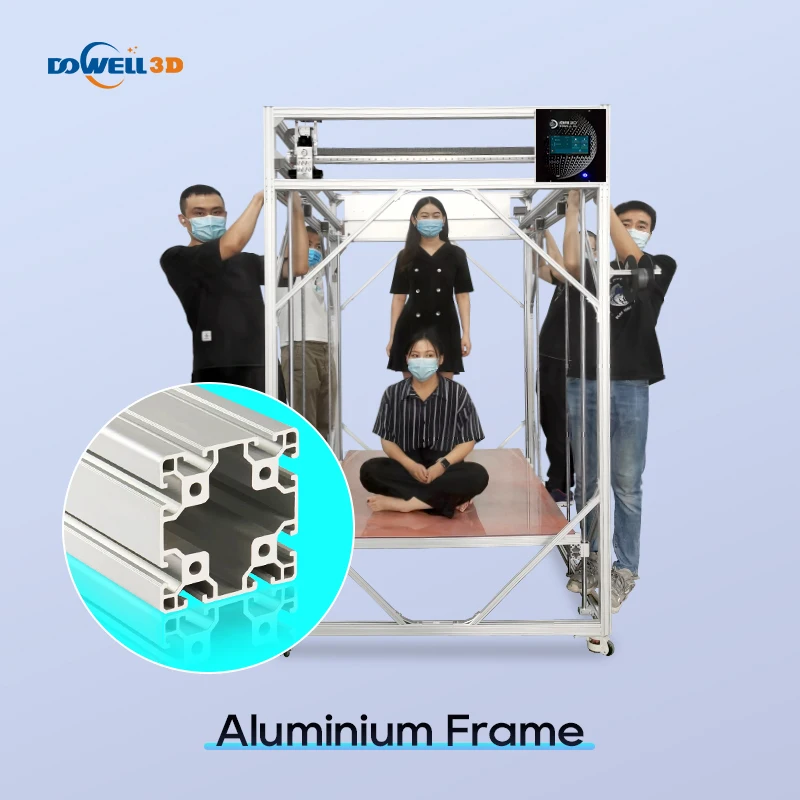

Frame: | 40mm aluminum section | ||
Operation Firmware: | R&D based on Klipper | ||
Movement of X&Y axis: | High precision linear rail | ||
Movement of bed: | 4 X screw rods & 4 X roller rods | ||
Filament feeder: | Near end max 1000g/hour | ||
Printing bed: | 6mm tempered glass | ||
Heating bed: | With digital temperature controller | ||
Bed temperature: | 0-100°c (optional 150°c) | ||
Nozzle size: | 0.4, 0.8, 1.2, 1.6, 2.0mm | ||
Nozzle temperature | 0-420c | ||
Operation Interface: | 7" TFT full Color | ||
Voltage: | 110V/220V | ||
Positional accuracy: | 0.02mm | ||
Layer accuracy: | 0.04-0.6mm | ||
Slicing software: | Dowell3d / Cura / or other similar software | ||
Input format: | STL/OBJ/Gcode/JPG | ||
Filament diameter: | 2.85mm | ||
Connection: | U disk/SD Card/ Wifi | ||

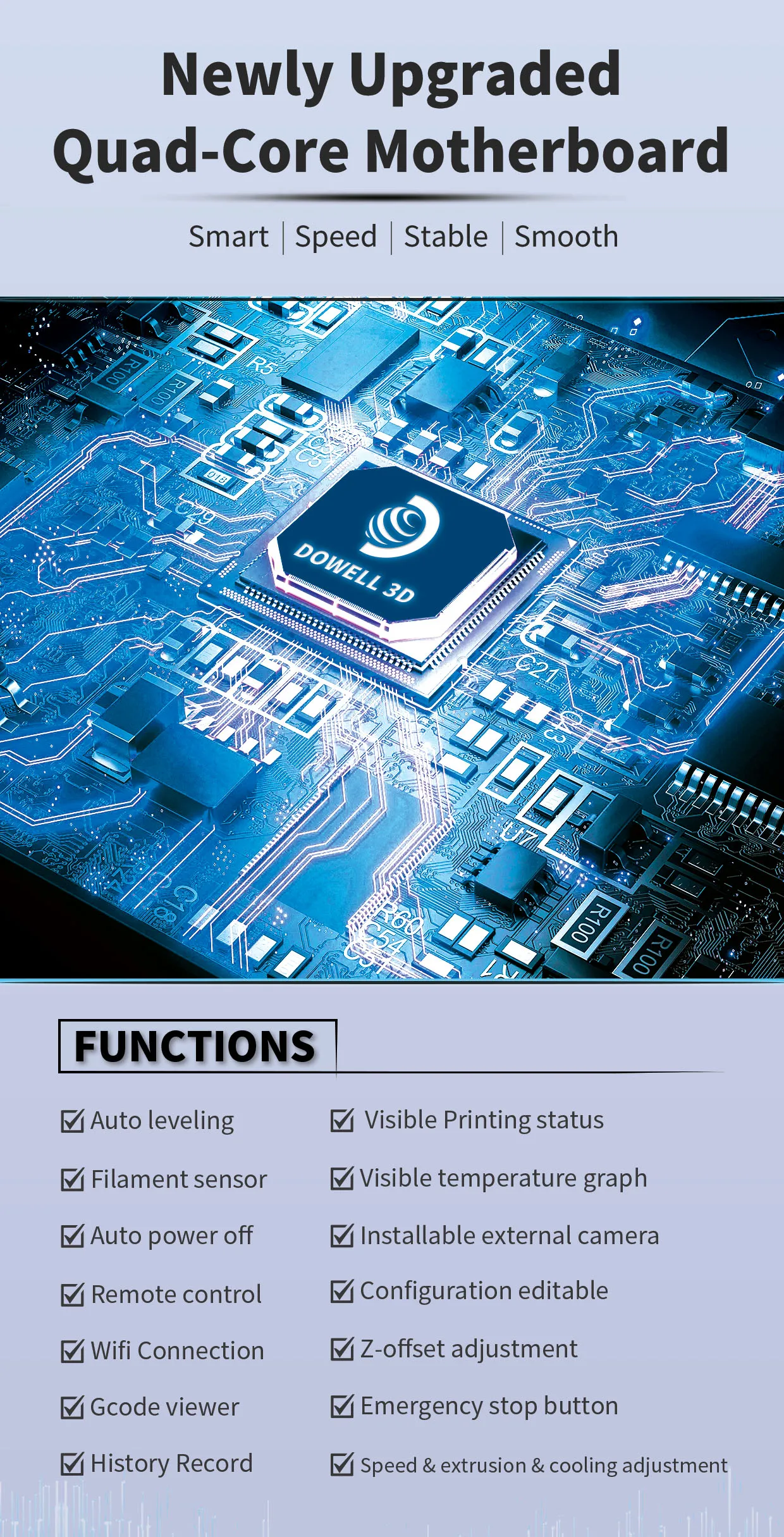

Standard functions: | *Auto leveling *filament sensor *auto power off * nozzle anti-collision *Visible Printing status *Z-offset adjustment *Visible temperature graph *Accelerations *Configuration editable *Remote control *External camera can be installed *Gcode viewer *History Record *Emergency stop button | ||
Customization Options: | 1. Dual extruder 2. Constant temperature enclosure 3. Printing size 4. 150c heating bed | ||
Dowell3d is a manufacturer with 10 years of R&D, production and export of large-scale industrial 3D printers. It has hundreds of easy-to-use large-format 3D printers, specially designed for industrial applications.

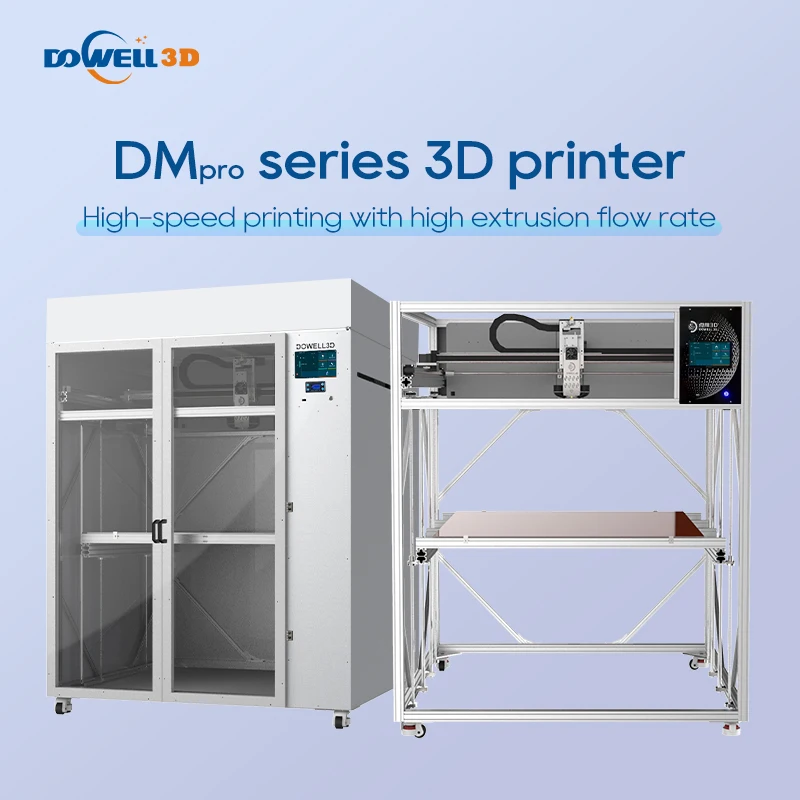

The Dowell 3D printer DMPRO series has large extrusion flow, It has a space-aware body and an intelligent
operating system, suitable for producing high-quality parts in any environment, Whether it is a factory tool, a prototype or an end-use part, the Dowell 3d printer is a durable and cost-effective best machine for manufacturing large-scale, high-quality parts.
The Dowell 3D printer DMPRO series has large extrusion flow, It has a space-aware body and an intelligent
operating system, suitable for producing high-quality parts in any environment, Whether it is a factory tool, a prototype or an end-use part, the Dowell 3d printer is a durable and cost-effective best machine for manufacturing large-scale, high-quality parts.

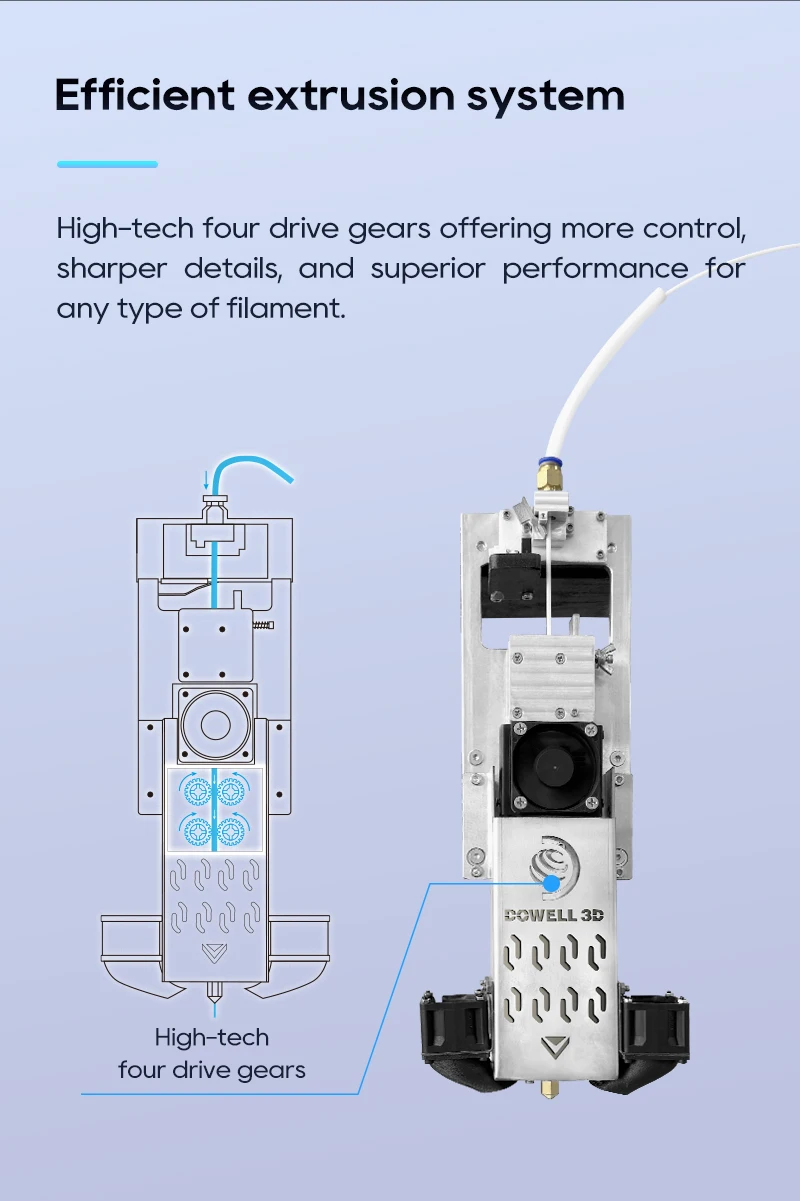

High-tech 4 gears drive gears offering more control, sharper details, and superior performance for any type of filmant
One key auto leveling help you easy operate
1. First, 4 corners auto-level independently.
2. Then 8*8=64 points on the whole bed automatic detection platform flatness. Through the independent 4 screw automatic adjustment to achieve the true automatic leveling.
Slide Module Drive
X axis and Y axis have high accuracy and long service life. with high transmission accuracy and low friction resistance, ensuring the accuracy and stability during printing.

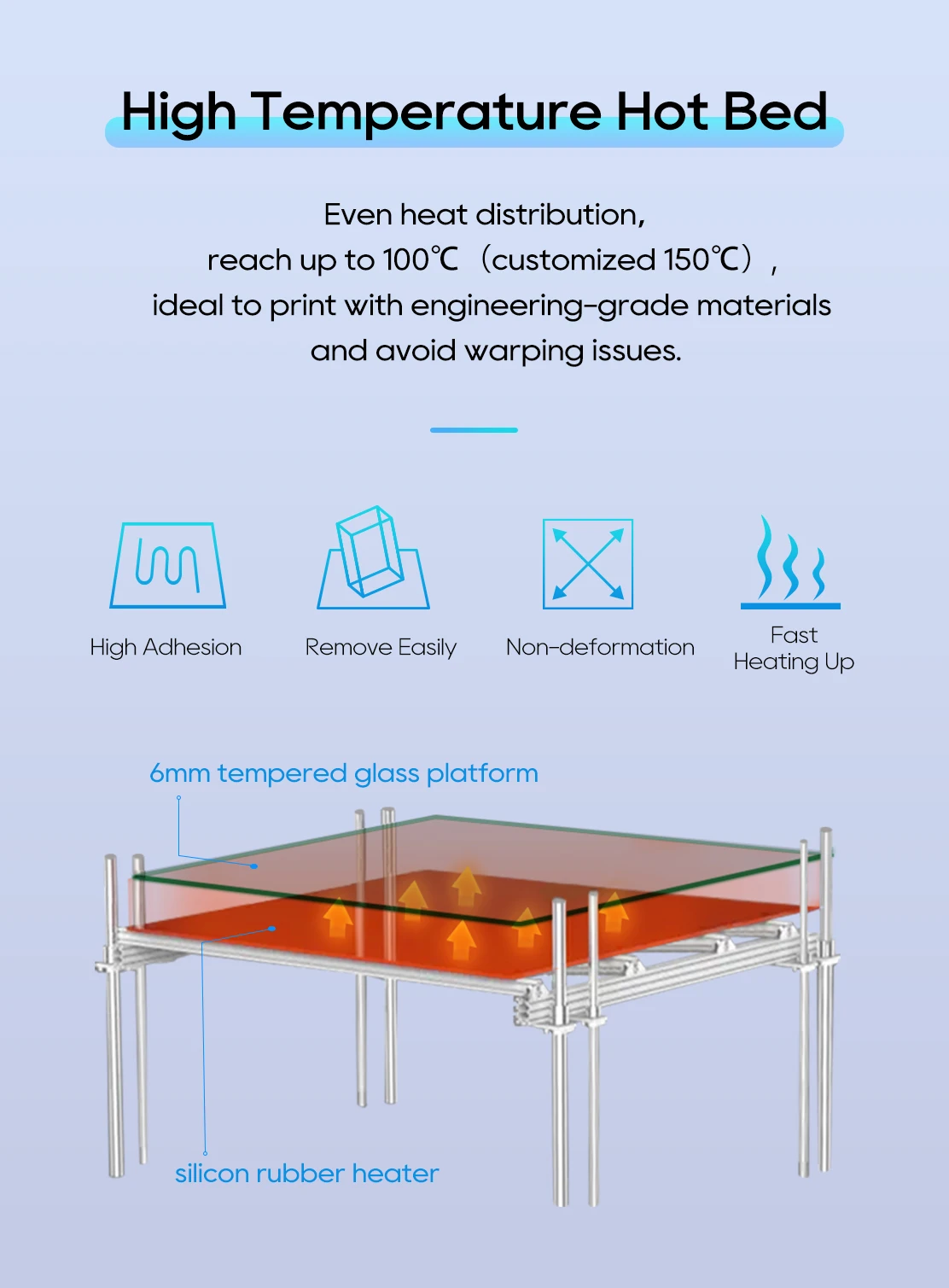

6mm tempered glass platform
Whole bed heated by silicon rubber heater evenly, precise control temperature 0-100 degrees.
Super load capacity more than hundreds kilograms
Silent drive & strong motor
At the same time with silent and efficient two advantages, effectively reduce work noise
420°c high temperature nozzle
Dowell3D's self-developed 420-c high temperature nozzle is compatible with a wide range of materials

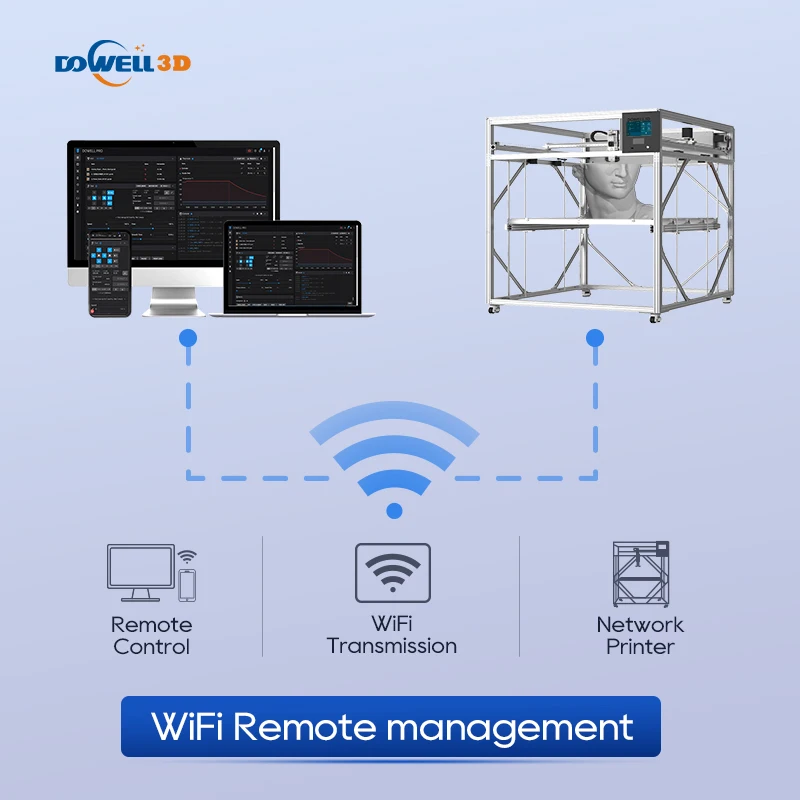

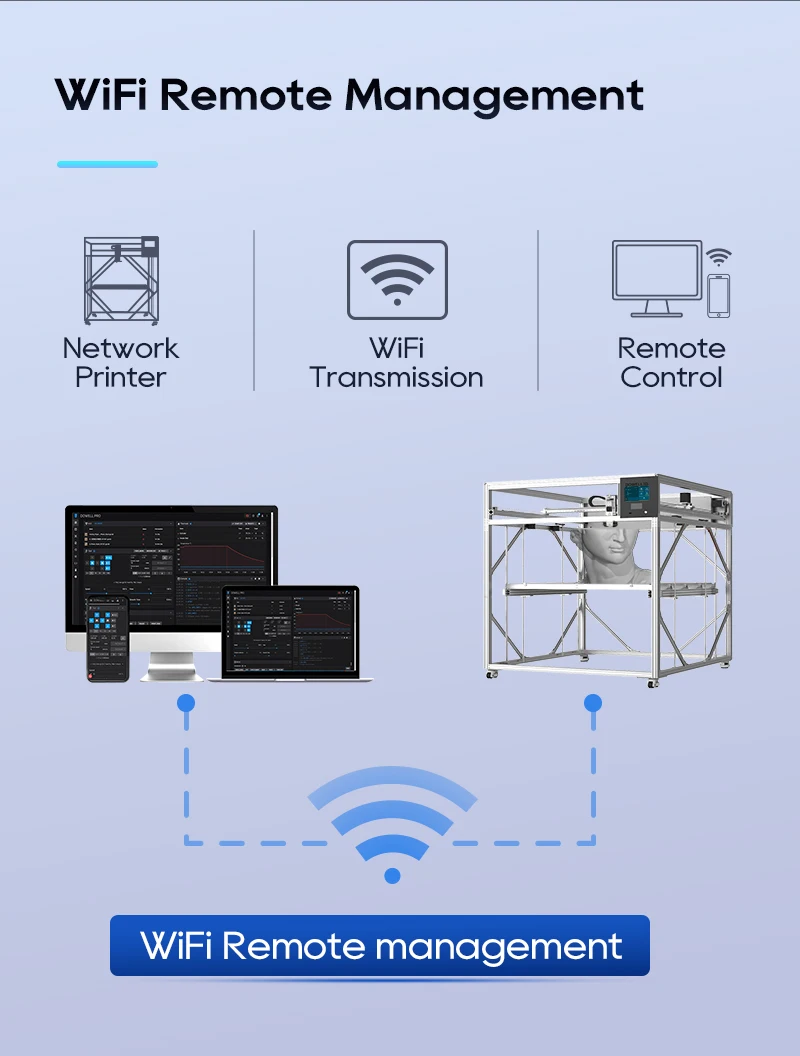

WiFi connection
The operation interface is 7 inch full color large screen, it is conveniet to operate.

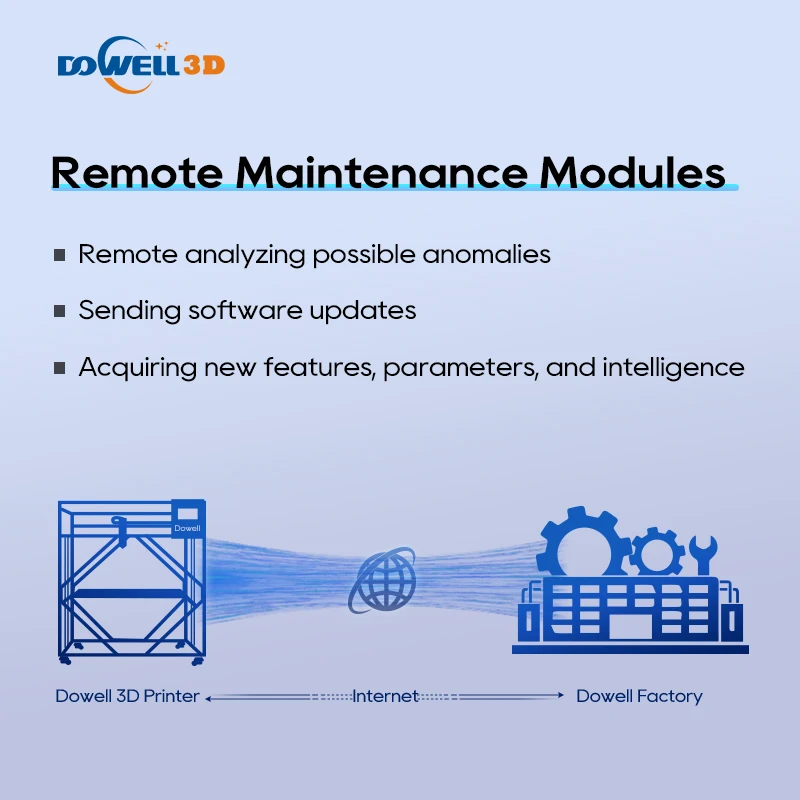

Communication and Maintenance
Dowell 3d printer is equipped with remote maintenance modules to analyze possible anomalies and to reduce the possibility of downtime for the advantage of productivity. The remote management feature includes sending software updates to allow the DOWELL 3D Printer to evolve over time, acquiring new features, parameters, and intelligence.Filament Runout Sensor
Auto-pause upon filament run-out detection.
High Extrusion Flow
Dowell self developed high extrusion max 1000g/hour

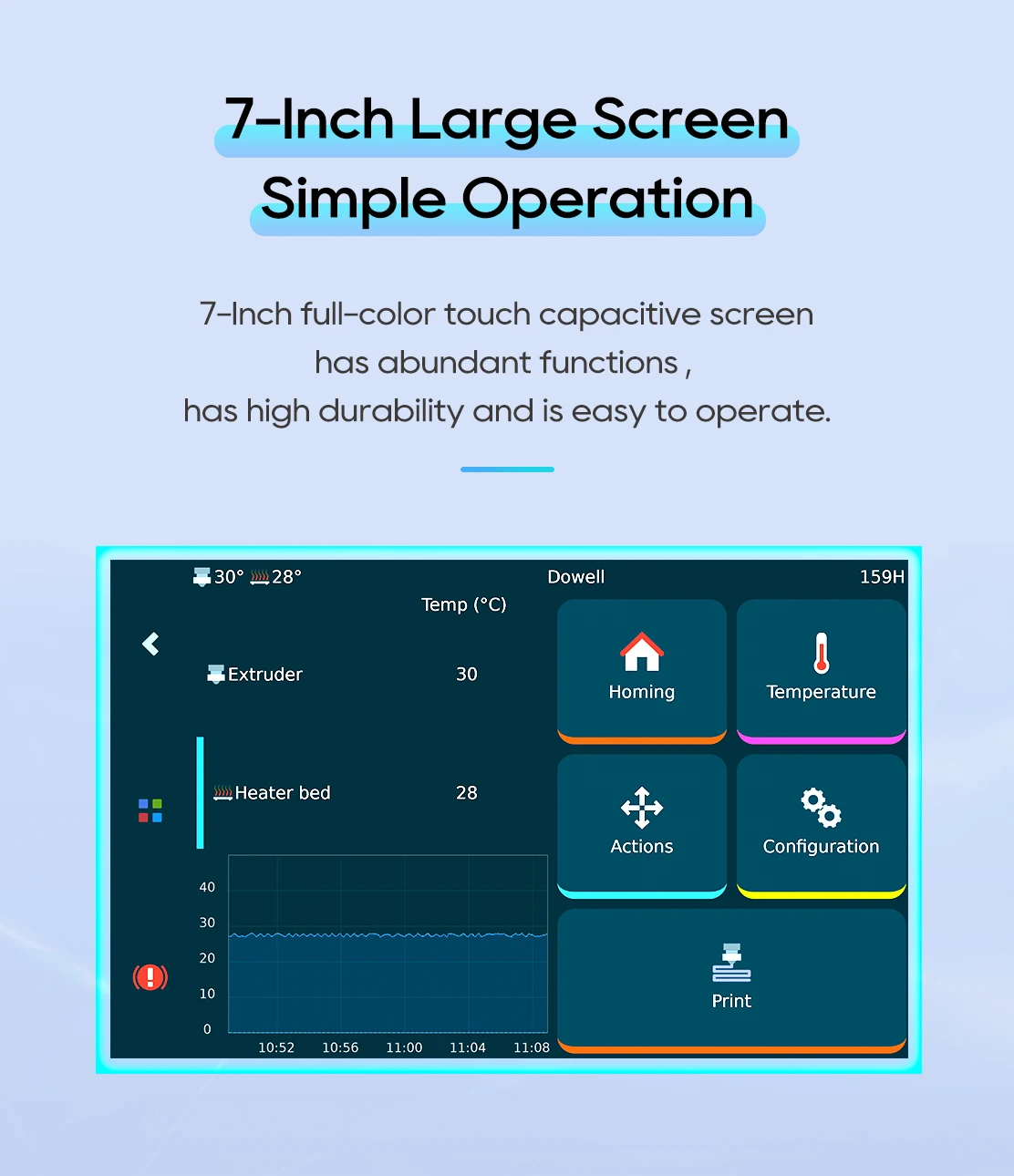

7 Inch Large Screen & Multiple languages
Large display interface, touch sensitive, 4 background colors can be adjusted, Print process, temperature, speed can be seen in real time.
Customzaiton Options
In addition to the basic features, Dowell3d printer offer customized services to add more fun to your printing work.
Wide Choice of Printing Size
Besides the standard sizes below, you can also contact us to customize your preferred print size.
Company Profile
This is the only official store of Luoyang Dowell3d Electronics Technology On Alibaba.
We do not authorize any third party to selling our products, the Dowell products sold in other stores are all counterfeits, can not get any technical support and after-sale service, please identify seriously, carefully to buy.
Product packaging
FAQ
1, Are you a factory?
-Yes, we are a directly manufacturer focus on developing and produce large industrial 3d printers.
2, Payment method
- T/T (Bank transfer), Paypal, West union, Credit card, Wechat pay, Ali Pay, T/T
3, Shipping method
-DHL, UPS, Fedex, TNT, sea shipping, air freight, by train.
4, What's your lead time?
-If the product you order is our standard model, lead time is around14 days; or else lead time is negotiable.
5, How do you guarantee the quality of the printer?
-We have 100% tests before shipment. We will supply photos and video of tests before shipment. We can guarantee that our 3D printer will have absolutely no quality problems before shipment. Then we will arrange the shipping under the confirming.
