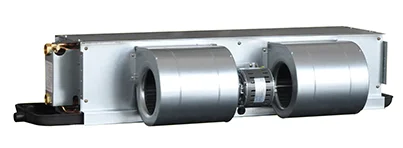

Dunham Bush Horizontal Units Ceiling Chiller Heat Exchange Fan Coil Ducted Air Conditioner Duct 4 Way Cassette Fan Coil Unit

Share on (1600810264192):


Price:$300.00

Quantity:


Product Overview

Description












































General Description
Meeting building owners demand for increased energy the heating ventilating and air conditioning(HVAC) system, Dunham Bush has adopted the innovative electronic commutation( EC) fan motor technology throughout our new CR-CD range of chilled water fan coil unit. This state-of-the-art technology offers ofice and commercial buildings substantial energy savings and improved user comfort.

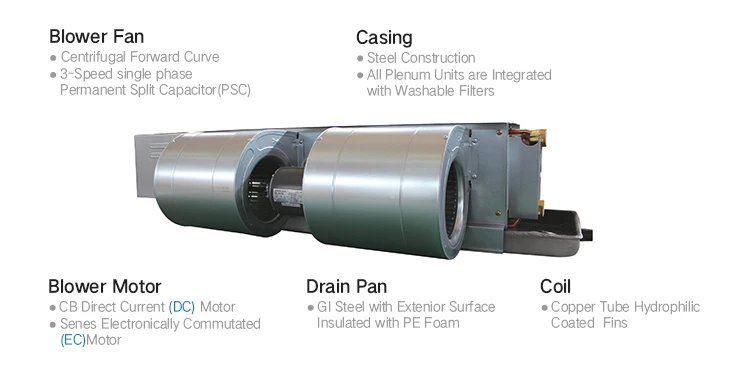

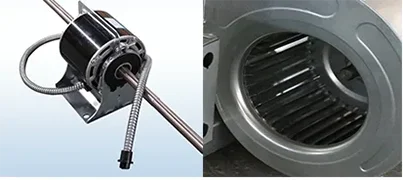

 1.pngFan Assemblies
The units are optimized using advanced software selection from USA and are tested to ensure the operartions are high efficiency and low noise.The forward curved centrifugal fans are designed aerodynamically to be light weight and robust for durable application condition. It features low sound levels, vibration-free operation, even air distribution and minimum power requirement. The motors are Dunham-Bush Patented single-phase permanent split capacitor type built with maximum heat dissipation design to ensure a high motor work efficiency and long lifespan.

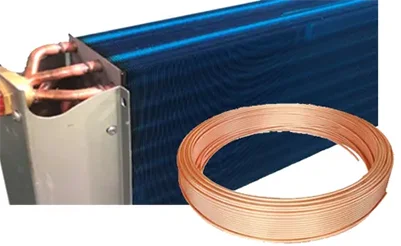

 2.pngCoils
All coils are of seamless copper tubes, with corrugated hydrophilic coated fin for improved condensed draining and giving excellent heat transfer. The surface design of this Mself-cleaning^^ corrugated fin create a vortex flow which make dust difficult to accumlate, and its heat exhange efficiency will not be affected even after used for a long time. All coil are leak tested at 2.4 MPa air pressure and are suitable for up to 1.6 MPa working pressure.
CR.pngCasing
Fan coil units are constructed from galvanized steel sheet features a compact structure and aesthetically appearance. PE foam is lined in between panels to guard against leaks of conditioned air and assure vibration free operation. Casing panels are easily removable for service and repair.
