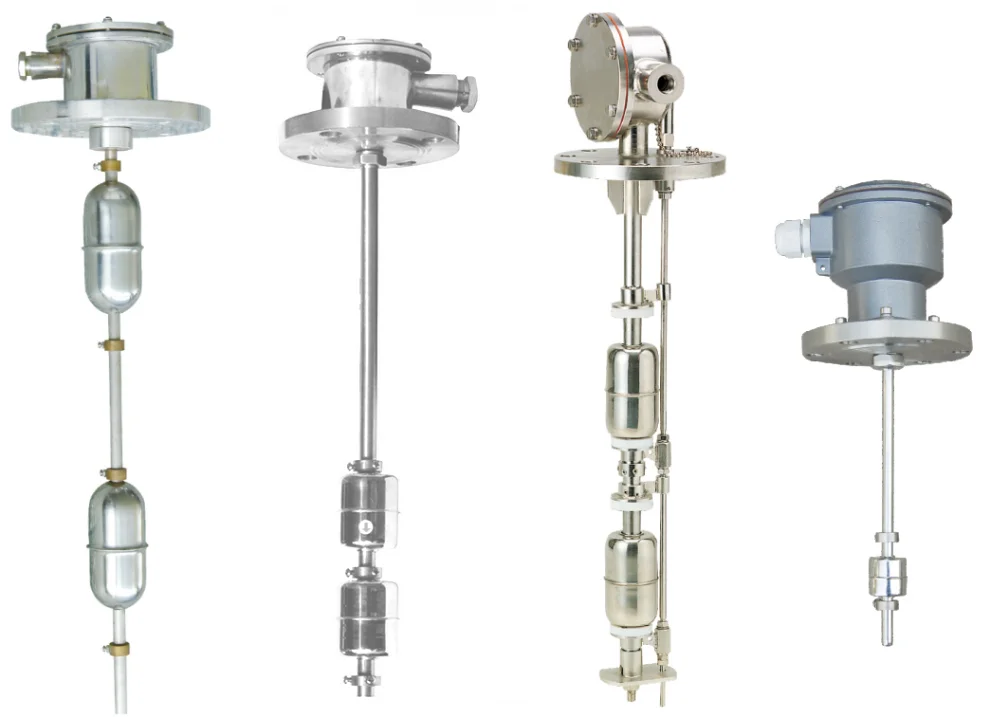

China factory price stainless steel 304 easy clean tubular liquid level gauge top or side mounting float water level gauge

Product Overview

Description

Main Technical Specification

Model	Side mounting type	UQK-651-C UQK-651-C-B(ex-proof type)
	Top mounting type	UQK-652-C UQK-652-C-Z(with test device) UQK-652-C-B(ex-proof type) UQK-652-C-B-Z(ex-proof type & with test device)
Switching error	UQK-651-C UQK-651-C-B	20~70mm
	UQK-652-C UQK-652-C-Z UQK-652-C-B UQK-652-C-B-Z	10~40mm
Contact form		SPDT
Accuracy		<20mm
Working pressure		1.0MPa
Medium gravity		0.8~1.2
Floater diameter		60mm
Protection class		IP66 or IP68
Flange standard		GB2506-2005 CB/T 46-2007 PN0.6 DN65 for UQK-651-C PN0.6 DN80 for UQK-652-C PN1.0 DN125 for UQK-652-C-B
Contact capacity		SPDT  AC 250V 10A,  DC 125V 0.6A 2XSPDT (option)
Ex-proof mark		Ex d II CT4-T6, Ex ia II CT3-T6
Outer protection pipe for UQK-652 type		76mm
Measuring range L0 of UQK-652 type		300~2500mm



Note: please advise flange size, floater diameter, dead zone and pipe length (if applicable) when place order.



 Sketches



Q: Are you trading company or manufacturer ?

A: We are manufacturer & trading company.

Q:Are you a professional manufacturer of Marine equipment?

A: Yes, we have been engaged in the production of Marine equipment for more than 20 years

Q: How long is your delivery time?

A: Generally it is 5~10 days if the goods are in stock.Or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 50% T/T in advance ,balance before shipment. Irrepealable LC at sight.

Q:Do you inspect the finished products?

A:Yes, each step of production and finished products will be come out inspection by QC department before shipping.

Q:Can I get a lower price if I order large quantities? A:Yes, cheaper prices with more bigger quantity orders.
