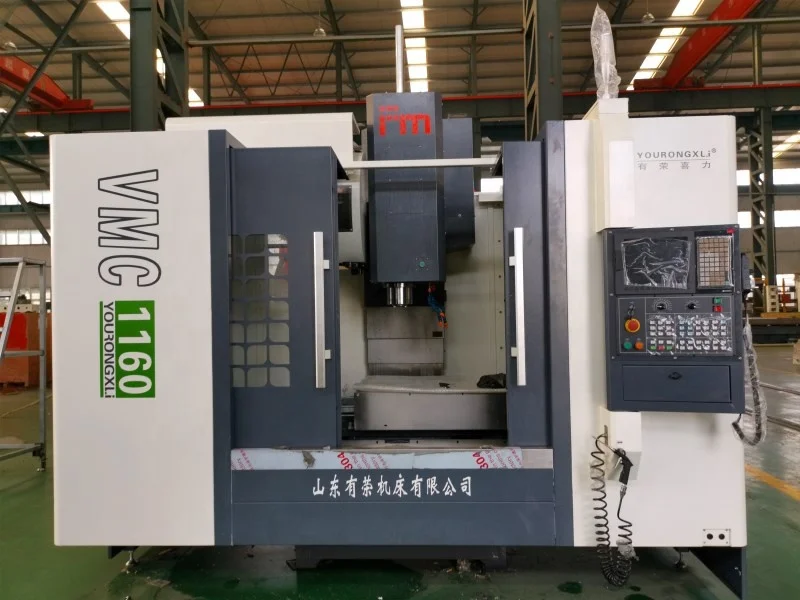

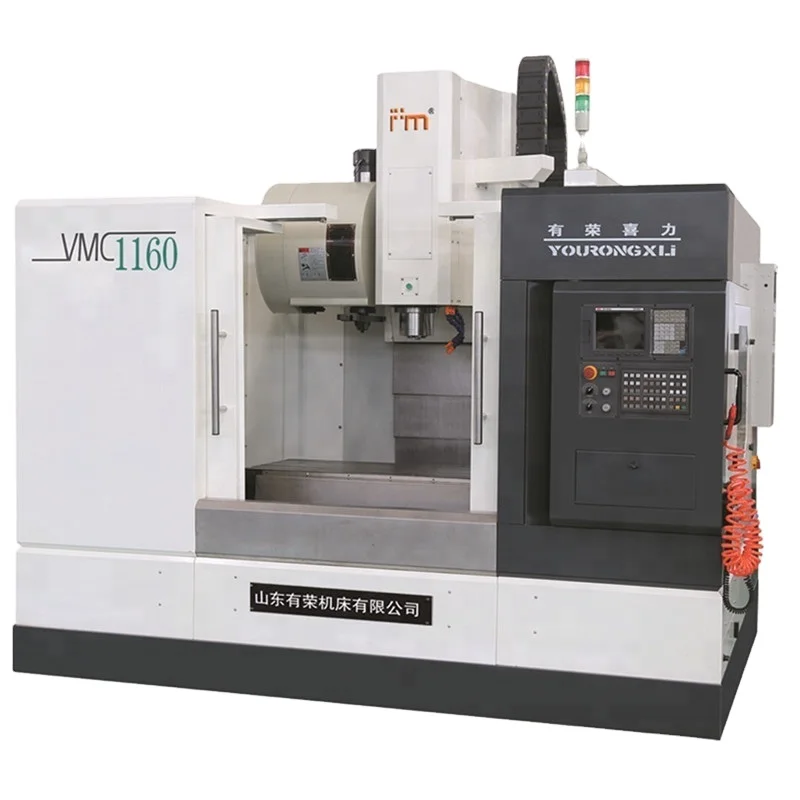

VMC1160 3axis CNC milling vertical machine center with Siemens 828D/FANUC 0i MF
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (1600810322300):
Product Overview
Description
VMC1160 cnc machining center vmc machine price
Brief Introduction

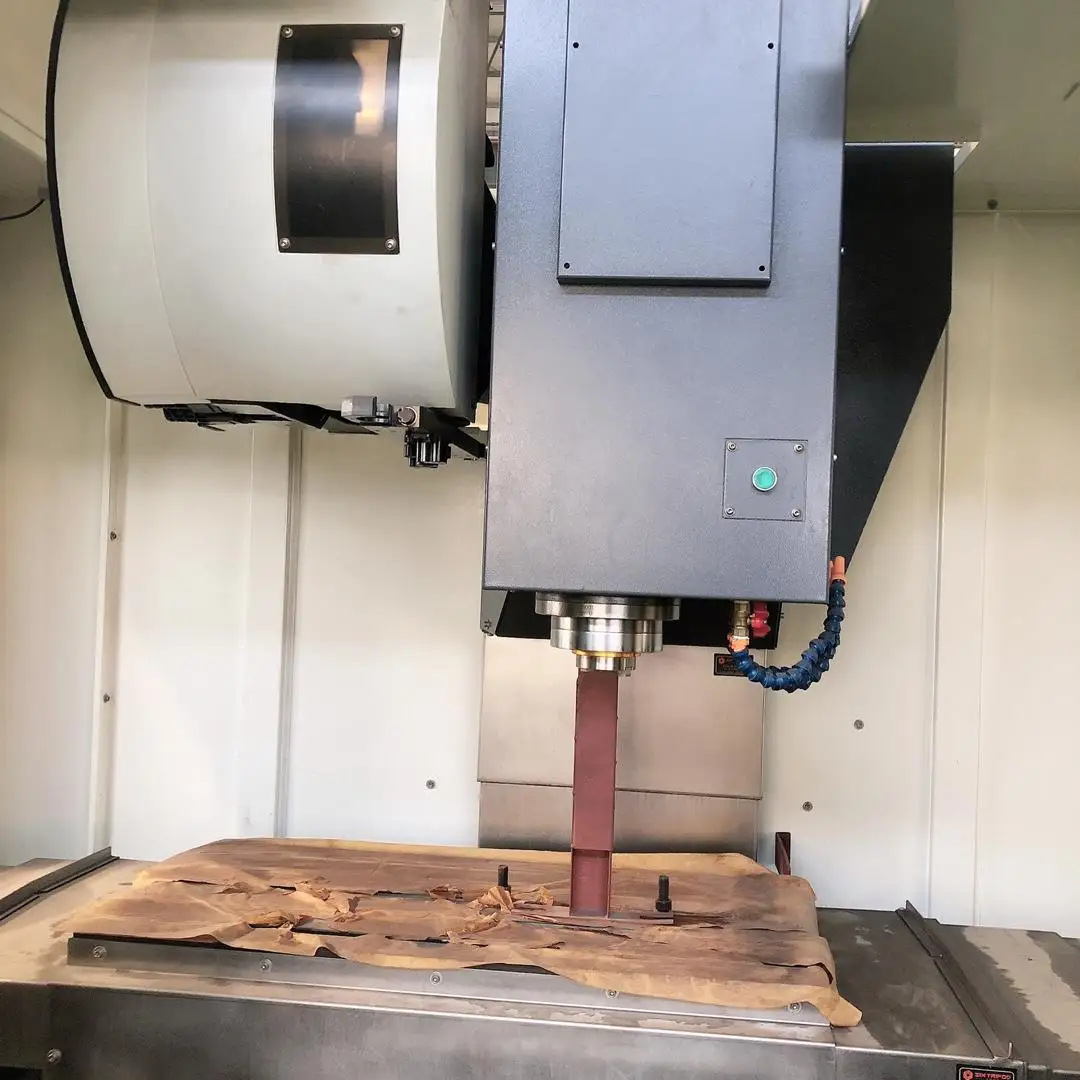

1). Taiwan brand spindle unit, with high speed, precision and rigidity
2). X/Y/Z axes adopt high precision, reinforced, large pitch ball screws, ensures high feedrate
3). servo motor delivers power to ball screws directly, ensures excellent positioning accuracy
4). X/Y/Z axes adopt linear guideway extension structure, ensures high speed, low friction & long service life
5). Y & Z axes adopt Taiwan high rigidity roller linear guideways
6). forced lubrication system reduces motion resistance force, avoids low speed crawling, ensures high precision & long life
7). fully enclosed structure design, safe to operate
---------------------------------------------------------------------------------------------------------
Note:
-Siemens CNC system is standard, other system is available if special request.
-3-axis CNC is standard, the 4 axis is available if client's special request.
Specificaitons of This Series
Specification | Unit | VMC1160 |
Table size | mm | 1200*600 |
Max table load | Kg | 800 |
Table travel X | mm | 1100 |
Table travel Y | mm | 600 |
Table travel Z | mm | 600 |
Spindle center to column surface | mm | 650 |
Spindle speed range and driving method | rpm | 8000 belt driving |
Spindle taper | / | BT40 |
Spindle diameter | mm | 150 |
Rapid feed speed X | m/min | 24 |
Rapid feed speed Y | m/min | 24 |
Rapid feed speed Z | m/min | 20 |
Cutting feed rate | mm/min | 1-8000 |
Max tool diameter(No adjacent tool) | mm | Φ80/150 80/130 |
Max tool length | mm | 300 |
Max tool weight | kg | 6/7 |
Magazine capacity | T | 24 |
Tool exchange mode | disc type | |
Spindle motor power | Kw | 11 |

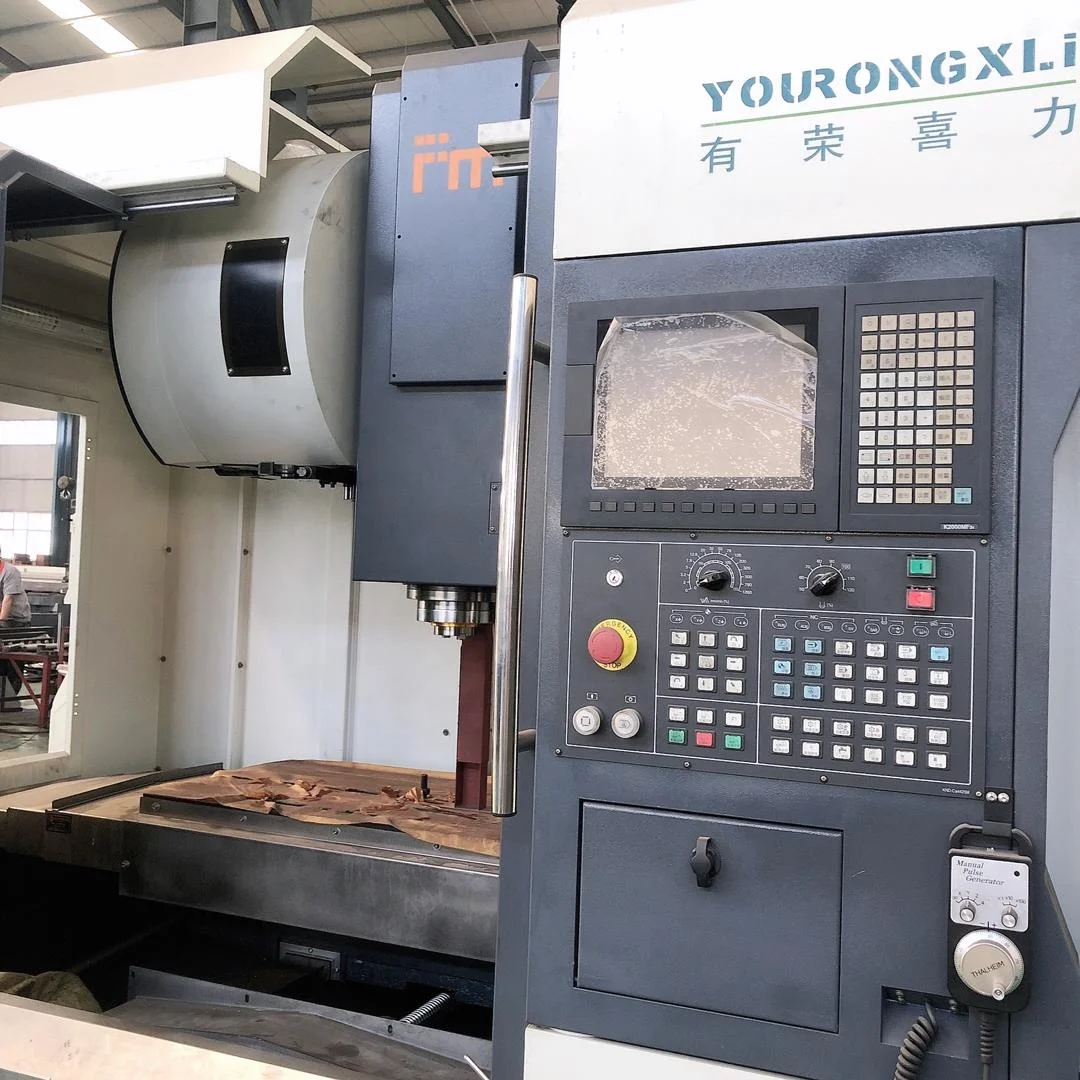

Controller | Siemens/FANUC 0i-MF | |
Positioning accuracy | mm | ±0.005 |
Repeatability Positioning accuracy | mm | ±0.003 |
weight | kg | 7200 |
Overall size | mm | 2900*2400*2800 |
Our Company
Shandong XILI Machine Tool Co., Ltd. is located in Tengzhou City, Shandong Province.
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
Company is with CE, ISO certificates.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
Every year, we attend several exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
