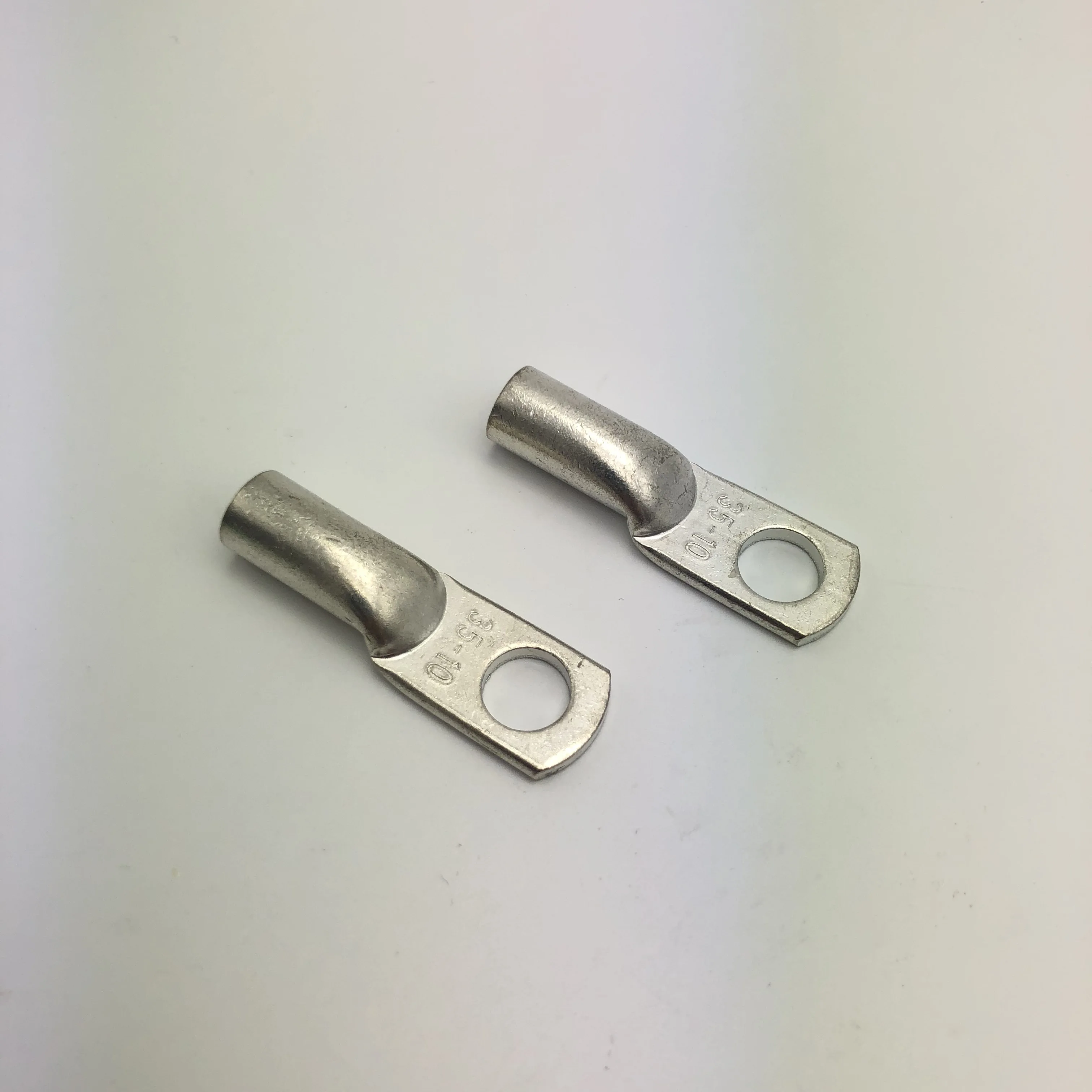

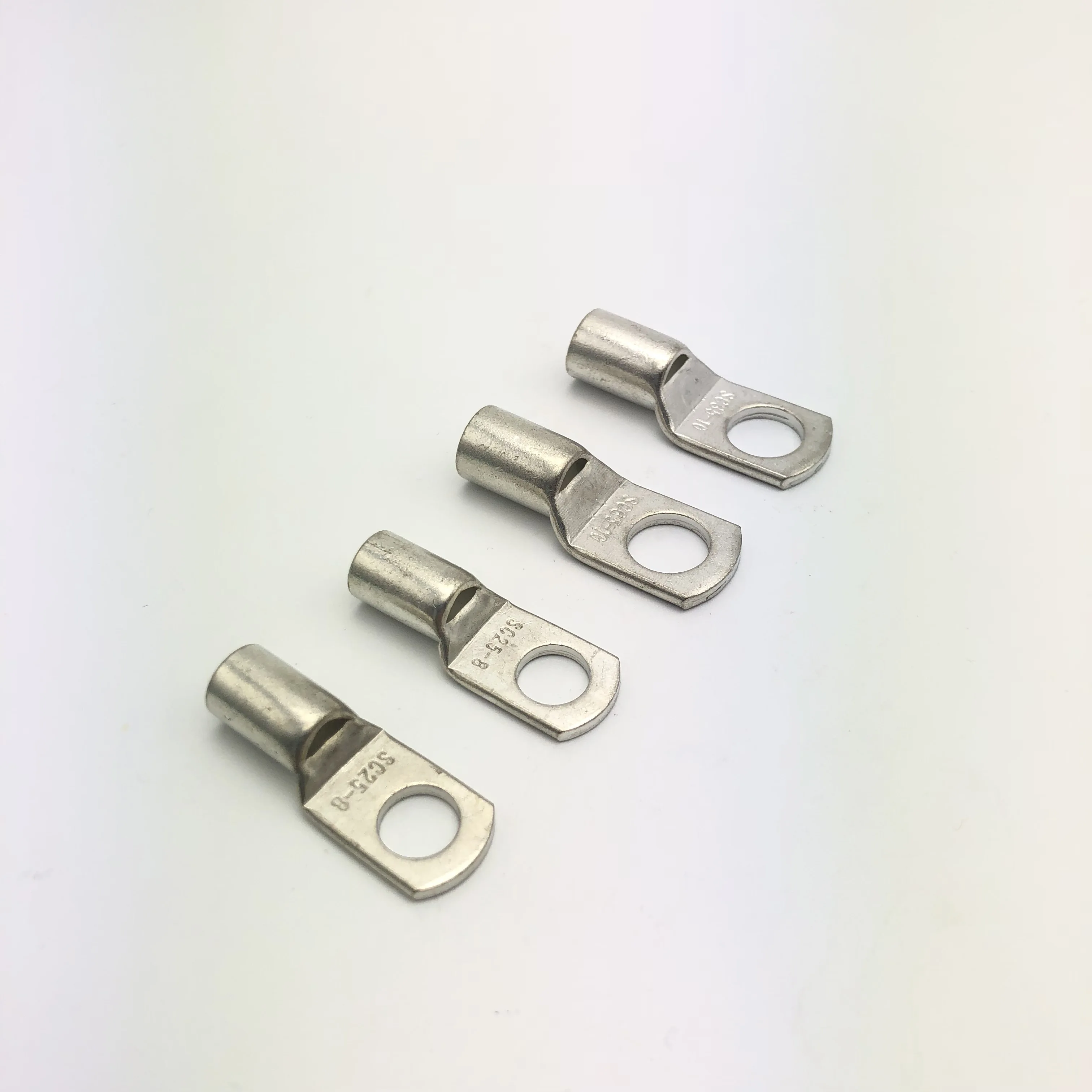

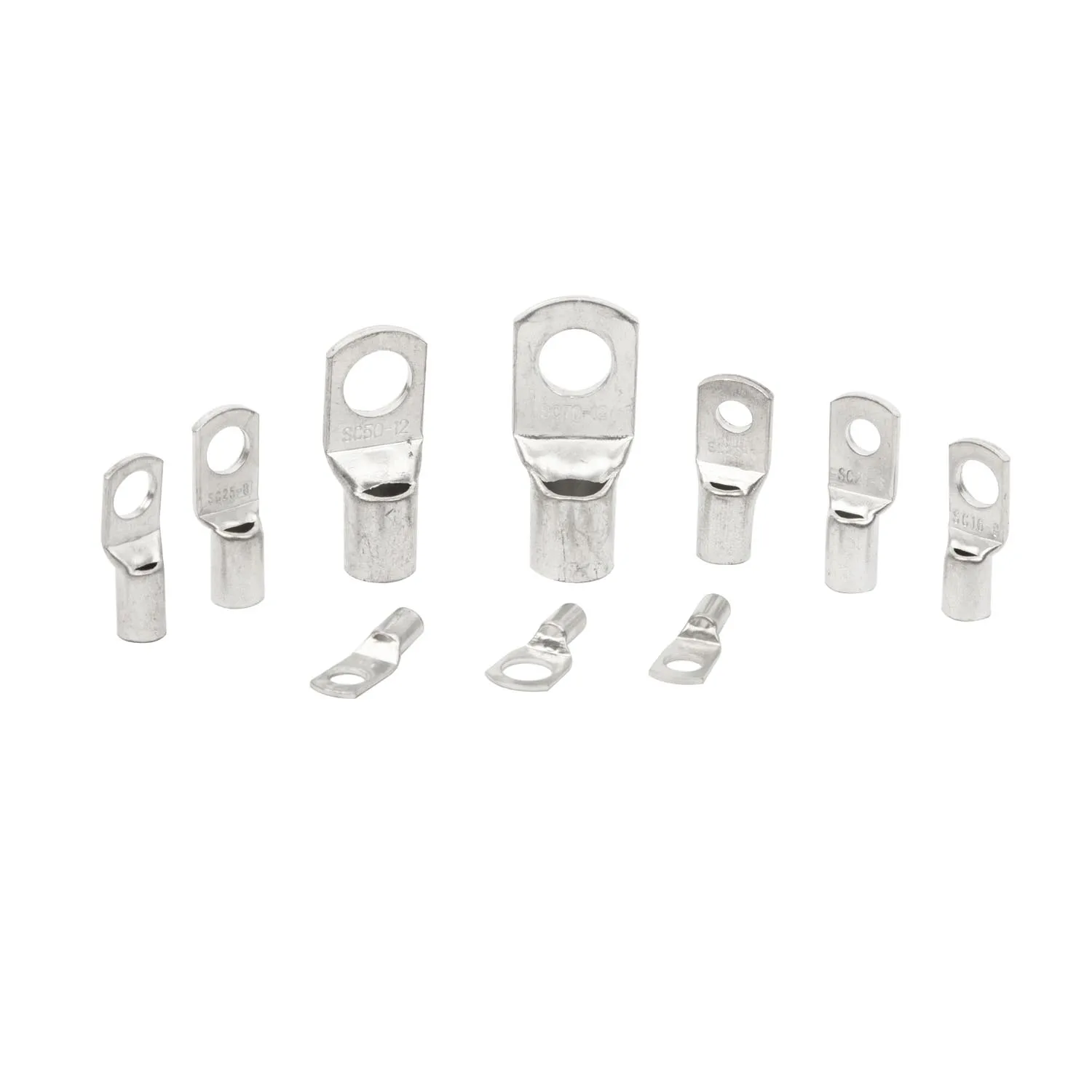

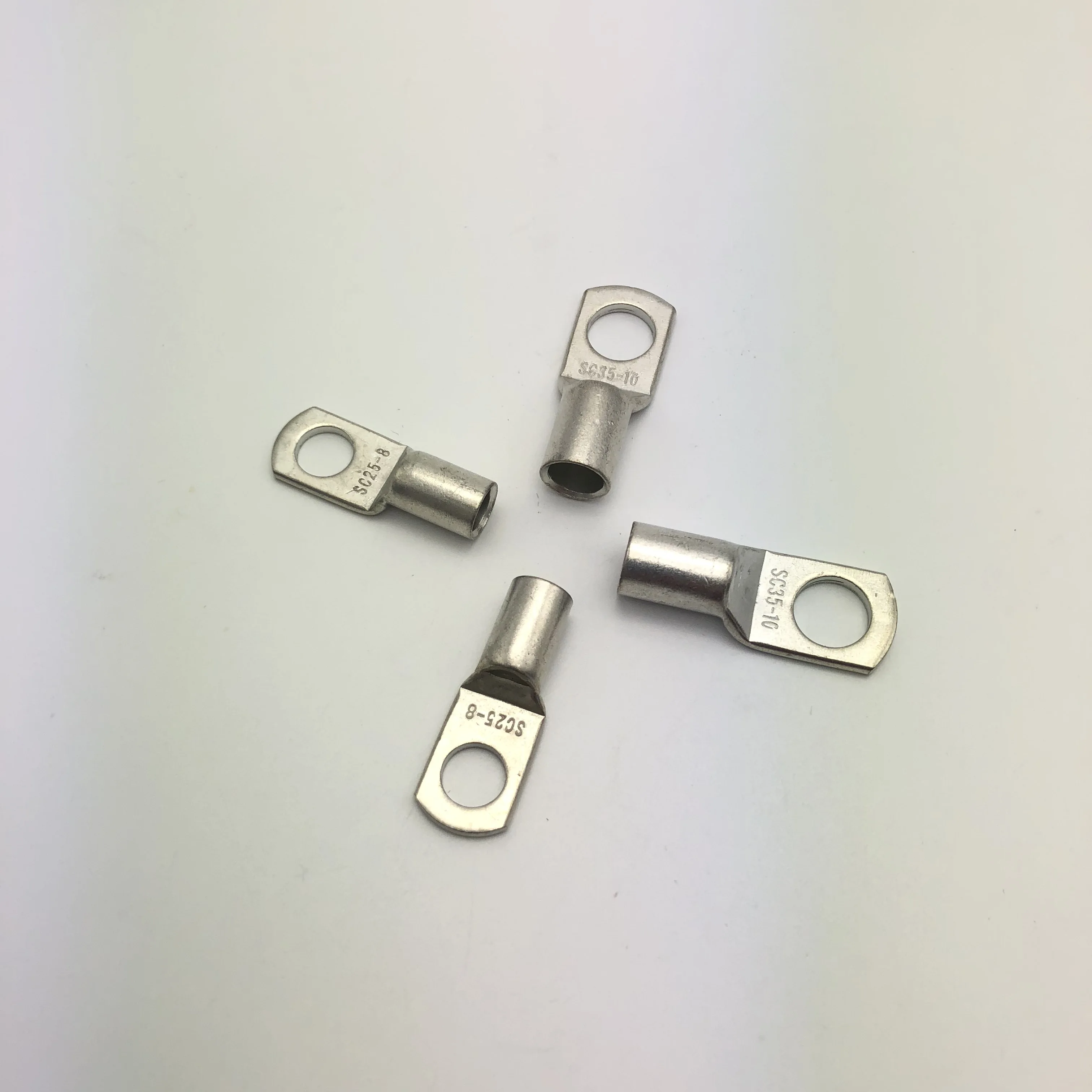

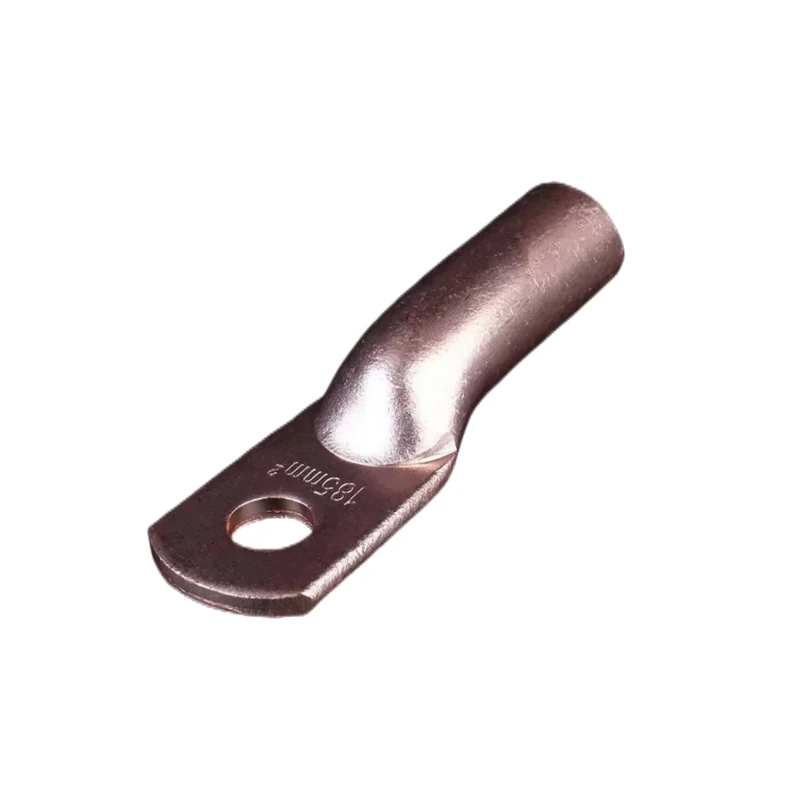

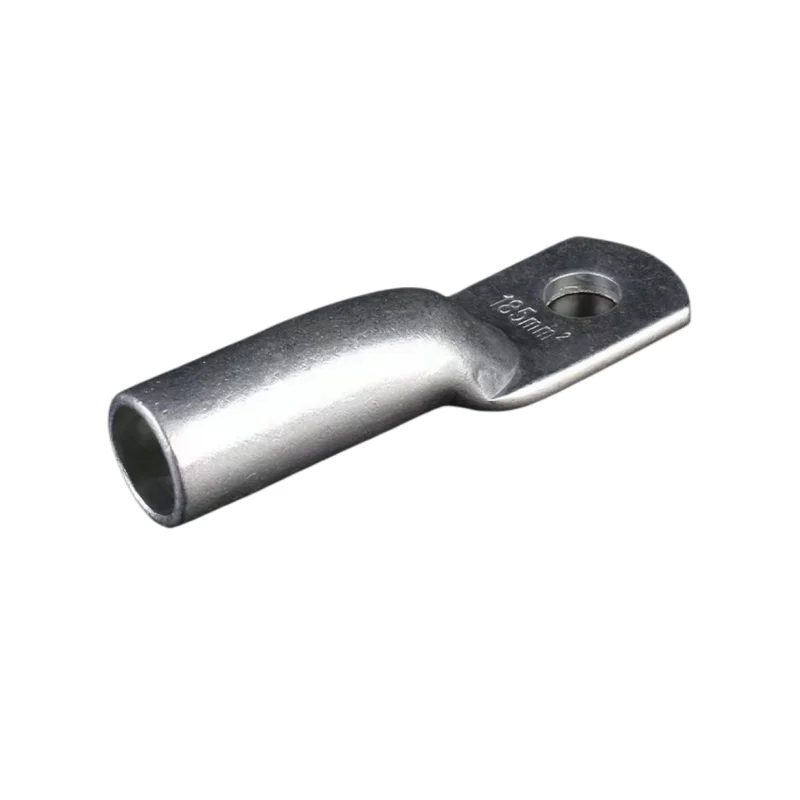

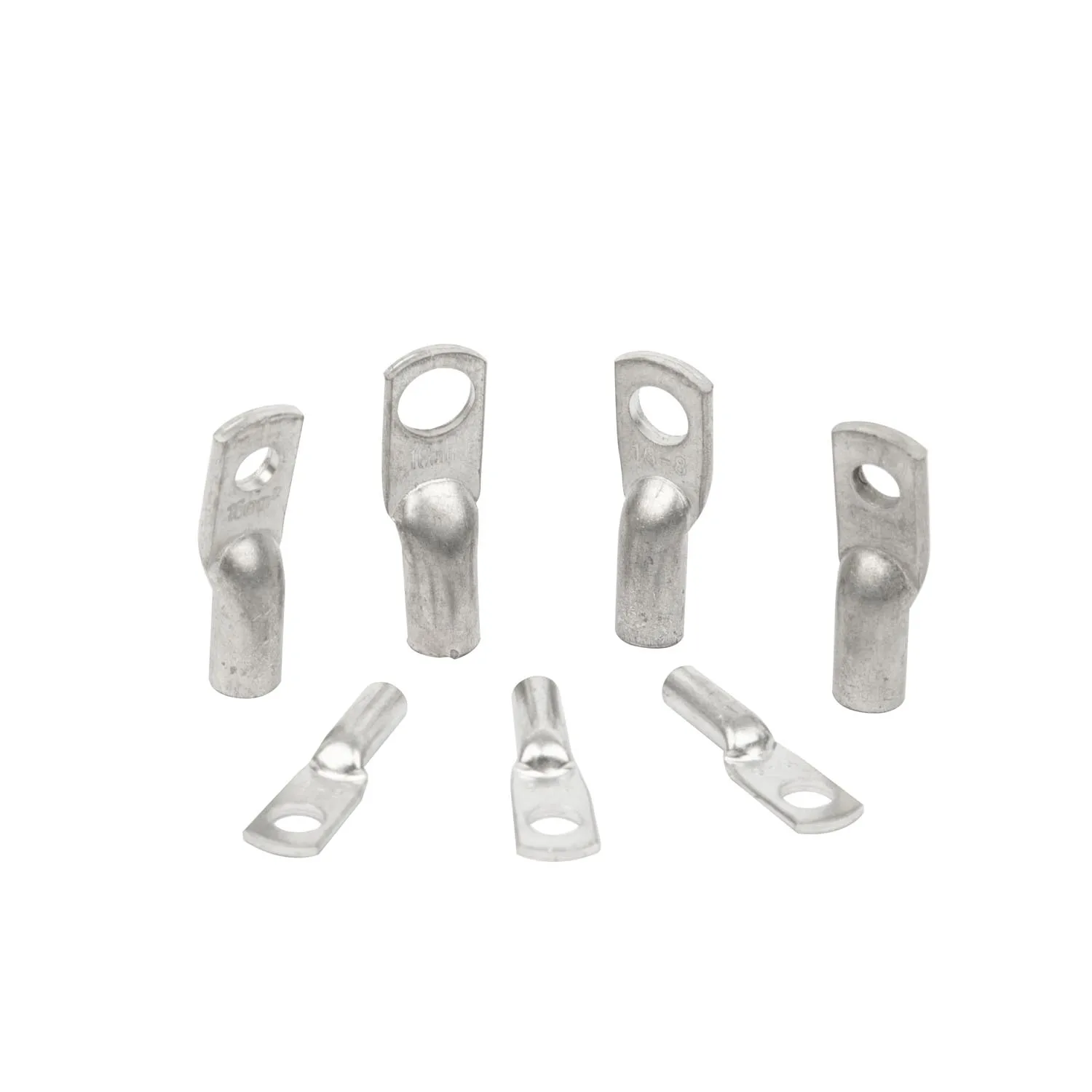

2023 New Product DTG Copper Lug
These products are suitable for the connection of copper conductors(section 1.5-1000mm²) in power cable with electronic equipment they are made with higher 99.9 percent pure copper tube T2 and coated with tin.
Working Temperature: -55℃~150℃

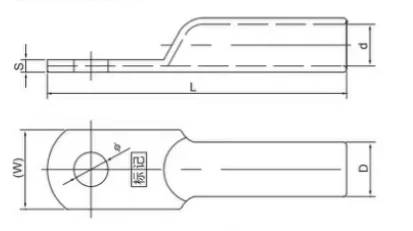

| Φ | D | d | L | W | S | |
| DTG-1.5 | 4.2 | 3.5 | 2.5 | 25 | 7 | 1 |
| DTG-2.5 | 4.2 | 4 | 3 | 29 | 8 | 1 |
| DTG-4 | 5.2 | 5 | 3.4 | 34 | 8.5 | 1.6 |
| DTG-6 | 5.2 | 6 | 4.4 | 39 | 9 | 1.6 |
| DTG-10 | 6.4 | 8 | 5.4 | 51 | 11 | 2.6 |
| DTG-16 | 6.4 | 9 | 6.4 | 56 | 13 | 2.6 |
| DTG-25 | 8.4 | 10 | 7.4 | 61 | 14 | 2.6 |
| DTG-35 | 8.4 | 11 | 8 | 66 | 16 | 2.6 |
| DTG-50 | 8.4 | 13 | 10.3 | 71 | 19 | 2.7 |
| DTG-70 | 10.5 | 16 | 12.3 | 81 | 23 | 3.7 |
| DTG-95 | 10.5 | 18 | 14.3 | 85 | 26 | 3.7 |
| DTG-120 | 12.5 | 19 | 15.2 | 96 | 28 | 3.8 |
| DTG-150 | 12.5 | 22 | 17.2 | 102 | 32 | 4.8 |
| DTG-185 | 14.5 | 24 | 19.2 | 114 | 35 | 4.8 |
| DTG-240 | 16.5 | 26 | 21.2 | 118 | 38 | 4.8 |
| DTG-300 | 16.5 | 31 | 24.2 | 133 | 45 | 6.8 |
| DTG-400 | 16.5 | 34 | 26.2 | 147 | 49 | 7.8 |
| DTG-500 | 21 | 38 | 30.2 | 172 | 55 | 7.8 |
| DTG-630 | 21 | 45 | 35.2 | 210 | 65 | 9.8 |
| DTG-800 | 23 | 50 | 40.2 | 270 | 73 | 9.8 |
| DTG-1000 | 23 | 55 | 45.2 | 300 | 80 | 9.8 |
new details
Excellent service and first-class after-sale service
•Provide professional sales person to communicate with you before the order.
•Provide optimum system solution based on each client's export.
•Provide strict check for each part and each process before export.
•Provide post-sale service, including installation, technical guide and training.
1.Are you factory or trading company?
Yes,we are manufacturing in Zhejiang ,China. We can give you the competitive price & after sale service.
2.Could I print my own logo on the bag?
Yes,your logo can be printed as your demand, we offer OEM service.
3.What terms of payment & price condition &do you accept & use?
Payment terms:T/T,LC,Paypal,Western union,etc.
Price conditions:FOB(Shanghai & Ningbo),EXW,C&F etc.
4.What money do you accept for wire transfer?
USD,CNY/RMB,EURO etc.
5. How many days will it take to delivery the goods?
It denpends on your order quantity,small quantity will delivery the goods in 1-7days,if your order is big enough ,it make take 10~15 days.
