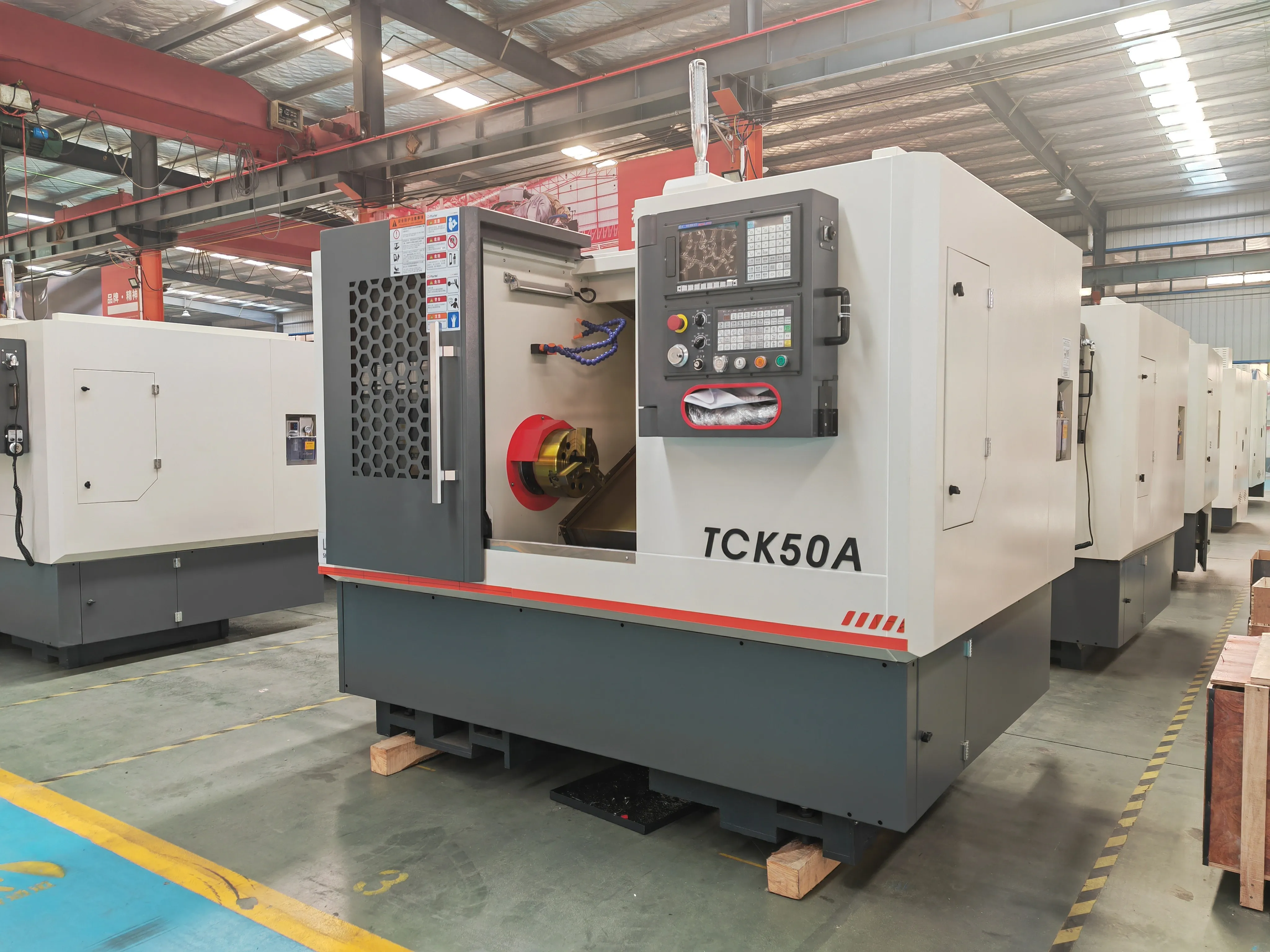

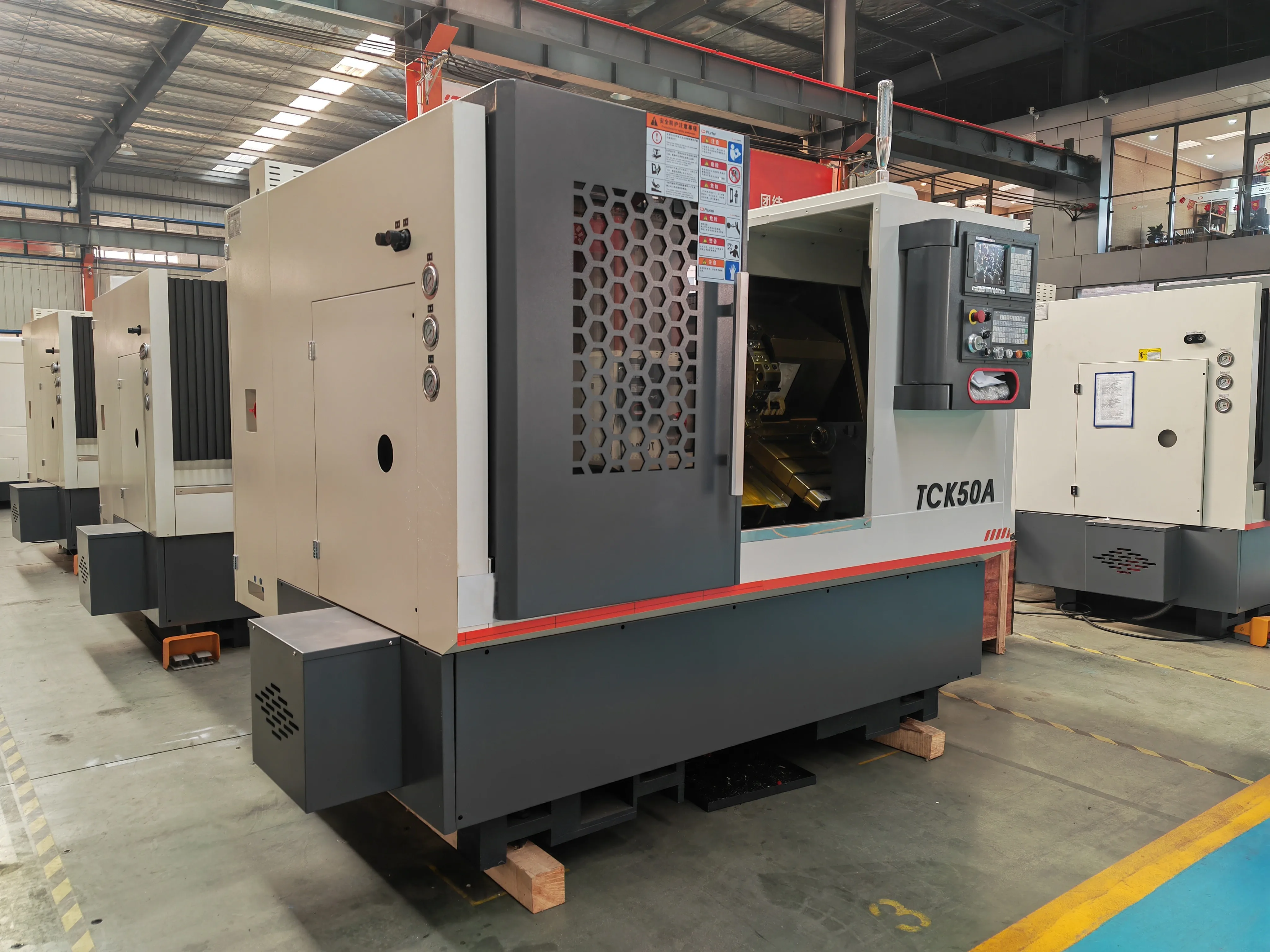

Slant Bed CNC lathe TCK50A*800

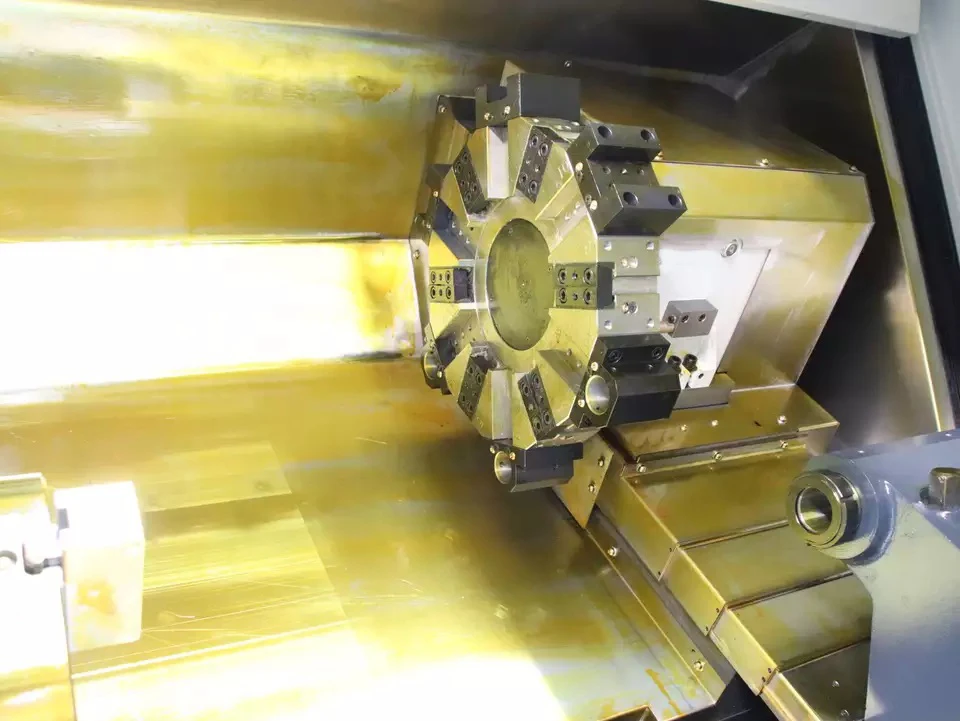

The TCK Series High Precision CNC Turning Center Slant Bed product is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.

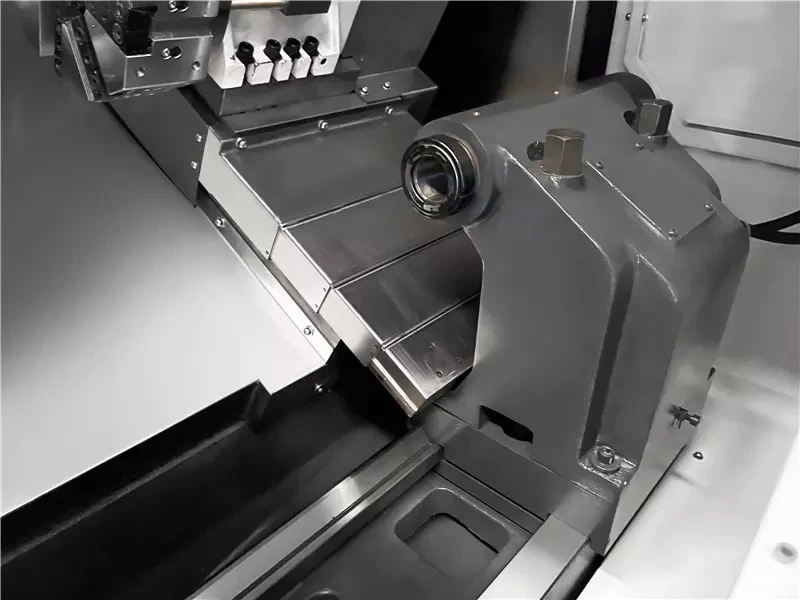

Features
1.The inclined guide rail is mainly used to overcome gravity and have better stability to improve the precision of the machine tool
2.The inclined machine tool can effectively utilize the space and greatly reduce the plane occupied by the machine tool.
3.The inclined guide rail also facilitates the concentration of iron chips on the chip conveyor for automatic chip removal.
1.The inclined guide rail is mainly used to overcome gravity and have better stability to improve the precision of the machine tool
2.The inclined machine tool can effectively utilize the space and greatly reduce the plane occupied by the machine tool.
3.The inclined guide rail also facilitates the concentration of iron chips on the chip conveyor for automatic chip removal.
Specifications | Units | TCK50A/800 | ||
Max. Swing over bed | mm | Φ560 | ||
Swing over cross slide | mm | Φ260 | ||
Distance between center | mm | 800 | ||
Max. disc machining diameter | Φ440 | |||
Max. turning length | mm | 800 | ||
Spindle end type | A2-8 | |||
Spindle through hole diameter | mm | Φ86 | ||
Bar diameter | mm | Φ75 | ||

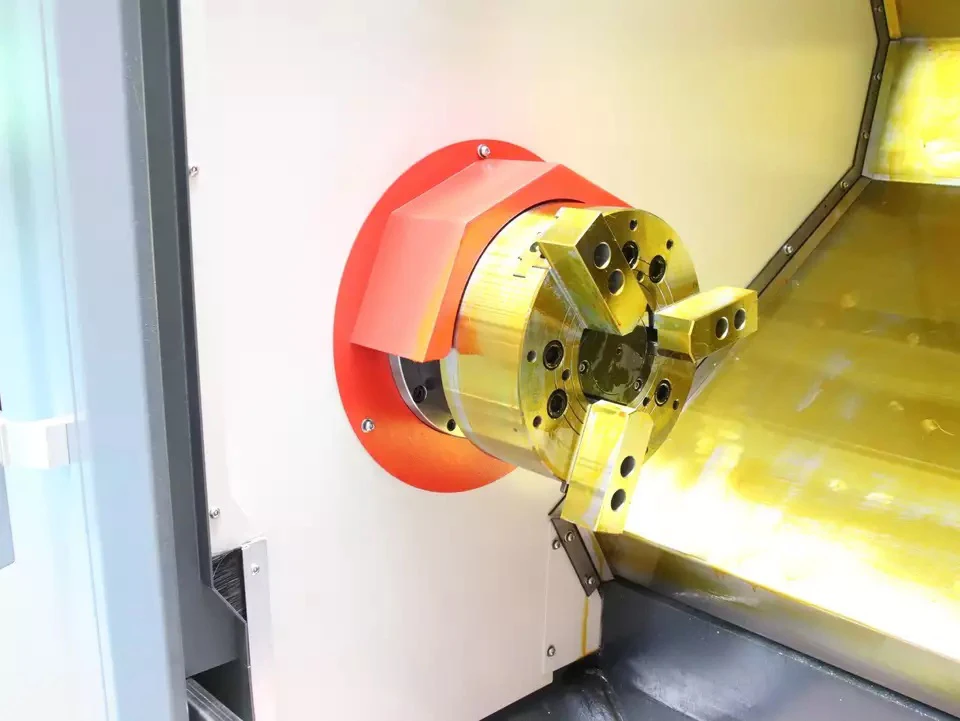

hydraulic chuck | mm | 10寸 | ||
Hydraulic chuck pull rod through hole | mm | Φ75 | ||
Rail form | Linear Guides | |||
Spindle taper taper | No | Metric 92 1：20 | ||
Spindle limit speed | rpm | 3000rpm | ||
Tail-stock sleeve diameter | mm | 90 | ||
Tail-stock sleeve inner hole taper | No | Mohs 5# | ||
Tail-stock sleeve stroke | mm | 80 | ||
Tail stock form | Hydraulic | |||
Tool post/Turret | Position | 8 | ||
Knife square size | mm | 25´25 | ||
Screw model | X-Direction | 3210 | ||
Z-Direction | 4010 | |||
Rail model | X-Direction | RGH35CA2R725 | ||
Z-Direction | RGH35CA2R1515 | |||
X/Z motor torque | N.M | 10/10 | ||
X/Z rapid traverse speed | m/min | 18/18 | ||
X travel | mm | 260 | ||
Z travel | mm | 860 | ||
Mini. setting unit | mm | 0.0001 | ||
Main motor power | KW | 22 | ||
Machine net weight | Kg | 4000 | ||
Dimensions (L×W×H) | mm | 3300*2000*2000 | ||
