Cnc vertical machining center high Precision vmc1370 Fanuc 5 axis cnc milling machine
- Category: >>>
- Supplier: Shandong HR Machinery Co. Ltd.
Share on (1600810648162):
Product Overview
Description
Product Paramenters
Model | VMC650 | VMC840 | VMC850 | VMC855 | VMC966 | vmc1050 |
Table size (mm) | 1000x400 | 1000x400 | 1000x500 | 1000x550 | 1100x550 | 1200X420 |
Max. allowable load (Kg) | 400 | 300 | 500 | 500 | 600 | 500 |
X-axis stroke (mm) | 650 | 800 | 800 | 800 | 900 | 1000 |
Y-axis travel (mm) | 400 | 400 | 500 | 550 | 600 | 500 |
Z-axis travel (mm) | 550 | 550 | 500 | 550 | 600 | 550 |
T-slot | 3-18-120 | 3-18-140 | 5-18-108 | 5-18-90 | 5-18-100 | 5-18-100 |
spindle center to Z-axis guide surface (mm) | 485 | 445 | 552 | 590 | 663 | 575 |
spindle end face to work table (mm) | 100-650 | 100-650 | 110-610 | 120-670 | 100-700 | 100-650 |
Spindle taper hole | BT40-120 | BT40-120 | BT40-140 | BT40-150 | BT40-150 | BT40-150 |
Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 |
X/Y/Z rapid movement (m/min) | 48/48/48 | 30/30/18 | 48/48/48 | 48/48/48 | 48/48/48 | 18/18/18 |
Machine Weight (Kg) | 3800 | 3200 | 5300 | 5500 | 5600 | 5500 |
Model | VMC1160 | VMC1165 | VMC1265 I | VMC1370 | VMC1580 | vmc1690 |
Table size (mm) | 1200x600 | 1200x600 | 1200x600 | 1400x700 | 1700X800 | 1800X900 |
Max. allowable load (Kg) | 800 | 800 | 800 | 800 | 1500 | 1500 |
X-axis stroke (mm) | 1100 | 1100 | 1200 | 1300 | 1500 | 1600 |
Y-axis travel (mm) | 600 | 650 | 650 | 700 | 800 | 900 |
Z-axis travel (mm) | 600 | 650 | 650 | 750 | 700 | 700 |
T-slot | 5-18-100 | 5-18-100 | 5-18-100 | 5-18-130 | 5-22-135 | 5-22-165 |
spindle center to Z-axis guide surface (mm) | 650 | 710 | 710 | 713 | 855 | 950 |
spindle end face to work table (mm) | 120-720 | 120-720 | 120-770 | 120-870 | 160-860 | 170-800 |
Spindle taper hole | BT40-150 | BT40-150 | BT40-150 | BT40-150 | BT50-155 | BT50 |
Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 | 6000 | 6000 |
X/Y/Z rapid movement (m/min) | 36/36/24 | 36/36/36 | 36/36/36 | 24/24/24 | 24/24/18 | 15/15/12 |
Machine Weight (Kg) | 6500 | 6800 | 6800 | 8000 | 12000 | 14000 |

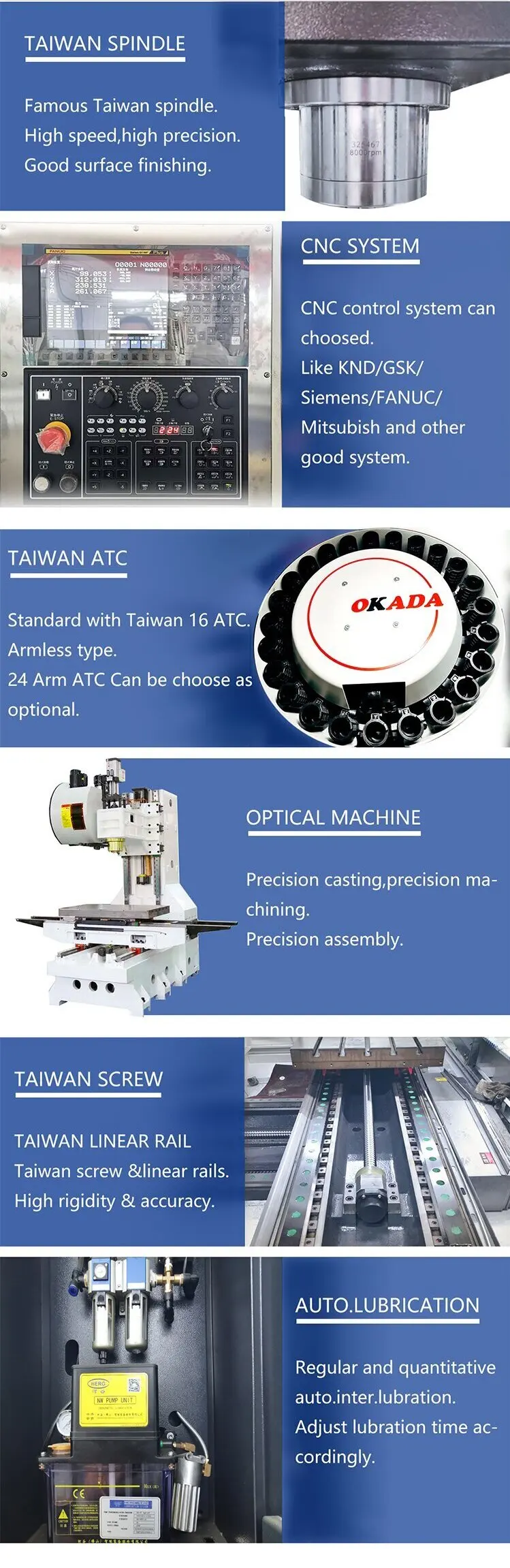

STANDARD CONFIGURATION:
1. KND2000MF3i Control System
2. Taiwan BT50-6000 spindle.
3. Taiwan 16 tools ATC
4. Taiwan HIWIN three axis linear guideway
5. Taiwan Hiwin ball screw.
6. Work Lamp.
7. Full Enclosure Machine Guard.
OPTIONAL CONFIGURATION:
1. Siemens Fanuc Syntec KND Mitusbishi GUNT.
2. 16T/ 24T arm type tool changer.
3. Chain type chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil cooler.
6. Coolant through spindle.
7. Renishaw probe for workpiece and tool.
8. 10000RPM/ 12000RPM spindle.
Important note:
1. Please confirm your local voltage with our sales staff before ordering.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
1. Please confirm your local voltage with our sales staff before ordering.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Product Description
VMC series vertical CNC milling machine adopts vertical frame layout, the column is fixed on the bed body, the headstock moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the table moves laterally along the slide (X To) the structure.
The large parts such as bed, workbench, sliding seat, column and headstock are made of resin sand castings, and after two aging treatments, the stress is eliminated, the stability is good, the strength is high, and the stability of the long-term use precision of the machine tool is ensured. It provides a guarantee for the stability of machine performance. These large pieces are optimized by Soldworks and Ansys to improve the rigidity and stability of the large parts and the whole machine, effectively suppressing the deformation and vibration of the machine tool caused by the cutting force.
Product Advantages
The advantages of Machining center vmc 1370
1. The main parts of machine tool 1370 in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metal lost ructure.
2. Machining center 1370 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metal lographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. The machining center 1370 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
4. Machining center 1370 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine
tool.
2. Machining center 1370 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metal lographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. The machining center 1370 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
4. Machining center 1370 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine
tool.
Application Example
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing
