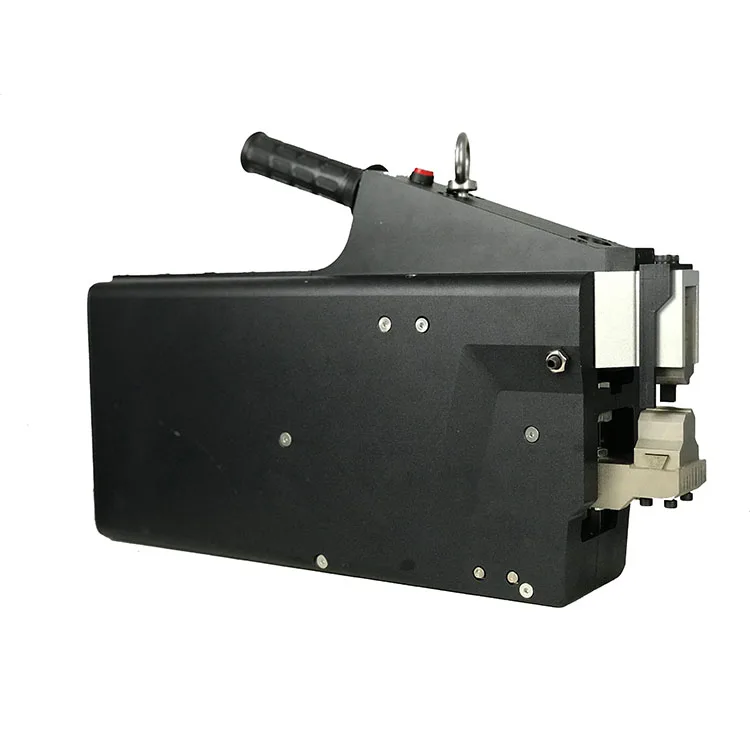

Ultrasonic Tube Sealing Machine

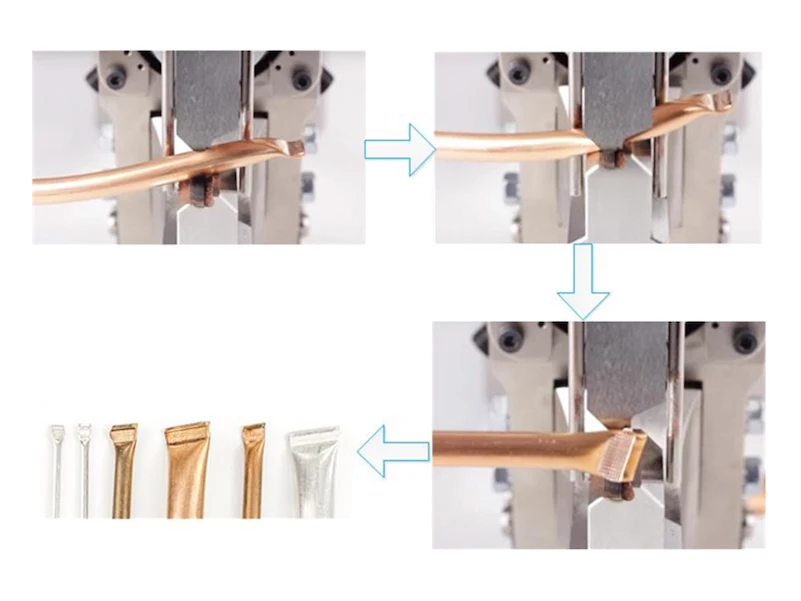

Ultrasonic sealing systems hermetically seal copper and aluminum tubes. A one-step operation crimps, seals and cuts off charged tubes in under one second. Systems are suited to automation for high levels of efficiency and productivity.
The 20kHz portable ultrasonic metal tube sealer specifically designed for explosive environments and can seal copper tubes up to 12mm in diameter. Its precise controls ensure consistent seals and are not operator-dependent, unlike alternative brazing processes.
Applications include sealing charged tubes used in refrigerators, air conditioners and bulb temperature sensors, as well as capillary tubes.
The 20kHz portable ultrasonic metal tube sealer specifically designed for explosive environments and can seal copper tubes up to 12mm in diameter. Its precise controls ensure consistent seals and are not operator-dependent, unlike alternative brazing processes.
Applications include sealing charged tubes used in refrigerators, air conditioners and bulb temperature sensors, as well as capillary tubes.
Ultrasonic Tube Sealing Machine
No | Item | XW-P2040 |
1 | Ultrasonic frequency | 20KHZ |
2 | Power | 4000W |
3 | Voltage | AC 110V/220V 50/60hz |
4 | Air pressure | 0.3-0.6 Mpa |
5 | Generator Type | Digital auto frequency tracking, can be adjusted the output amplitude from 5% to 100% |
6 | Automatic frequency tracking accuracy | ±5HZ |
7 | Power stability | ≤ 5% |
8 | Remote terminal responds dynamically | ≤10ms |
9 | Overcurrent protection current | 10A |
10 | Overcurrent protection time | 100ms |
11 | Size | Controller: 420mm(L) * 380mm(W) *200mm(H) Welder: 510mm(L) *280mm(W) *210mm(H) |
12 | Weight | Welder : 35kg, Controller : 10kg |
13 | Warranty | One year warranty with lifetime support |
Features
* Automatic splice width adjustment from 0.5 to 40 mm (depending upon power level)
* Microcomputer control, electronic tuning frequency.
* Power adjustable, operate simple, and run stable and reliable.
* LED display keeps the machine visible in operation and regulation.
* Imported components, good performance in energy output.
* Overcurrent protection and soft start can keep the machine safe.
* Easy installation and operation.
* Not only similar metal, but also dissimilar all can welding together.
* Special sealing and cutting equipment for copper and aluminum pipes, good sealing effect, high air and water tightness after sealing and cutting, no air leakage and no water seepage
* Equipped with high-performance ultrasonic metal spot welding power source, automatic tracking of transducer frequency with two control modes of time and energy;
* The sealing and cutting do not need to be melted, the material characteristics are not changed, and there is no pollution;
* It is suitable for sealing and cutting of a variety of different materials, different pipe diameters and pipe thickness materials, with a wide range of applications;
* The performance of the equipment is stable, the automated production line can be customized, and the production efficiency is high, suitable for mass production in the factory;
* The sealing and cutting time is short, without any flux, shielding gas and filler
* Equipped with high-performance ultrasonic metal spot welding power source, automatic tracking of transducer frequency with two control modes of time and energy;
* The sealing and cutting do not need to be melted, the material characteristics are not changed, and there is no pollution;
* It is suitable for sealing and cutting of a variety of different materials, different pipe diameters and pipe thickness materials, with a wide range of applications;
* The performance of the equipment is stable, the automated production line can be customized, and the production efficiency is high, suitable for mass production in the factory;
* The sealing and cutting time is short, without any flux, shielding gas and filler
Application
Refrigerator and air conditioner copper tube sealing.
Vacuum parts of copper tube and aluminum tube sealing.
