Copper Wire Offline Annealing And Tin coating Machine Production Line
- Category: >>>
- Supplier: Jiangsu Jiacheng Technology Co. Ltd.
Share on (1600810726797):
Product Overview
Description
Product Overview
Features:

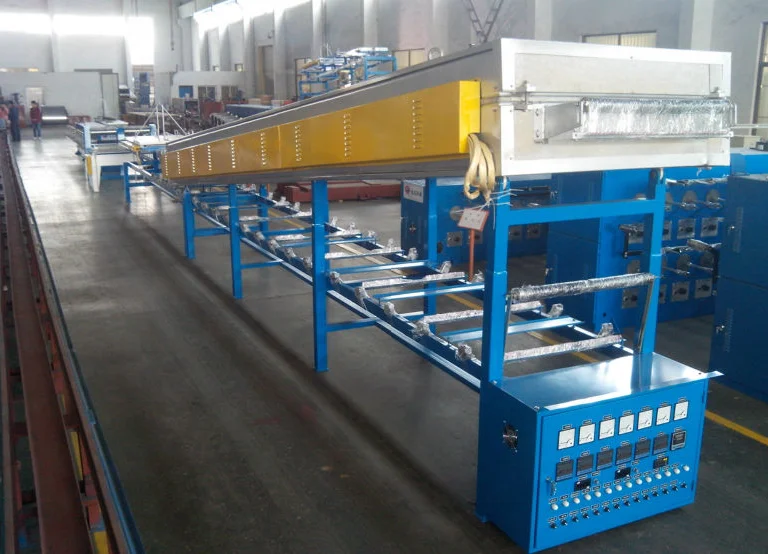

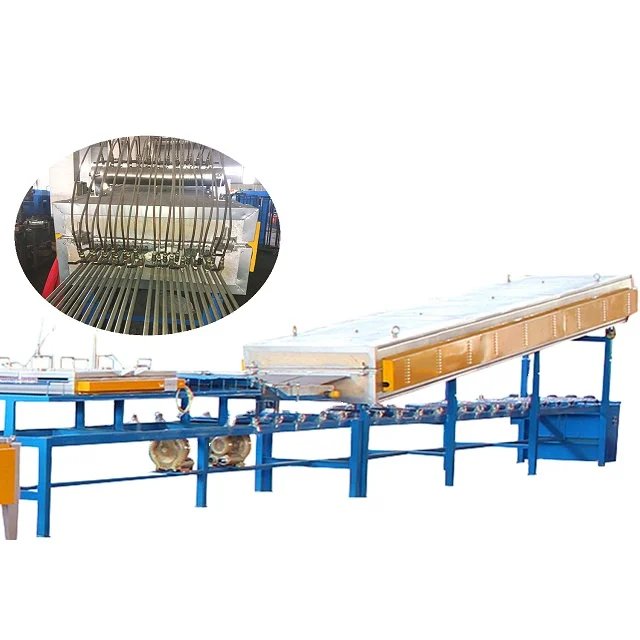

1. Add one room inside the annealer, can make the temperature impartial distribution.

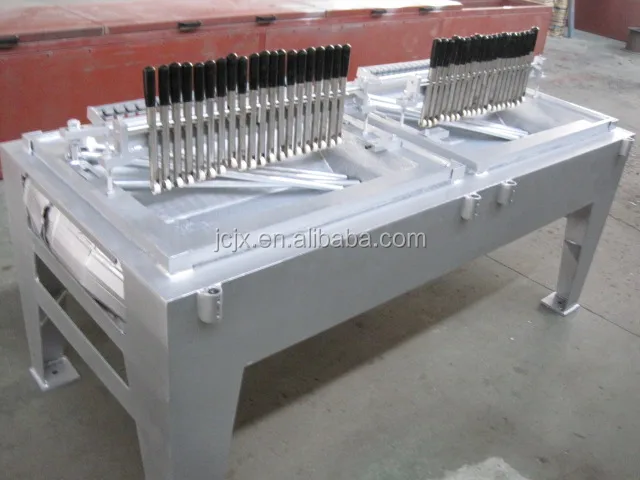

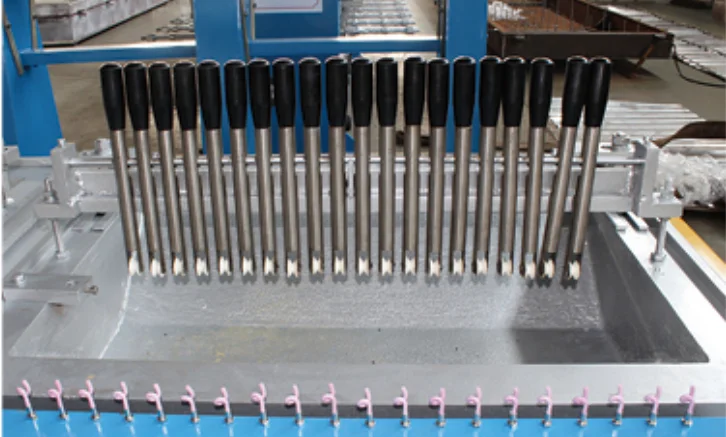

2. Dual tinning tank design, it can produce two kinds of tin-coating copper wire.
3. Spooler arranged in double layer can save space.
1. Add one room inside the annealer, can make the temperature impartial distribution.
2. Dual tinning tank design, it can produce two kinds of tin-coating copper wire.
3. Spooler arranged in double layer can save space.
Technical Parameter
Machine type | JCJX-12H | JCJX-32/3.5 | JCJX-40H/4.5 | JCJX-40H/6 | JCJX-40H/7.5 | |||
No.of wire | 12 | 32 | 40 | 40 | 40 | |||
Wire Dia.(mm) | φ0.35-φ1.05 | φ0.038-φ0.08 | φ0.08-φ0.32 | φ0.1-φ0.65 | φ0.1-φ0.7 | |||
Pay-off type | Overhead | Brush | Brush or overhead | |||||
Max.speed(m/min) | 100 | 300 | 300 | |||||
Annealing type | none | radiation heating+water seal protection | ||||||
Tinning type | Hot coating | Hot coating | ||||||
Pay-off Bobbin Size(mm) | φ300~φ630 | φ250 | φ300 | |||||
Take-up type | Pail spooler | Single spooler drive by torque motor | ||||||
Traversing type | Coiling type | Motor+inverter control | ||||||
Take-up bobbin size | φ300*φ150*365 | 4‘’~5‘’ | 5"~8" | 5"~10" | 5"~10" | |||
Total power(KW) | 20 | 50 | 50 | 65 | 75 | |||
Main Usage
——mainly used to transmit electrical energy、information and complete electromagnetic energy conversion
