China GB/T high precision micro YD 17144QZD fully automatic residual carbon analyzer for petroleum products
- Category: >>>
- Supplier: Dalian Yeda Technology Development Co. Ltd.
Share on (1600810889889):
Product Overview
Description
Automatic carbon residue tester for petroleum products
YD-17144QZD micro method
Applicable standard ASTM D4530 GB/T17144
Applicable standard | GB/T17144 ASTM D4530 |
Temperature control range | room temperature~500 ℃ |
Temperature control accuracy | ± 2.0 ℃ |
Heating power | 1000W |
Working pressure | 150kPa |
Air source pressure | Level 1 pressure: above 2MPa |
Secondary pressure | below 0.5MPa |
Nitrogen flow | 150mL/min~600mL/min |
Test unit | 12 tubes |
Storage records | 200 |
Printing method | micro printer |
Working power supply | AC220V 50HZ |
Scope of application:
This instrument is designed and manufactured in accordance with the Chinese petroleum industry standard GB/T17144, and is suitable for the detection of carbon residue in petroleum products. The range applicable to the determination of carbon residue is 0.10% to 30.0% (m/m) of petroleum products. This tester is also applicable to petroleum products composed of distillate oil with a carbon residue value below 0.10% (m/m).
This instrument is designed and manufactured in accordance with the Chinese petroleum industry standard GB/T17144, and is suitable for the detection of carbon residue in petroleum products. The range applicable to the determination of carbon residue is 0.10% to 30.0% (m/m) of petroleum products. This tester is also applicable to petroleum products composed of distillate oil with a carbon residue value below 0.10% (m/m).
Performance characteristics:

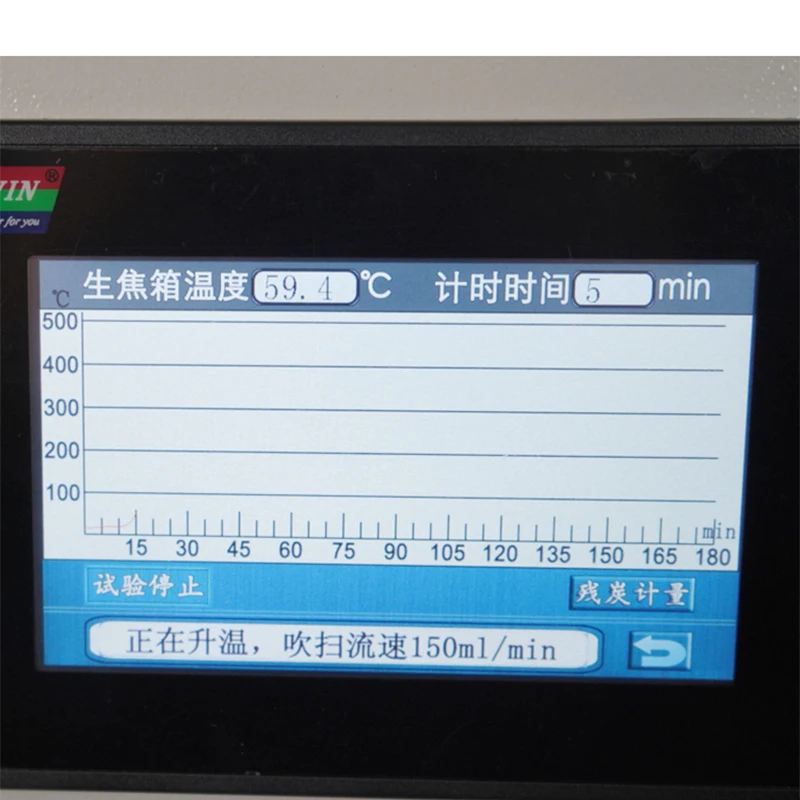

1.7 inch color LCD touch screen, fashionable and beautiful. Chinese man-machine dialogue interface, clear and intuitive.

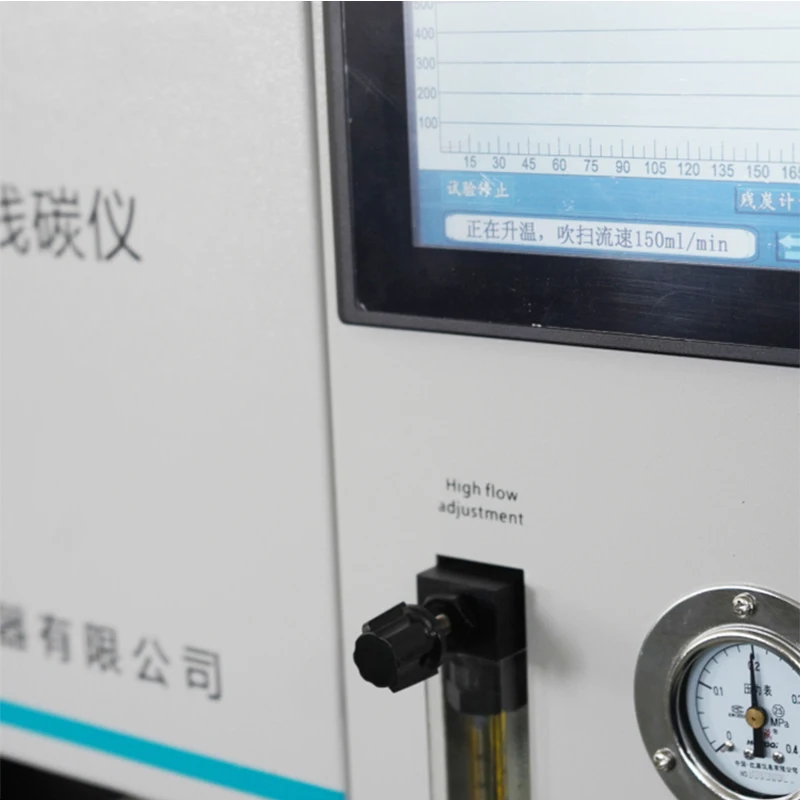

2. Foreign advanced gas flow meters are used, equipped with high-precision electromagnetic valves, and the nitrogen flow is automatically adjusted during the test without manual intervention.
3. Adopt foreign high-precision temperature control module, PID tuning, high temperature control accuracy, and stable heating rate.
4. During the entire test process, nitrogen is used to protect the air flow, ensuring that the test is safe and reliable.
5. The host computer is controlled by a microprocessor program, which automatically heats up during the test, automatically adjusts, stores, and prints nitrogen gas flow, and automatically shuts down after the test.
6. Weigh the sample with a high-precision electronic balance (optional).
1.7 inch color LCD touch screen, fashionable and beautiful. Chinese man-machine dialogue interface, clear and intuitive.
2. Foreign advanced gas flow meters are used, equipped with high-precision electromagnetic valves, and the nitrogen flow is automatically adjusted during the test without manual intervention.
3. Adopt foreign high-precision temperature control module, PID tuning, high temperature control accuracy, and stable heating rate.
4. During the entire test process, nitrogen is used to protect the air flow, ensuring that the test is safe and reliable.
5. The host computer is controlled by a microprocessor program, which automatically heats up during the test, automatically adjusts, stores, and prints nitrogen gas flow, and automatically shuts down after the test.
6. Weigh the sample with a high-precision electronic balance (optional).
Accessory configuration:
Test tube rack 1 |
One handle |
12 test tubes |
Electronic balance (optional) |
Drying box (optional) |
