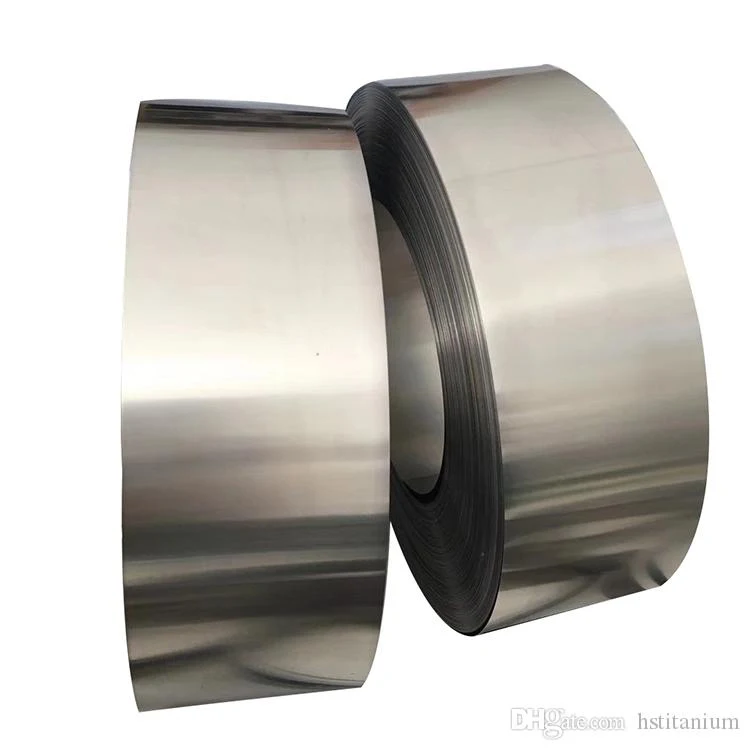

Implant Acoustic Diaphragms Foil In Stock Titanium Tape for Titanium Stove Foil Strip
- Category: >>>
- Supplier: Baoji Dynamic Trading Co. Ltd.
Share on (1600810962135):
Product Overview
Description
Product Overview

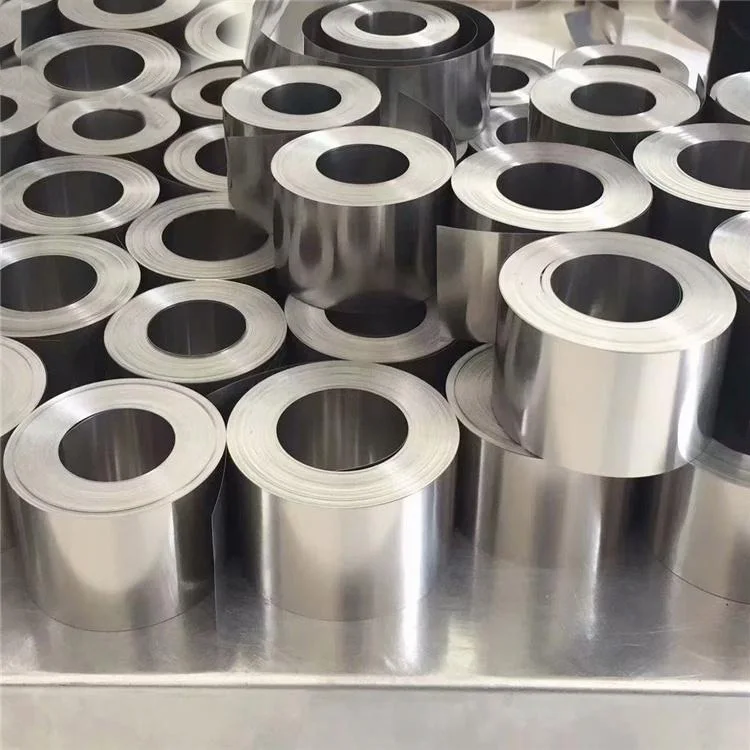

Grade1 Grade5 titanium sheets pure ti strip ultrathin titanium foil
♠Titanium foil is a titanium plate, strip, roll or sheet with a thickness of less than or equal to 0.1mm. The maximum width of rolled titanium foil is about 600mm.
♠The width of the titanium foil is cut according to the requirements of the user.But the wider the manufacturing, the higher the productivity.
♠Titanium foil is mainly used in aerospace, navigation, nuclear power, electronics, chemical industry, petroleum, precision manufacturing, medical pharmaceutical and other aspects.
♠The width of the titanium foil is cut according to the requirements of the user.But the wider the manufacturing, the higher the productivity.
♠Titanium foil is mainly used in aerospace, navigation, nuclear power, electronics, chemical industry, petroleum, precision manufacturing, medical pharmaceutical and other aspects.
PRODUCT SPECIFICATIONS
Description | Titanium foil/titanium strip | Data | |||||
Material | Gr1, Gr2, Gr3,Gr4,Gr5, Gr7, Gr6,Gr9, Gr11, Gr12 ,Gr16, Gr17,Gr25 TA0,TA1,TA2,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4 | 37.5KW | |||||
Standard | ASTM B265,ASME SB265,DIN17851,TiA16Zr5Mo1.5,JIS4100-2007,GB3461-2007 | 2.8 M3 | |||||
Size | Thickness:0.01-2.0mm Width:0.7-240mm Length:according to requirements | 125Ton | |||||
MOQ | 1 Kilogram/Kilogrames | 96kN | |||||
Equepment used | CNC lathes, Milling machine, Machining Center,Thread rolling machine Magnetic needle polishing machine | 96kN | |||||
Features | 1.high corrosion resistance 2.low density 3.non-ferromagnetic 4.good biocompatibility | 60kN | |||||
Package | Standard export package,suit for all kinds of transport ,or as required. | 6750ml | |||||
Application | 1.Based on High intensity,titanium products tensile strength can be up to 180Kg/mm². 2.Titanium and titanium alloy in aviation industry, is called "space metal"; In addition, in the shipbuilding industry, chemical industry, manufacturing machinery parts, telecommunications equipment, hard alloy, etc have increasingly extensive application. 3.In addition, because of the titanium alloy with the human body has very good compatibility,so the titanium alloy can also be artificial bone. | 500N.m | |||||
Chemical Composition:
Composition (%) | C | N | Fe | O | H | Al | V | Ti |
GR1 | ≤0.08 | ≤0.03 | ≤0.20 | ≤0.18 | ≤0.015 | - | - | Bal. |
GR2 | ≤0.08 | ≤0.03 | ≤0.30 | ≤0.25 | ≤0.015 | - | - | Bal. |
GR5 | ≤0.10 | ≤0.05 | ≤0.30 | ≤0.20 | ≤0.015 | 5.50-6.80 | 3.50-4.50 | Bal. |
Tensile Requirement :
Grade | Tensile Strength | Yield Strength 0.2% Offset | Elongation in 2 in.or 50mm min.% | Bend Test | ||||||||||
Min | Max | Min | Max | Under 0.070 in.(1.8mm)in thickness | 0.070 to 0.187 in. (1.8 to 4.75mm)in thickness | |||||||||
Ksi | Mpa | Ksi | Mpa | Ksi | Mpa | |||||||||
1 | 35 | 240 | 20 | 138 | 45 | 310 | 24 | 1.5T | 2T | |||||
2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 | 2T | 2.5T | |||||
3 | 65 | 450 | 55 | 380 | 80 | 550 | 18 | 2T | 2.5T | |||||
4 | 80 | 550 | 70 | 483 | 95 | 655 | 15 | 2.5T | 3T | |||||
Production of titanium foil

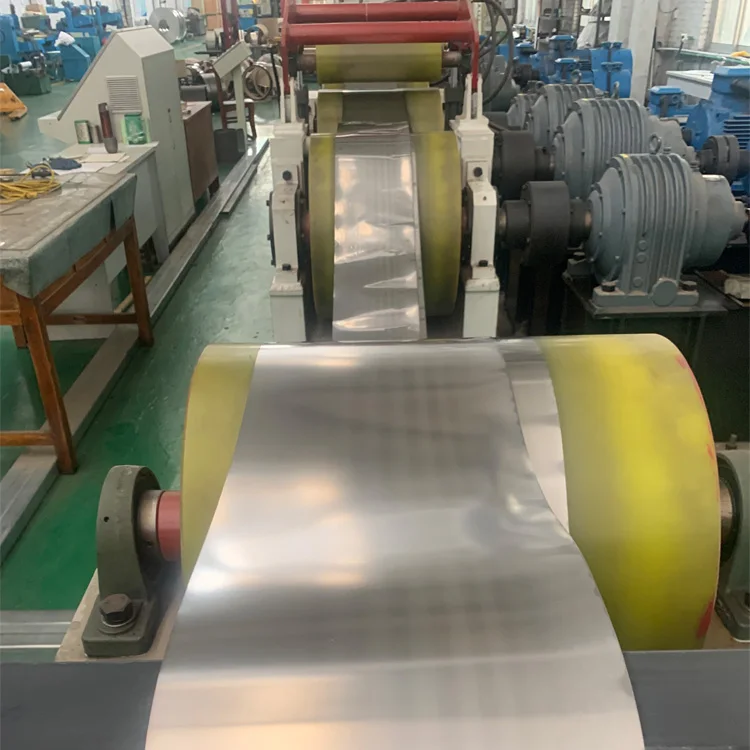

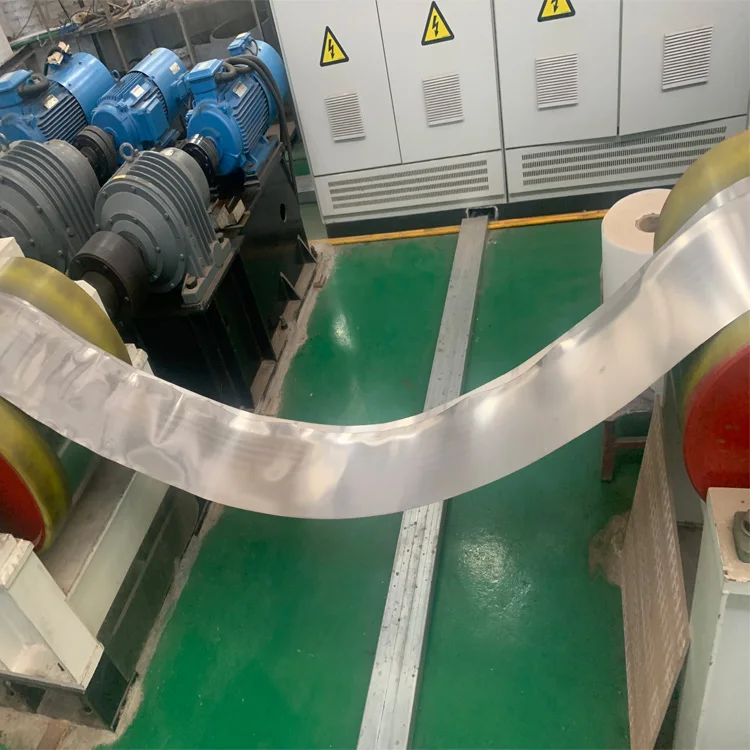

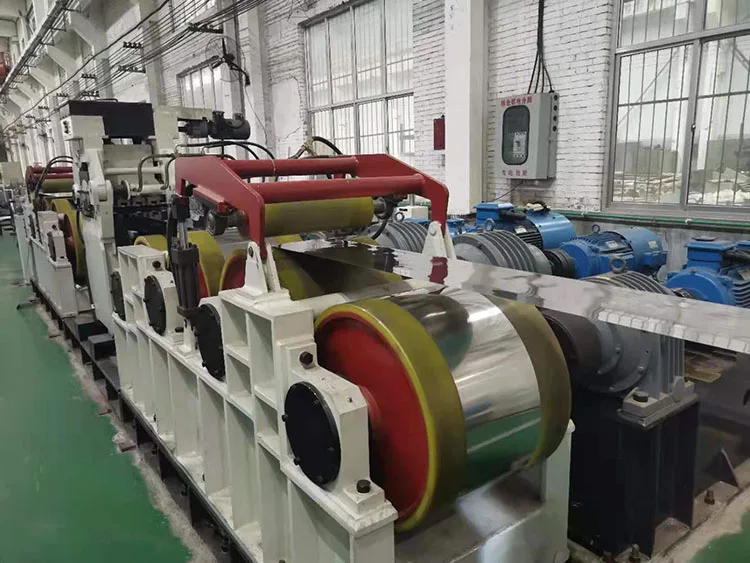

Rolling: Flat roll strip rolling is the most widely used manufacturing method of titanium foil, which has high productivity, large scale and output. Basically, six high cold rolling mill or 20 high cold rolling mill are used for production.
Heat treatment: There are two main heat treatment methods for titanium strip and foil: vacuum annealing and continuous on-line protective annealing. Vacuum annealing is to place rolled or sheet titanium foil in a vacuum furnace for heat treatment;
Continuous on-line protective annealing of titanium strip foil is a new technology introduced in recent years. Compared with vacuum annealing, it has higher production efficiency and higher improvement in product quality, but the equipment threshold is high, especially in terms of product quality and mechanical properties of titanium strip foil
Heat treatment: There are two main heat treatment methods for titanium strip and foil: vacuum annealing and continuous on-line protective annealing. Vacuum annealing is to place rolled or sheet titanium foil in a vacuum furnace for heat treatment;
Continuous on-line protective annealing of titanium strip foil is a new technology introduced in recent years. Compared with vacuum annealing, it has higher production efficiency and higher improvement in product quality, but the equipment threshold is high, especially in terms of product quality and mechanical properties of titanium strip foil
Company Profile
Baoji Dynamic Trading Co.,Ltd. Professional titanium rod manufacturers, titanium screw manufacturers, titanium plate manufacturers, the production of high-quality titanium alloy screws, titanium non-standard parts, titanium standard parts, titanium screws and other products. Is a research and development, production, manufacturing, sales as one of the organization, products are widely used in oxidation, electroplating, unmanned aerial vehicle, ship, ultrasonic, machinery manufacturing, solar energy, electroplating, petroleum, chemical, medical, environmental protection, seafood, communications, construction and other high-tech fields.
SIMILAR PRODUCTS

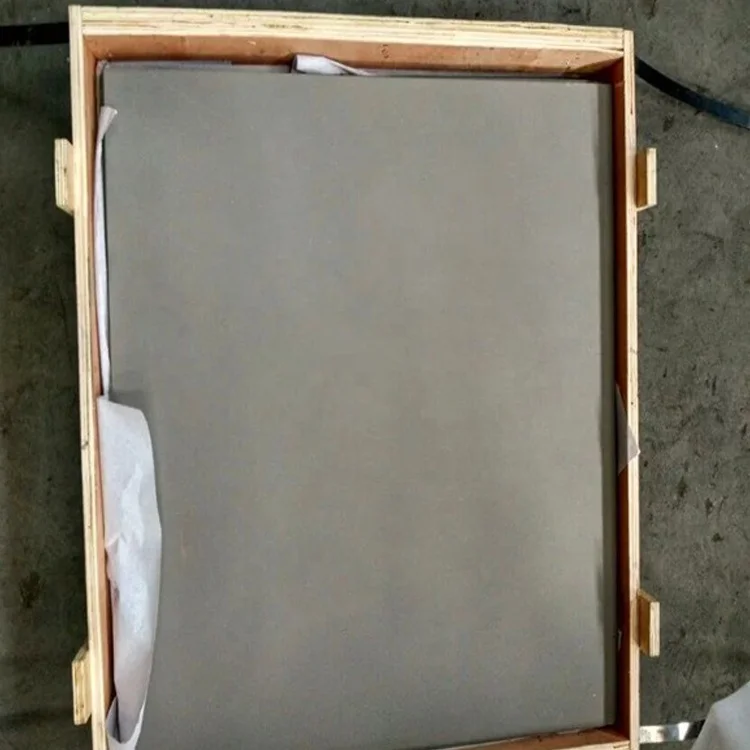

Packing
TPlywood case and then tied by steel band. The packaging will keep the goods more secure when in long distance transportation.
In wooden cases or as customer required.
Our packaging is divided into 3 steps:
1. Use foam and film for preliminary packaging of the product;
2. Repack the terminal posts or raised parts of the product to prevent bumps during transportation;
3. Use standard export wooden boxes for external packaging to ensure safe and smooth delivery of products.

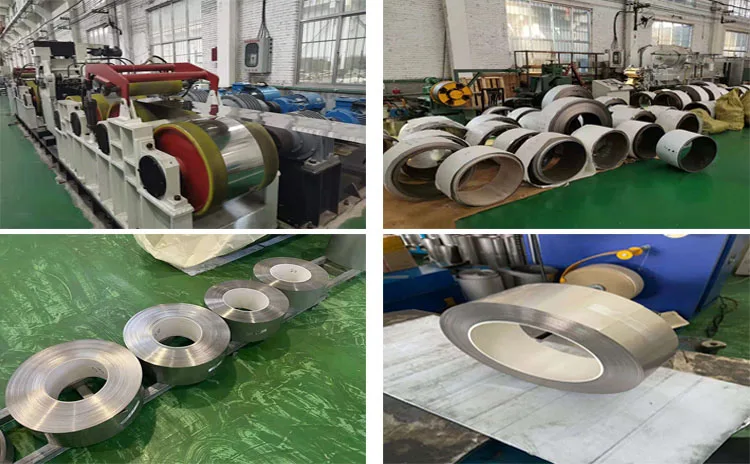

Production Process
Titanium foil Application
Titanium foil material is mainly used for loudspeaker and loudspeaker treble film, using titanium foil to make high fidelity high, clear and bright sound.Titanium foil materials can also be used for self - precision accessories, used for bone implants.
Titanium Foil Features
Corrosion resistance
Low modulus of elasticity
Good heat-exchanger performance
Suction performance
Bear high & low temperature
Non-magnetic and non-toxic
Low modulus of elasticity
Good heat-exchanger performance
Suction performance
Bear high & low temperature
Non-magnetic and non-toxic
