Factory price conveyor moving electrostatic powder coating production line system

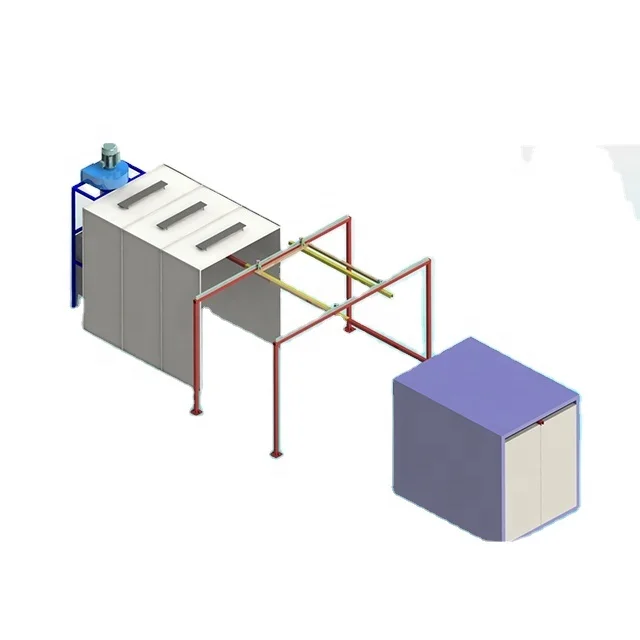

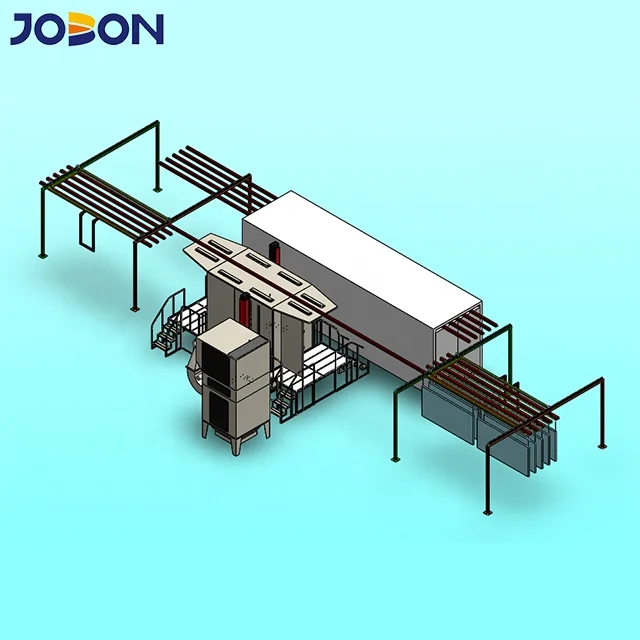

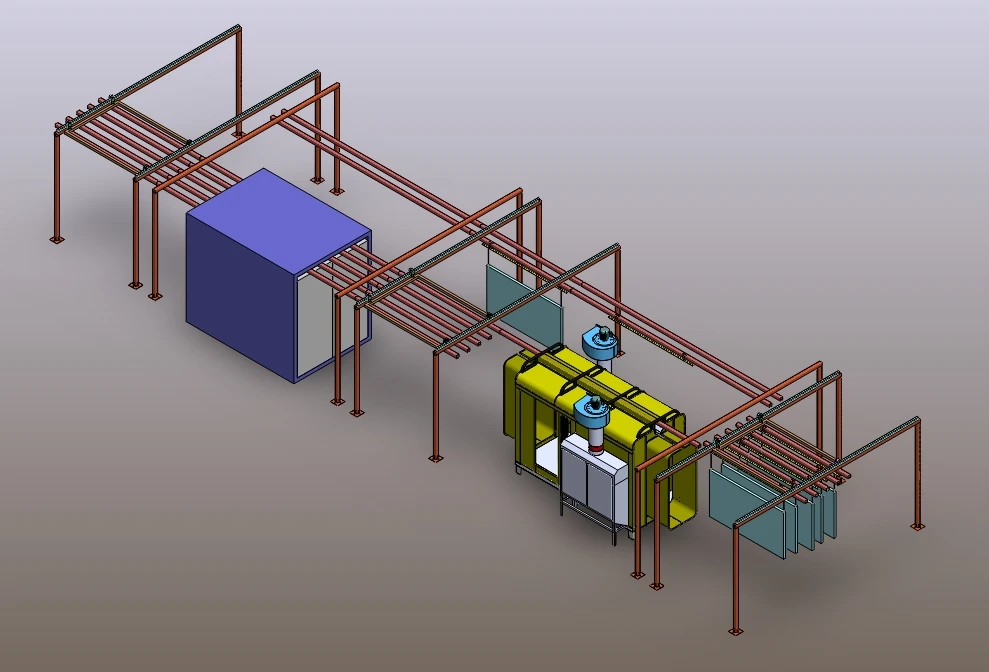

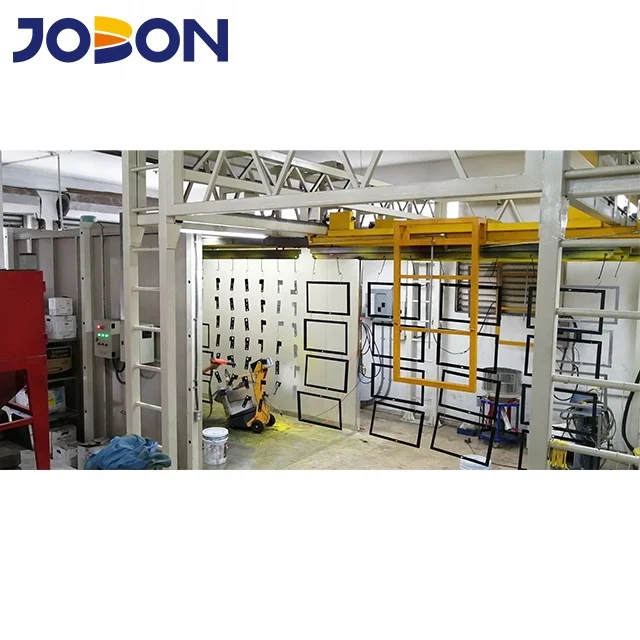

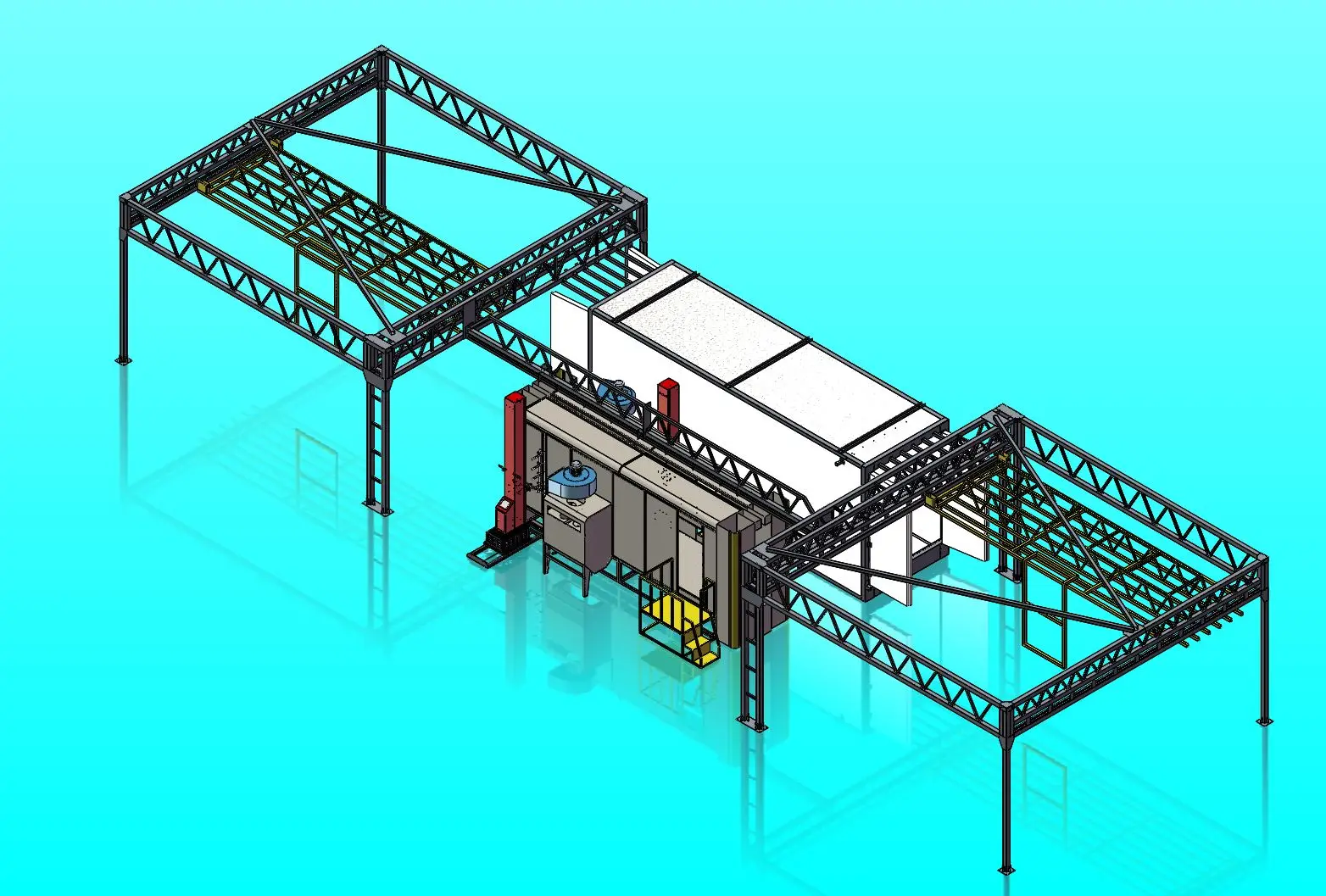

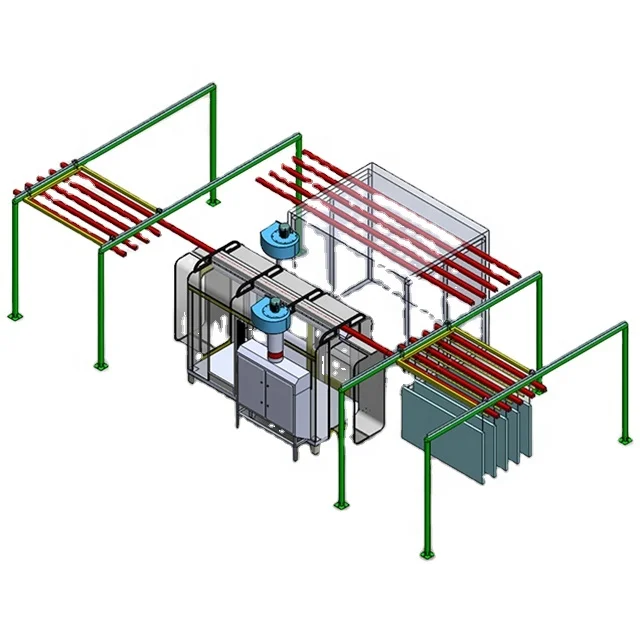

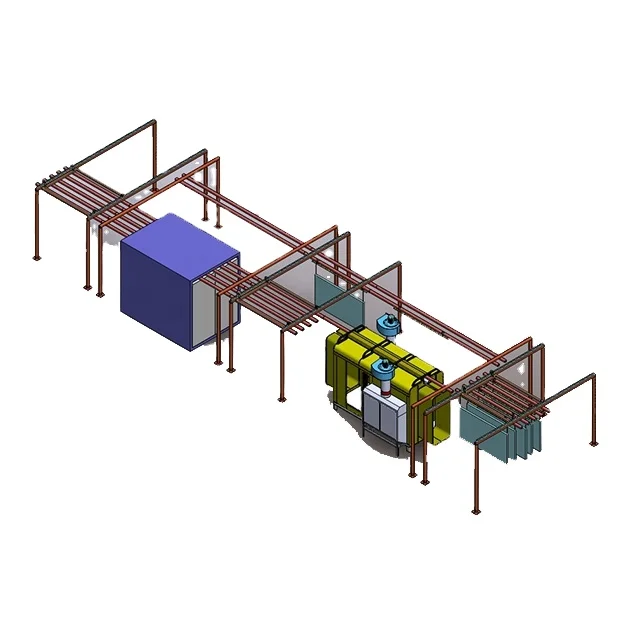

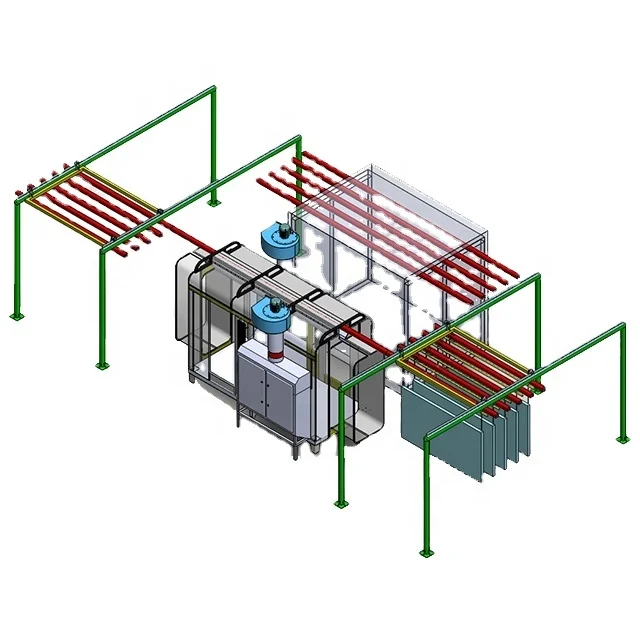

A compact factory price conveyor moving electrostatic powder coating production line system normally includes the powder coating booth which can be an automatic or a manual booth, a curing oven, and overhead conveyor system as well as the all-steel structure support system, etc. It can do efficient production, easy to operate and is with low maintenance, once the coating line is set up, under normal use, it rarely needs maintenance, just use it.
FEATURES AT A GLANCE

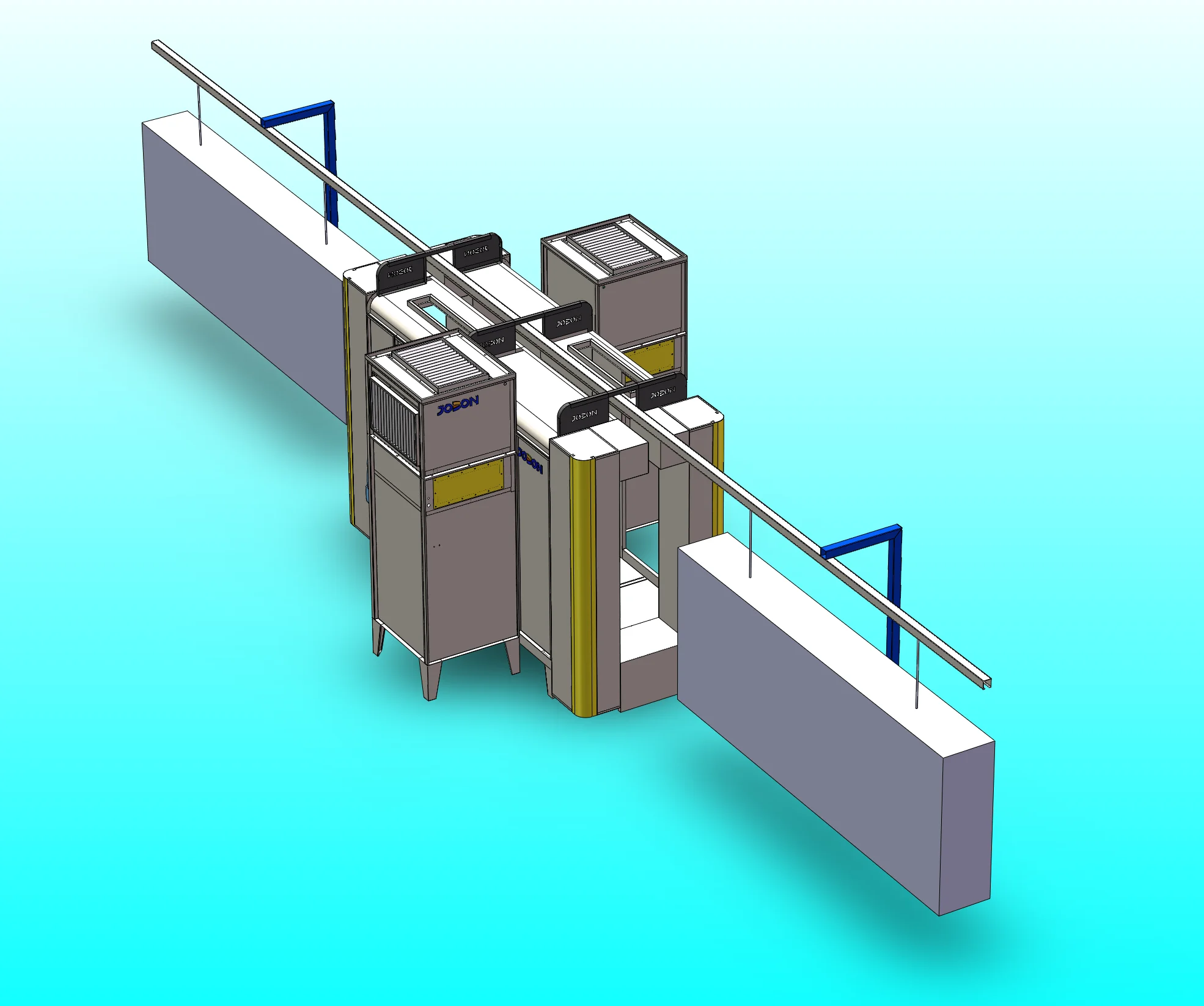

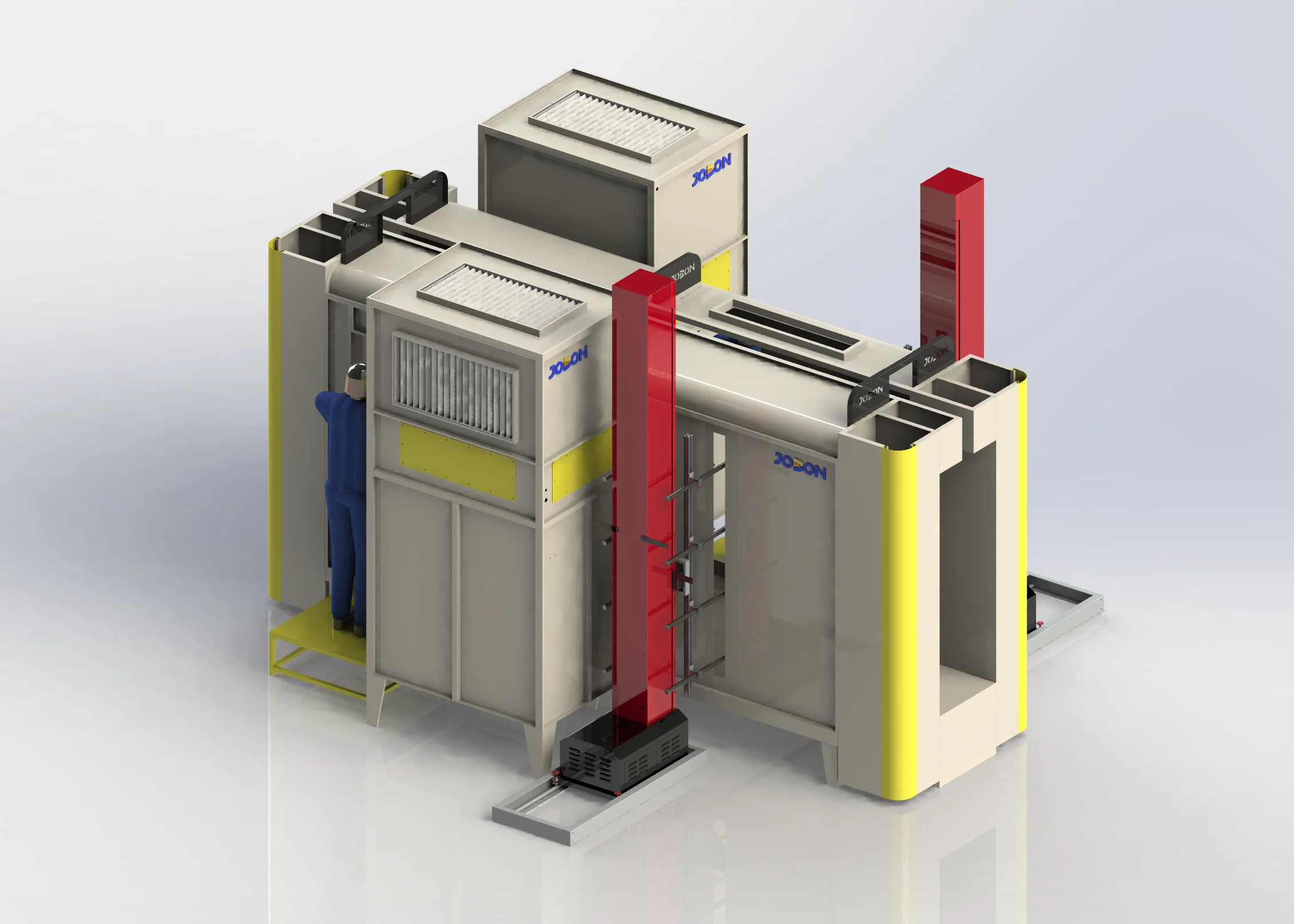

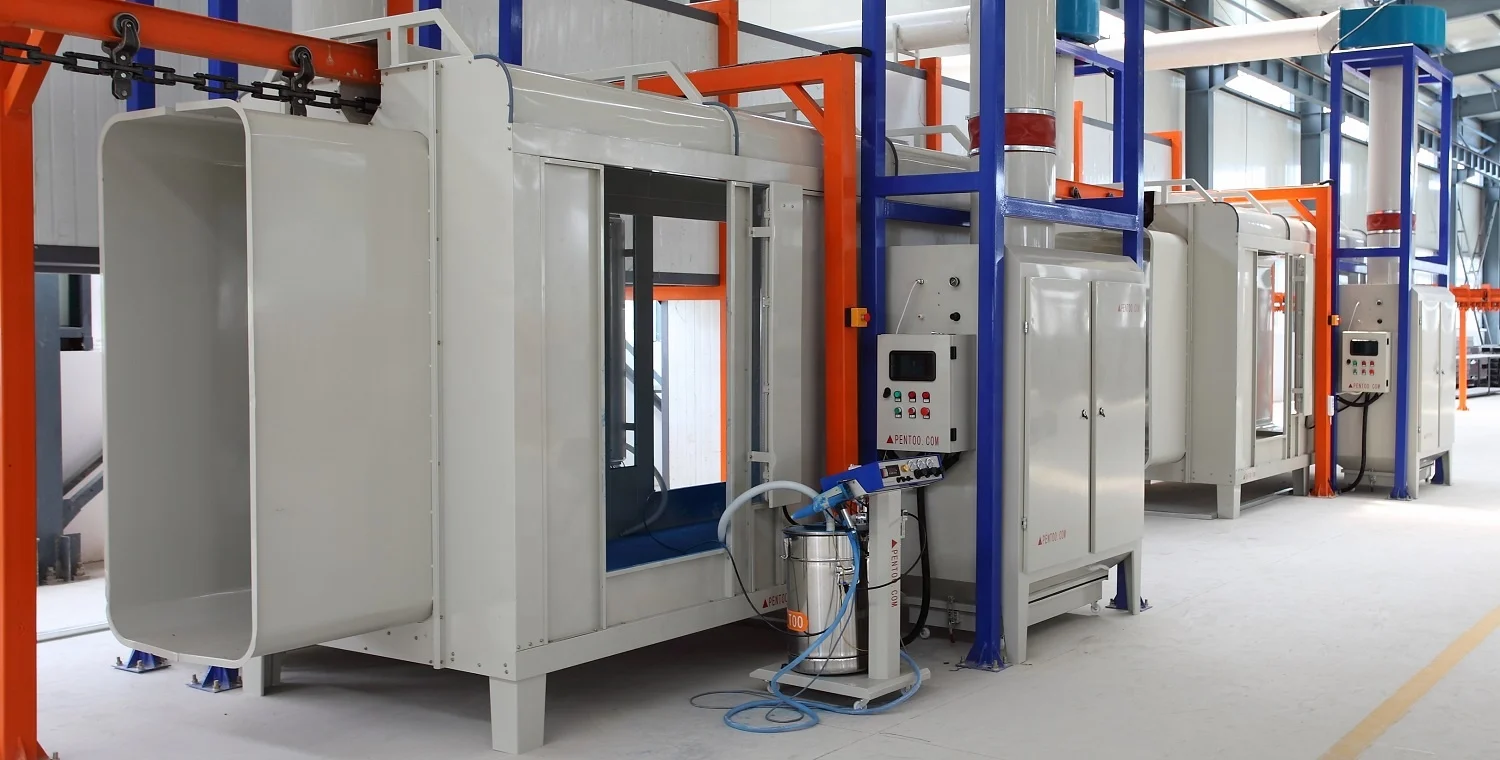

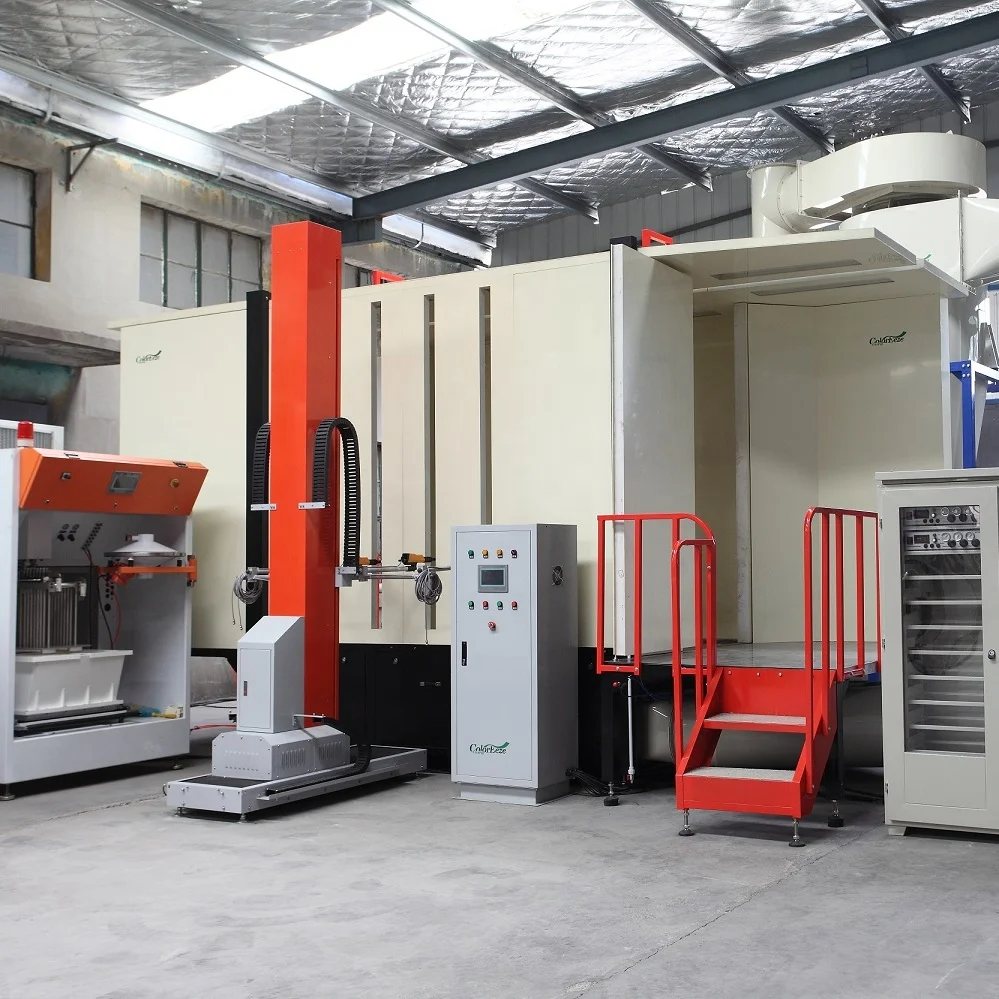

The powder coating booth
It can be a manual booth or an automatic booth as per your requirements;

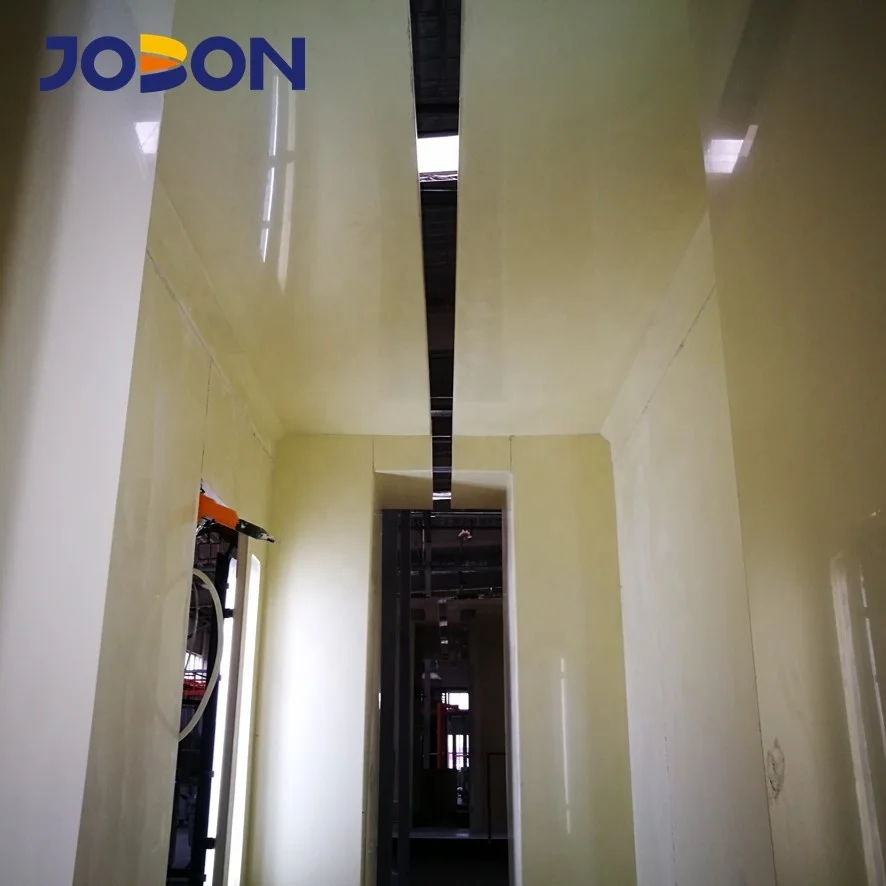

There are many choices for booth materials from the standard level to the top level, including electrolytic galvanized steel,stainless steel, and PVC panels.
PVC booth with stainless steel mono cyclone system is the highest booth system you can choose.

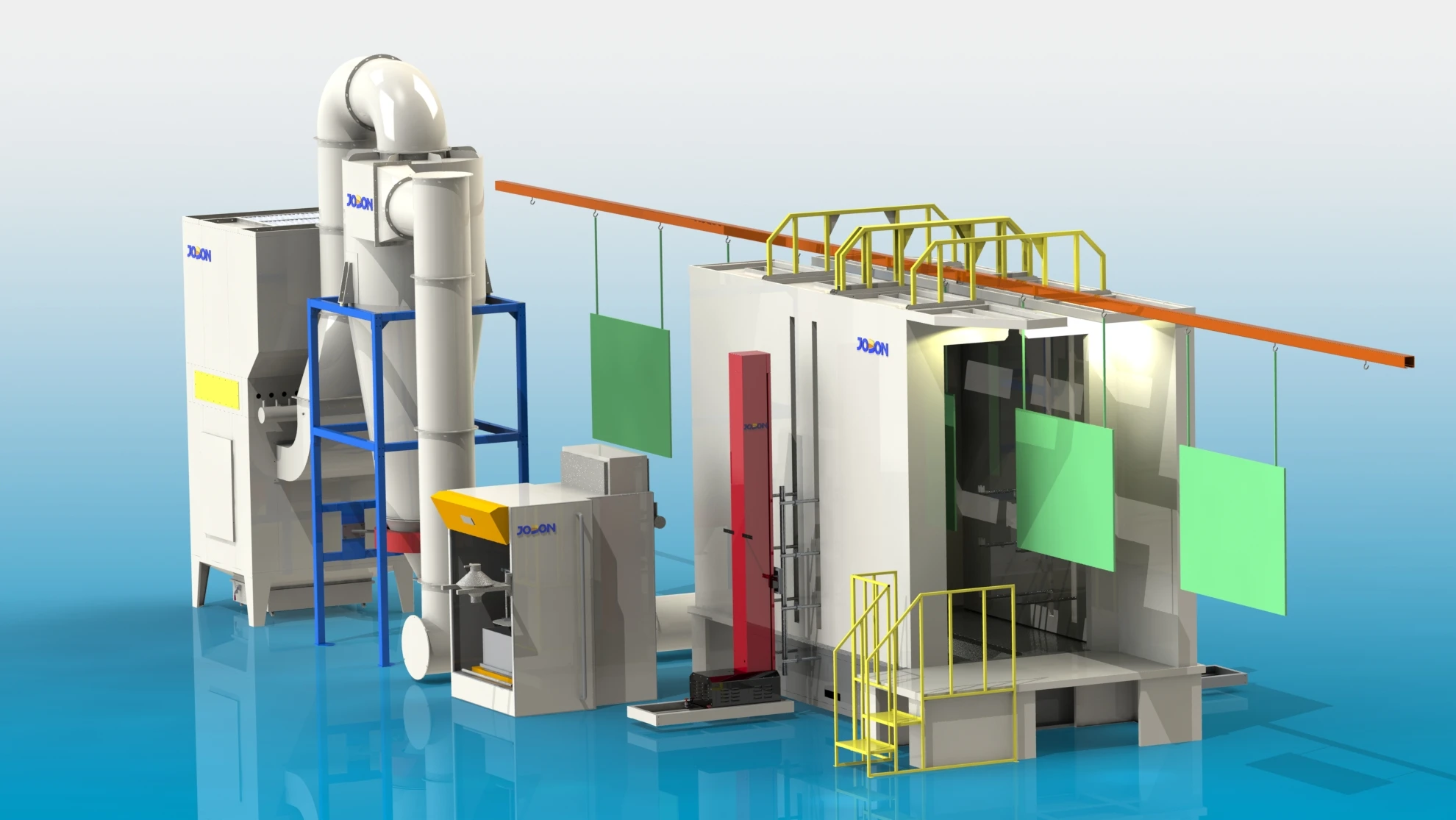

The powder coating spraying booth can be equipped with a big cyclone two-stage stainless steel powder recovery system, which can realize fast color change, and of course, when changing powder color, you don't need to clean the cyclone system which helps to save time a lot.
The booth can also be equipped with filtration recovery system which is much economical.
If you have no many powder colors, the filtration recovery system can be a good choice.

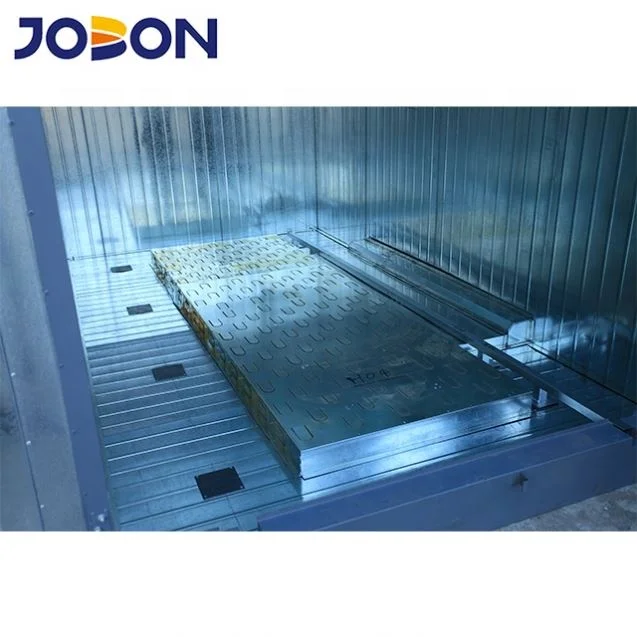

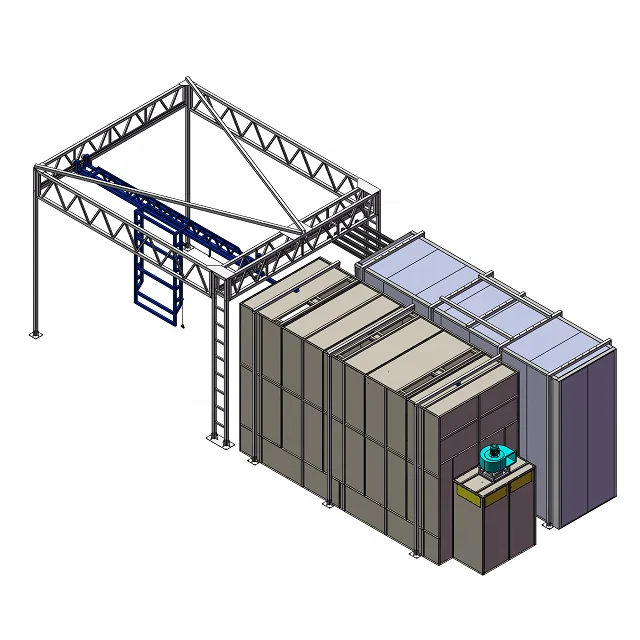

The powder coating curing oven
The oven is with two-sides door to realize continuous workflow.
1. The two sides door heating oven adopts high quality insulation layer, thus reducing heat loss and increasing the efficiency of the furnace.2. With double doors, the parts can be moved into/out of the oven more conveniently and quickly, which is good to improve efficiency.
3. The heating energy for the curing oven can be electricity, gas, or diesel.

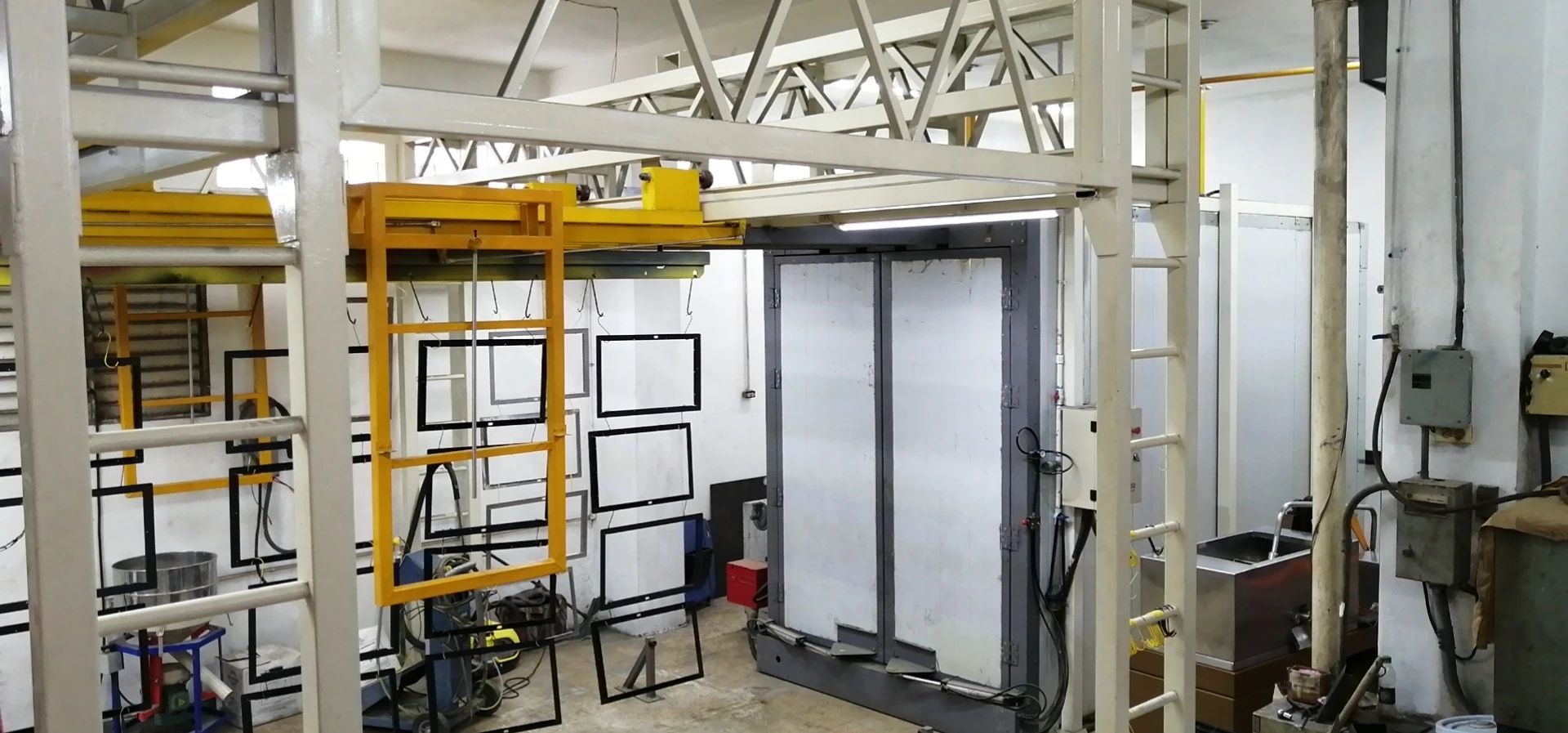

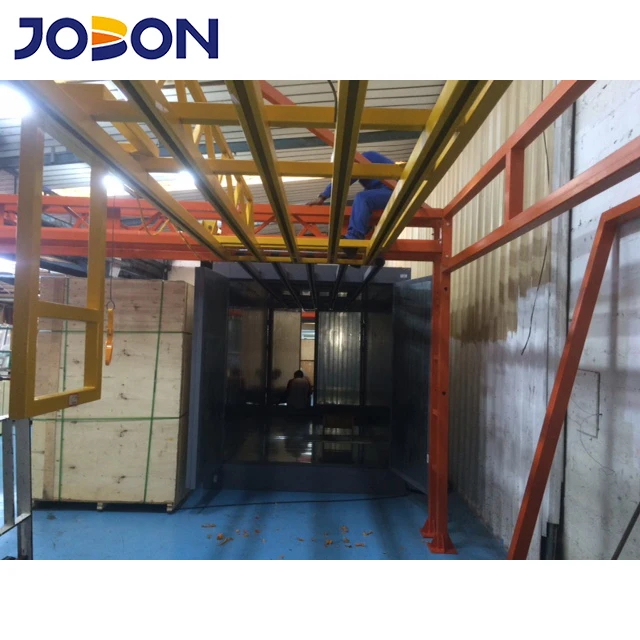

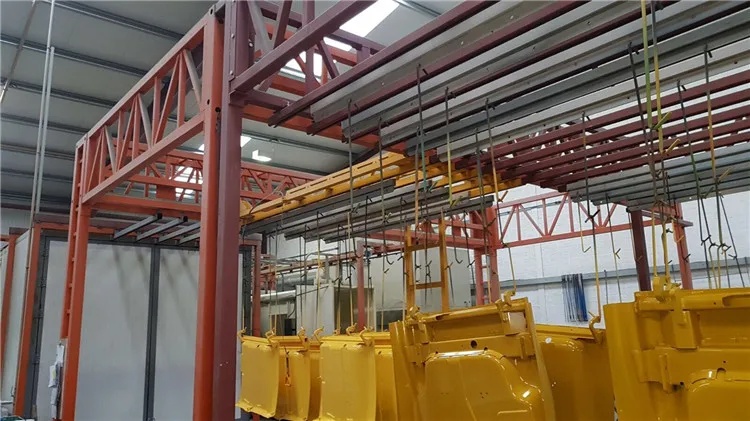

The conveyor and all-steel support system
1. The appliance of conveyor and steel support system can provide efficient production by improving automation and accuracy.
2. It can save time by ensuring smooth and fast production processes.
3. The high quality conveyor and support system can ensure more reliable operations for long lifespan.
Features for the factory price conveyor moving electrostatic powder coating production line system:
1. All the turnover are done via the overhead conveyor, and it doesn't require many workers to carry the parts together for the transportation, so labor costs are lower than with other manual coating systems, 2. During the spraying, the parts move through the booth automatically, no labor pulling, so it is much more simpler and faster, speeding up production time.
3. It can deal with with a wide range of different products coating. It provides flexibility, allowing customers to re-size, re-shape, and adjust the size and number of products they are producing as long as their sizes and gross weights are within the original design scope.
4. It produces a superior uniform and durable finish, allowing customers to maintain standards of quality.
5. Once the coating line is installed, rarely needs to be maintained, can live long for over 30 years
6. High quality and performance machines make the coating line a most worthwhile and cost-effective investment.
Stable coating thickness

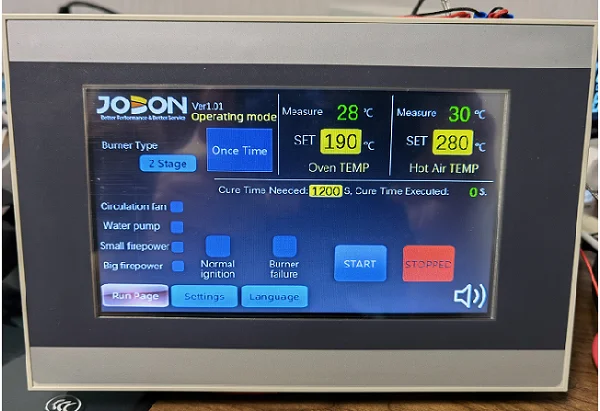

Easy Control
High Production Capacity

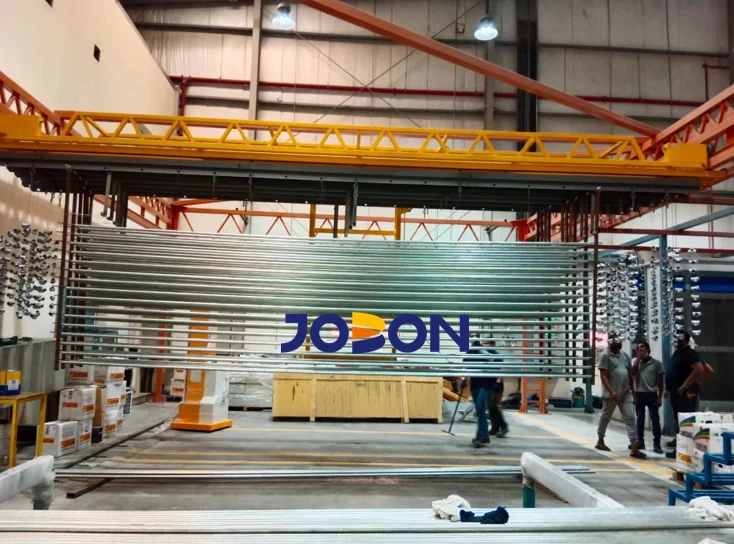

Successful Project
Customers
Our Company
Products Ranges:
Electrostatic Powder Coating Booth, Electrostatic Powder Coating Gun, Electrostatic Powder Coating Line, Electrostatic Powder Coating Oven, Enamel Powder Coating Equipment;
Production Machinery:
Electrostatic Powder Coating Booth, Electrostatic Powder Coating Gun, Electrostatic Powder Coating Line, Electrostatic Powder Coating Oven, Enamel Powder Coating Equipment;
Production Machinery:
Machine Name | Brand & Model No | Quantity | Number of Year(s) Used | Condition |
Laser Cutting Machine | Confidential | 1 | 1 | Good |
Punching Machine | Confidential | 4 | 3 | Good |
Bending Machine | Confidential | 2 | 1 | Good |
Shearing Machine | Confidential | 1 | 3 | Good |
Saw Banding Machine | Confidential | 2 | 1 | Good |
Testing Machinery:
Machines Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
Oscilloscope | Confidential | 2 | 1 | Good |
Signal Generator | Confidential | 2 | 1 | Good |
Production Flow:
Cutting
bending
Welding
Assembling
Testing
Packing
