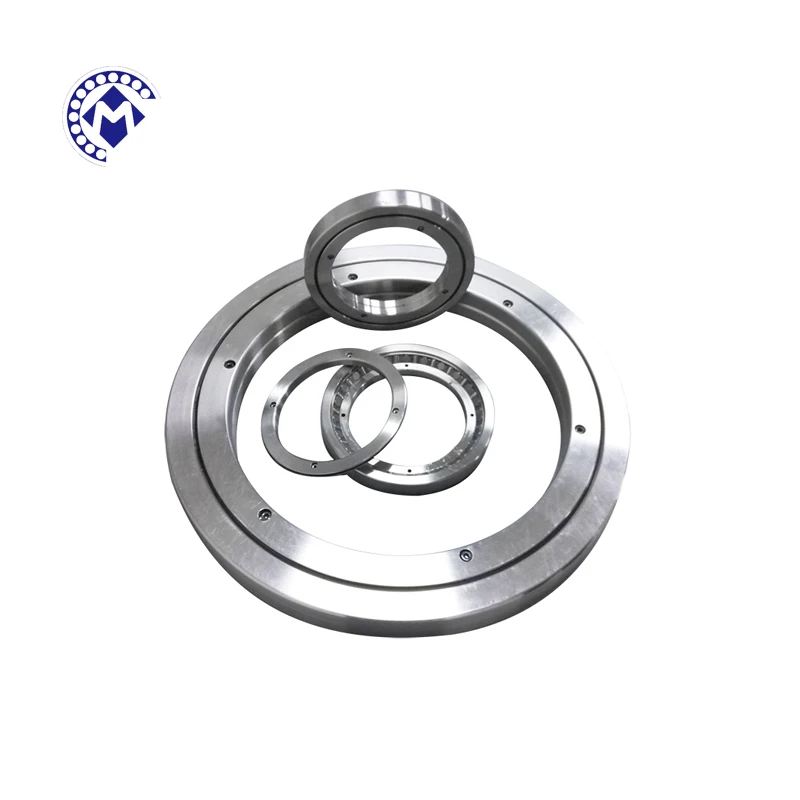

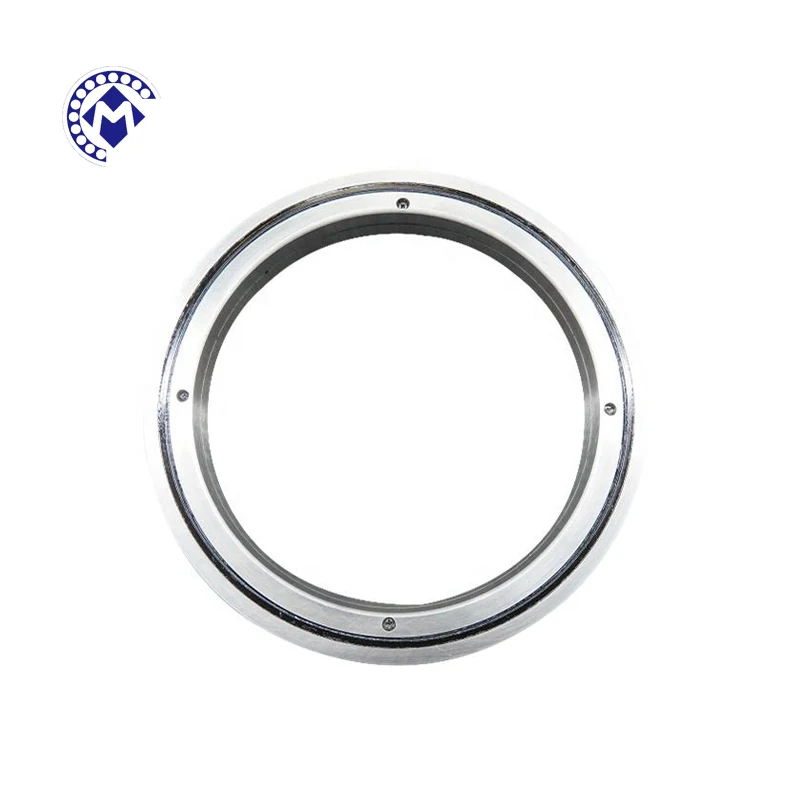

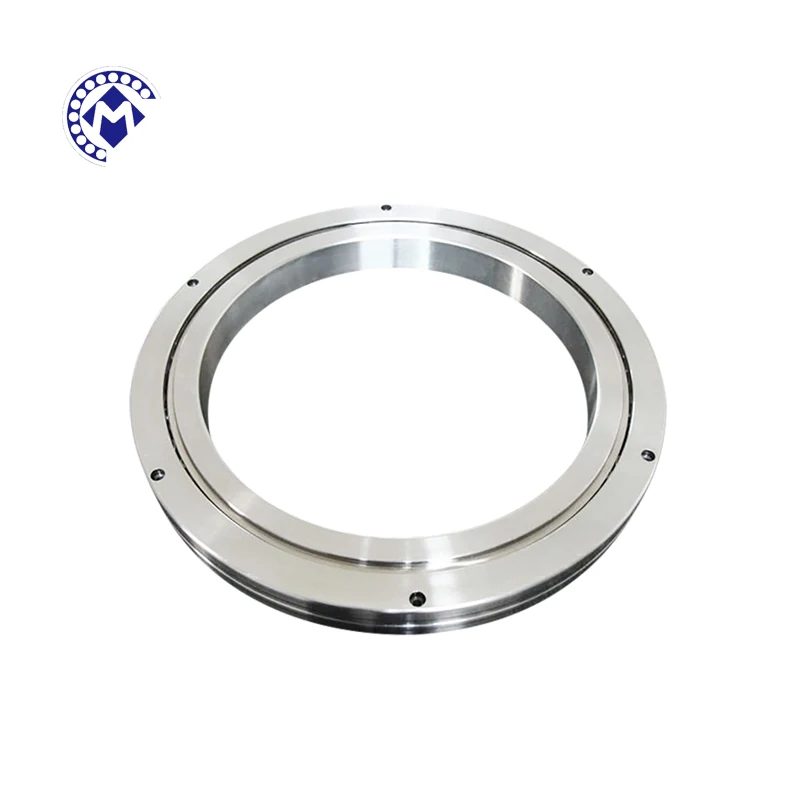

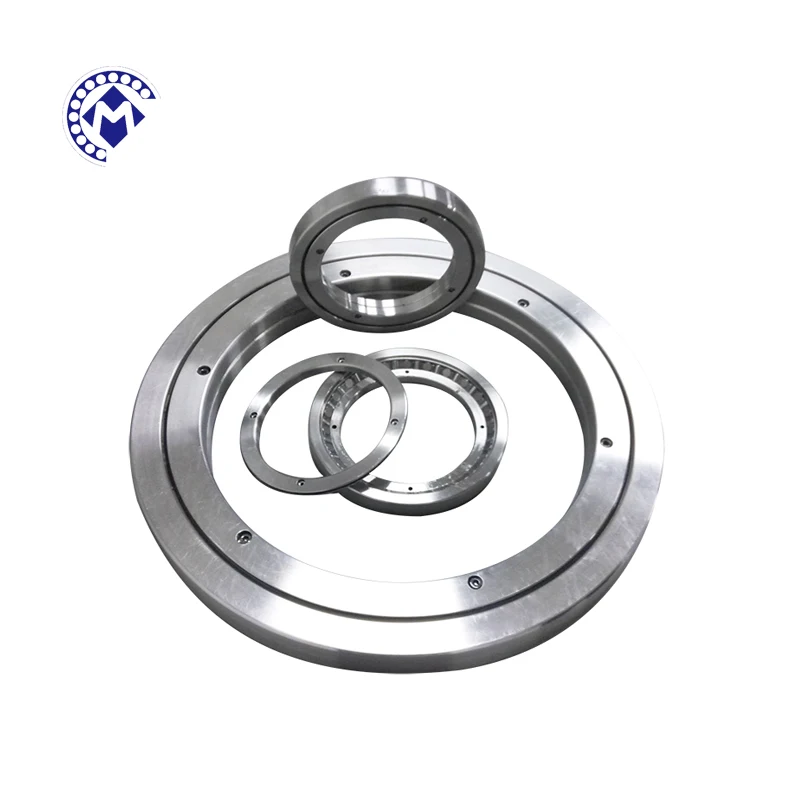

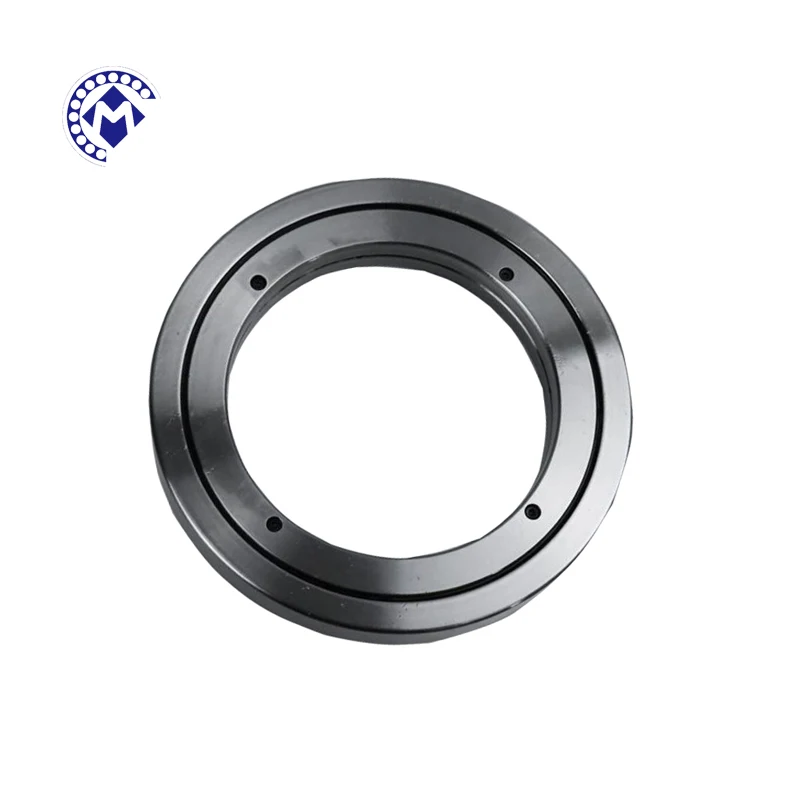

Thin Section Robot Arm Slewing Cross Roller Bearing RE18025 RE18025UUCC0
- Category: >>>
- Supplier: Luoyang Mc Bearing Technology Co. Ltd.
Share on (1600810993010):
Product Overview
Description
High Thin Section Robot Arm Slewing Cross Roller BearingRE18025 RE18025UUCC0
RE series crossed roller bearing
RE series (inner ring division type with outer rotating), which is also the basic type of crossed roller bearings. The inner rings have two parts, and the outer ring is one integer. The type is well apply to the situation which need high rotation accuracy on outer ring.
Product Description

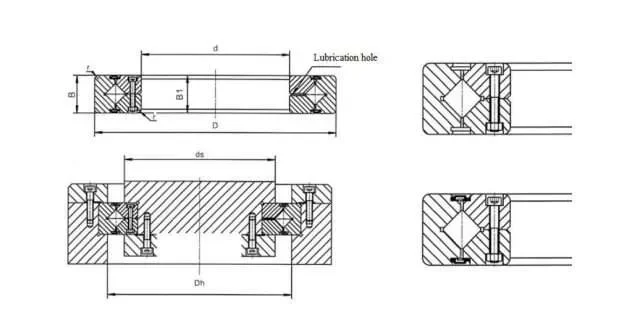

| TYPE | Inner diameter | Outer diameter | Pitch diameter | Height | Chamfer | Shoulder size | Basic rated load(Radial) | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
| d | D | Dpw | B | r | ds | Dh | Cr Kn | Cor Kn | KG | |
| RE 2008 | 20 | 36 | 29 | 8 | 0.5 | 23.5 | 30.5 | 3.23 | 3.1 | 0.04 |
| RE 5013 | 50 | 80 | 66 | 13 | 0.6 | 57.5 | 72 | 16.7 | 20.9 | 0.27 |
| RE 12016 | 120 | 150 | 136 | 16 | 0.6 | 127 | 141 | 24.2 | 43.2 | 0.72 |
| RE 12025 | 120 | 180 | 152 | 25 | 1.5 | 133 | 164 | 66.9 | 100 | 2.62 |
| RE 13015 | 130 | 160 | 146 | 15 | 0.6 | 137 | 152 | 25 | 46.7 | 0.72 |
| RE 13025 | 130 | 190 | 162 | 25 | 1.5 | 143 | 174 | 69.5 | 107 | 2.82 |
| RE 14025 | 140 | 200 | 172 | 25 | 1.5 | 154 | 185 | 74.8 | 121 | 2.96 |
| RE 15013 | 150 | 180 | 166 | 13 | 0.6 | 158 | 172 | 27 | 53.5 | 0.68 |
| RE 15025 | 150 | 210 | 182 | 25 | 1.5 | 164 | 194 | 76.8 | 128 | 3.16 |
