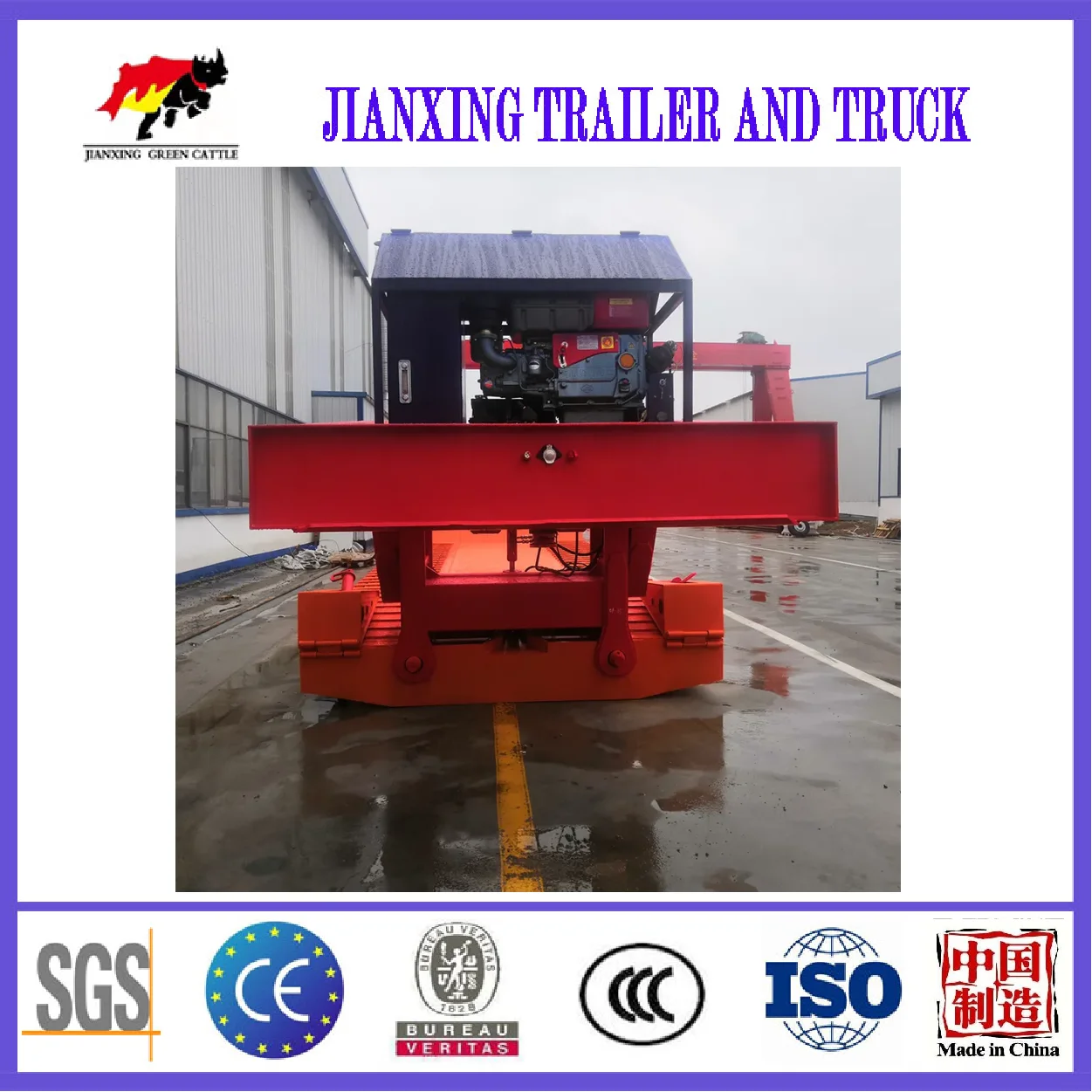

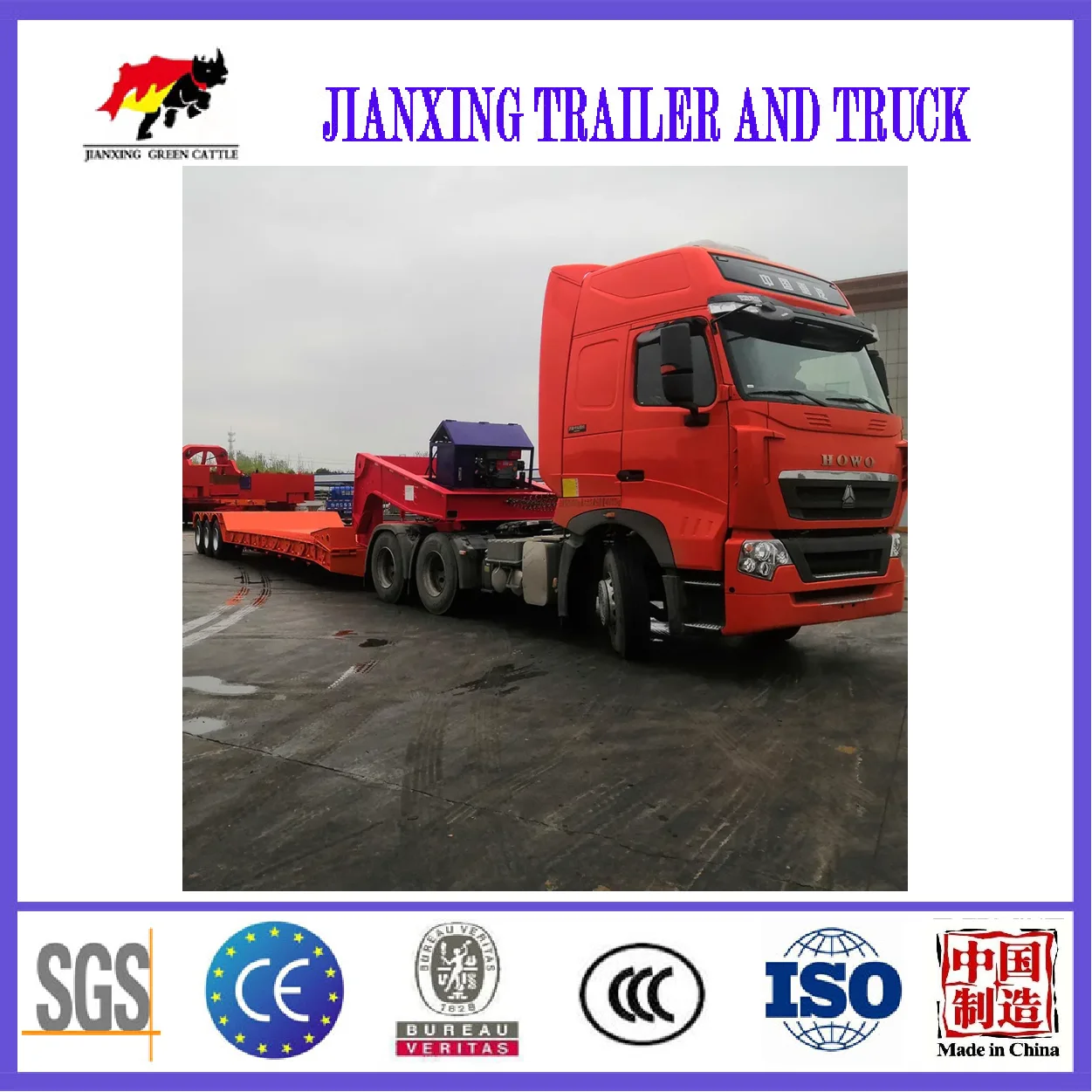

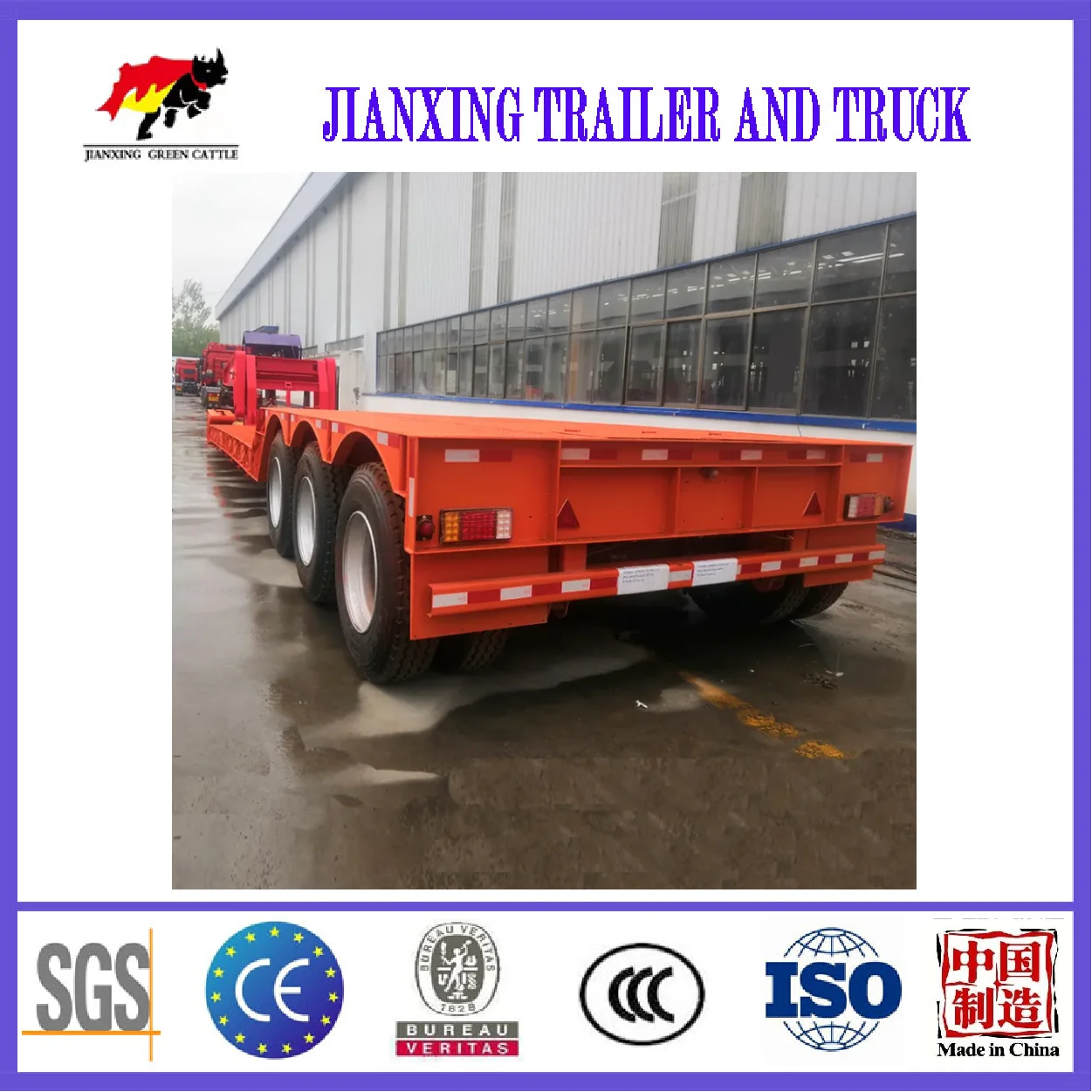

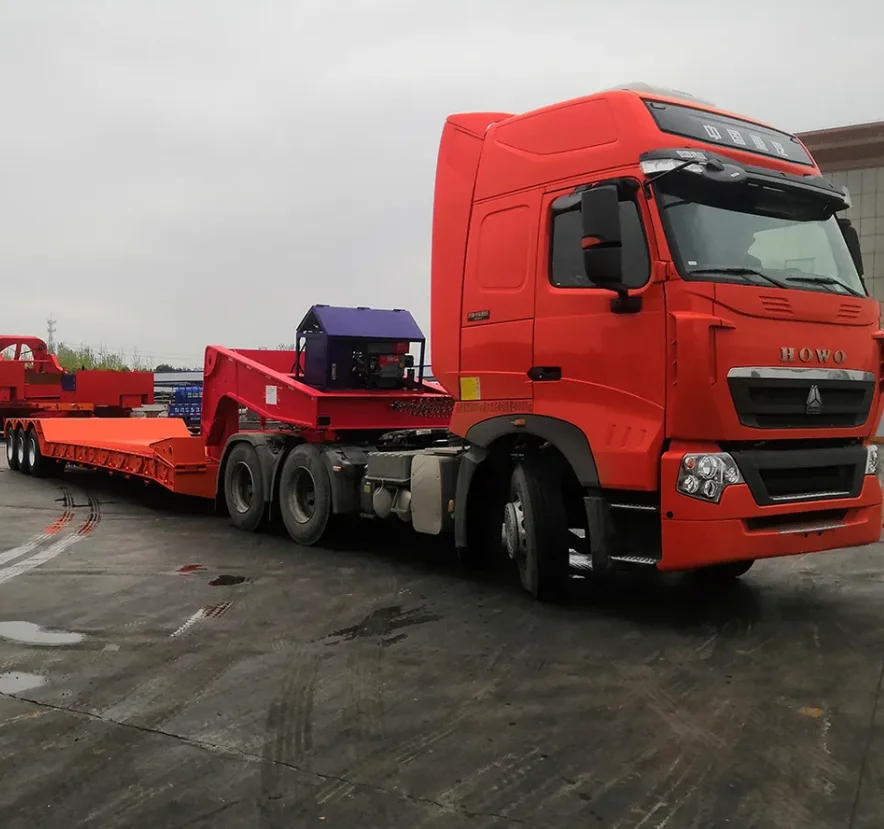

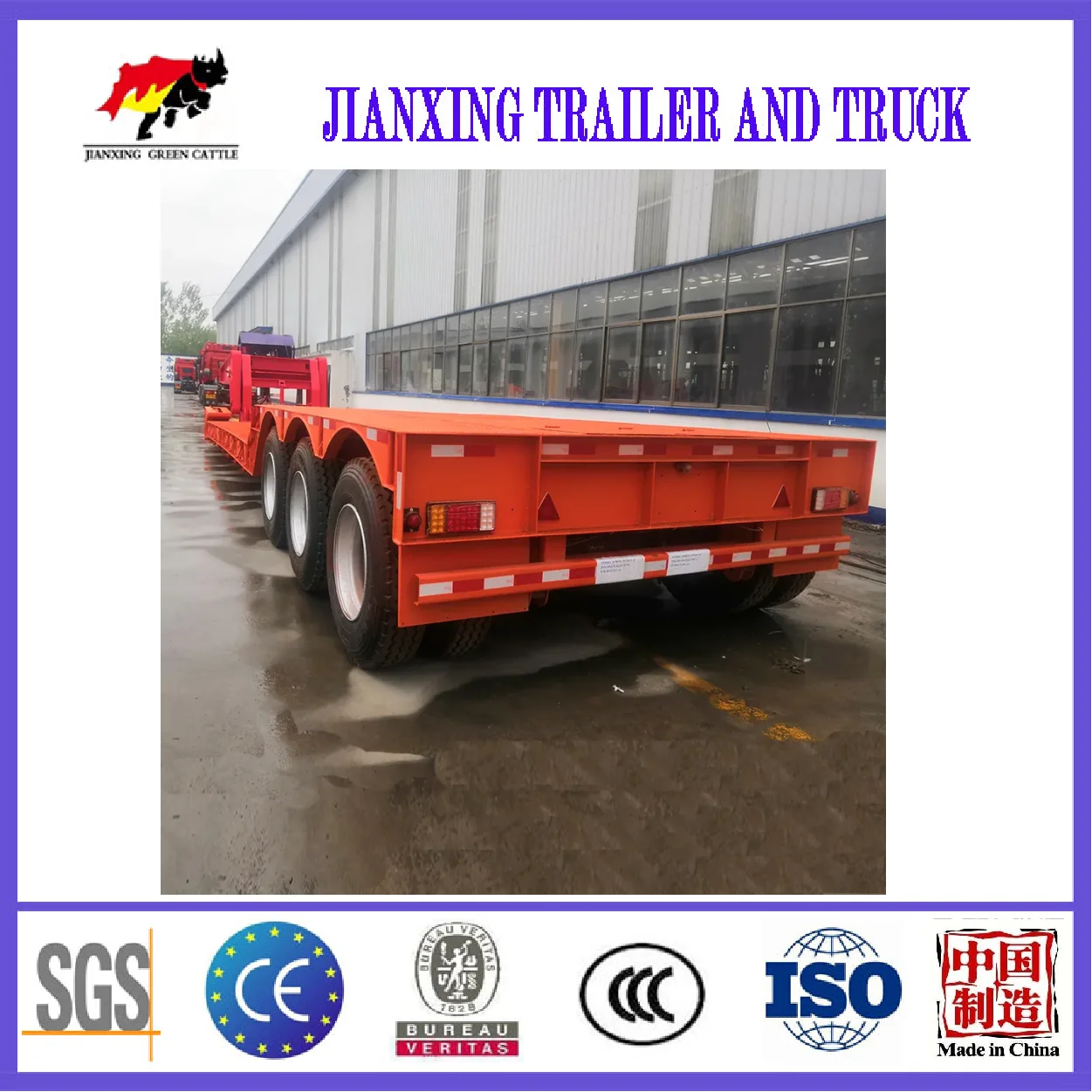

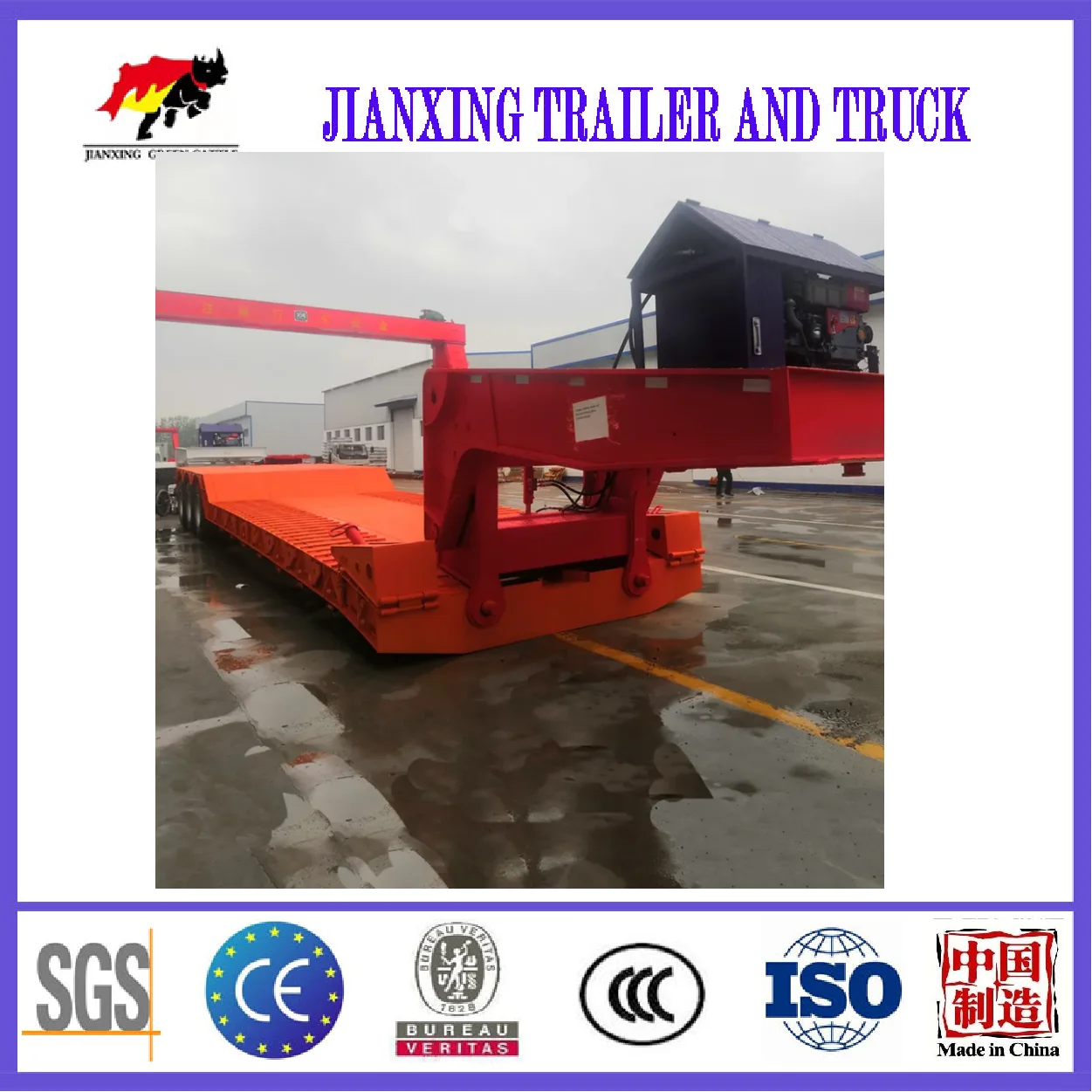

3 Axles Drop Deck Lowboy Semitrailer Low Platform For Sale Heavy Duty Excavator Trailer Transport
- Category: >>>
- Supplier: Shandong Hongdong Truck Trade Co. Ltd.
Share on (1600811297331):
Product Overview
Description

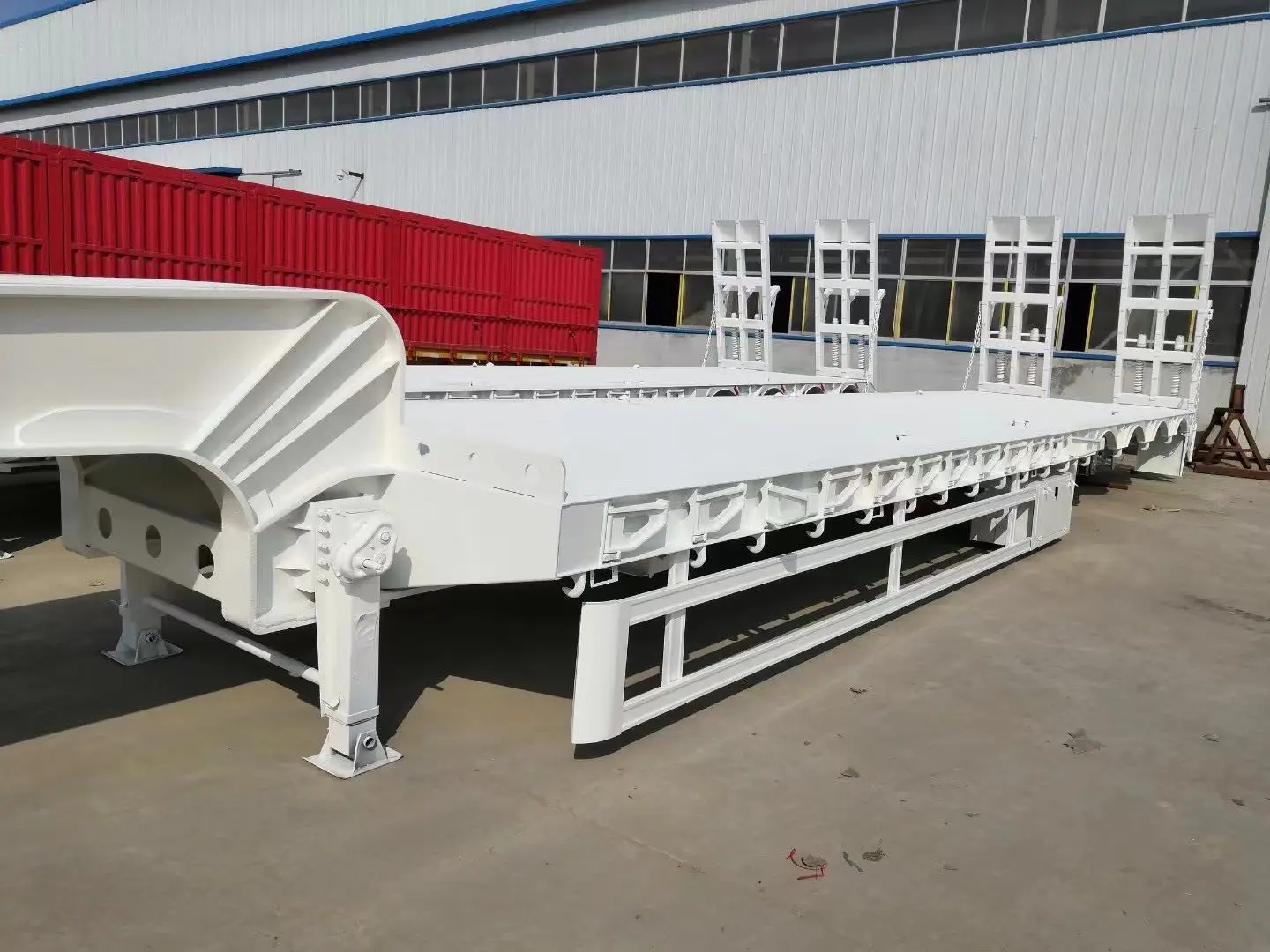

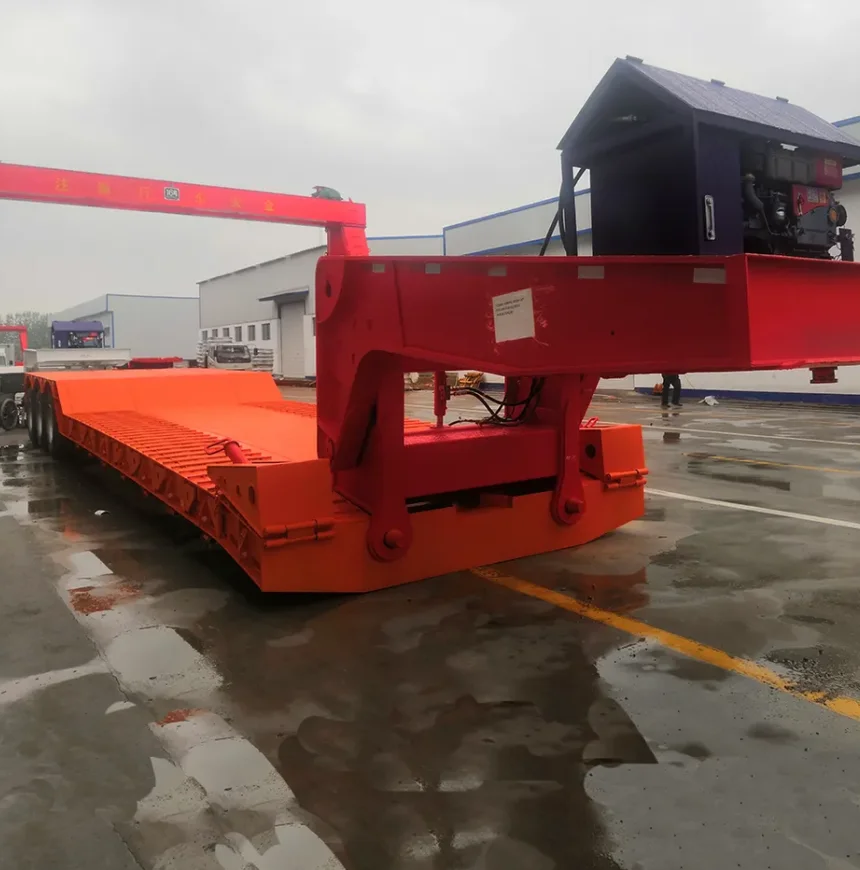

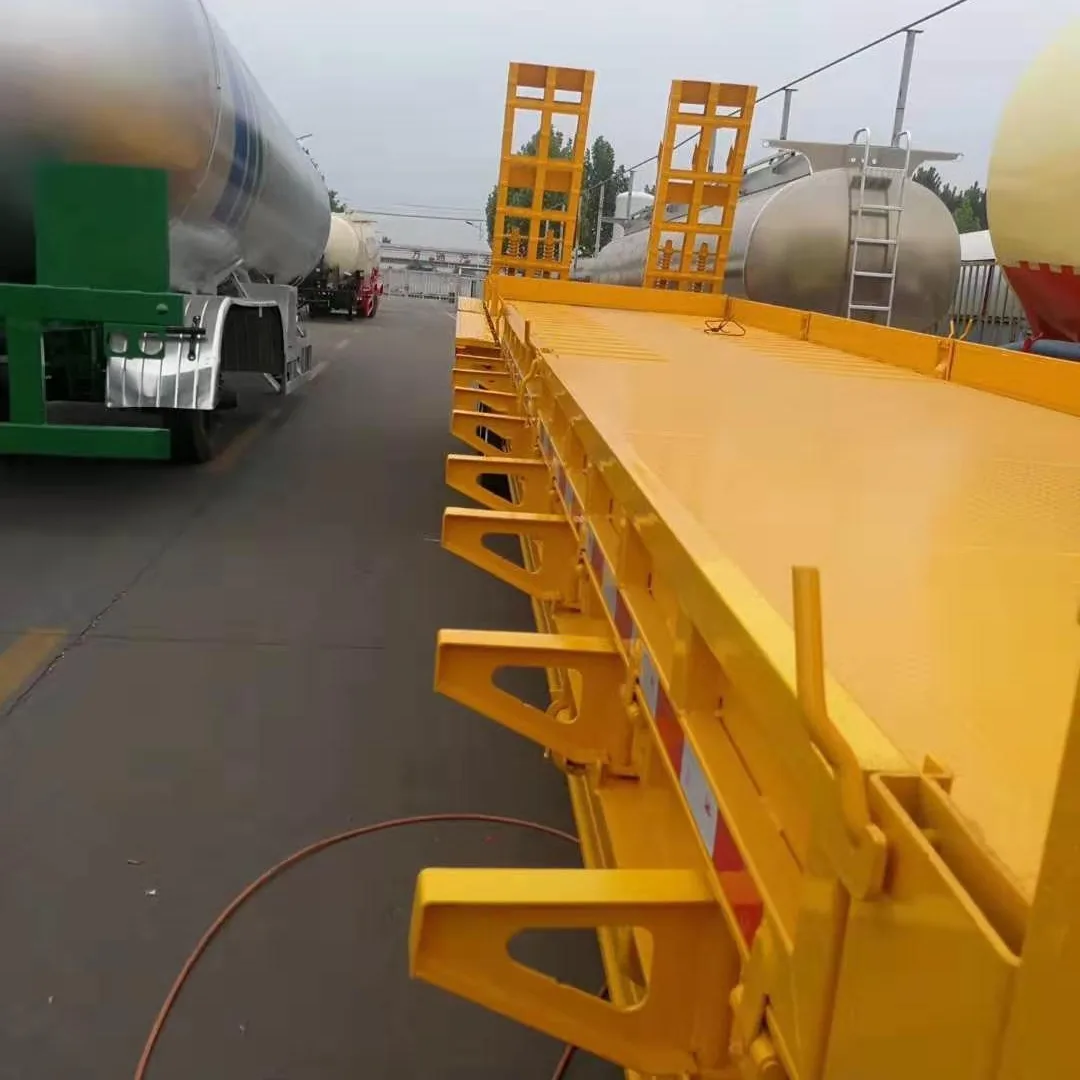

Drop deck lowbed semitrailers have a widening device. With the widening function, when the loaded goods exceed the width, the loading and transportation still can be carried out, and the applicability is good.
Overall Dimension | 13000mm*3000mm*1670mm | |||||
Flatbed Dimension | 8000mm*3000mm | |||||
Tare Weight | 9630kg | Pay Load | 40ton | |||
King Pin Setting | 450mm | Rear Overhang | 1870mm | |||
Wheel base | 7650mm+1305mm+1305mm | Loading Surface Height | 1320mm | |||
Track | 2160mm | |||||
Running Gear | ||||||
Suspension | Tri-axle 8-pcs leaf spring suspension with equalizer beam | |||||
Tires | 311.00-20, 11.00R20,12.00-20,12.00R20 12units | |||||
Axles | AQ，FUWA, BPW or STEYR axle, 13T capacity | |||||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | |||||
Under Frame | ||||||

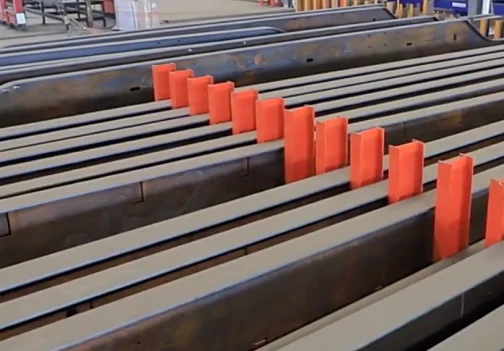

Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | |||||
Cross Beam | Mild Alloy Q235, 16# channel beam | |||||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | |||||
Landing Gear | Single side operation or double side operation, Static capacity 30Ton | |||||
Flatbed Floor | Checkered sheet, thickness 4mm | |||||
Rear Ladders | Spring power-assisted | |||||
Electrical & Paint | ||||||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||||
Wiring | 24V, 6 lines | |||||
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | |||||
Paint | Sand blasting before painting, color upon request | |||||

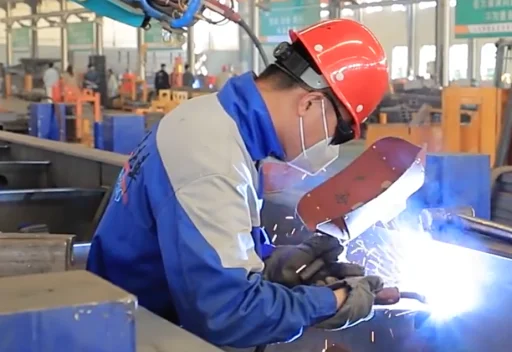

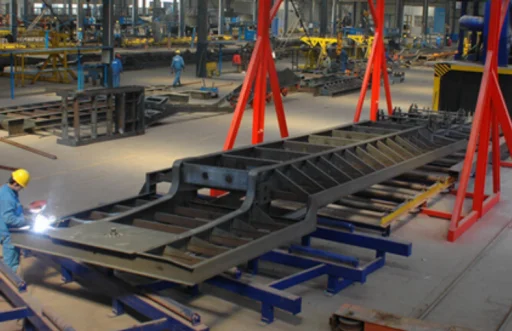

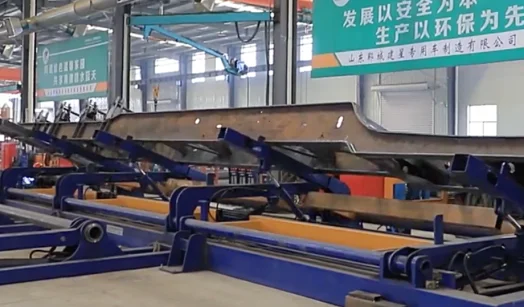

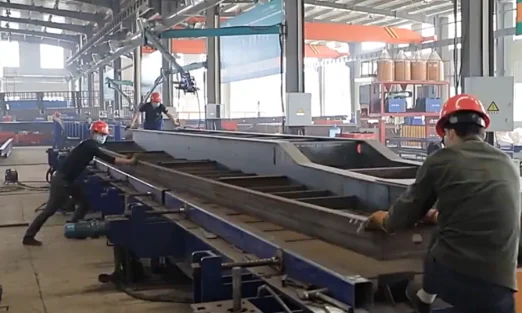

Automatic welding
Automatic welding construction of submerged arc welding, strengthening of key parts, targeted welding, avoiding some parts prone to welding leakage, to ensure that vehicles work for a long time without maintenance.
About axles
2/3 Axles *13 Ton/16Ton VEHICLE MASTER/FUWA/BPW/Other
About leaf spring
High strength springs and suspension save you maintenance costs

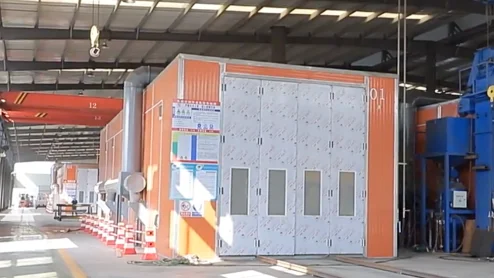

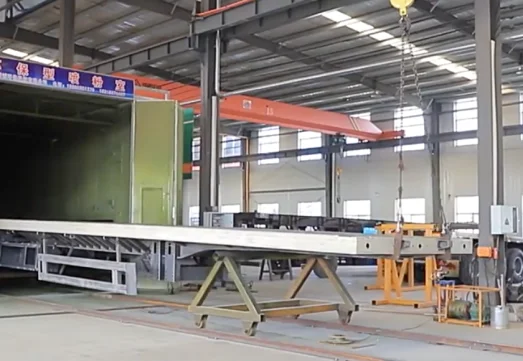

The paint
Good spray paint surface after sandblasting treatment, so that the steel surface and paint tightly combined.
We make every part carefully

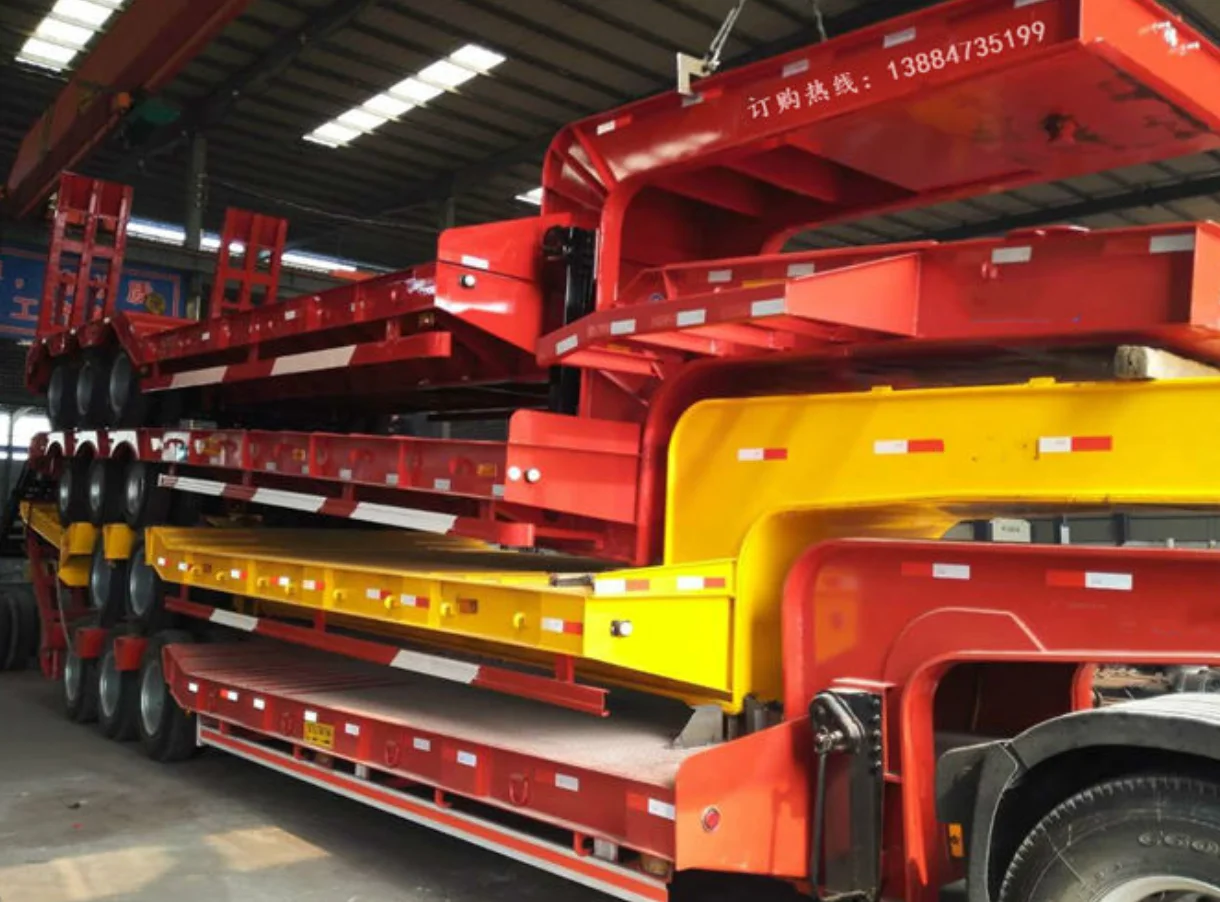

2 axles lowbed semitrailer
3axles lowbed semitrailer
4 axles lowbed semitrailer
2 lines 4 axles lowbed semitrailer
4 lines 8 axles lowbed semitrailer
6 lines 12 axles lowbed semitrailer
modular lowbed semi trailer
Lowbed semitrailer with dolly
detachable Hydraulic
gooseneck lowbed semitrailer
extendable lowbed semitrailer

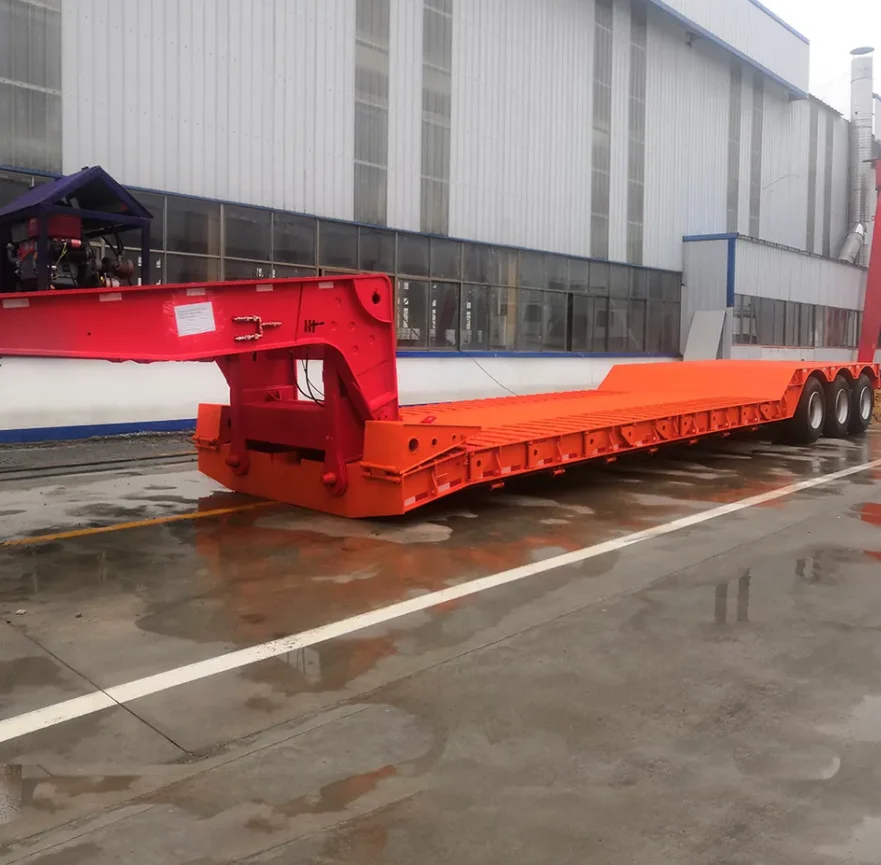

Drop deck semitrailer
Super low lowbed semitrailer
Shandong Hongdong Truck Trade Co., Ltd, was established in 2021, which is one of the professional suppliers of various semi-trailers belongs to Hongdong special truck factory located in Yuncheng,shandong province. After 20 years of development,
Hongdong become a comprehensive factory with production and trade. as one of the biggest trailer manufactures all in the world,The site covers an area of 140 acres, plant area 90 acres, with about 300 employees.
Hongdong become a comprehensive factory with production and trade. as one of the biggest trailer manufactures all in the world,The site covers an area of 140 acres, plant area 90 acres, with about 300 employees.
We have world-class automatic equipment, professional R&D and sales team, high-quality raw materials and famous brand components in and out. All trailers are with novel shape, unique design, reasonable structure and durable using life. There are more than 40 types of products to meet your different needs. Such as heavy duty low bed semi trailer, flatbed container semi trailers, skeletal container semi trailer, side wall semi trailer, cargo box semi trailer, dump trailers, bulk cement tanker trailer, fuel tanker semi trailer, stainless steel tank trailers, aluminum tank trailers, car carrier semi trailers.
Meanwhile we are dealing with sinotruk HOWO and A7 truck tractor, dump truck, fuel tanker truck, water tanker truck, cargo truck , concrete mixture truck etc with competitive price and good service.
The products passed the China Quality Certification Center "CCC" certification and ISO9001: 2000 quality management system certification. BV certification, SGS certification, CE certification, etc.
Markets covering Southeast Asia, Central Asia,The Middle East, Africa and other parts of the world. currently we are the largest semi-trailer exporter in Vietnam market with a share of over 55%. With first-class products and excellent services Welcome cooperators all over the world to build long term business with us.
We have mechanical engineers, electronic engineers, software engineers, and a complete technical system. We have certain research and development strength, and we can provide customers with personalized automation solutions.
We can customize semitrailers according to the unique requirements of customers in each industry to make products more intelligent and humanized, while helping customers reduce costs and improve efficiency.
We can customize semitrailers according to the unique requirements of customers in each industry to make products more intelligent and humanized, while helping customers reduce costs and improve efficiency.
1. Main beam adopts HG high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. Polyurethane paint, with long service lift, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. Polyurethane paint, with long service lift, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, Our company promise one-year warranty preiod,during this period,under normal use if there is damage to the accessories,we will provide our customers with free new accessories.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, Our company promise one-year warranty preiod,during this period,under normal use if there is damage to the accessories,we will provide our customers with free new accessories.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
