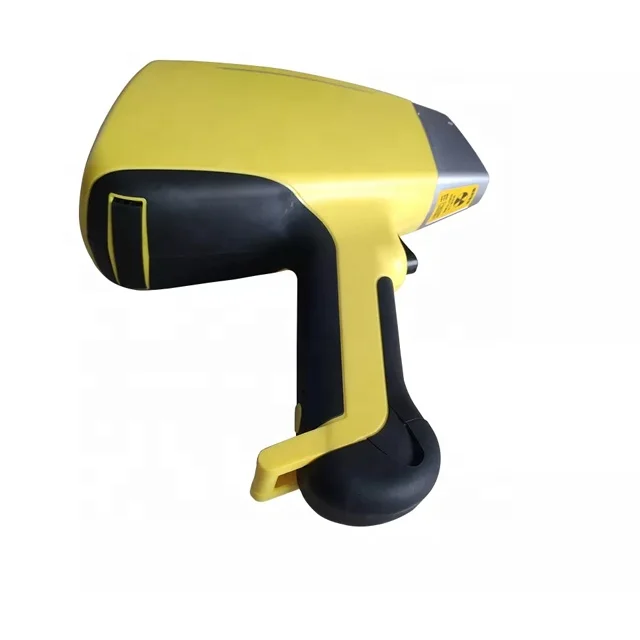

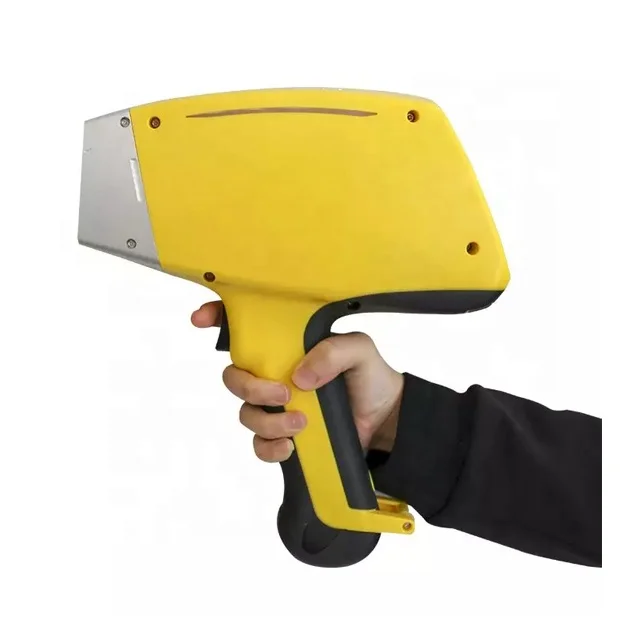

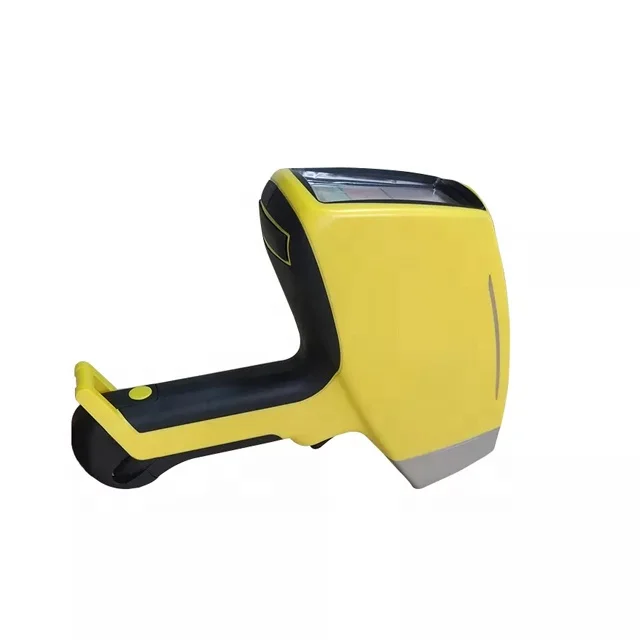

New Unique XRF X ray fluorescence spectrometer for precious metal, gold XRF, jewelry XRF analyzer
- Category: >>>
- Supplier: Yantai Bede Machinery Co. Ltd.
Share on (1600811314764):
Product Overview
Description
Products Description
New Unique XRF X- ray fluorescence spectrometer for precious metal, gold XRF, jewelry XRF analyzer

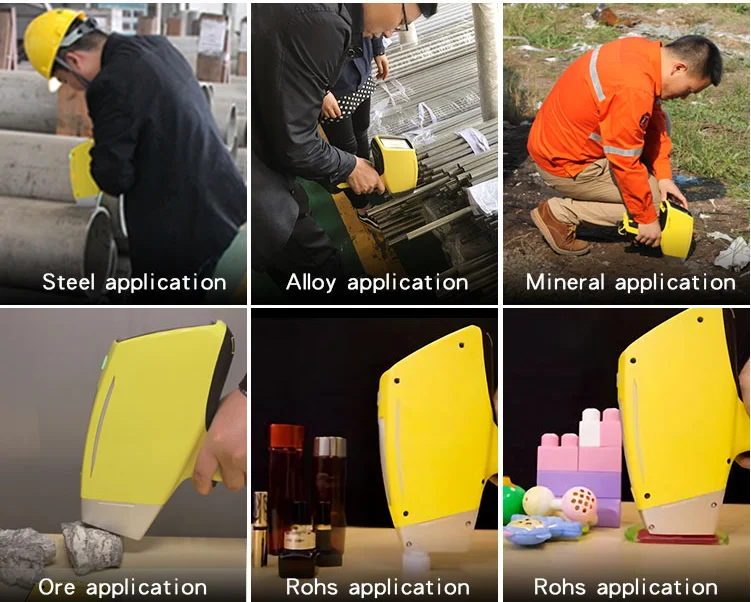

Application fields -
Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site -Metal identification /scrap metal sorting
- QA/QC management in metal production, processing, casting, etc - Medicine and biological medicine - Identification of positive materials, oil refining and petrochemical industry
- Thermal power plant,hydroelectric power station, nuclear power plant
- Accurate element analysis of raw material and PMI identification so as to meet
production needs and ensure security of equipment and materials used in the process.
production needs and ensure security of equipment and materials used in the process.
Product Paramenters
New Unique XRF X- ray fluorescence spectrometer for precious metal, gold XRF, jewelry XRF analyzer
Application Features
1. Excellent Performance TrueX shows element symbols in both English and Chinese. With high precision, high testing speed and comparable results to even that of laboratory equipment, TrueX displays alloy grade and elements percentage content (up to three decimals) and ppm content in an apparent way.
2. One-touch operation TrueX test lasts only a few seconds and identification of alloy grades takes only 1 or 2 seconds. This facilitates operation by non-technical users.
3. Nondestructive testing (NDT) TrueX test does not damage or have any adverse effect on the use of samples. No damage is foreseen in the entire test process.
4. TrueX analysis software TrueX analysis software is a professional analysis software which enables the users to easily configure passwords, customize analysis reports attached with company LOGO and implement remote control of machine; users can edit alloy grade library, add their own grade number or define their own company's alloy brands; the software also allows automatic calibration of instrument and diagnosis of problems in a remote way; the software can be updated via Internet.
5. Scrap metal recycling and sorting Scrap metal recycling, reuse, and on-site analysis and sorting.TrueX offers a rapid and reliable identification of the scrap metals when scrap metals are transacted between buyers and sellers. TrueX delivers quantitative element analysis of iron alloy, copper alloy, aluminum alloy, copper-iron alloy,lead-tin alloy, mixed alloys, etc, and rapid identification and sorting of these alloys on the site.
6. Application fields, safety andstandards TrueX is suitable for alloy material identification (PMI) for incoming inspection;material inventory management;re-inspection of construction materials in petrochemical construction, metal smelting, pressure vessel, power plant, petrochemical industry, fine chemical, pharmaceutical, aerospace and other industries to avoid serious safety accidents resulting from mixed or unqualified materials.
TrueX 800 elements analyzed | ||
Scope of elements in standard test mode can be extended if there is such a need. | ||
TrueX 800 | can analyze Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb, and Bi,totaling 25 elements. | |
Technical parameters and specifications
Weight | 1.6Kg（with battery）. |
Dimensions | 254 x 79 x 280 mm（L x W x H）. |
Excitation source | 50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Agtarget (standard),Au,W,Rh target(optional). |
Detector | BOOST Si-PIN detector |
Range of detection | All elements between Mg and U. |

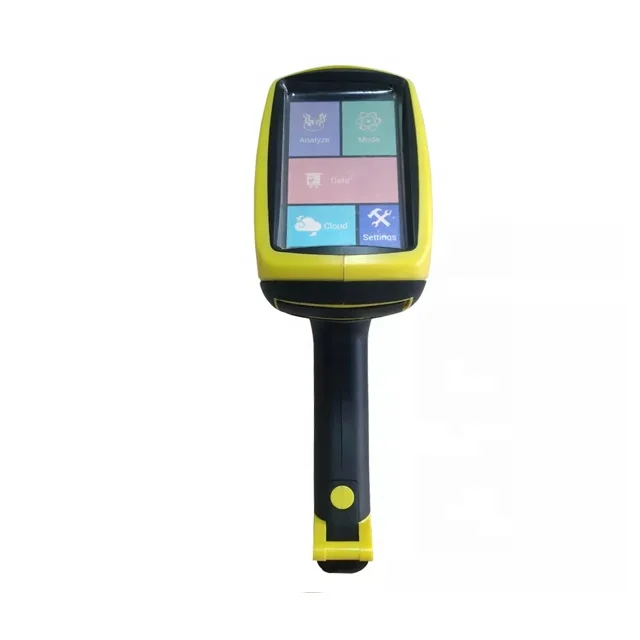

Display system | Industrial resistive touch screen with screen size of 4.3". Proprietary operating system software and sound waves. Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness. |

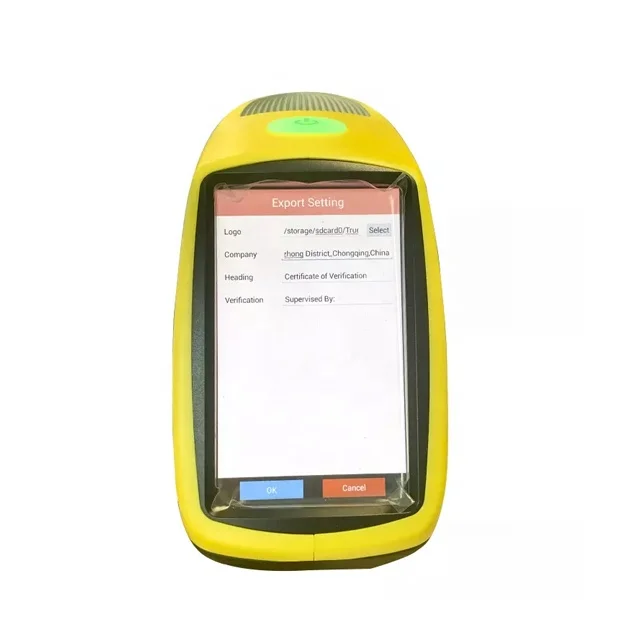

Data processing | 32GB memory USB, bluetooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely. Data can be exported via EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number). |
Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of detector time again. |

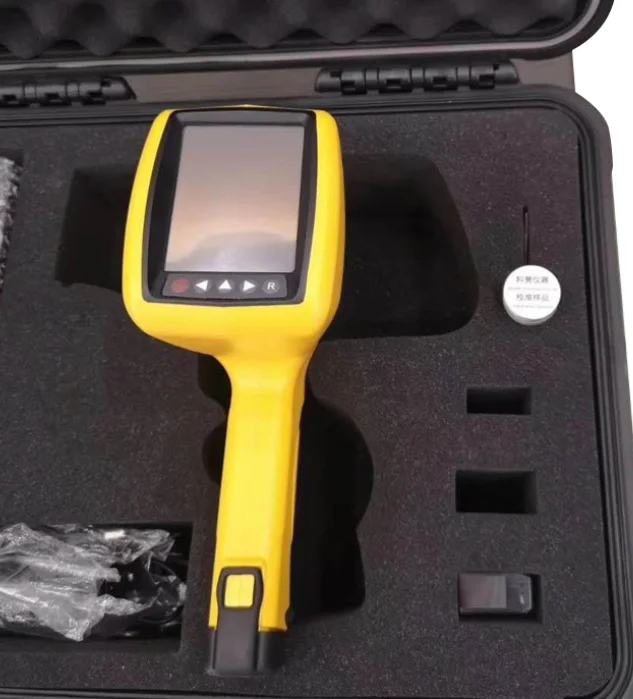

Safety | Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase Drawell Safety Band； |
Power supply system | Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods. A single battery can last 8 hours. |

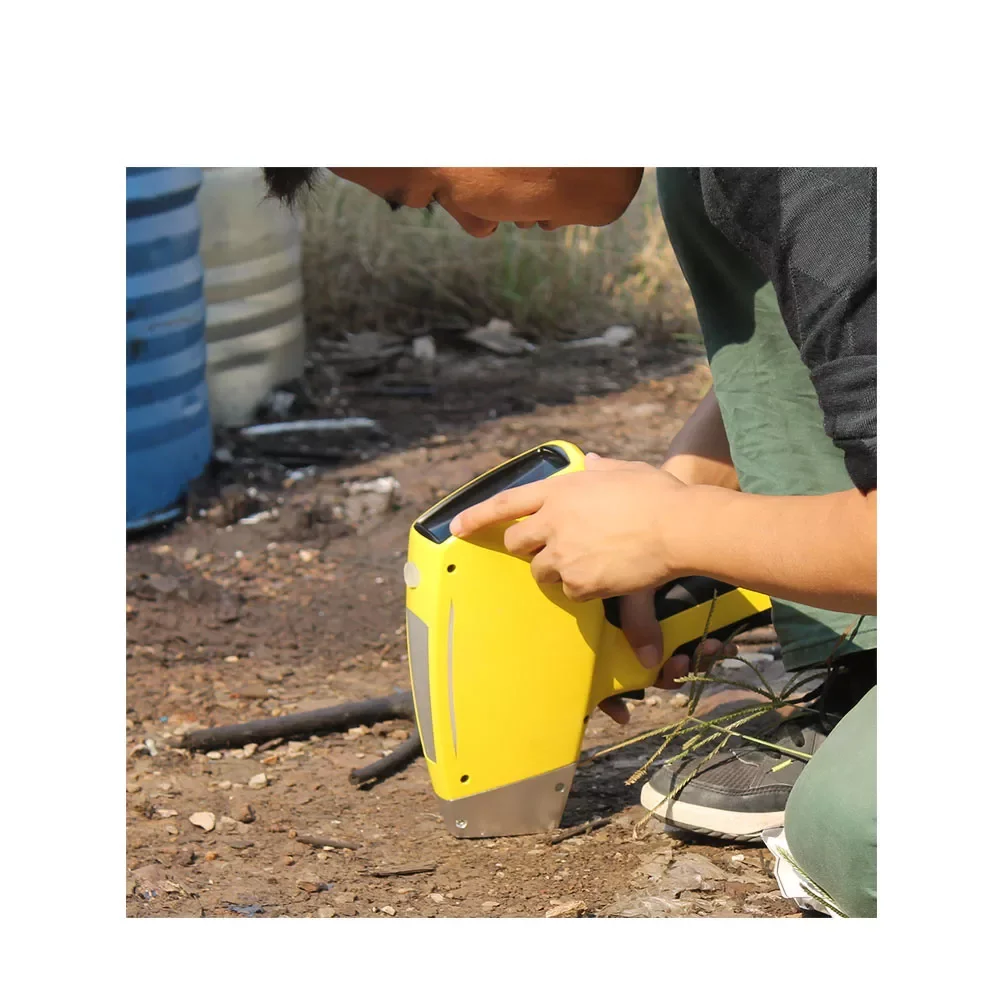

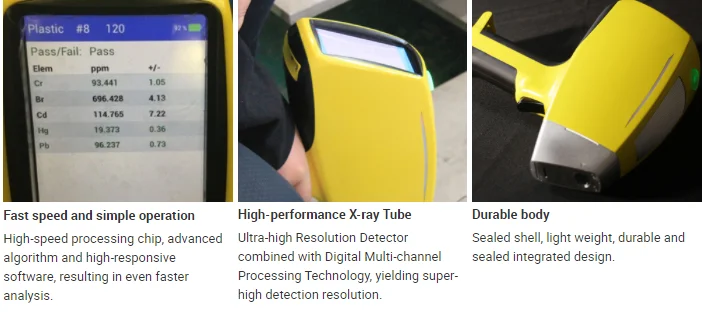

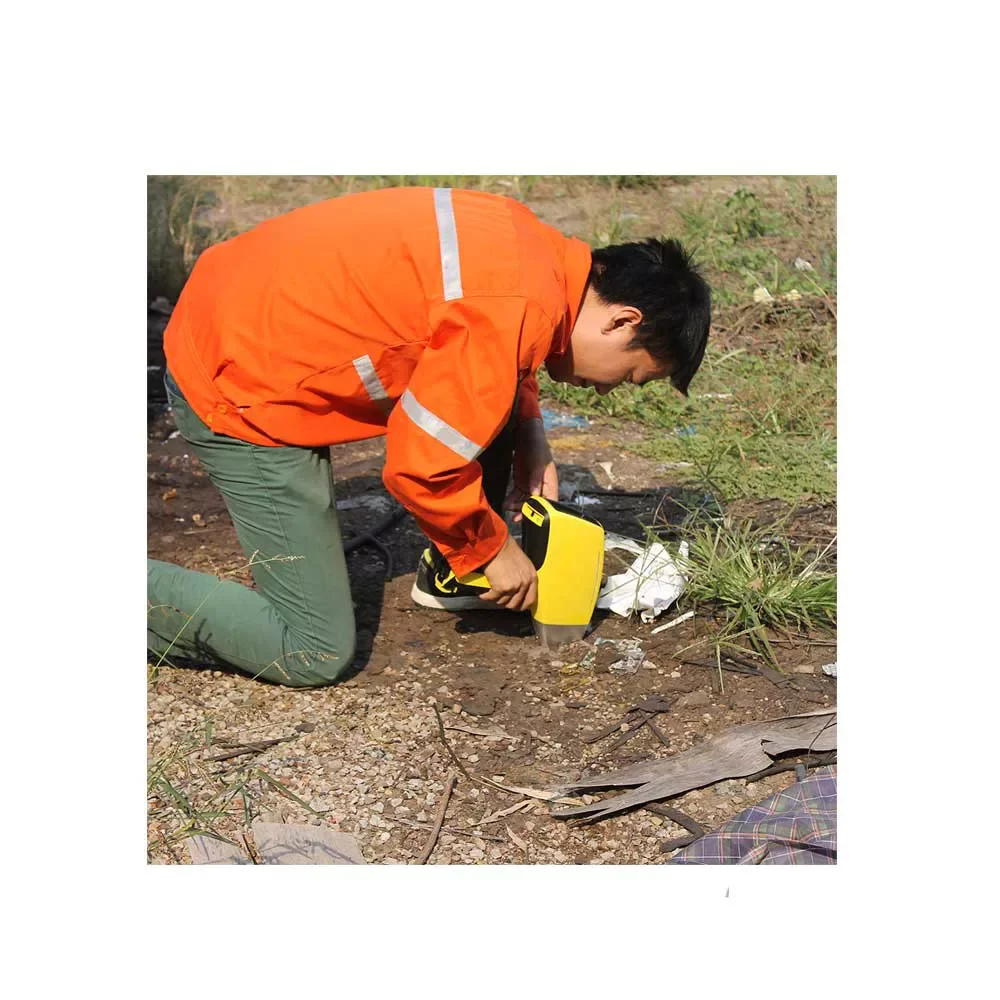

Details Images

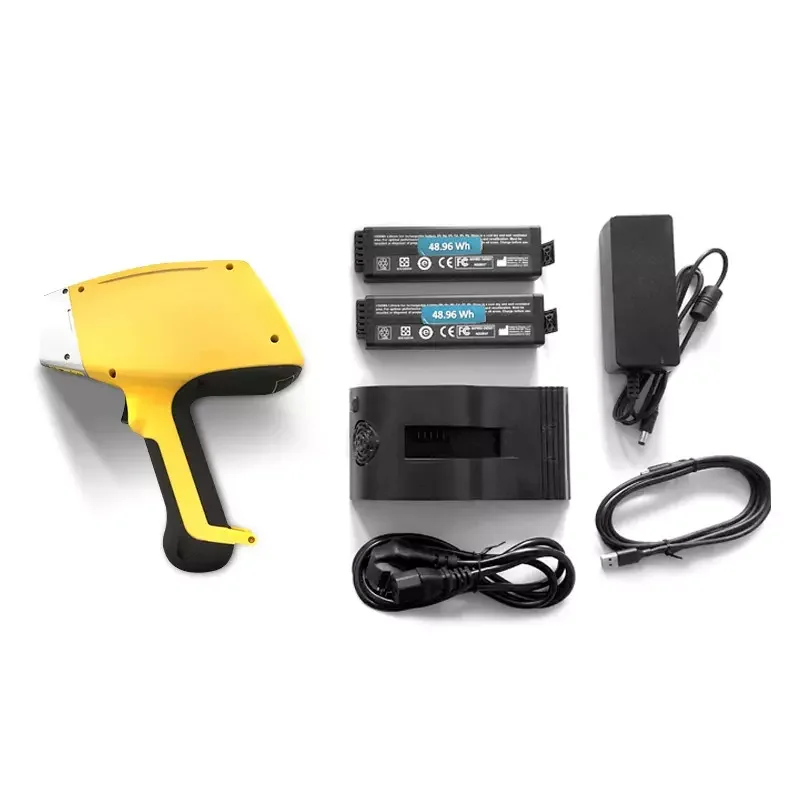

Product Packaging
