h05vvh6 f overhead flexible oil proof lift hoist flat crane cable
- Category: >>>
- Supplier: Yiteng Cable Technology Hebei Co. Ltd.
Share on (1600812374290):
Product Overview
Description
Product Description

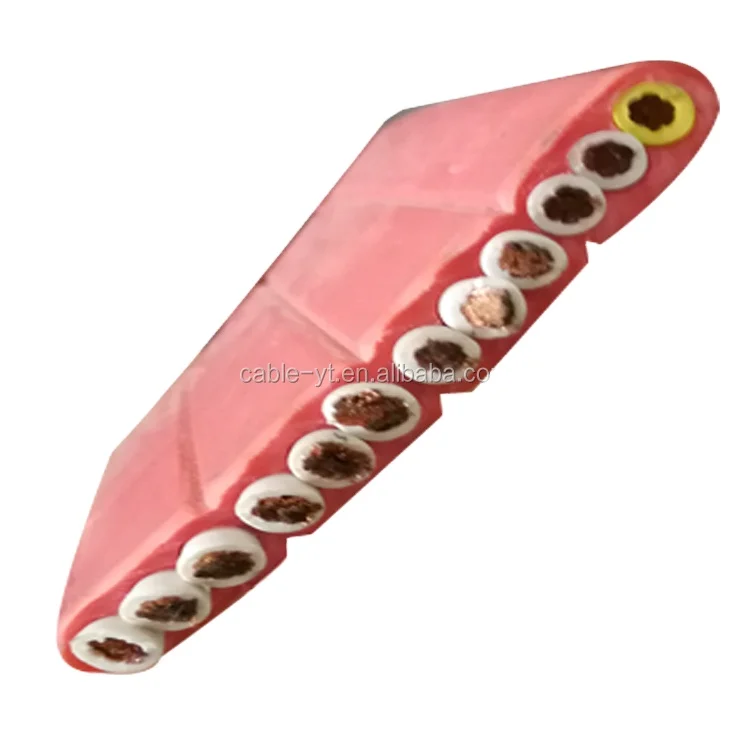

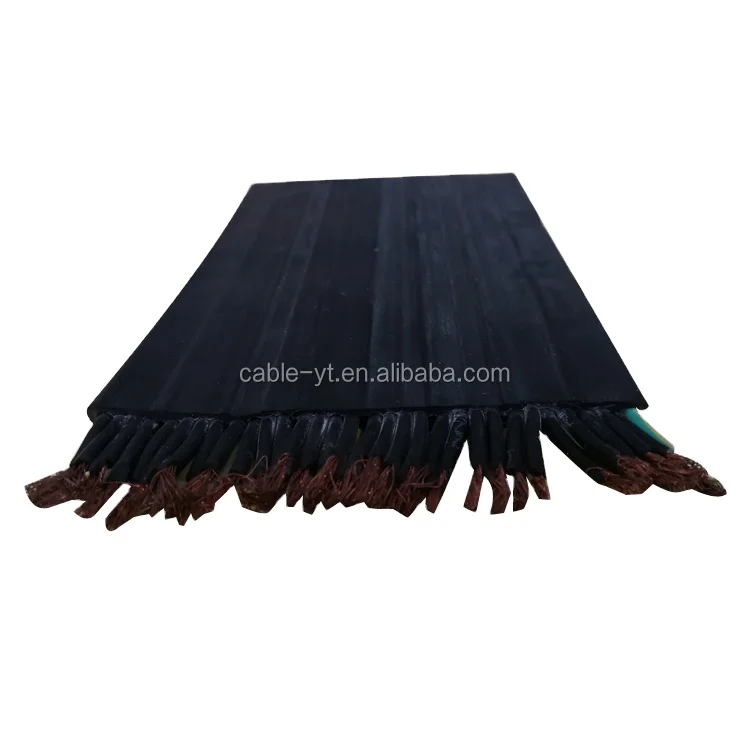

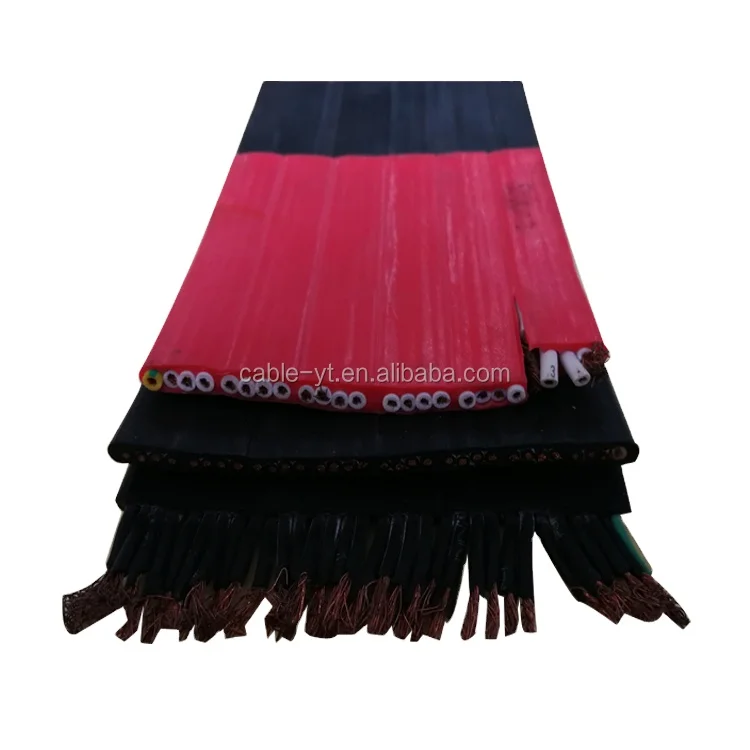

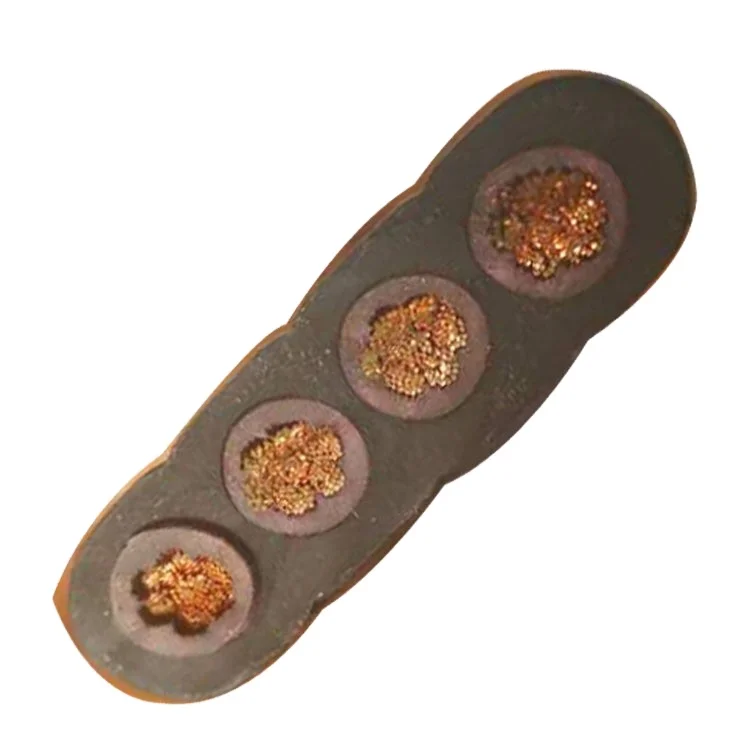

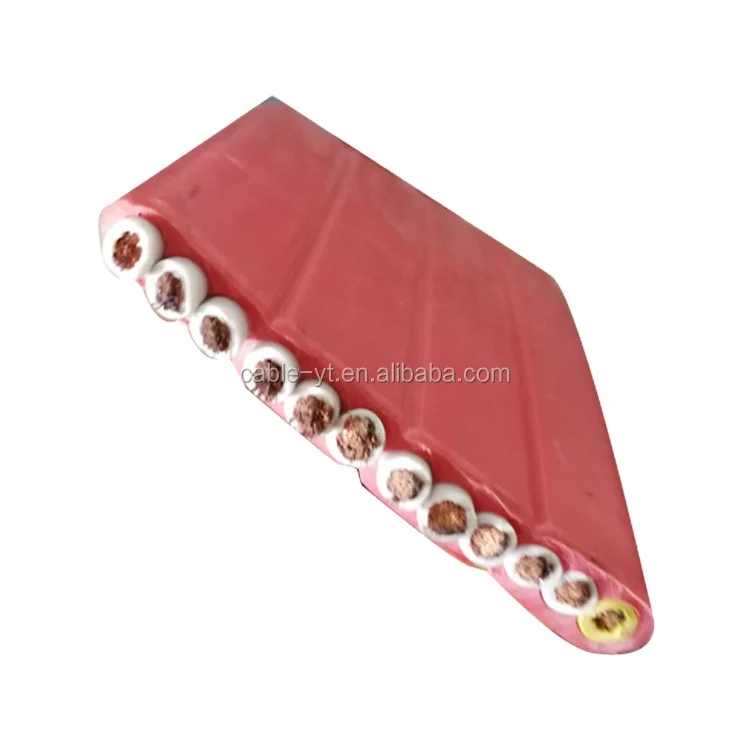

crane cable pictures
 |  |  |
| flat inner twisted lift crane cable | flat paralell lift cable | elevator cable for ip camera |
h05vv-f flat overhead oil proof lift crane cable Basic Info.
| Model NO.: | YFFB |
|---|---|
| Voltage: | Low and Medium Voltage Cable |
| Insulation Material: | Butadiene-Acrylonitrile Rubber |
| Current: | AC Cable |
| Application: | for Crane, Overhead elevator lift |
| Certification: | CCC, ISO9001 |
| Export Markets: | Global |
h05vvh6-f flat lift hoist crane power cable Applications:
Temperature (for cold resitance): -40 degree to +105 degree centigrade
As connecting and control cable for cranes and conveyors, it is suitable for the places of railway stations, crane and other related situations.
suitable as a control and connection for cranes and conveyors on building sites, container goods railway stations and cock yards where operating conditions are rough.
Properties:
Sheath: Special polychloreprene (Butadiene-acrylonitrile rubber, ) remaining flexible at 15 degree centigrade below zero, flame resistance and self-extinguishing.
Structure:
Conductor: Superfine copper strands acc. To VDE 0295, class 5
Insulation: Mixed PVC, resistant to oil, flame resistance and self-extinguishing
Color: Acc. To 227IEC (brown, blue, black. Green/yellow) 5 cores or more with black number with white digital coding
Sheath: Butadiene-acrylonitrile rubber, resistant to oil, flame retardant and self-extinguishing Color: Black(RAL9005) or Grey (RAL7001)
Standard:
Acc. To VDE0482, part 265-2-1 resp. EN50265-2-1 and IEC60332-1
Technical data:
Rated voltage: 1.5mm 450/750V
Test voltage: 1.5mm 3000V
Minimum bending radius: 0.3m
Burning vertically test: GB/T1 8380.1-2001, IEC60332-1: 1993
test passed standard: GB5023.6, IEC 60227-6, EN50214
Used under the normal conditions.
The Max temperature of conductor: lower than 70 degree centigrade
Temperature range: -15 degree to +40 degree centigrade
Cables are recommended for Installations where the suspended length doesn't exceed 80m;
And the speed of travel does not exceed 4m/s.

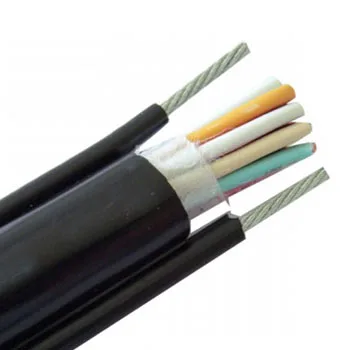

otherwise cable with steel wire is recommended.
h05vv-f flat overhead oil proof lift crane cable
| Type | Cores | Cross section sq mm | Width (mm) | Thickness (mm) | Weight(kg/km) | Shape |
| YFFB | 4 | 4 | 21.9±1.5 | 7.3±0.5 | 360.4 | Parallel |
| YFFB | 5 | 4 | 27.3±1.5 | 7.3±0.5 | 447.3 | Parallel |
| YFFB | 6 | 4 | 31.7±2.0 | 7.3±0.5 | 523.8 | Parallel |
| YFFB | 7 | 4 | 36.1±2.0 | 7.3±0.5 | 600.3 | Parallel |
| YFFB | 8 | 4 | 40.5±2.0 | 7.3±0.5 | 676.8 | Parallel |
| YFFB | 9 | 4 | 44.9±2.0 | 7.3±0.5 | 753.3 | Parallel |
| YFFB | 10 | 4 | 49.3±2.0 | 7.3±0.5 | 829.8 | Parallel |
| YFFB | 11 | 4 | 53.7±2.0 | 7.3±0.5 | 906.3 | Parallel |
| YFFB | 12 | 4 | 58.1±2.0 | 7.3±0.5 | 982.8 | Parallel |
| YFFB | 13 | 4 | 62.5±2.5 | 7.3±0.5 | 1059.3 | Parallel |
| YFFB | 14 | 4 | 67.9±2.5 | 7.3±0.5 | 1146.2 | Parallel |
| YFFB | 15 | 4 | 72.3±2.5 | 7.3±0.5 | 1222.7 | Parallel |
| YFFB | 16 | 4 | 76.7±2.5 | 7.3±0.5 | 1299.2 | Parallel |
| YFFB | 17 | 4 | 81.1±2.5 | 7.3±0.5 | 1375.7 | Parallel |
| YFFB | 18 | 4 | 86.5±2.5 | 7.3±0.5 | 1462.5 | Parallel |
| YFFB | 19 | 4 | 90.9±2.5 | 7.3±0.5 | 1539 | Parallel |
| YFFB | 24 | 4 | 60.1±2.5 | 16.1±1.0 | 1866.9 | Intertwist |
| YFFB | 30 | 4 | 78.8±2.5 | 14.8±1.0 | 2361.4 | Intertwist |
| YFFB | 36 | 4 | 86.7±2.5 | 16.1±1.0 | 2851.5 | Intertwist |
| YFFB(G) | 2 | 4 | 17.6±1.0 | 7.3±0.5 | 266 | Parallel (With Steel wire) |
| YFFB(G) | 3 | 4 | 22.0±1.5 | 7.3±0.5 | 342.5 | Parallel (With Steel wire) |
| YFFB(G) | 4 | 4 | 27.4±1.5 | 7.3±0.5 | 429.3 | Parallel (With Steel wire) |
| YFFB(G) | 5 | 4 | 32.8±1.5 | 7.3±0.5 | 516.2 | Parallel (With Steel wire) |
| YFFB(G) | 6 | 4 | 36.2±2.0 | 7.3±0.5 | 582.3 | Parallel (With Steel wire) |
| YFFB(G) | 7 | 4 | 41.6±2.0 | 7.3±0.5 | 669.2 | Parallel (With Steel wire) |
| YFFB(G) | 8 | 4 | 46.0±2.0 | 7.3±0.5 | 745.7 | Parallel (With Steel wire) |
| YFFB(G) | 9 | 4 | 50.4±2.0 | 7.3±0.5 | 822.2 | Parallel (With Steel wire) |
| YFFB(G) | 10 | 4 | 54.8±2.0 | 7.3±0.5 | 898.7 | Parallel (With Steel wire) |
| YFFB(G) | 11 | 4 | 59.2±2.0 | 7.3±0.5 | 975.2 | Parallel (With Steel wire) |
| YFFB(G) | 12 | 4 | 63.6±2.5 | 7.3±0.5 | 1051.7 | Parallel (With Steel wire) |
| YFFB(G) | 13 | 4 | 68.7±2.5 | 7.3±0.5 | 1138.2 | Parallel (With Steel wire) |
| YFFB(G) | 14 | 4 | 74.1±2.5 | 7.3±0.5 | 1225.1 | Parallel (With Steel wire) |
| YFFB(G) | 15 | 4 | 78.5±2.5 | 7.3±0.5 | 1301.6 | Parallel (With Steel wire) |
| YFFB(G) | 16 | 4 | 82.9±2.5 | 7.3±0.5 | 1378.1 | Parallel (With Steel wire) |
| YFFB(G) | 17 | 4 | 87.3±2.5 | 7.3±0.5 | 1454.6 | Parallel (With Steel wire) |
| YFFB(G) | 18 | 4 | 92.7±2.5 | 7.3±0.5 | 1541.4 | Parallel (With Steel wire) |
| YFFB(G) | 24 | 4 | 69.1±2.5 | 16.1±1.0 | 2106.8 | Intertwist(with steel wire) |
| YFFB(G) | 30 | 4 | 87.0±2.5 | 14.8±1.0 | 2567.8 | Intertwist(with steel wire) |
| YFFB | 2 | 6 | 13.5±1.0 | 8.0±0.5 | 254.6 | Parallel |
| YFFB | 3 | 6 | 18.6±1.0 | 8.0±0.5 | 358.2 | Parallel |
| YFFB | 4 | 6 | 26.9±1.5 | 8.0±0.5 | 498.1 | Parallel |
| YFFB | 5 | 6 | 32.0±2.0 | 8.0±0.5 | 601.7 | Parallel |
| YFFB | 6 | 6 | 38.7±2.0 | 8.0±0.5 | 723.4 | Parallel |
| YFFB | 7 | 6 | 42.2±2.0 | 8.0±0.5 | 809 | Parallel |
| YFFB | 8 | 6 | 48.9±2.0 | 8.0±0.5 | 930.7 | Parallel |
| YFFB | 9 | 6 | 54.0±2.0 | 8.0±0.5 | 1034.3 | Parallel |
| YFFB | 10 | 6 | 59.1±2.0 | 8.0±0.5 | 1138 | Parallel |
| YFFB | 11 | 6 | 62.6±2.5 | 8.0±0.5 | 1223.5 | Parallel |
| YFFB | 12 | 6 | 67.7±2.5 | 8.0±0.5 | 1327.1 | Parallel |
| YFFB | 13 | 6 | 72.8±2.5 | 8.0±0.5 | 1430.7 | Parallel |
| YFFB | 14 | 6 | 79.5±2.5 | 8.0±0.5 | 1552.5 | Parallel |
| YFFB | 15 | 6 | 84.6±2.5 | 8.0±0.5 | 1656.1 | Parallel |
| YFFB | 16 | 6 | 89.7±2.5 | 8.0±0.5 | 1759.7 | Parallel |
| YFFB | 24 | 6 | 68.7±2.5 | 18.2±1.0 | 2534.4 | Intertwist |
| YFFB | 30 | 6 | 90.1±2.5 | 16.7±1.0 | 3205.7 | Intertwist |
| YFFB(G) | 2 | 6 | 22.5±1.5 | 8.0±0.5 | 411.4 | Parallel(with steel wire) |
| YFFB(G) | 3 | 6 | 27.6±1.5 | 8.0±0.5 | 515 | Parallel(with steel wire) |
| YFFB(G) | 4 | 6 | 35.9±2.0 | 8.0±0.5 | 654.9 | Parallel(with steel wire) |
| YFFB(G) | 5 | 6 | 41.0±2.5 | 8.0±0.5 | 758.5 | Parallel(with steel wire) |
| YFFB(G) | 6 | 6 | 46.1±2.5 | 8.0±0.5 | 862.1 | Parallel(with steel wire) |
| YFFB(G) | 7 | 6 | 51.2±2.5 | 8.0±0.5 | 965.8 | Parallel(with steel wire) |
| YFFB(G) | 8 | 6 | 57.9±2.5 | 8.0±0.5 | 1087.5 | Parallel(with steel wire) |
| YFFB(G) | 9 | 6 | 63.0±2.5 | 8.0±0.5 | 1191.1 | Parallel(with steel wire) |
| YFFB(G) | 10 | 6 | 68.1±2.5 | 8.0±0.5 | 1294.8 | Parallel(with steel wire) |
| YFFB(G) | 11 | 6 | 71.6±2.5 | 8.0±0.5 | 1380.3 | Parallel(with steel wire) |
| YFFB(G) | 12 | 6 | 76.7±2.5 | 8.0±0.5 | 1483.9 | Parallel(with steel wire) |
| YFFB(G) | 13 | 6 | 81.8±2.5 | 8.0±0.5 | 1587.6 | Parallel(with steel wire) |
| YFFB(G) | 14 | 6 | 88.5±2.5 | 8.0±0.5 | 1709.3 | Parallel(with steel wire) |
| YFFB(G) | 24 | 6 | 78.7±2.5 | 18.2±1.0 | 2846.8 | Intertwist(with steel wire) |
| YFFB | 2 | 10 | 17.1±1.0 | 9.7±0.5 | 388 | Parallel |
| YFFB | 3 | 10 | 24.0±1.5 | 9.7±0.5 | 554.4 | Parallel |
| YFFB | 4 | 10 | 34.5±2.0 | 9.7±0.5 | 770.2 | Parallel |
| YFFB | 5 | 10 | 41.4±2.0 | 9.7±0.5 | 936.5 | Parallel |
| YFFB | 6 | 10 | 50.1±2.0 | 9.7±0.5 | 1127.6 | Parallel |
| YFFB | 7 | 10 | 55.2±2.0 | 9.7±0.5 | 1269.3 | Parallel |
| YFFB | 8 | 10 | 63.9±2.5 | 9.7±0.5 | 1460.4 | Parallel |
| YFFB | 9 | 10 | 70.8±2.5 | 9.7±0.5 | 1626.8 | Parallel |
| YFFB | 10 | 10 | 77.7±2.5 | 9.7±0.5 | 1793.1 | Parallel |
| YFFB | 11 | 10 | 82.8±2.5 | 9.7±0.5 | 1934.8 | Parallel |
| YFFB | 12 | 10 | 89.7±2.5 | 9.7±0.5 | 2101.2 | Parallel |
| YFFB(G) | 2 | 10 | 26.1±1.5 | 9.7±0.5 | 566.5 | Parallel(with steel wire) |
| YFFB(G) | 3 | 10 | 33.0±2.0 | 9.7±0.5 | 732.9 | Parallel(with steel wire) |
| YFFB(G) | 4 | 10 | 43.5±2.0 | 9.7±0.5 | 948.6 | Parallel(with steel wire) |
| YFFB(G) | 5 | 10 | 50.4±2.0 | 9.7±0.5 | 1115 | Parallel(with steel wire) |
| YFFB(G) | 6 | 10 | 57.3±2.0 | 9.7±0.5 | 1281.4 | Parallel(with steel wire) |
| YFFB(G) | 7 | 10 | 64.2±2.5 | 9.7±0.5 | 1447.8 | Parallel(with steel wire) |
| YFFB(G) | 8 | 10 | 72.9±2.5 | 9.7±0.5 | 1638.8 | Parallel(with steel wire) |
| YFFB(G) | 9 | 10 | 79.8±2.5 | 9.7±0.5 | 1805.2 | Parallel(with steel wire) |
| YFFB(G) | 10 | 10 | 86.7±2.5 | 9.7±0.5 | 1971.6 | Parallel(with steel wire) |
| YFFB(G) | 11 | 10 | 91.8±2.5 | 9.7±0.5 | 2113.3 | Parallel(with steel wire) |

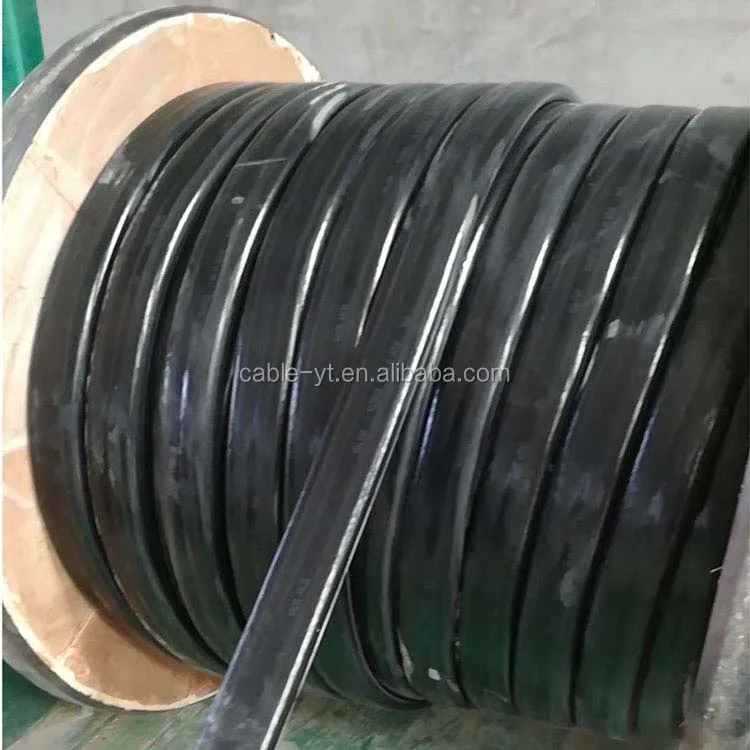

Packaging & Shipping
