SKF TKSA 31 Basic Wired Laser Shaft Alignment Tool
- Category: >>>
- Supplier: Shenzhen Mepco Technology Co. Ltd.
Share on (1600812444883):
Product Overview
Description
Product Description
SKF TKSA 31 - Basic Wired Laser Shaft Alignment Tool
Wired Laser shaft alignment tool
* "Automatic measurement" enables hands-free measurements by detecting the position of the heads and only taking a measurement when the heads are in the right position
* Automatic reports are generated after each alignment and can be customised with notes about the application. All reports can be exported as pdf files

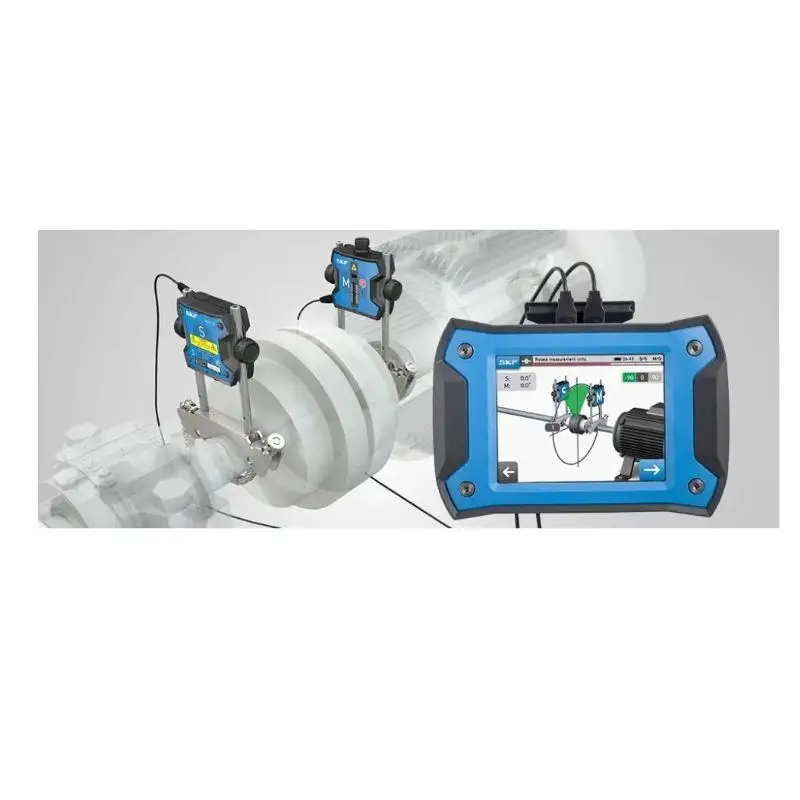

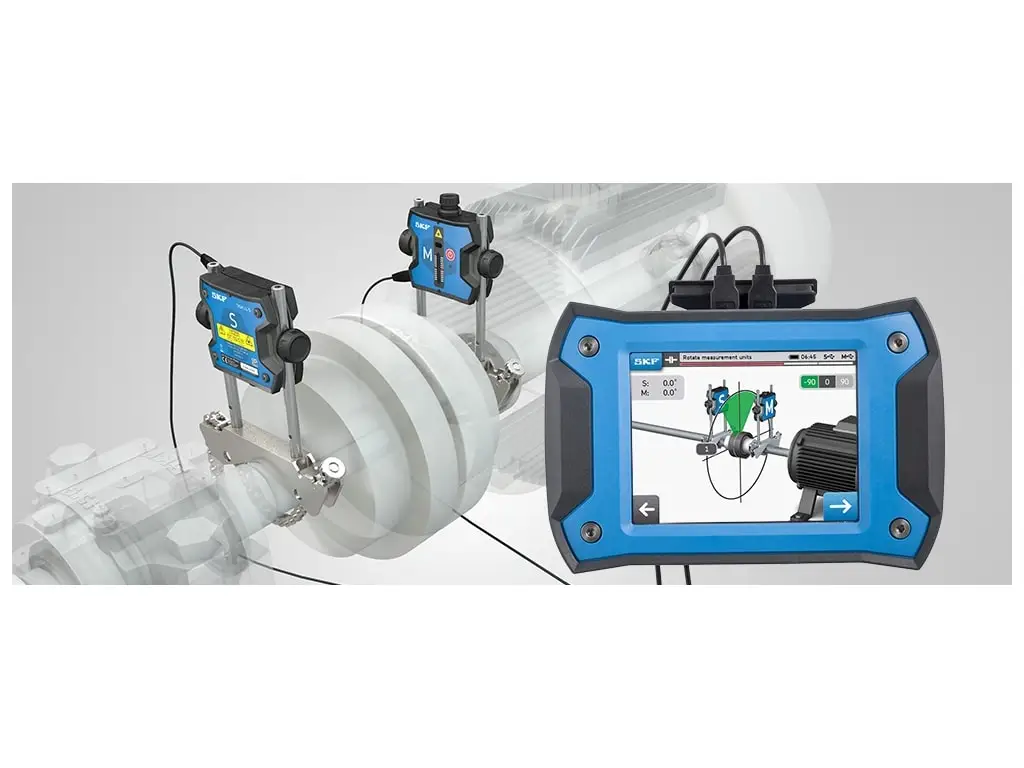

* Live view supports intuitive measurements and facilitates horizontal and vertical machine position corrections
* The machine library gives an overview of all machines and alignment reports. It simplifies the machine identification and
improves the alignment workflow
* Easy measurements can be performed by using the well-known three position measurement (9-12-3 o’clock) with additional positioning flexibility of 40° around each measurement position
* High affordability is achieved by focussing on the standard shaft alignment process and essential functions to allow quick and effective shaft alignments
* "Automatic measurement" enables hands-free measurements by detecting the position of the heads and only taking a measurement when the heads are in the right position
* Automatic reports are generated after each alignment and can be customised with notes about the application. All reports can be exported as pdf files
* Live view supports intuitive measurements and facilitates horizontal and vertical machine position corrections
* The machine library gives an overview of all machines and alignment reports. It simplifies the machine identification and
improves the alignment workflow
* Easy measurements can be performed by using the well-known three position measurement (9-12-3 o’clock) with additional positioning flexibility of 40° around each measurement position
* High affordability is achieved by focussing on the standard shaft alignment process and essential functions to allow quick and effective shaft alignments
* Automatic reports
* Live view supports intuitive measurements
* Easy to use touch screen

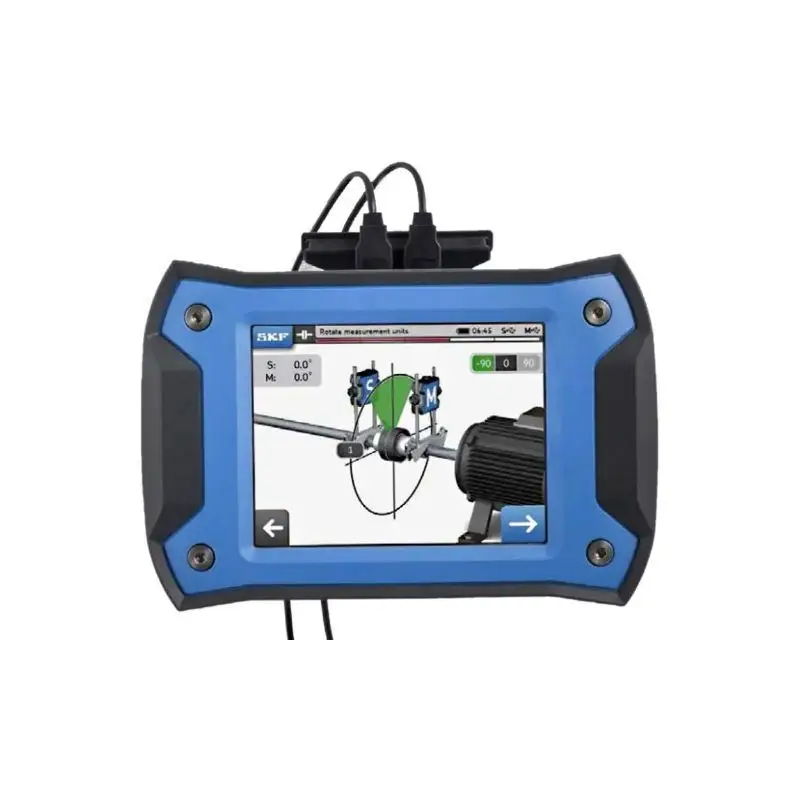

The TKSA 31 is SKF’s most affordable solution for easy laser shaft alignment. The ergonomic display unit with touch screen makes the instrument very easy to use and the built-in machine library helps storing alignment reports for multiple machines. Large sized laser detectors in the measuring heads reduce the need for pre-alignments and the embedded soft foot tool helps establish the foundation for a successful alignment. Additional functions such as live view and automatic measurement support fast and effective alignment tasks and make the TKSA 31 an innovative laser shaft alignment tool that is affordable for almost every budget.
* Easy measurements can be performed by using the well-known three position measurement (9-12-3 o’clock) with additional positioning flexibility of 40° around each measurement position.
* High affordability is achieved by focusing on the standard shaft alignment process and essential functions to allow quick and effective shaft alignments.
* "Automatic measurement” enables hands-free measurements by detecting the position of the heads and only taking a measurement when the heads are in the right position.
* Automatic reports are generated after each alignment and can be customized with notes about the application. All reports can be exported as pdf files.
* Live view supports intuitive measurements and facilitates horizontal and vertical machine position corrections.
* The machine library gives an overview of all machines and alignment reports. It simplifies the machine identification and
improves the alignment workflow.
* High affordability is achieved by focusing on the standard shaft alignment process and essential functions to allow quick and effective shaft alignments.
* "Automatic measurement” enables hands-free measurements by detecting the position of the heads and only taking a measurement when the heads are in the right position.
* Automatic reports are generated after each alignment and can be customized with notes about the application. All reports can be exported as pdf files.
* Live view supports intuitive measurements and facilitates horizontal and vertical machine position corrections.
* The machine library gives an overview of all machines and alignment reports. It simplifies the machine identification and
improves the alignment workflow.

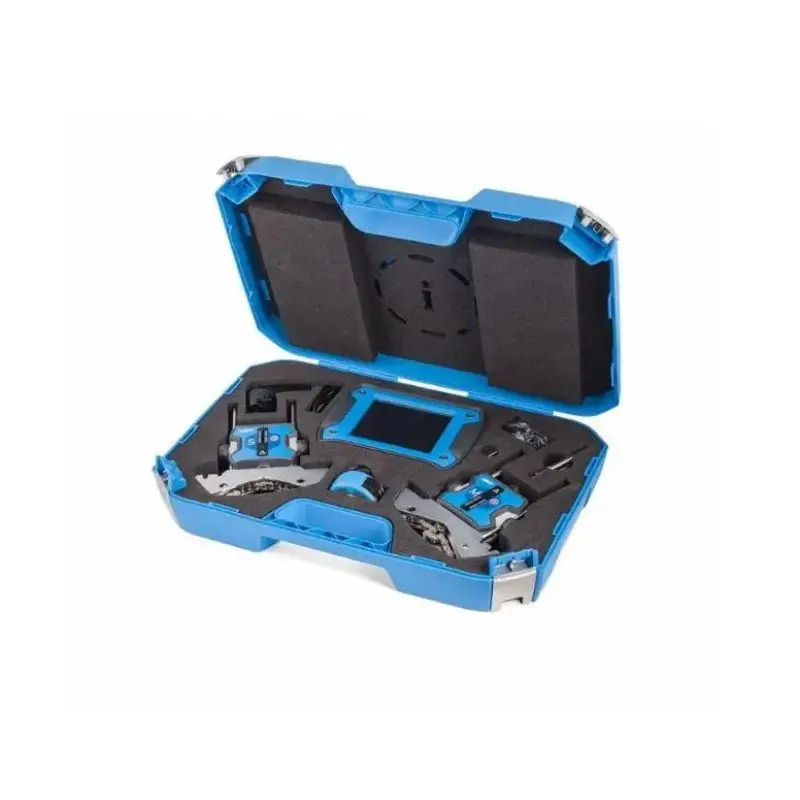

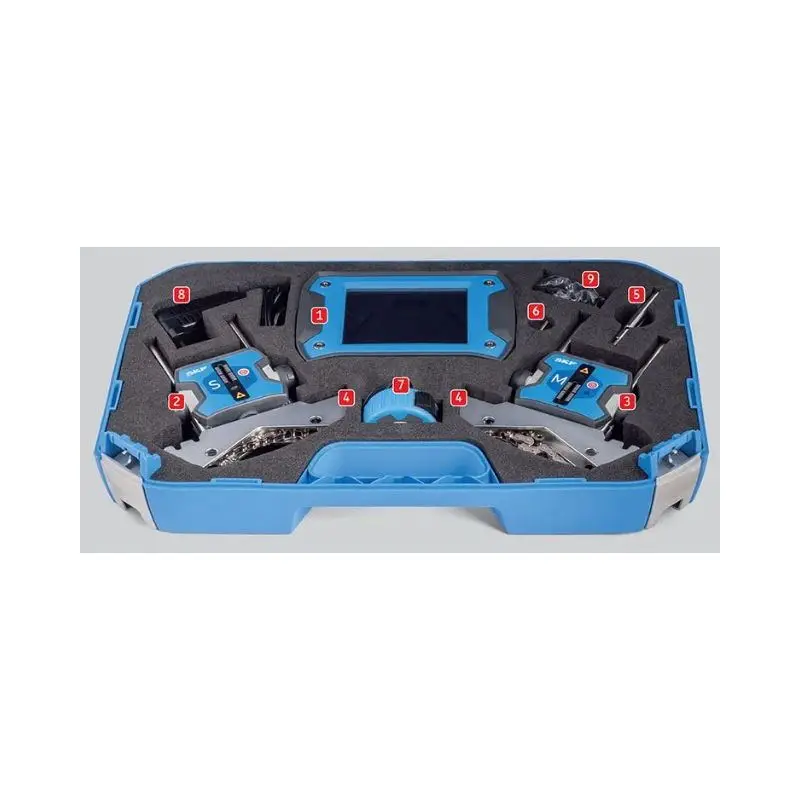

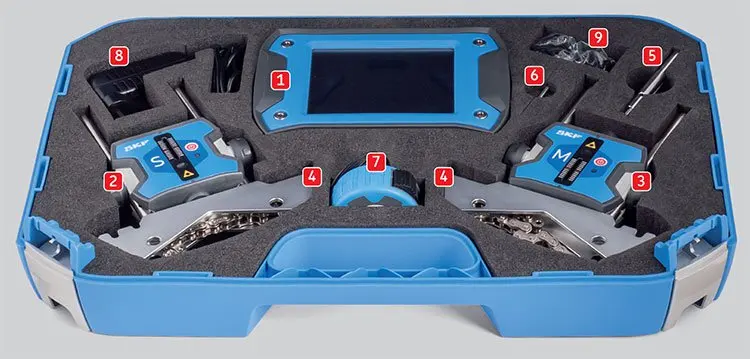

Case content
1. 1 × TKSA 31/41 Display unit
2. 1 × TKSA 31/41 S Measuring unit
3. 1 × TKSA 31/41 M Measuring unit
4. 2 × Shaft V-Brackets with chains
5. 90 mm Extension rods (TKSA 41 only)
6. 1 × Chain tightening rod
7. 5 m (16 ft) metric and imperial measuring tape
8. 1 × 12V DC 3A Power supply
9. Country adapters (US, UK, EU, AUS)
10. 2 × Micro USB to USB cables*
11. Printed Quick Start Guide (EN)*
12. Printed certificate of Calibration and conformance*
13. 1 × Page of QR code stickers (TKSA 41 only)*
2. 1 × TKSA 31/41 S Measuring unit
3. 1 × TKSA 31/41 M Measuring unit
4. 2 × Shaft V-Brackets with chains
5. 90 mm Extension rods (TKSA 41 only)
6. 1 × Chain tightening rod
7. 5 m (16 ft) metric and imperial measuring tape
8. 1 × 12V DC 3A Power supply
9. Country adapters (US, UK, EU, AUS)
10. 2 × Micro USB to USB cables*
11. Printed Quick Start Guide (EN)*
12. Printed certificate of Calibration and conformance*
13. 1 × Page of QR code stickers (TKSA 41 only)*
Specification
Technical data | ||
Designation | TKSA 31 | |
Sensors and communication | 29 mm (1.1 in.) CCD with line laser; electronic inclinometer ±0,5°; | |
Wired communication with USB cables (included) | ||
System measuring distance * | 0,07 to 2 m (0.23 to 6.6 ft.) | |
Measuring errors / displayed resolution | <0,5% ±5 µm / 10 µm (0.4 mils) | |
Display type | 5.6" colour resistive touchscreen LCD | |
Software update | via USB stick | |
Shaft diameters | 20 to 150 mm (0.8 to 5.9 in.) diameter | |
Up to 300 mm (11.8 in.) with optional extension chains | ||
Max. recommended coupling height ** | 105 mm (4.2 in.) | |
Mounting system | 2 × V-brackets; 2 × chains 400 mm (15.8 in.); 2 × threaded rods 150 mm (5.9 in.) per V-bracket | |
Alignment measurement | 3 position measurement 9–12–3 | |
3 position automatic measurement 9–12–3 | ||
Alignment correction | Live values for vertical and horizontal machine position correction; Laser soft foot tool | |
Alignment report | Automatic pdf report exportable via USB stick | |
System battery | Up to 7 hours continuous use at 100% backlight (5 000 mAh rechargeable LiPo battery) | |
Carrying case dimensions | 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.) | |
Total weight (incl. case) | 4,75 kg (10.5 lb) | |
Operating temperature | 0 to 45 °C (32 to 113 °F) | |
IP rating | IP54 | |
Calibration certificate | Supplied with 2 years validity | |
* With standard USB cables supplied, up to 4 m (13.1 ft.) possible | ||
** Up to 195 mm (7.7 in.) with extension rods (optional) | ||
