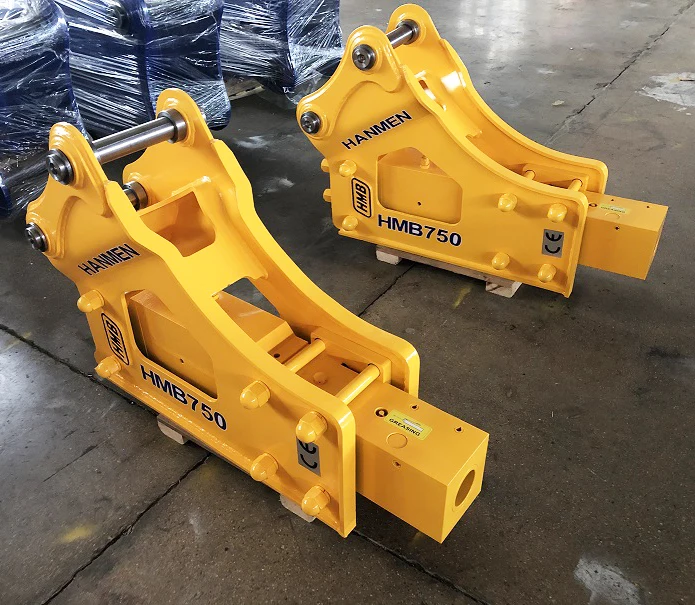

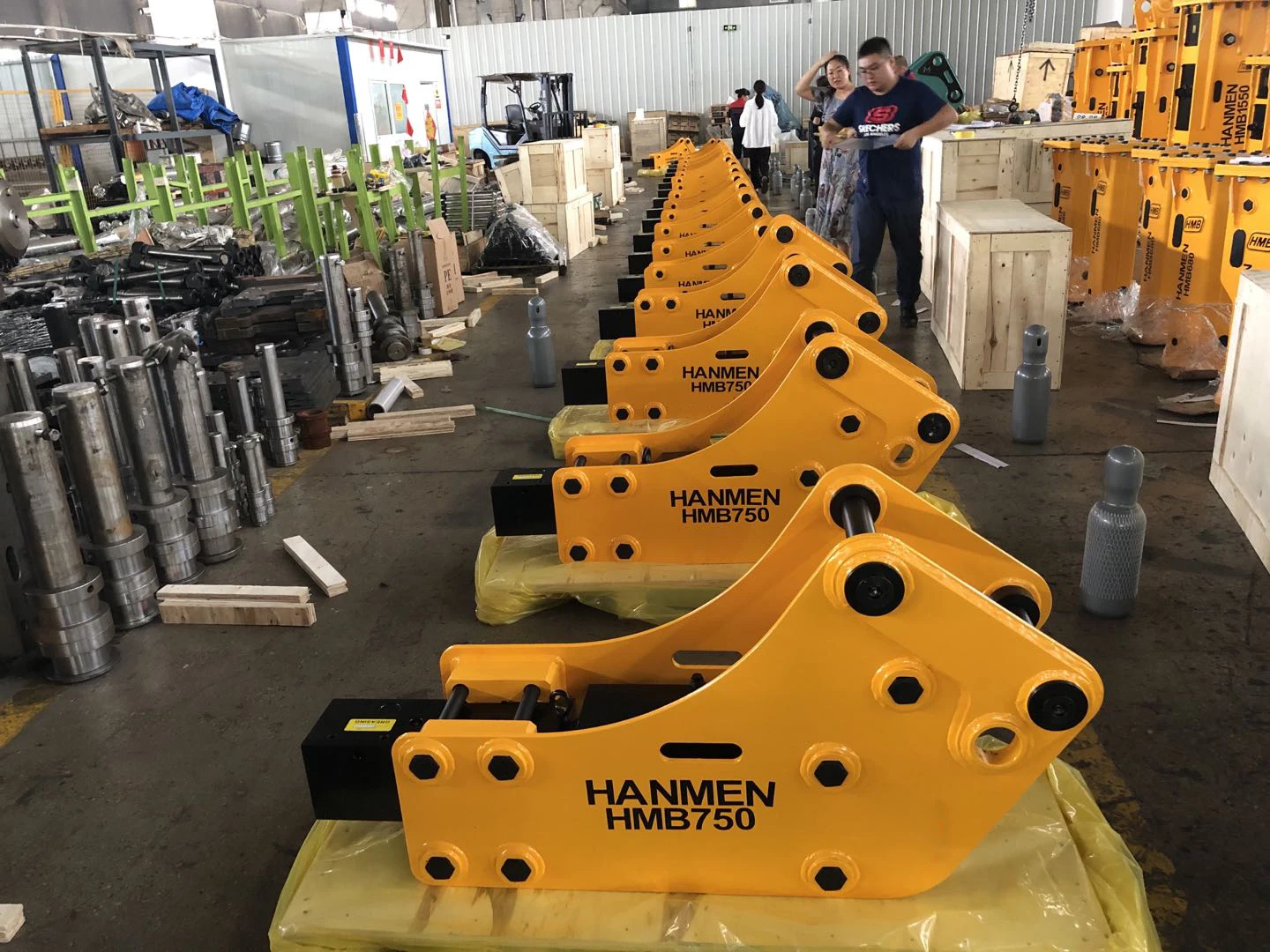

hmb750 case 580 hydraulic hammer breaker 75 hydraulic hammers for chisel 75mm for excavator
- Category: >>>
- Supplier: Yantai Jiwei Construction Machinery Equipment Co. LTD
Share on (1600812448290):
Product Overview
Description
Product Description
Hydraulic breaker's power source is excavators,loaders or pumping stations' pressure.It can break
stones and rocks more effectively in the engineering construction.Selection of hydraulic breaker principle is according to the operation environment and excavator type
stones and rocks more effectively in the engineering construction.Selection of hydraulic breaker principle is according to the operation environment and excavator type

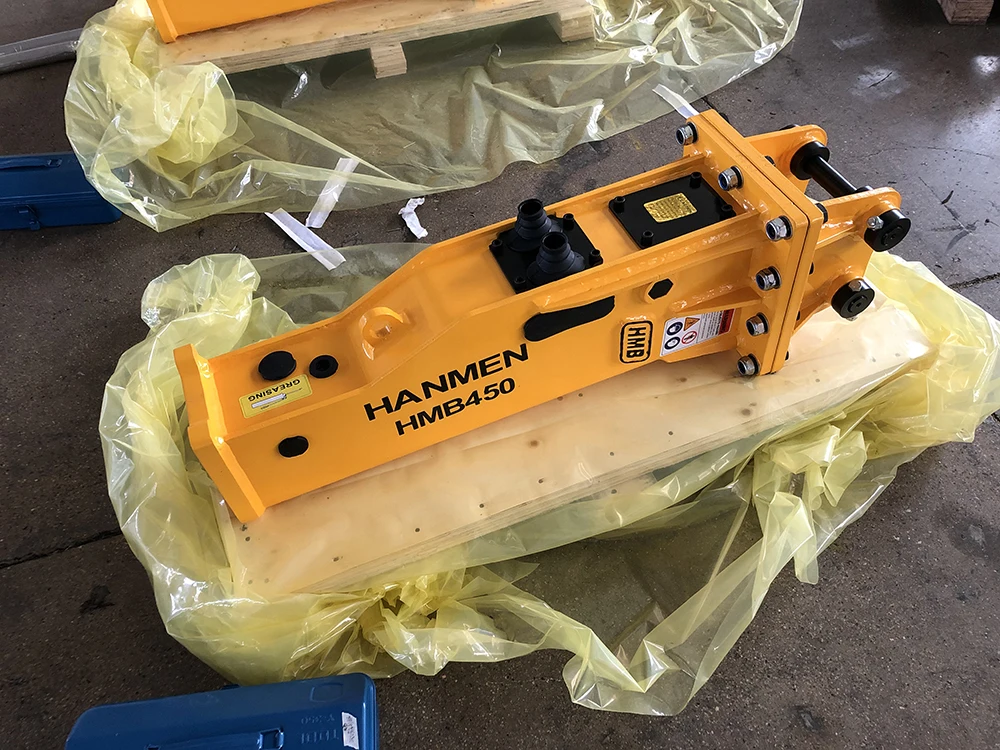

Top Type
1.Easy to locate and control
2.More conducive to excavator
3.Weight lighter, lower risk of broken drill rod
1.Easy to locate and control
2.More conducive to excavator
3.Weight lighter, lower risk of broken drill rod

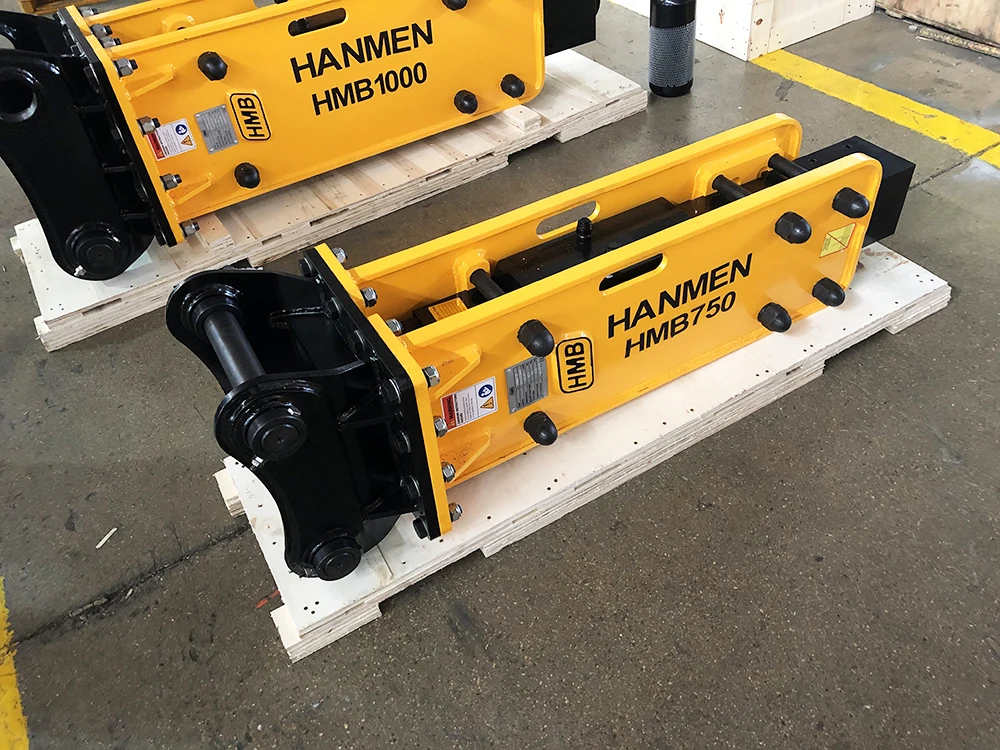

Box Type
1.Reduce noise
2.Protect the environment
1.Reduce noise
2.Protect the environment

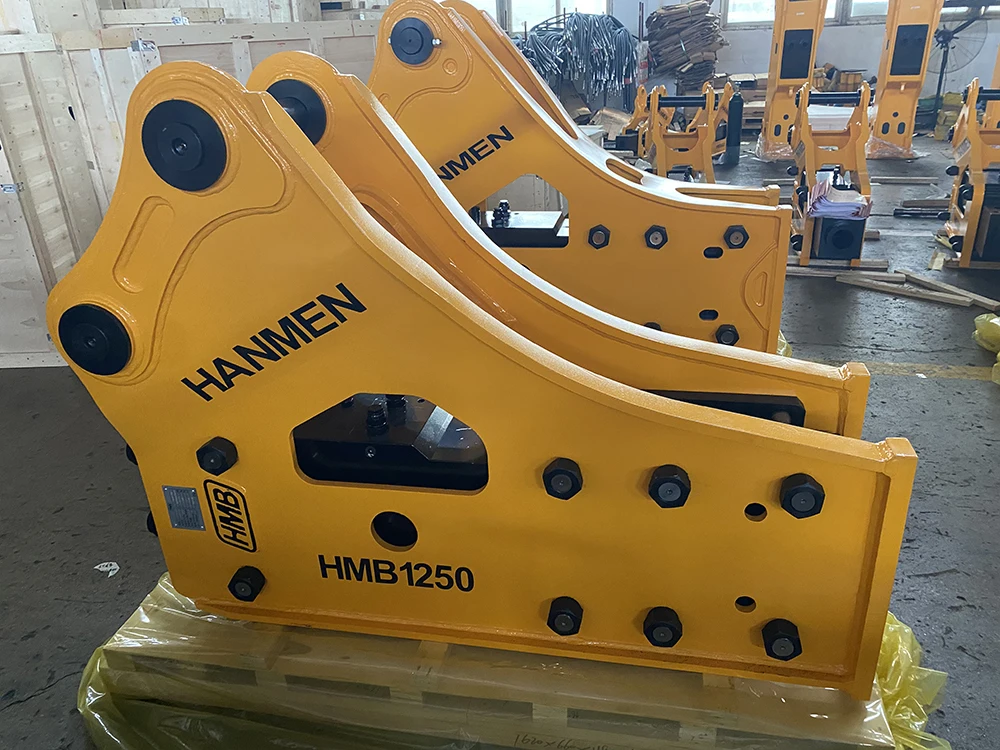

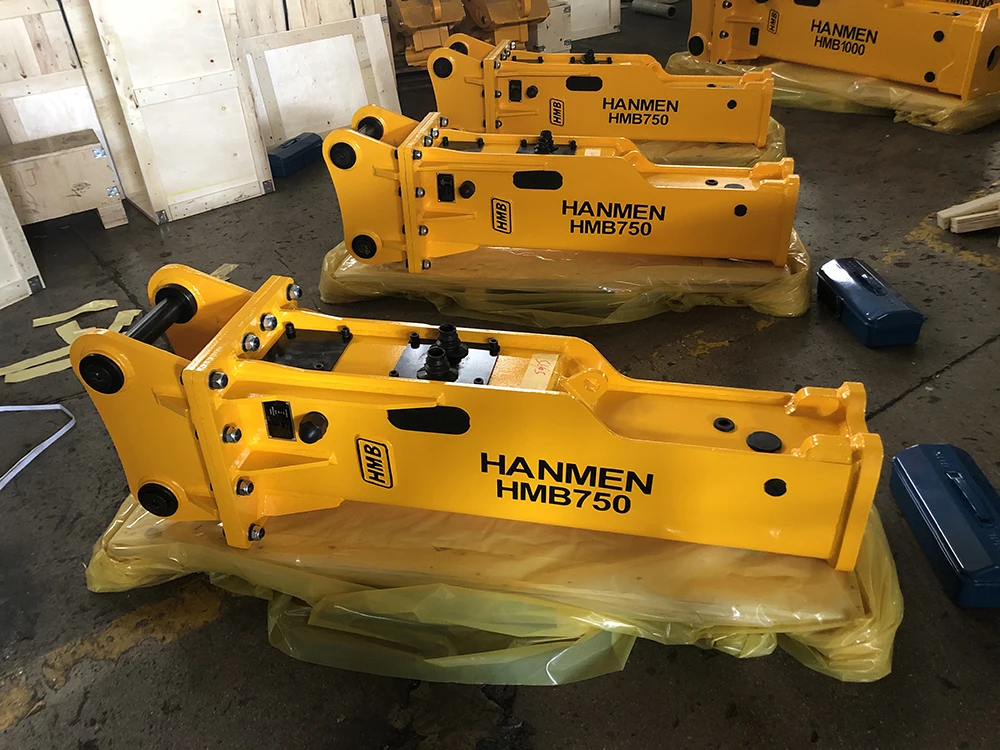

Side Type
1.Overall length shorter
2.Hook back things conveniently
3.Maintenance-free
1.Overall length shorter
2.Hook back things conveniently
3.Maintenance-free
WHY CHOOSE US?
1. Selected raw material – high quality heavy duty wear resistant steel. 2. Hydraulic-gas system, increase stability.
3.High-quality and durable wear parts.
4. Advanced manufacturing facilities, introduced from South Korea.
5. High energy and impact frequency (high erformance).
6. High-performance optimized hydraulic unit.
7. Low maintenance, less breakdown, long usinglife.
8.Suitable For XCMG; SANY; KOMATSU; HITACHI; KOBELCO; DOOSAN/DAEWOO; HYUNDAI; CATERPILLAR; CASE;VOLVE; JCB; EDT
3.High-quality and durable wear parts.
4. Advanced manufacturing facilities, introduced from South Korea.
5. High energy and impact frequency (high erformance).
6. High-performance optimized hydraulic unit.
7. Low maintenance, less breakdown, long usinglife.
8.Suitable For XCMG; SANY; KOMATSU; HITACHI; KOBELCO; DOOSAN/DAEWOO; HYUNDAI; CATERPILLAR; CASE;VOLVE; JCB; EDT
How to choose the most suitable hydraulic hammer ?
HYDRAULIC BREAKER SPECIFICATIONS | ||||||||||||||||
HMB Model | Operating Weight (kg) | Required Oil Flow (L/Min) | Working Pressure (Bar) | Impact Rate (Bpm) | Chisel Diameter (mm) | Hose Diameter (inch) | Carrier weight (ton) | Valve Ass'y Position (/) | ||||||||
HMB450 | 150 | 20-40 | 90-120 | 700-1200 | 45 | 1/2 | 1.2-3 | Internal | ||||||||
HMB530 | 190 | 25-45 | 90-120 | 500-1100 | 53 | 1/2 | 2.5-3 | Internal | ||||||||
HMB680 | 340 | 36-60 | 110-140 | 500-900 | 68 | 1/2 | 3-7 | Internal | ||||||||
HMB750 | 480 | 50-90 | 120-170 | 400-800 | 75 | 1/2 | 6-9 | Internal | ||||||||
HMB850 | 580 | 45-85 | 127-147 | 400-800 | 75 | 3/4 | 7-14 | Internal | ||||||||
HMB1000 | 950 | 80-120 | 150-170 | 400-650 | 100 | 3/4 | 10-15 | Internal | ||||||||
HMB1350 | 1650 | 130-170 | 160-185 | 400-650 | 135 | 1 | 18-25 | Internal | ||||||||
HMB1400 | 2000 | 150-190 | 165-195 | 400-800 | 140 | 1 | 20-30 | Internal | ||||||||
HMB1550 | 2900 | 150-230 | 170-200 | 400-800 | 155 | 1 | 27-36 | Internal | ||||||||
HMB1650 | 3250 | 200-260 | 180-200 | 250-400 | 165 | 5/4 | 30-45 | Internal | ||||||||
HMB1750 | 4150 | 210-280 | 180-200 | 250-350 | 175 | 5/4 | 40-50 | Internal | ||||||||
HMB1800 | 4200 | 280-350 | 190-210 | 230-320 | 180 | 5/4 | 45-55 | Internal | ||||||||
HMB1900 | 4230 | 280-350 | 190-210 | 230-320 | 190 | 5/4 | 50-60 | Internal | ||||||||

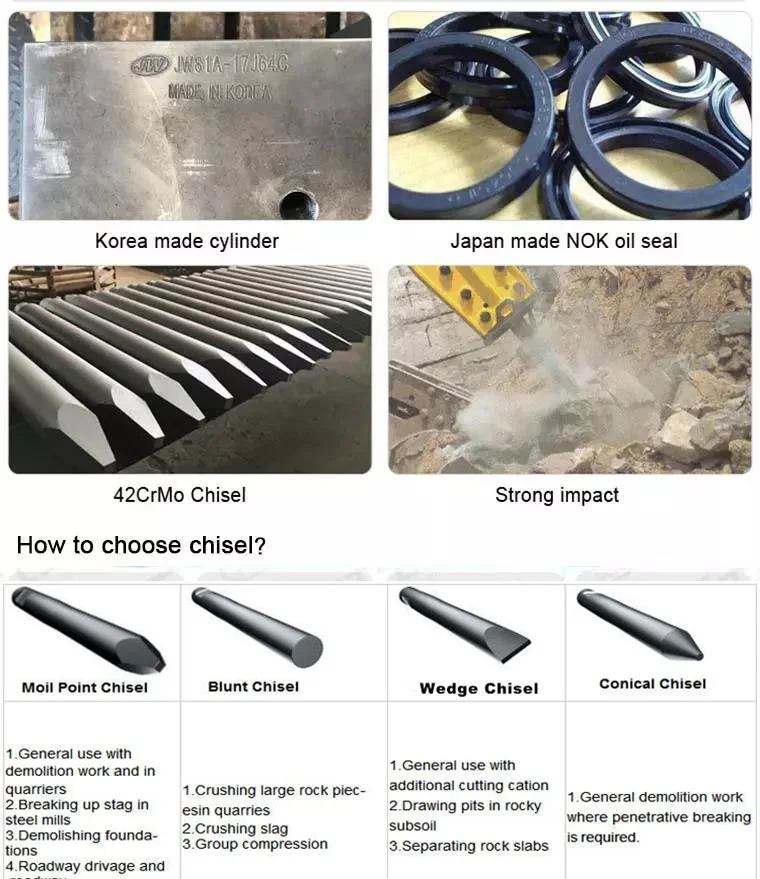

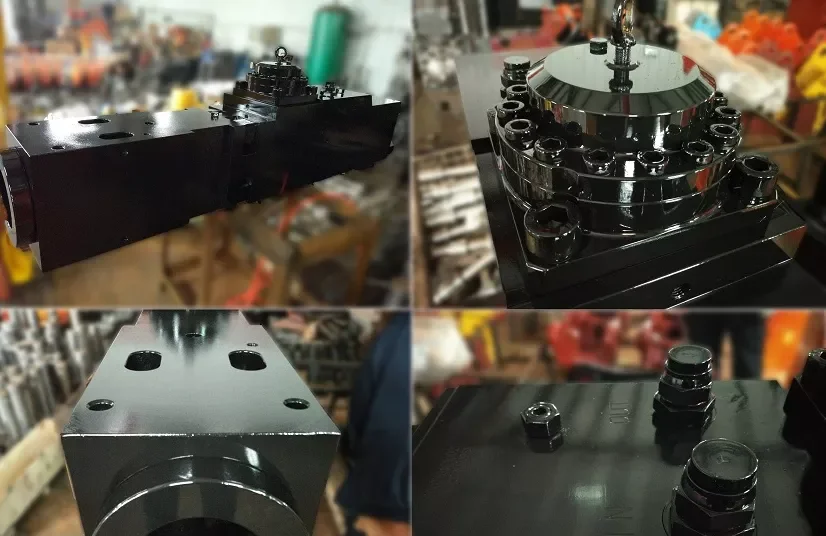

Main Features:
1. Cylinder&valves: prevents wear with precision finishing treatment.
2. Piston: improved running properties; manufactured with high-quality nickel&vanadium alloy steel.
3. Chisel: exceptinal performance and reliability; manufacutred with high-quality alloy steel.
4. Accummulator: reduces irregular pulse pressure on hydraulic circuit; improved striking power with supply of accumulated gas pressure.
5. Oil seal: increase hydraulic circuit design at the sied of under pressure, reduce the pressure of oil seal, improve service
life.
1. Cylinder&valves: prevents wear with precision finishing treatment.
2. Piston: improved running properties; manufactured with high-quality nickel&vanadium alloy steel.
3. Chisel: exceptinal performance and reliability; manufacutred with high-quality alloy steel.
4. Accummulator: reduces irregular pulse pressure on hydraulic circuit; improved striking power with supply of accumulated gas pressure.
5. Oil seal: increase hydraulic circuit design at the sied of under pressure, reduce the pressure of oil seal, improve service
life.

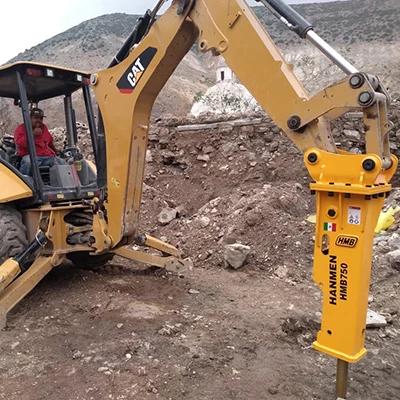

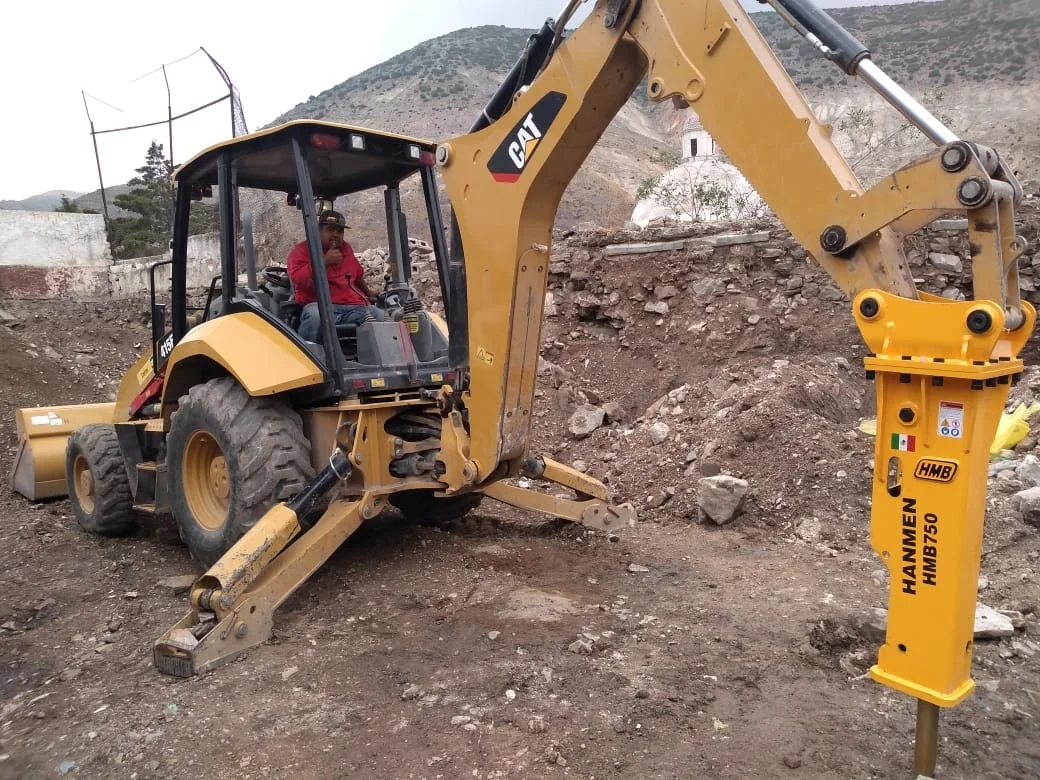

Product Application
Company Introduction
Located in Yantai, Shandong province, established in 2009, Yantai Jiwei Construction Machinery Equipment Co.,Ltd registered HMB Brand in 2011. We started to develop oversea market in 2013.With 12 years experience, specialized in manufacturing Hydraulic Breakers, Quick Couplers, Excavator Palte Compactors, Earth Augers and Spare Parts. Our own brand "HMB" hydraulic breakers have full series and are compatible to all brands' excavators.
Why Choose HMB
Exhibition Show
Packing&Shipping
Plastic cloth, Tensile membranes, Packing tape, Steel Belt and Wooden box contribute a wonderful packing procedure. With Plastic and tensile membranes, can prevent breaker rusting when sailing on the sea for long time. Packing tape , steel belt and outside wooden box can protect breakers free from collision.
FQA
Q: Are you a manufacturer?
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
