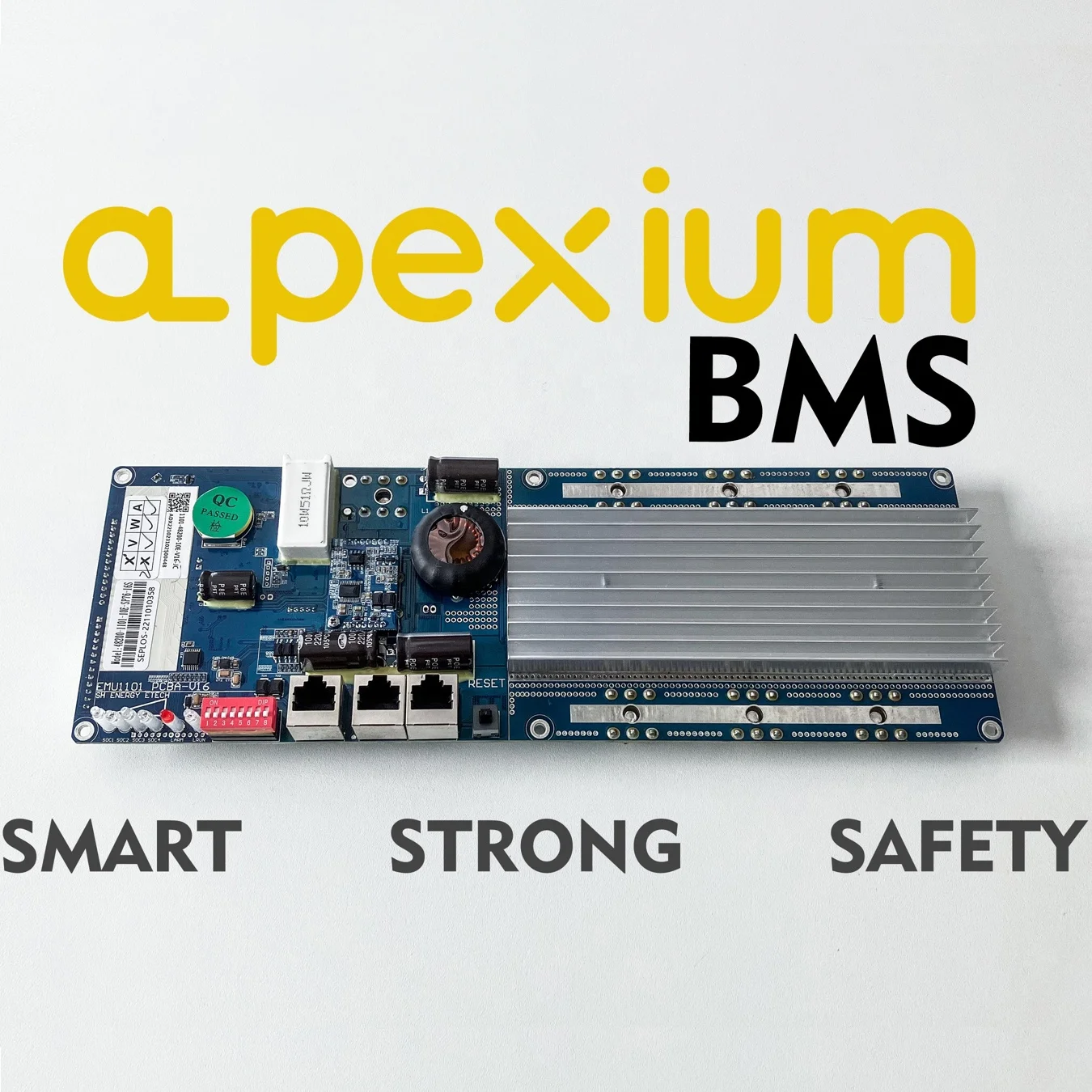

Apexium New Brand Fully Functional Solar System Smart BMS 48V 100Ah Lithium Ion Batteries 48100 BMS
- Category: >>>
- Supplier: Dongguan Anzhi Electronic Technology Co. Ltd.Dongguan Ltd.
Share on (1600812614897):
Product Overview
Description
Products Description
Battery type and serial number | LFP(16S/15S) | NCM(14S/13S) | |||||||||||||||
Continuously charging/discharging current | 50A/100A/150A/200A | 50A/100A/150A/200A | |||||||||||||||
Communication protocol | CANBUS（defult） RS485(Please contact Sale man) | ||||||||||||||||
Custom function | Heating function、External switch、RS485 protocol | ||||||||||||||||
Discharge Output Impedance | <2mΩ | ||||||||||||||||
Working Temperture | -20℃-70℃ | ||||||||||||||||
compensating impedance | 10mΩ | ||||||||||||||||
Pre-charging | 0-3000ms | ||||||||||||||||
Current Balance | Passive balance | 150mA(Max) | |||||||||||||||
Power consumption | Working mode power consumption | <40mA | |||||||||||||||
Sleeping mode power consumption | 0uA | ||||||||||||||||
Nominal capacity | 5-500Ah | ||||||||||||||||
Capacity protection | Remaining capacity protection | 5% | |||||||||||||||
Short circuit protection lock | Continuously short in the output circuit | ||||||||||||||||
Short circuit protection lock times | 5 times | ||||||||||||||||
Short Circuit protection | Short circuit protection lock release | Connected with charger | |||||||||||||||
Over voltage protection | 3650mV | 4200mV | |||||||||||||||
Individual cell voltage protection | Under voltage protection | 2700mV | 2900mV | ||||||||||||||
Over voltage protection | 57.6V | 58V | |||||||||||||||
Voltage protection | Under voltage protection | 41.6V | 40.6V | ||||||||||||||
Over current protection | 60A/110A/160A/210A | 60A/110A/160A/210A | |||||||||||||||
Current protection | Over current protection time delay | 30mS | |||||||||||||||
Current limiting(charging) | Passive current limiting | 10A | |||||||||||||||
Start | 0℃ | ||||||||||||||||
Heating function | Stop | 10℃ | |||||||||||||||

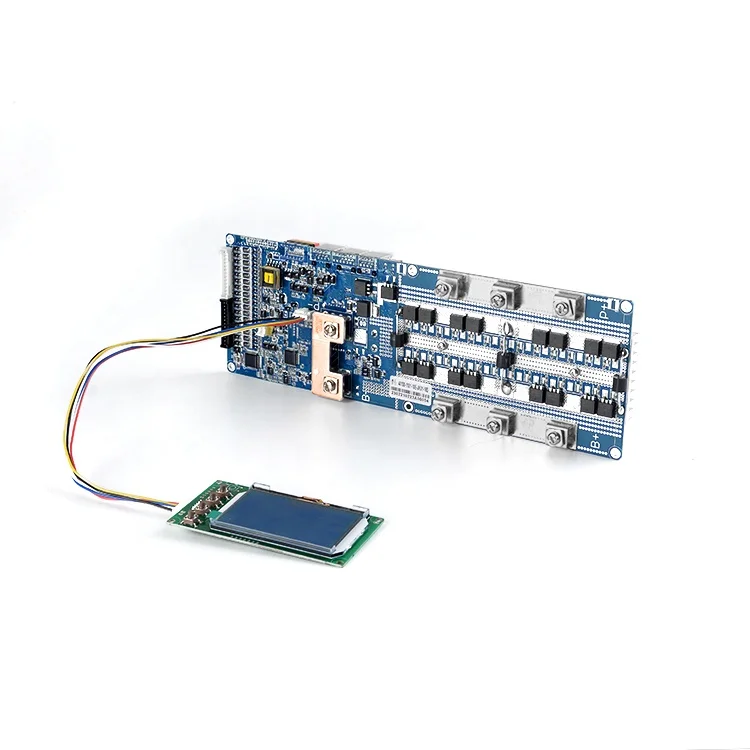

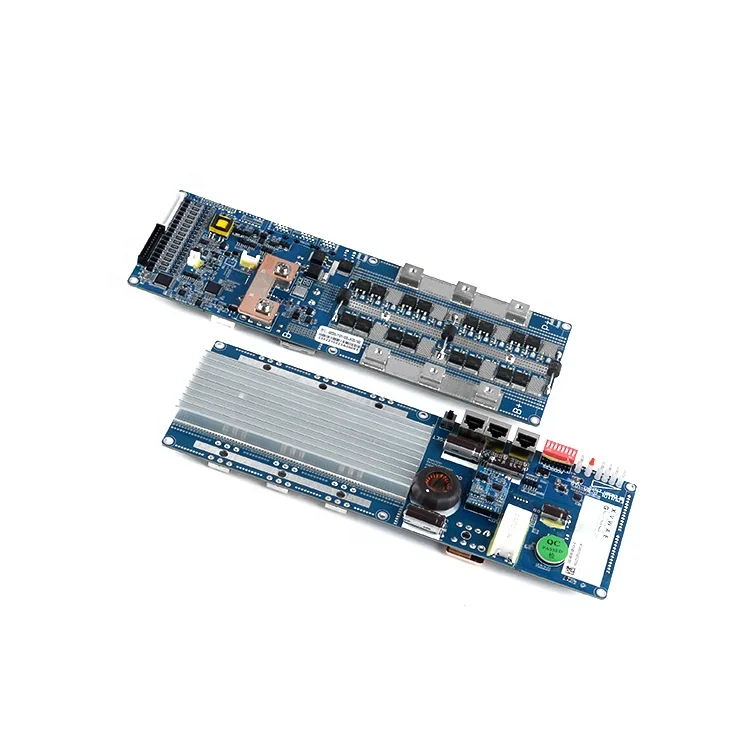

Details Images
Our Service
Company Profile
FAQ
Apexium BMS：
1. Battery management systems can NOT be used in series.
2. BMS power component switch stand voltage 100V.
3. If the battery module is assembled in the form of long wire and long copper bar, it MUST communicate with the BMS manufacturer for impedance compensation. Otherwise, it will affect the consistency of the cells.
4. The external switch on BMS is PROHIBITED to connect with other equipment. If necessary, please confirm with the technology for docking. Otherwise, BMS will not bear any responsibility for damage.
5. DO NOT touch the surface of the core directly when assembling, so as not to damage the core. The assembly should be firm and reliable.
6. In use pay attention to lead wire head, soldering iron, solder and so on, DO NOT touch the components on the circuit board, otherwise it may damage the circuit board.
7. Use process should pay attention to anti-static, moisture-proof, waterproof and so on.
4. The external switch on BMS is PROHIBITED to connect with other equipment. If necessary, please confirm with the technology for docking. Otherwise, BMS will not bear any responsibility for damage.
5. DO NOT touch the surface of the core directly when assembling, so as not to damage the core. The assembly should be firm and reliable.
6. In use pay attention to lead wire head, soldering iron, solder and so on, DO NOT touch the components on the circuit board, otherwise it may damage the circuit board.
7. Use process should pay attention to anti-static, moisture-proof, waterproof and so on.
8. Please follow the design parameters and use conditions during use, must not exceed the value in this specification, otherwise it may damage the protection board.
9. After combining the battery pack and the protection plate, if you find no voltage output or charge, please check the wiring is correct.
Lifepo4 Battery：
1. Are the batteries Top Quality, Brand NEW?
Yes, Top quality. the QR code is intact, Brand new from original factory.
Lifepo4 Battery：
1. Are the batteries Top Quality, Brand NEW?
Yes, Top quality. the QR code is intact, Brand new from original factory.

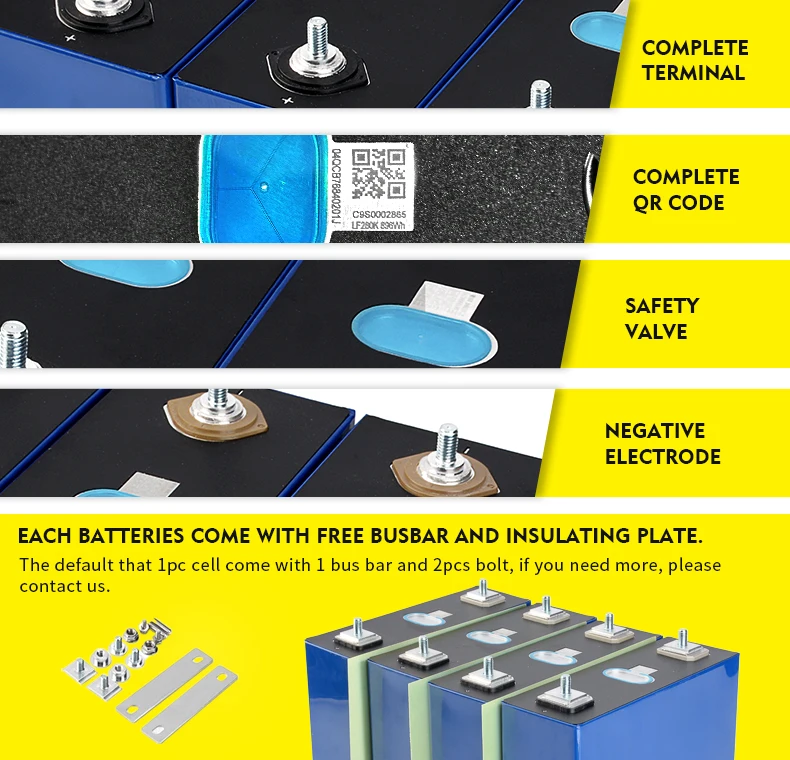

2. Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolt, One Battery will come with one set bus bar and bolt(e.g. If buy 4pcs battery, we will send 4pcs cells with 4pcs busbars and 8pcs bolts). If need more please contact us online.
3. Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.
4. What kind of the package of the cells?
Pack with strong package, each cell into thickness PE foam or bag, then into 5 layers strong carton.
5. How can I place the order?
Usually we accept order online, and you can send us inquiry or chat with us online they will create online order for you.
6. How can I do if I need more help for the order?
You can chat with our sales online or send inquiry email, we will respond you ASAP.
7. What is delivery time if we place an order?
It depends on order quantities. Usually, we can deliver goods within 1-2 working days for small orders, for mass order, let's confirm when you send inquiry.
8. How should I pay?
Paypal, Bank Wire, Visa, Mastercard, American Express, Discover, If you prefer other payment terms, please contact us freely.
9. Why received scuff marks LiFePO4 Prismatic cells?
Scuff marks is normal factor, due to factory QC has been inspected several times. There will be a little scuff marks in various inspections through all the batteries are placed together to check at our warehouse by QC; And All prismatic cells will make the Laser Welded studs, check each cell Voltage and Internal resistance to make sure the battery cells get fully matched and batched at our warehouse.
