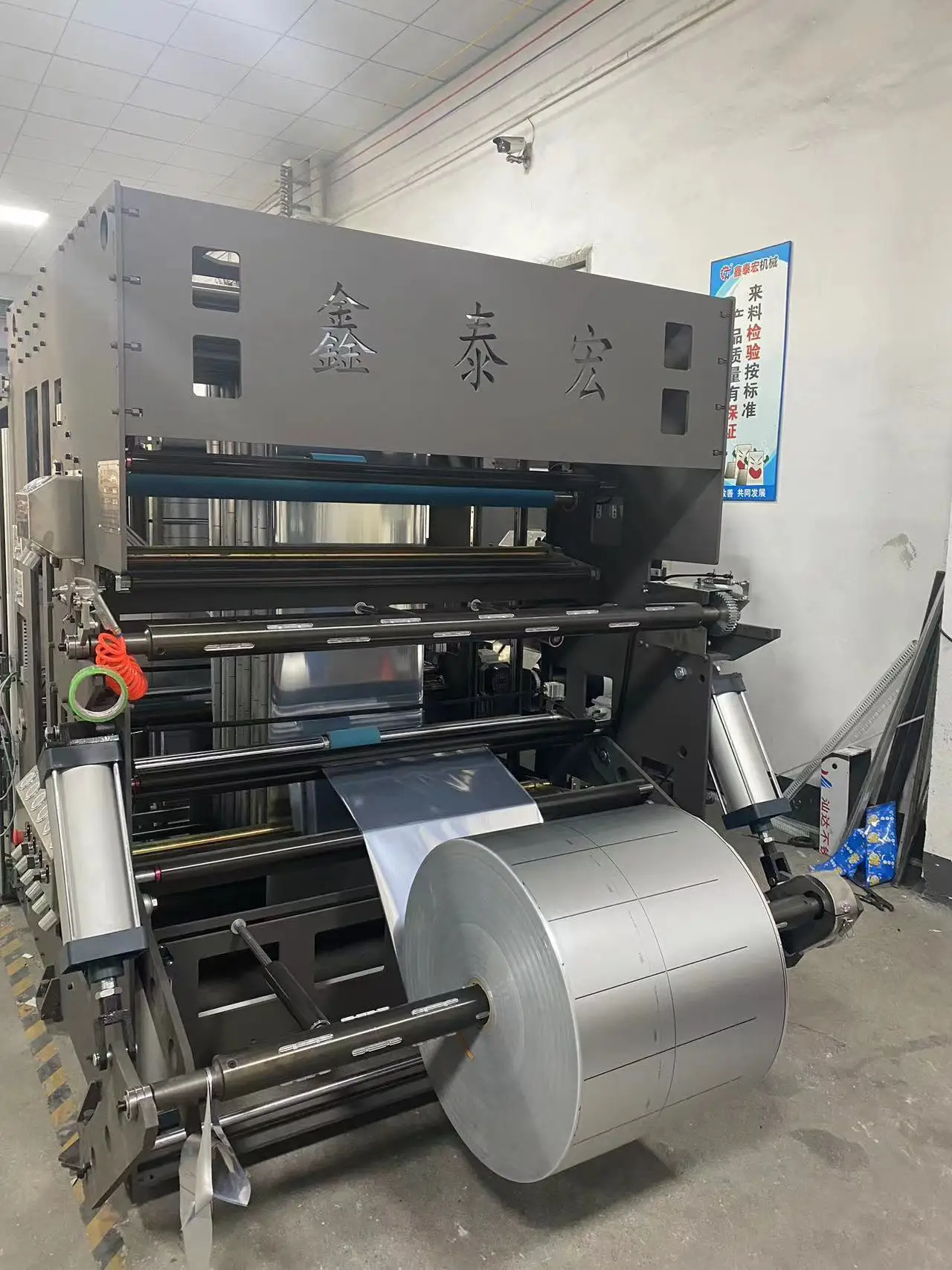

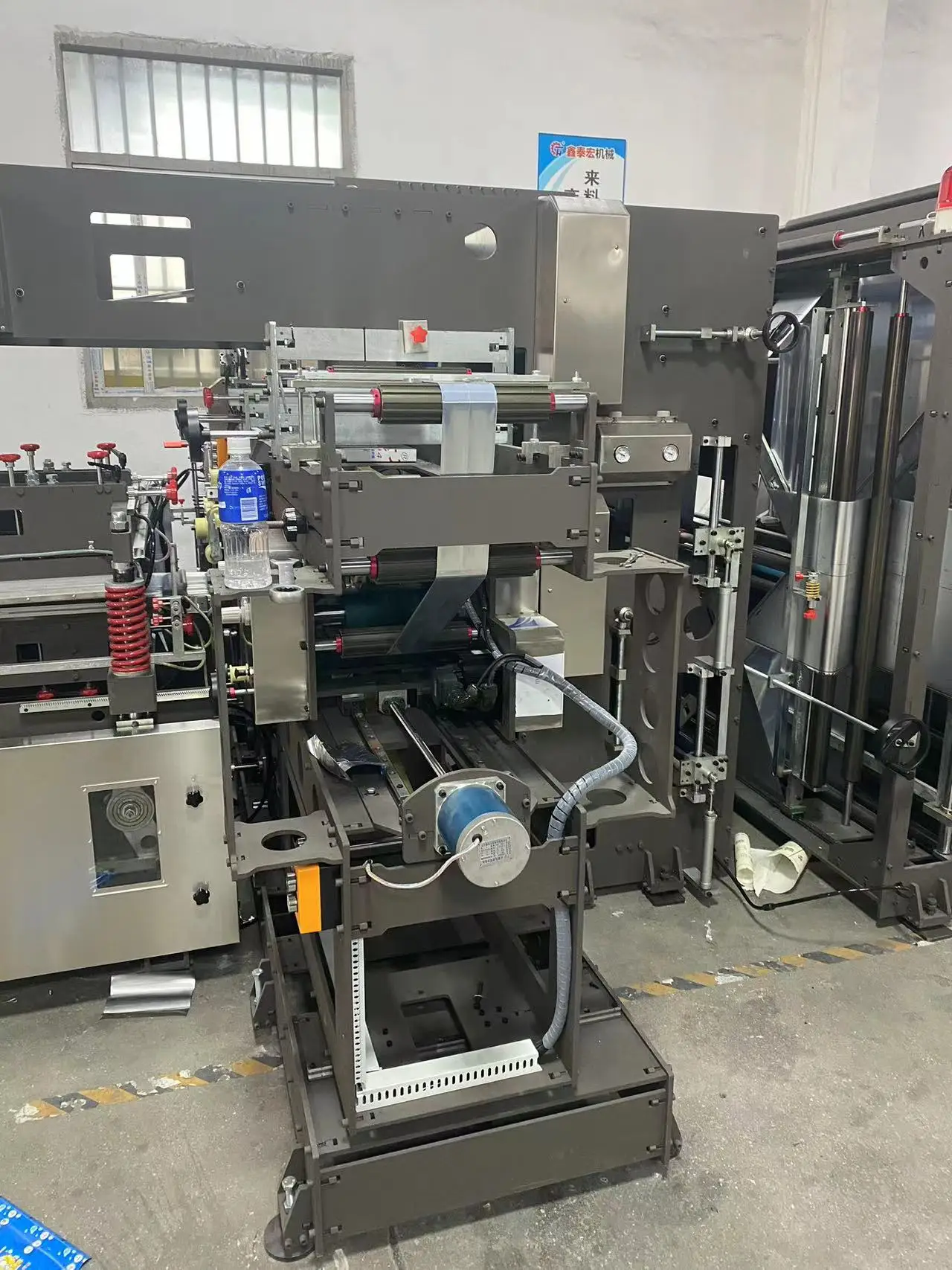

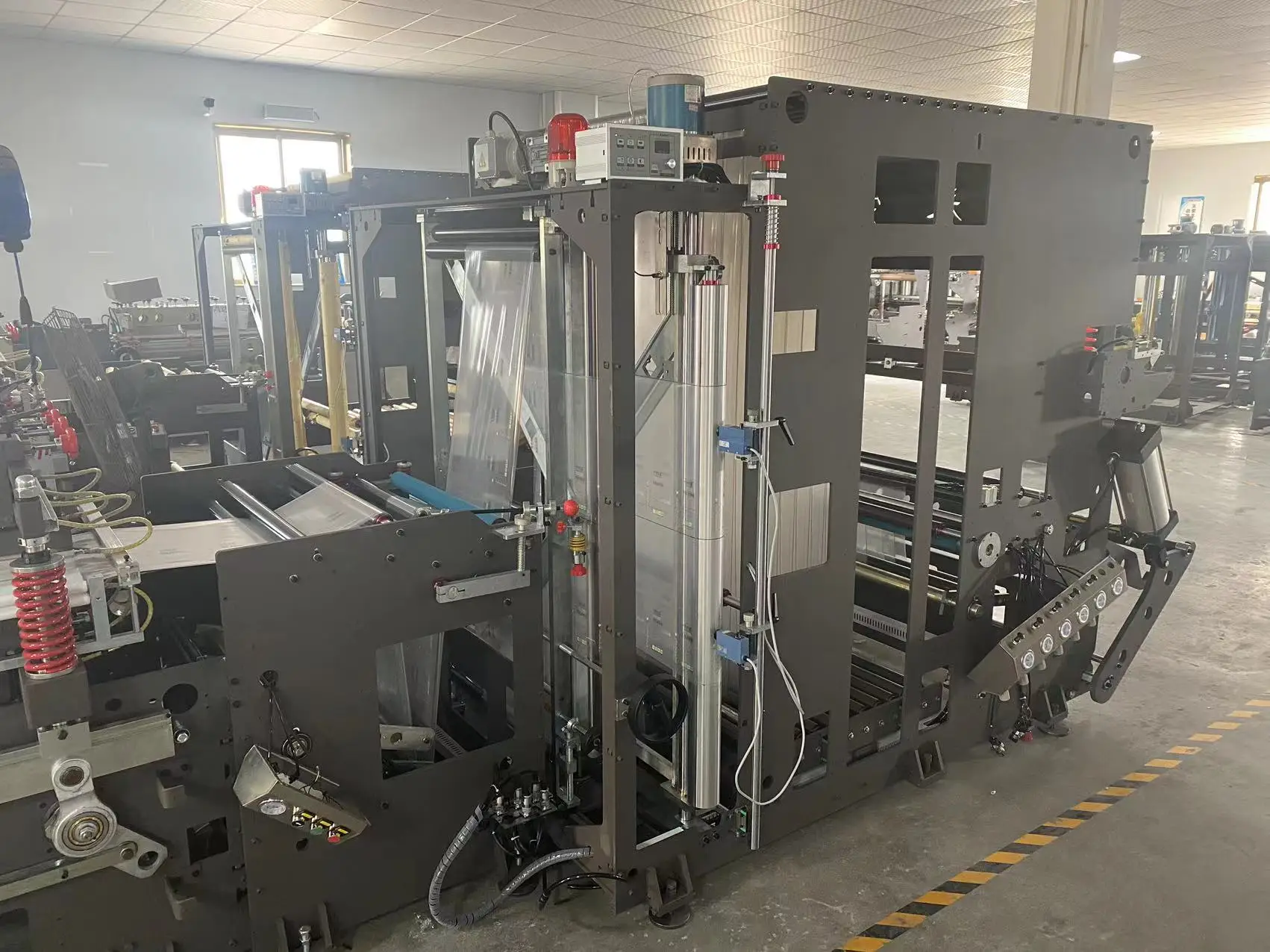

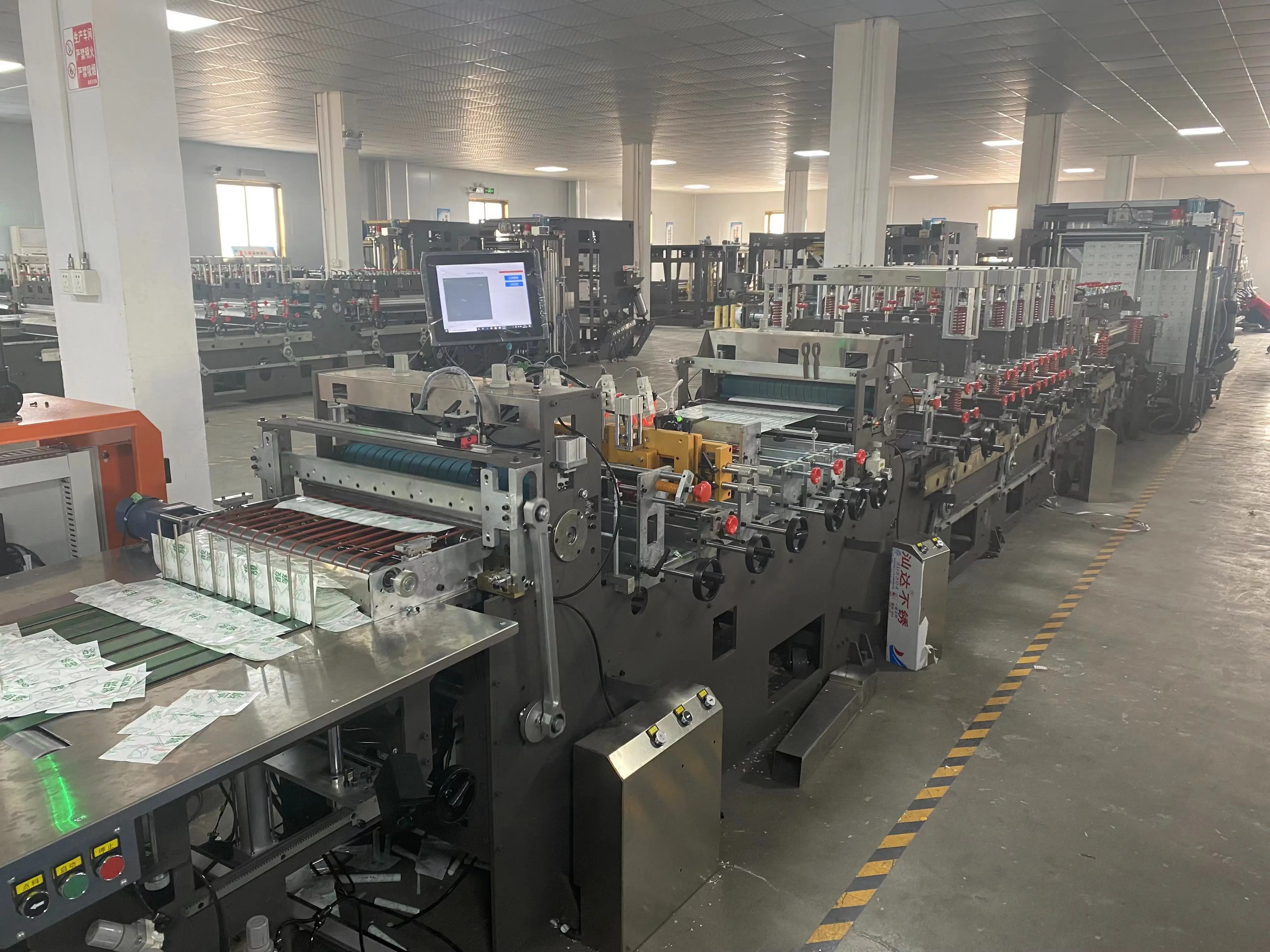

High speed Eight Side Sealing Laminated Kraft Paper PE Film Pouch Making Machine Box Pouch Making Machine

INTRODUCTION

INTRODUCTION

    Our machine with good advantage of electricity,air by servo motor,it is a high quality,high speed and suitable machine for soft packing market.The machine suitable for eight side seal bag,three side zipper bag and four side seal bag.
    The whole process controlled by industrial computer with high precision, main and assistant traction can setting length,it adopt AC servo motor and actuator.
    The transverse positioning device adopt sensor from Italy.Heater and sealing blade made of AL-M alloy with high strength and high quality sealing.
    The machine also with time sending function,which can produce extra-long packing bag.

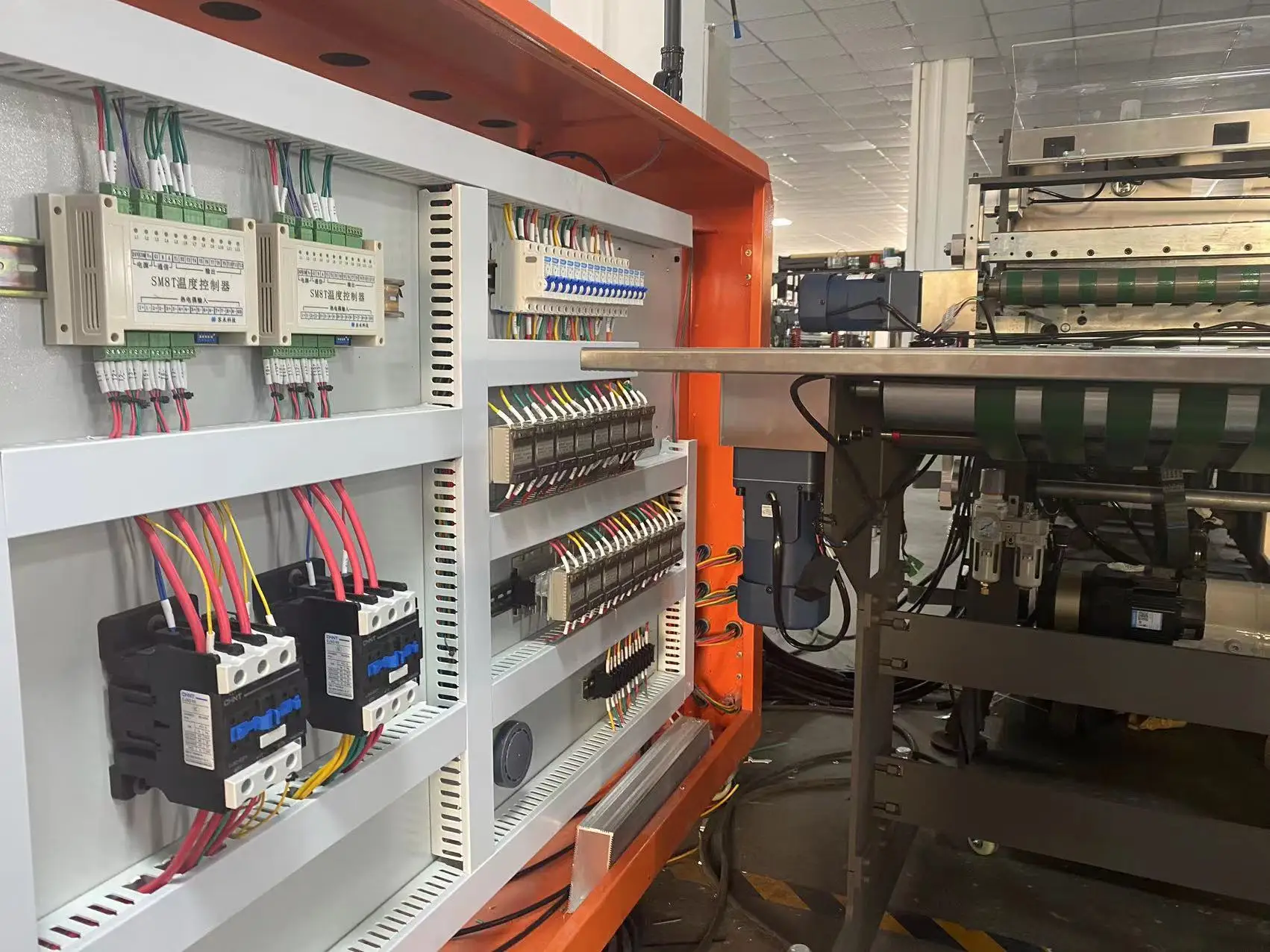

All electric parts and pneumatic parts adopt international brand and famous brand local.

Our machine with good advantage of electricity,air by servo motor,it is a high quality,high speed and suitable machine for soft packing market.The machine suitable for eight side seal bag,three side zipper bag and four side seal bag.
The whole process controlled by industrial computer with high precision, main and assistant traction can setting length,it adopt AC servo motor and actuator.
The transverse positioning device adopt sensor from Italy.Heater and sealing blade made of AL-M alloy with high strength and high quality sealing.
The machine also with time sending function,which can produce extra-long packing bag.
All electric parts and pneumatic parts adopt international brand and famous brand local.

A

BASIC SPCIFICATION

a. Material applicable: BOPP,PET,PA,AL film plastic or paper lamination film

b. Film roller size: 1400mm(Max width),800mm(Max dia.)

c. Auxiliary material size:300mm(Max width),600mm(Max dia.)

B

MAIN PARAMETER

a. Speed of making bag:140section/min,30m probable;

    8sides sealing bag on single channel:80-100 sections/min,25m probable

    8sides sealing bag on twin channel:70-90 sections/min,20m probable

b. Width for sealing bag:560mm max.

c. Length for sealing bag: 160mm X 400mm X 580mm (L x W x H)

**160mm Max,52mm Min,the width over 400mm can use function of double pressure.the speed depend on bag type,blade,material etc.)

C

DRIVE TYPE

The whole machine adopt fully servo drive( Brand:Panasonic Japan)

a. Feeding unit: Servo motor drive

b. Up and down sealing: Servo motor drive

c.The machine adopt servo sealing,can setting sealing time,and use servo blade without gap

D

PARAMETER

a. Pressure 0.6-0.8MPA

b. Cooling water 15L/MIN

c. Measurement 23000mm *3600mm*2000mm

d. Total weight 12T
