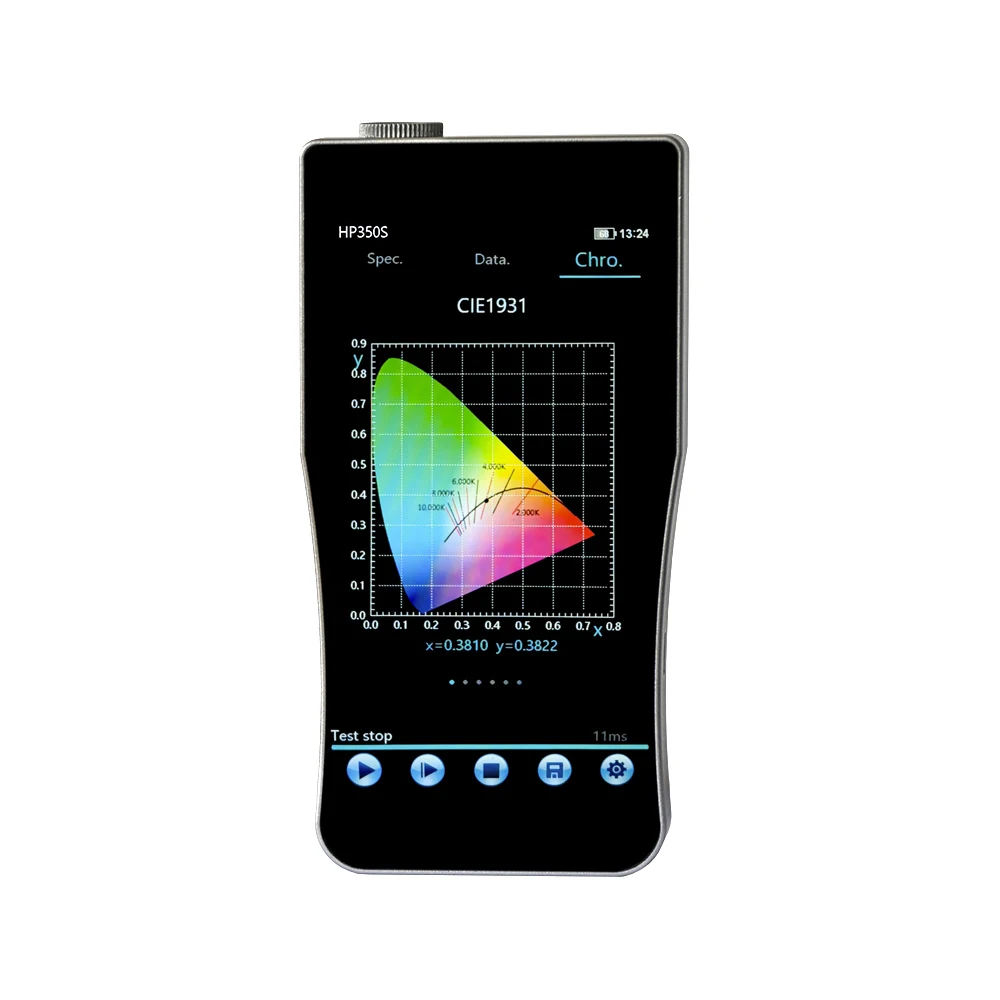

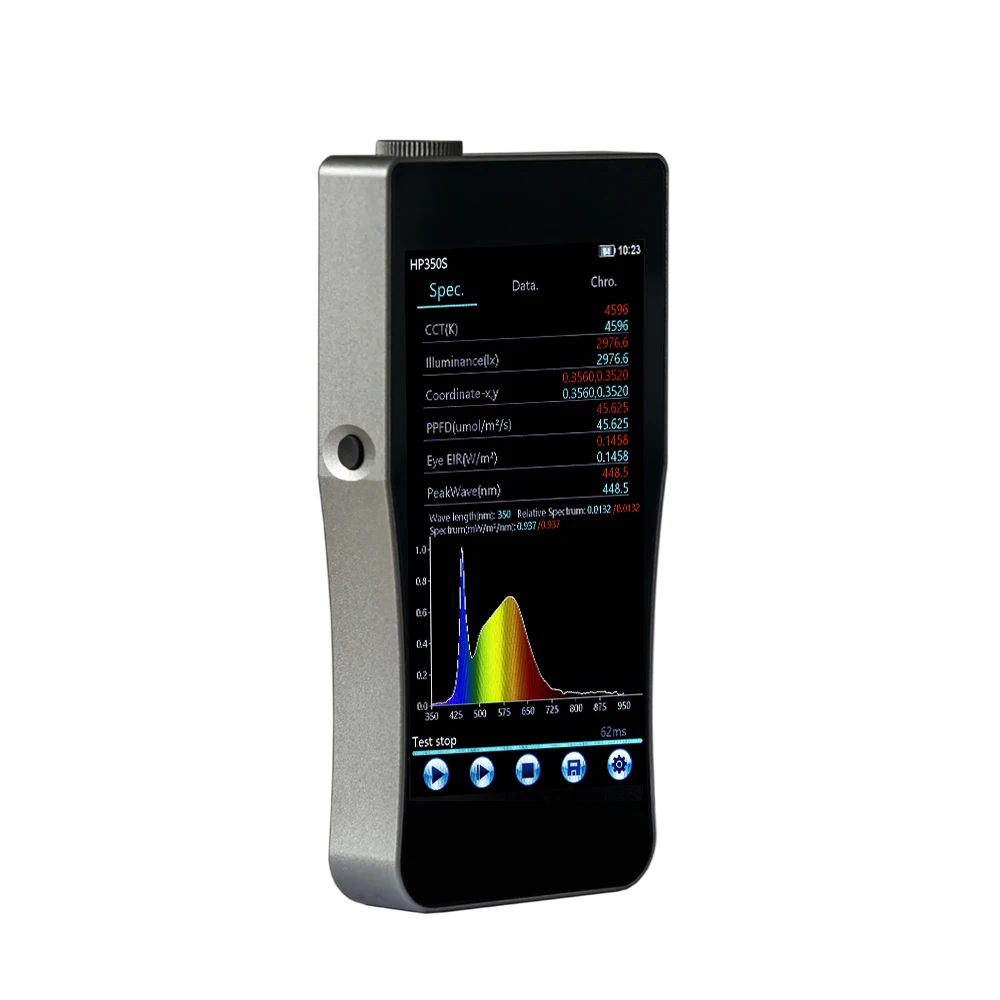

HP350S Handheld 350 950 nm portable spectrophotometer light lux sensor infrared sensor spectrometer with software
- Category: Optical Instruments >>>
- Supplier: Dongguan NAPUI Electronic Technology Co. Ltd.
Share on (1600812647679):
Product Overview
Description
Product Description

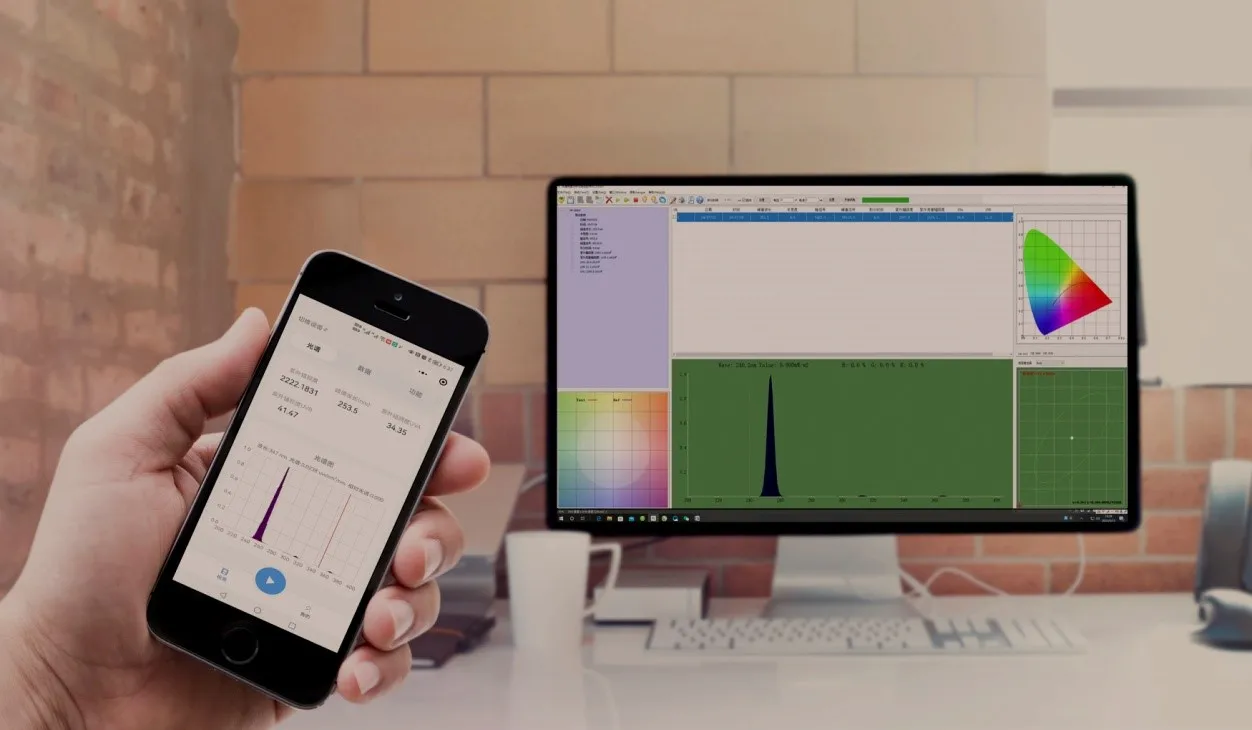

HP350S intelligent optical spectrum analyzer is a new generation of handheld light source light color test instrument, using advanced micro spectrometer, embedded operating system and microcomputer technology integration, making the test more convenient and simple, more in line with the field application scenario of parameter test analysis and verification. It can be sampled and measured anytime, anywhere, and can also be connected to PC software to test for efficient analysis and processing of test data, with high measurement linearity and accuracy.
The main upgrade contents are as follows:
1. The appearance design is more in line with the standard of ergonomic hand-held instruments (increased hand-held arc, more ultra-thin, lighter weight), completely discarding the old brick machine;
2. The system upgrade adopts an operating system with more open source code, more The application design in line with smart
products provides unlimited space for subsequent upgrades of the instrument, giving up the simple interface system of the old chip running naked;
3. The chip is upgraded from the old STM32 chip to a high-speed CPU processor, which doubles the signal acquisition speed and saves data. The calculation is more accurate;
4. The touch screen is upgraded to the mainstream mobile phone color screen, the graphic display is more realistic, the touch and use are more smooth, the interface design is more reasonable, and the experience is stronger; the repeatability and consistency of the tests;
1. The appearance design is more in line with the standard of ergonomic hand-held instruments (increased hand-held arc, more ultra-thin, lighter weight), completely discarding the old brick machine;
2. The system upgrade adopts an operating system with more open source code, more The application design in line with smart
products provides unlimited space for subsequent upgrades of the instrument, giving up the simple interface system of the old chip running naked;
3. The chip is upgraded from the old STM32 chip to a high-speed CPU processor, which doubles the signal acquisition speed and saves data. The calculation is more accurate;
4. The touch screen is upgraded to the mainstream mobile phone color screen, the graphic display is more realistic, the touch and use are more smooth, the interface design is more reasonable, and the experience is stronger; the repeatability and consistency of the tests;
Model and name | HP350S spectrolux meter |
Wavelength range | 350nm～950nm |
Spectroscopic mode | Telephoto crossover asymmetric CT spectroscopic system |
sensor | High precision CCD |
Spectral bandwidth (FWHM) | 2nm |
Spectral resolution | 0.1nm |
x,y coordinate values | x,y accuracy ±0.0015 ; x, y repeatability ± 0.0005 |
Wavelength accuracy | ±0.5nm |
Wavelength data output interval | 1nm |
Illuminance accuracy | Level 1 (±4% of readings ± 1 reading) |
Color rendering accuracy | ±1 |
Photosensitive surface | Ф10mm |
Screen type | Computer, 5 inch touch screen |
Display type | PC software, touch screen |
Color coordinate accuracy | ±0.0015 (better stable than standard light source ±0.0005 traceable to NIM) |
Color temperature range | 1,000K～100,000K |
Stray light | ≤0.3% |
Illuminance measurement range | 0.1～500K lx |
Measurement mode | Single test/continuous test |
Language mode | Chinese and English can be switched |

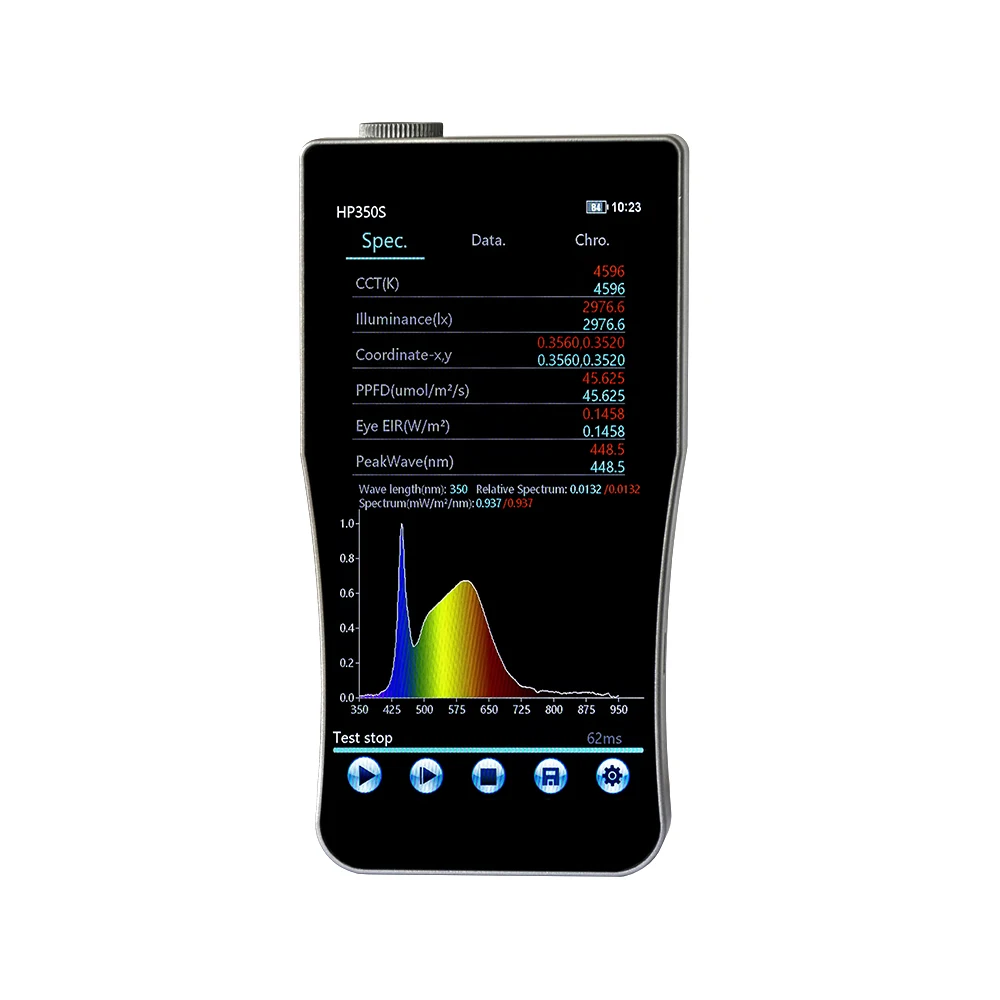

Spectral display mode | Spectral distribution map |
Data display patterns | All parameters can be displayed by sliding up and down |

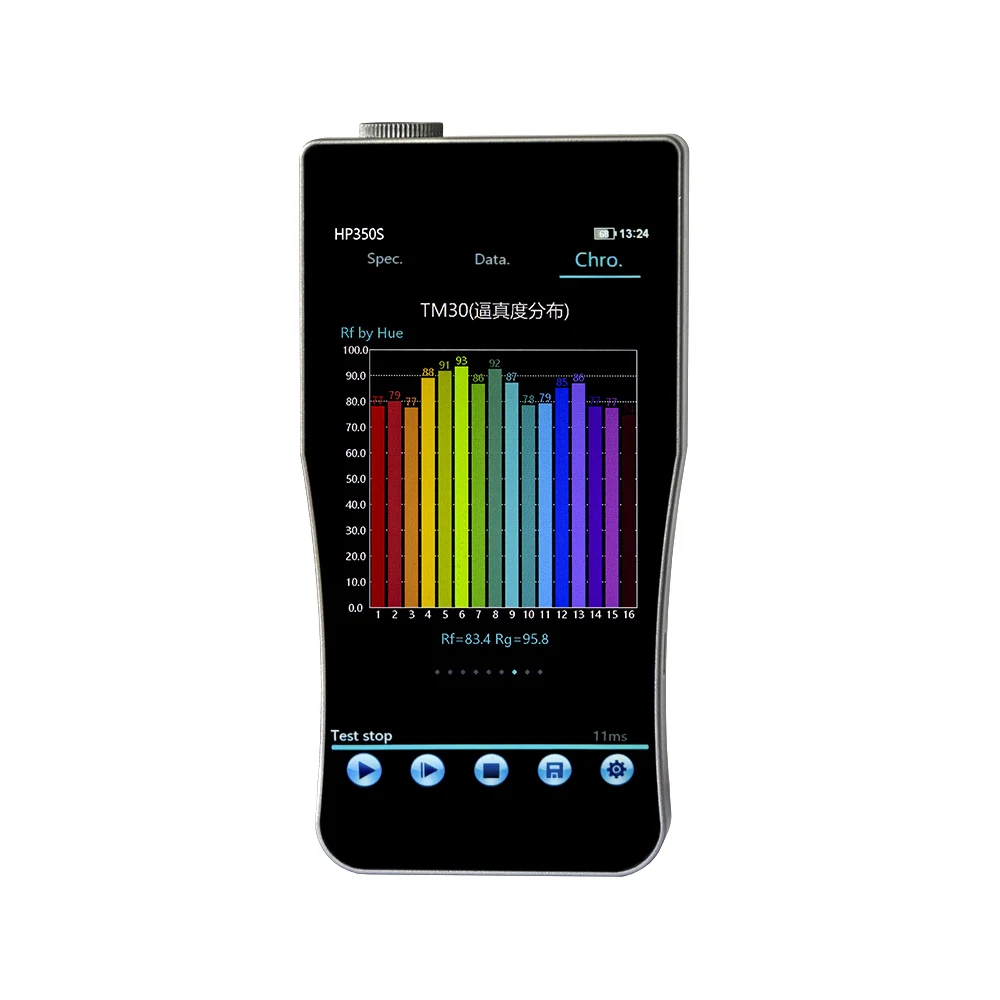

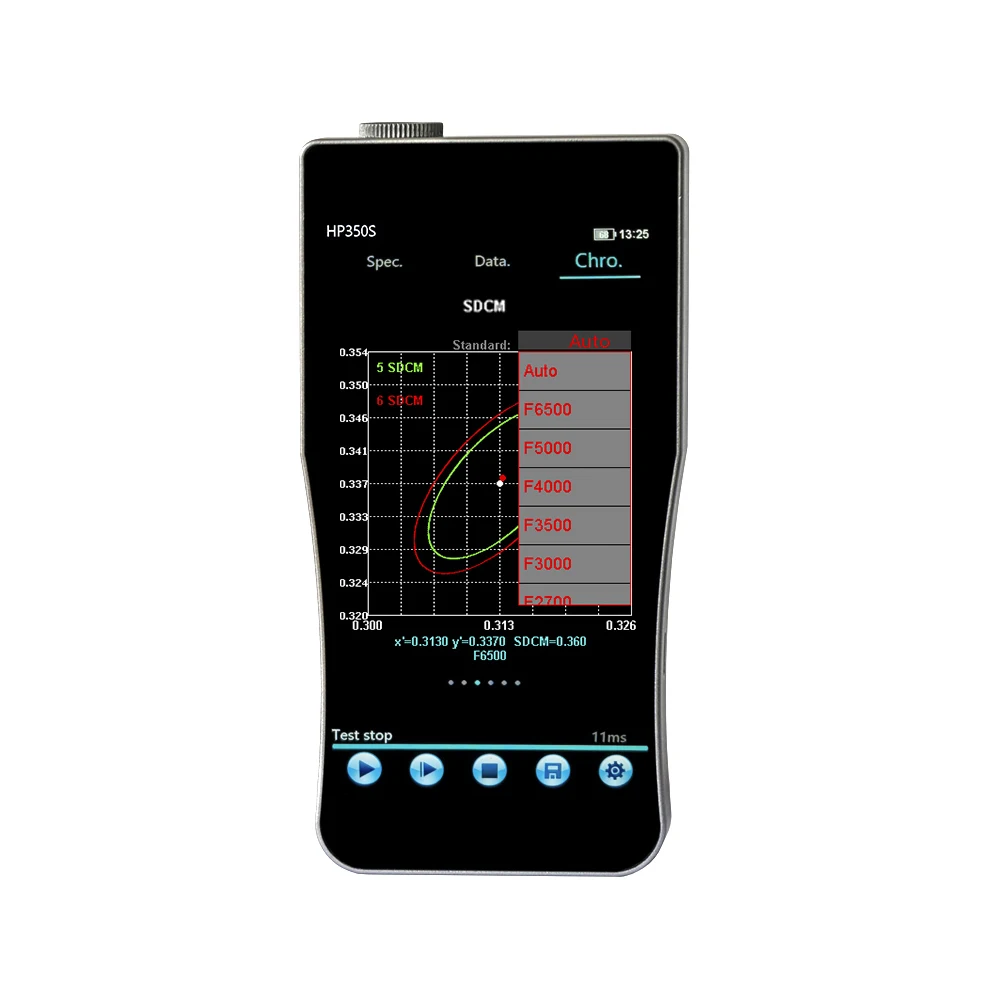

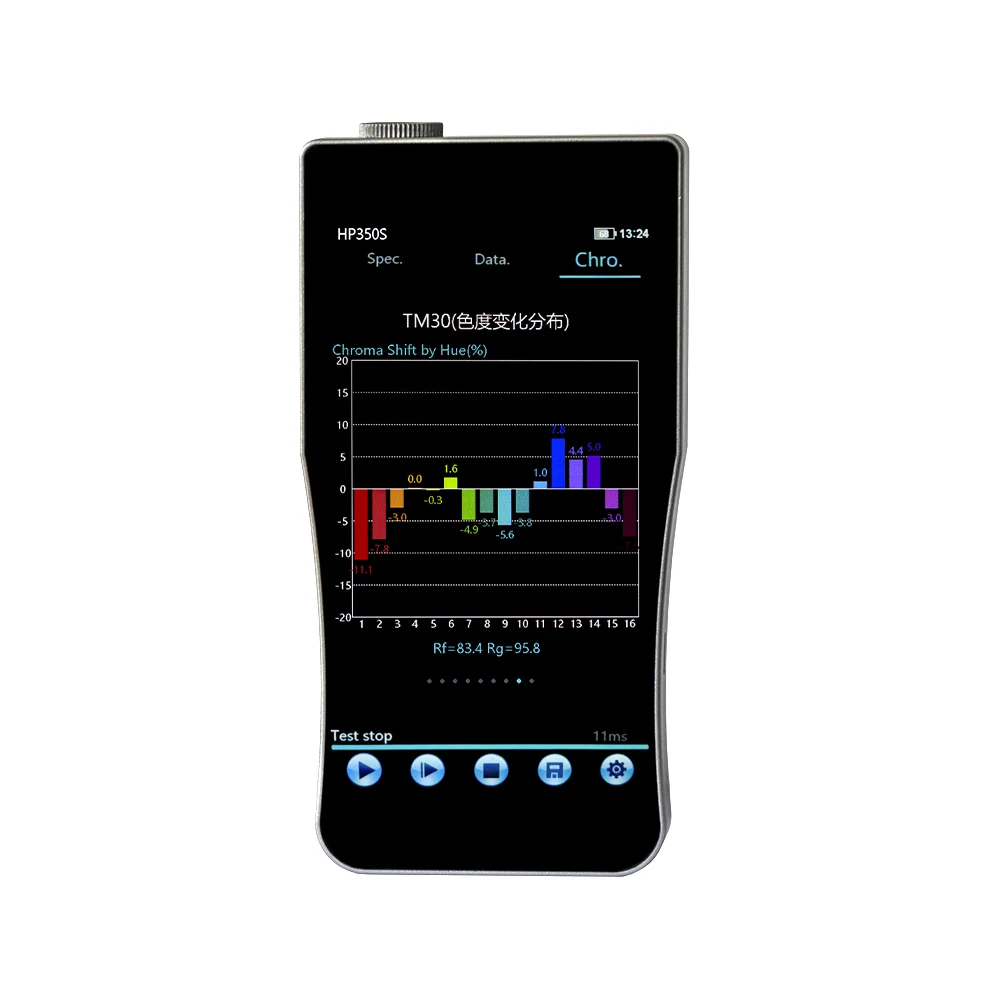

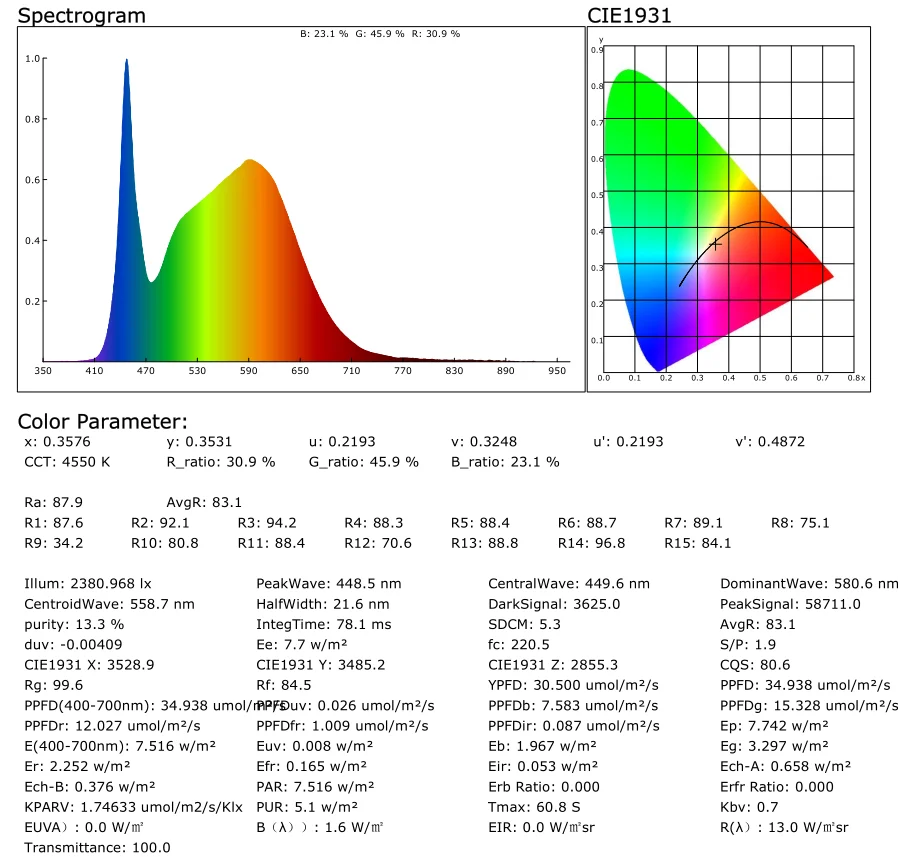

Graphical display mode | CIE1931 chromaticity diagram CIE1960 chromaticity diagram CIE1976 chromaticity diagram Color tolerance ellipse diagram Color rendering index circle chart Color rendering index histogram TM-30 fidelity distribution diagram TM-30 chromaticity change distribution diagram TM-30(Rg/Rf) |
Integration time | 50µs～10000ms |
File save format | SOURCE FILES/PDF/EXCEL, ETC |
Communication interface | Type-C, Bluetooth |
Use temperature/humidity range | (-10~40)°C, relative humidity<70% (non-condensing) |
Storage temperature/humidity range | (-20~45)°C, relative humidity<70% (non-condensing) |
School zero way | Automatic zeroing |
Storage capacity | 4G comes standard with factory standard |
Power supply mode | Built-in lithium battery/power adapter |
Continuous working hours | It can be used for about 16 hours on a single charge |
The whole machine structure | All aluminum alloy engraving |
Main unit dimensions/weight | 156mm (H) × 81mm (W) × 21.8mm (D) / Approx. 200g without accessories (including battery) |
