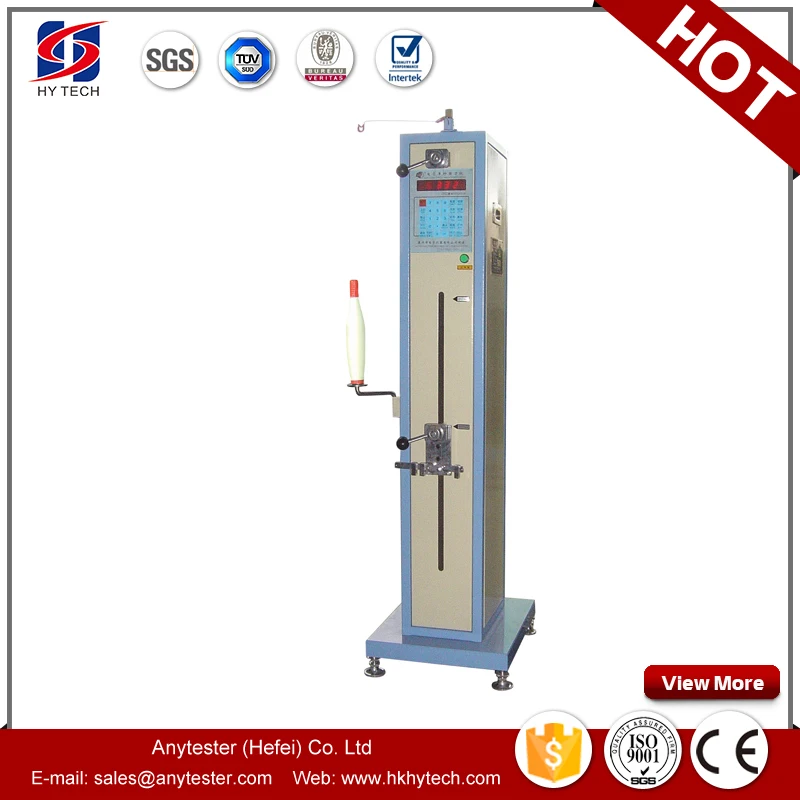

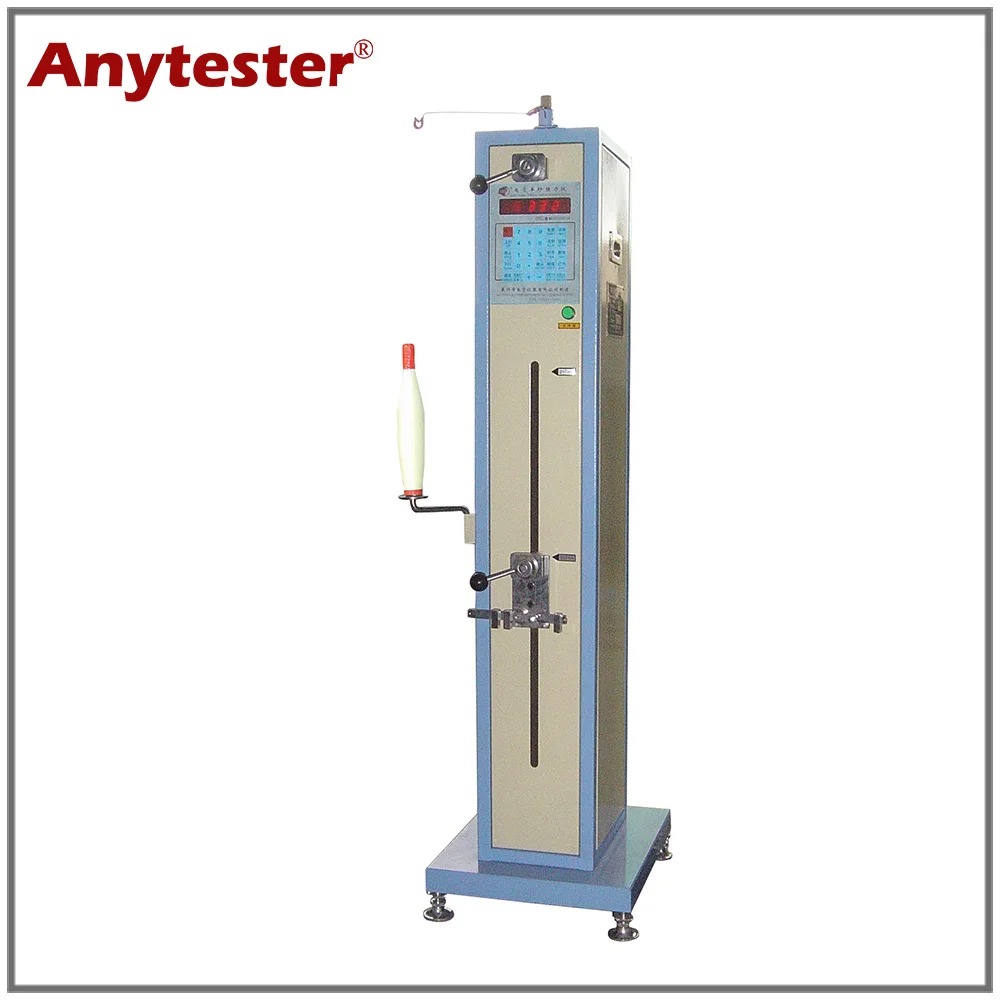

HY061C Electronic Yarn Breaking Intension Strength Testing Machine Single Yarn Strength Tester
- Category: >>>
- Supplier: Anytester (hefei) Co. Ltd.
Share on (1600812741861):
Product Overview
Description
Product Description
HY061C Single Yarn Strength Tester is used to determine the breaking load and extension of single yarns and threads, such as cotton, wool, jute, silk, chemical fibre, etc.
Standard
HY061C Electronic Yarn Breaking Intension Strength Testing Machine Single Yarn Strength Tester
ASTM D2256 | ISO 2062 | BS 1932 |
GB/T3916, 14344 |
|
|
Note: This Single Yarn Strength Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features
HY061C Electronic Yarn Breaking Intension Strength Testing Machine Single Yarn Strength Tester

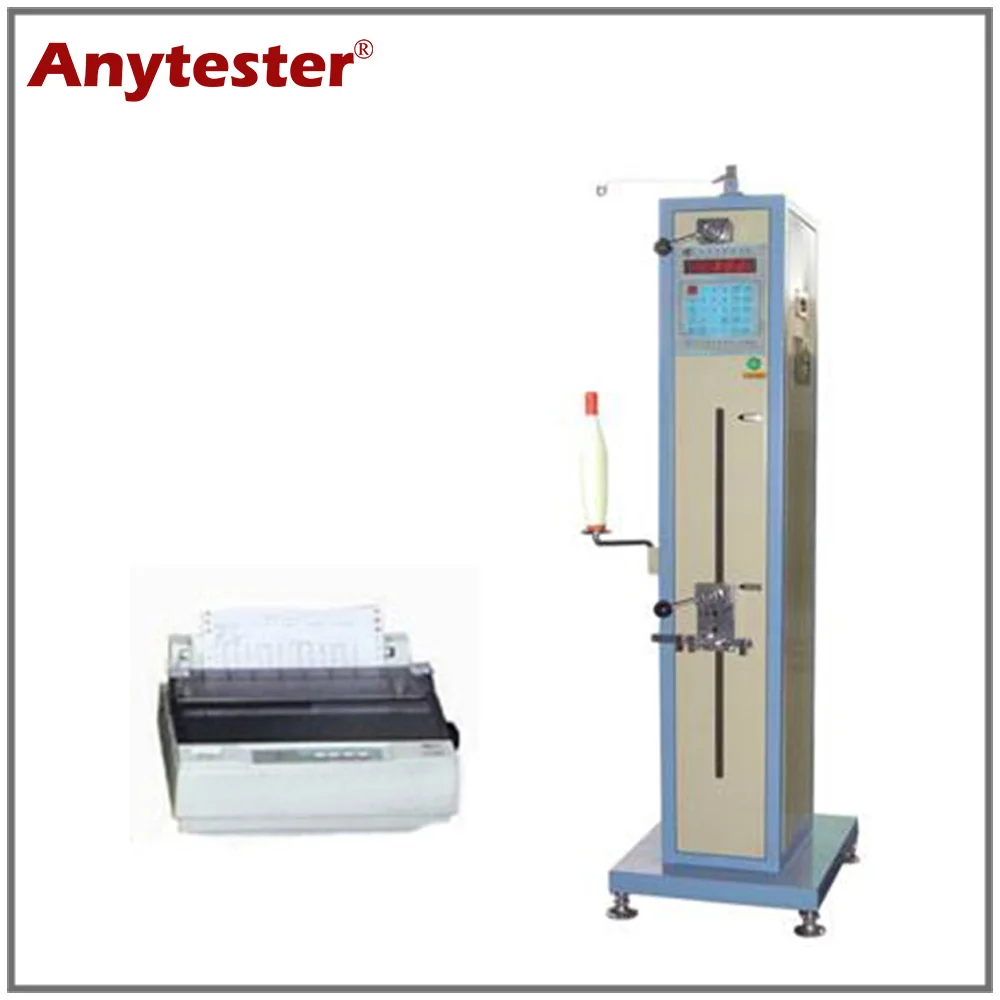

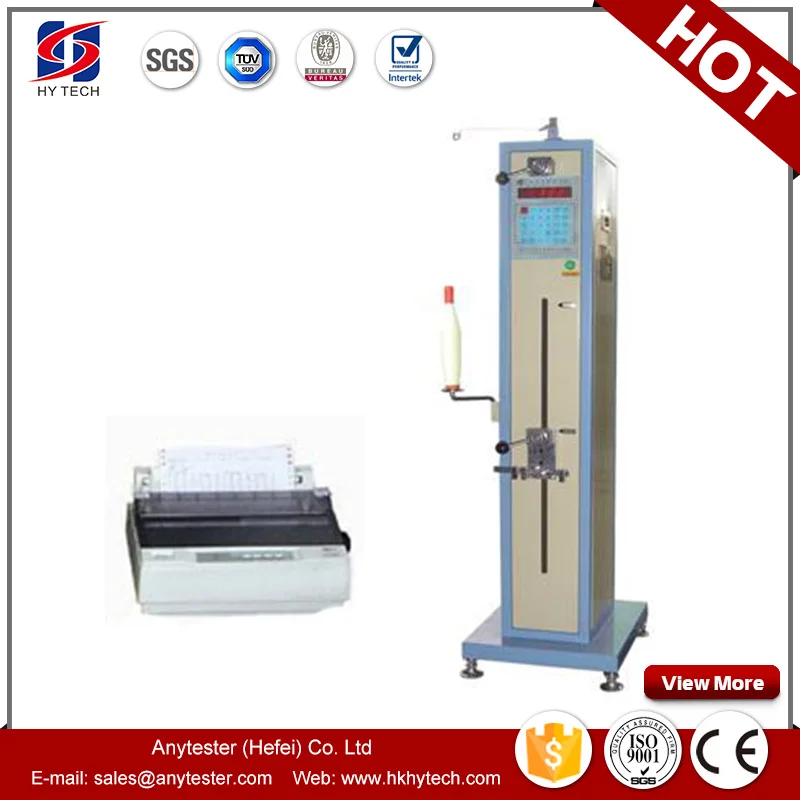

1. Microcomputer control, automatic data processing, display and printout
2. Reliable, accurate, stable and high efficiency
3.Automatically save data while power down
4. Easy and fast to operate, each group of tests can take not more than 10mins
5.Can display date and time, also can print out
6.The rate of AD converter is 25us/times
7.With imported integrated circuit chips
8.Less machine connector, without relays, good reliability
9.Digital display test data, can record and can browse
Specification
HY061C Electronic Yarn Breaking Intension Strength Testing Machine Single Yarn Strength Tester
Model | HY061C Single Yarn Strength Tester |
Load range | 3000cN max. |
Load error | ≤±1% of display value |
Gauge length | 250mm±1mm, 500mm±1mm |
Pre-tension range | 1cN~100cN |
Timing stretching | 20s±3s, 10s±1.5s |
Test speed | 250mm/min±2%, 500mm/min±2% |
Test times | 2~100 times settable |
Linear density | 1~599.9tex settable |
Power supply | AC220V±10%, 50Hz |
Power | 180w |
Dimensions | 320mm×360mm×1160mm |
Weight | 36kg |
