Innovative high quality electro powerful lathe magnetic chuck
- Category: >>>
- Supplier: Zhuzhou HVR Magnetics Co. Ltd.Zhuzhou Ltd.
Share on (1600812785482):
Product Overview
Description
Product Description
Innovative high quality electro powerful lathe magnetic chuck

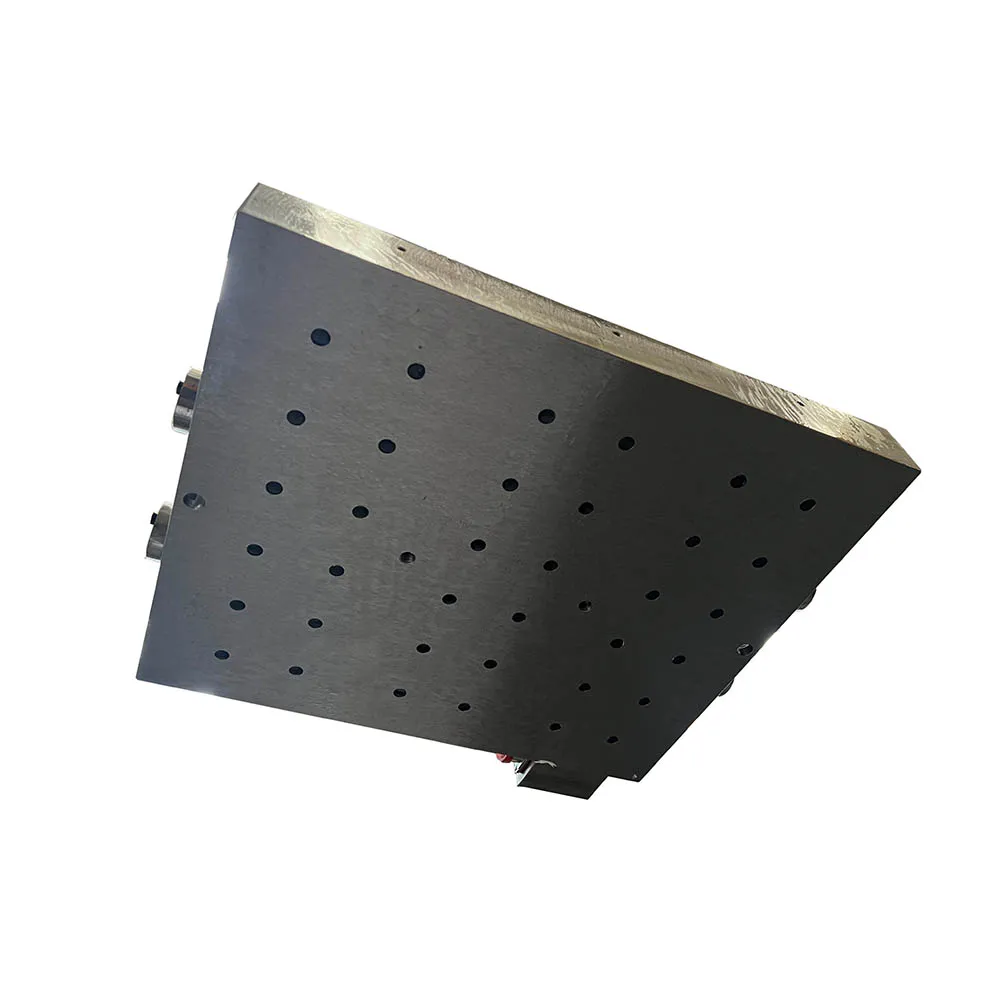

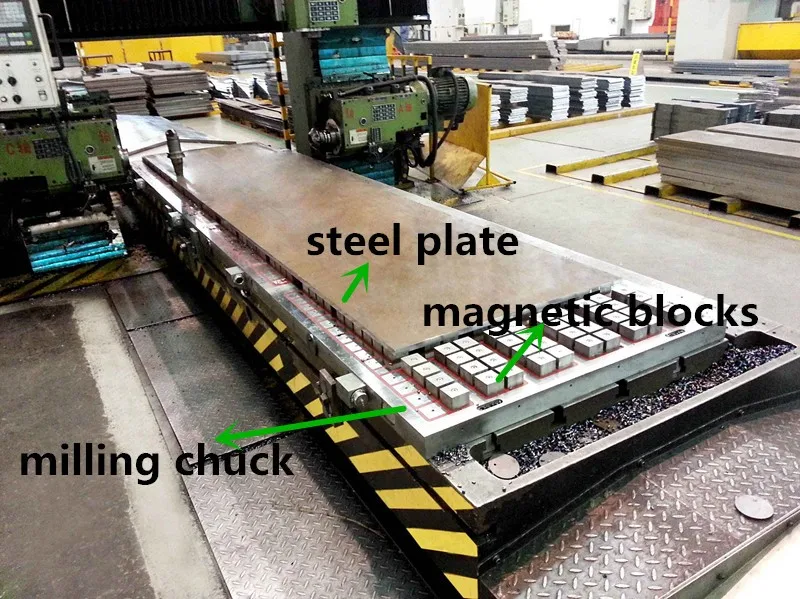

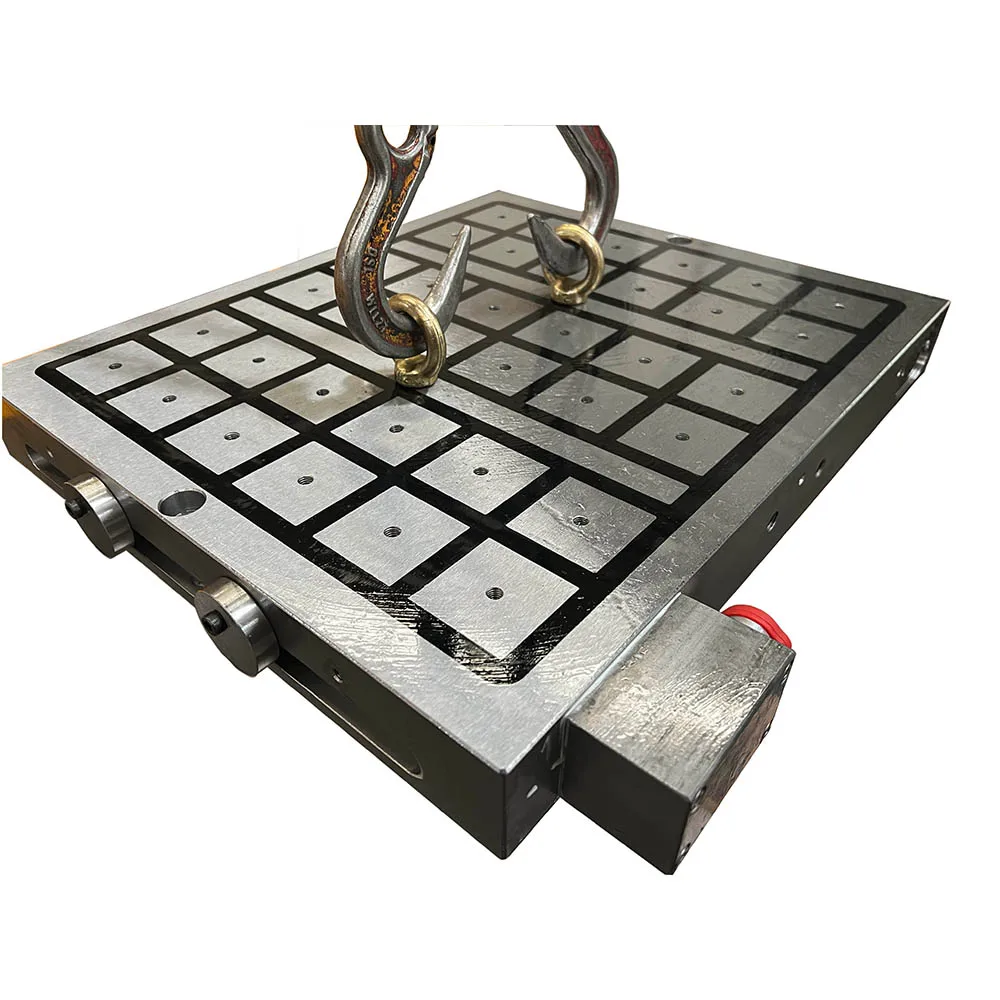

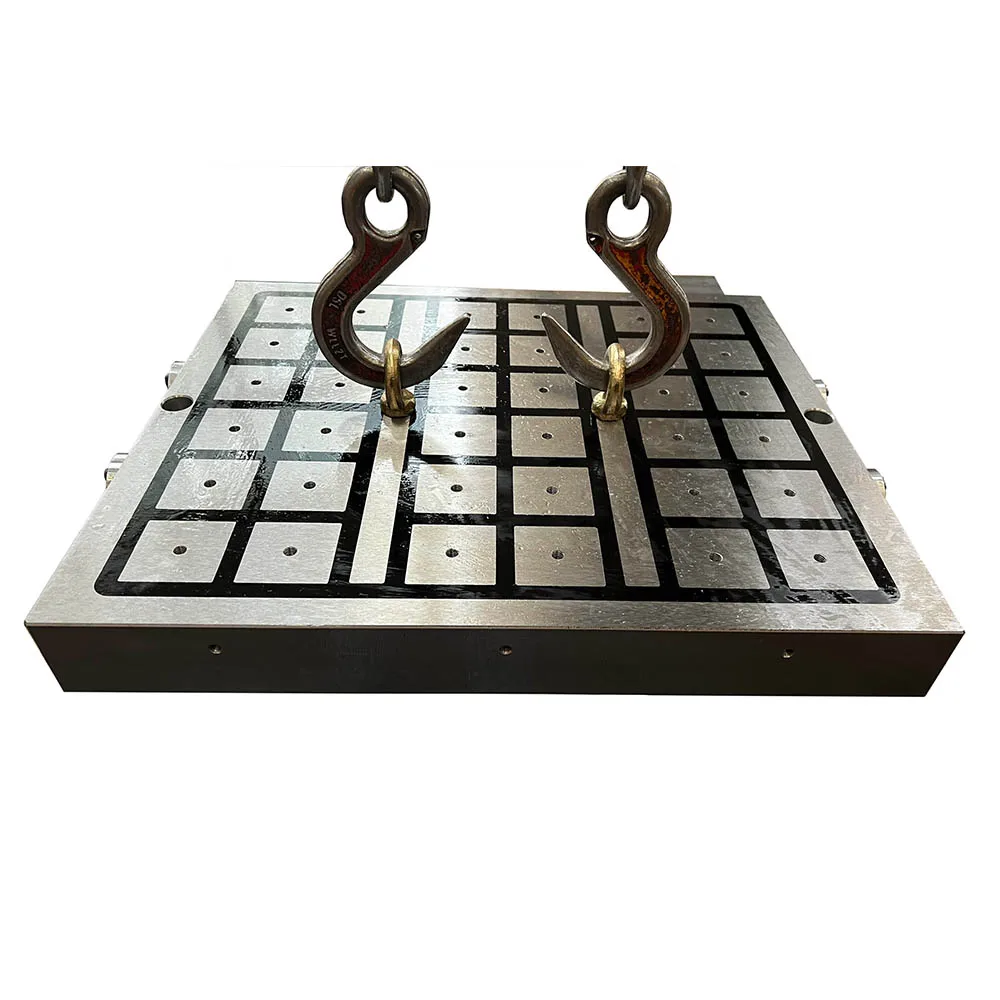

DYCX Series Electro Permanent Magnetic Chuck for milling, is the most ideal method to shorten clamping cycle and save clipping time when user meets the clamping requirement. Within 2 seconds this smart device can safely clamp work piece.
Standard type: 50X50 Magnetic poles series(magnetic force of single pole≥350kg).
Strong magnetic type: 70X70 Magnetic poles series(magnetic force of single pole≥685kg)
Advantages:
- Permanent Safety
Unaffected by any electrical power failure
- Efficient and Practical
Super Power Magnetic Force is up to 1600kg/100cm²;
5 sides machining can be done in one cycle;
No obstructed movements of cutters during marching;
One work piece can be finished in one cycle, helping in achieving best machining accuracy and increase efficiency a lot.
- High Reliability
All HVR magnetic chucks are machined from a solid block of steel, resulting in the highest rigidity
- Bayonet Connector
All HVR magnetic chuck standard equipped with extra interlock contact to make sure it is security and tightly connected to the magnetic chuck.
Parameter
Product Main Technical Parameters
70x70 Magnetic poles series (magnetic force of single pole≥685kg)
| Type&Data | Magnetic pole number | Total magnetic force(≤KN) | Overall dimension(mm) | Weight(kg) | ||||
| A | B | H(standard) | H(Strong magnetic) | M1(standard ) | M2(Strong magnetic) | |||
| DYCX-2242P70 | 8 | 54.8 | 220 | 420 | 56 | 71 | 45 | 55 |
| DYCX-2261P70 | 12 | 82.2 | 220 | 610 | 56 | 71 | 60 | 75 |
| DYCX-2281P70 | 16 | 109.6 | 220 | 810 | 56 | 71 | 75 | 95 |
| DYCX-22100P70 | 20 | 137 | 220 | 1000 | 56 | 71 | 92 | 115 |
| DYCX-3042P70 | 12 | 82.2 | 300 | 420 | 56 | 71 | 45 | 55 |
| DYCX-3061P70 | 18 | 123.3 | 300 | 610 | 56 | 71 | 75 | 95 |
| DYCX-3081P70 | 24 | 164.4 | 300 | 810 | 56 | 71 | 105 | 135 |
| DYCX-30100P70 | 30 | 205.5 | 300 | 1000 | 56 | 71 | 135 | 175 |
| DYCX-3922P70 | 8 | 54.8 | 390 | 220 | 56 | 71 | 30 | 40 |
| DYCX-3942P70 | 16 | 109.6 | 390 | 4200 | 56 | 71 | 65 | 85 |
| DYCX-3961P70 | 24 | 164.4 | 390 | 610 | 56 | 71 | 100 | 130 |
| DYCX-3981P70 | 32 | 219.2 | 390 | 810 | 56 | 71 | 135 | 175 |
| DYCX-39100P70 | 40 | 274 | 390 | 1000 | 56 | 71 | 170 | 220 |
| DYCX-4822P70 | 10 | 68.5 | 480 | 220 | 56 | 71 | 40 | 50 |
| DYCX-4842P70 | 20 | 137 | 480 | 420 | 56 | 71 | 80 | 100 |
| DYCX-4861P70 | 30 | 205.5 | 480 | 610 | 56 | 71 | 120 | 150 |
| DYCX-4881P70 | 40 | 274 | 480 | 810 | 56 | 71 | 160 | 210 |
| DYCX-48100P70 | 50 | 342.5 | 480 | 1000 | 56 | 71 | 200 | 160 |
| DYCX-5822P70 | 12 | 82.2 | 580 | 220 | 56 | 71 | 50 | 65 |
Application:
1) Most suitable for heavy duty milling operations on medium, large sized and even rough components.
2) A minimum of a alternate poles contact is necessary for optimum clamping.
3) Minimum thickness of job-15mm.
Packaging & Shipping
Packaging & Shipping:
Generally, our products are packaged with export wooden case.
With our package, the product is suitable for delivery by sea or air upon your request.
Production time is about 30 days.
Company Information
About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Professional
30 Engineers, 20 years of working experience. 6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015 TUV CE certification
Guarantee
Standard 12 months quality guarantee Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
FAQ
Q1:What is Electro permanent magnets ?
A1:Electro permanent magnet has two kinds of magnet materials, electricity use to actviate or deactivate its own magnet field. It combines the properties of a permanent magnet with the ease of control of an electromagnet.
Q2:What are the advantages of Electro permanent magnets products?
A2:Permanent safety:This smart device is intrinsically safe, being not affected by any electrical power failure, no battery back-up system is required.
Energy saving:It needs electrical supply only for few seconds, during the MAG and DEMAG phases. The electrical consumption is 95% less compared to a traditional electromagnet.
Easy to use and convenience: One single operator with a remote control can always staying at safe distance from the load.
Q3:What happens if electrical power failure?
A3:Magnet force keeps on even power failure,Nothing changes with a permanent magnet.With a Permanent-Electro Magnet, the load will stay attached, but the magnet cannot be deactivated until the electrical power is restored.
Q4:How about HVR MAG partnership with customers?
A4:HVR MAG established longterm relationship with our worldwide customers, not only for business, but treat as family members, each electro permanent magent we produced, we treat as our child, we will tracking the running condition with the unique ID number when delivered to our other“family members”,we take good care of them and help them growing up.You may think it seems difficult to find a partner that is like a family member.But if you select HVR MAG, we will be your real family member.
Q5:How about the quality guarantee system of HVR MAG?
A5:Our Engineers team consists of European professors.
Our quality management system according to ISO9001:2008.
Each products had seriously quality inspection before delivery .
Q6:How about the overseas after-sales service from HVR MAG ?
A6:Professional engineers go abroad installation available
Some of local agents provide technician services available.
Technical Window Consulting available at any time from HVR MAG.
