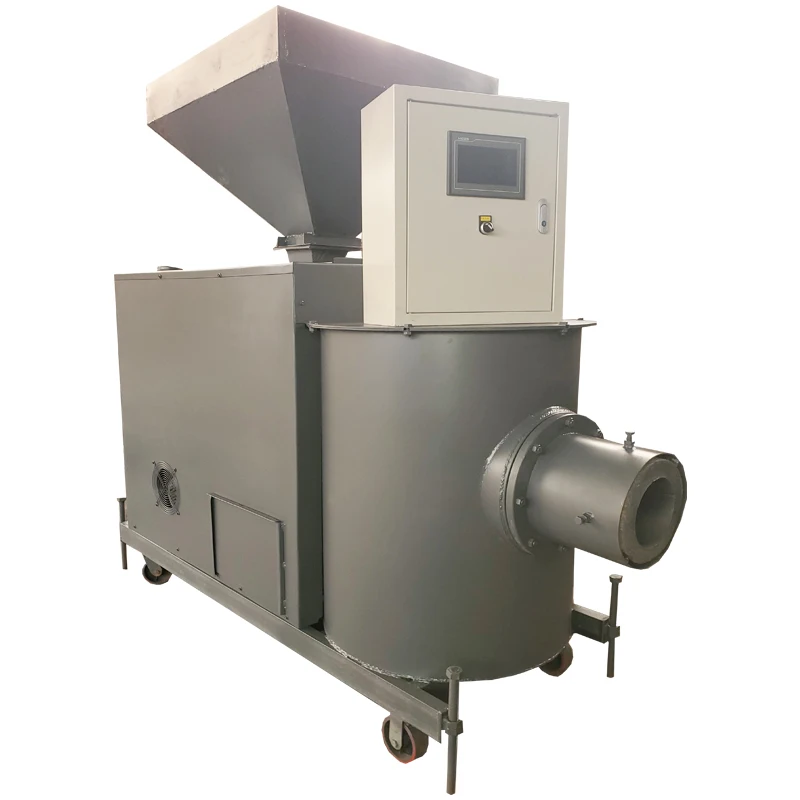

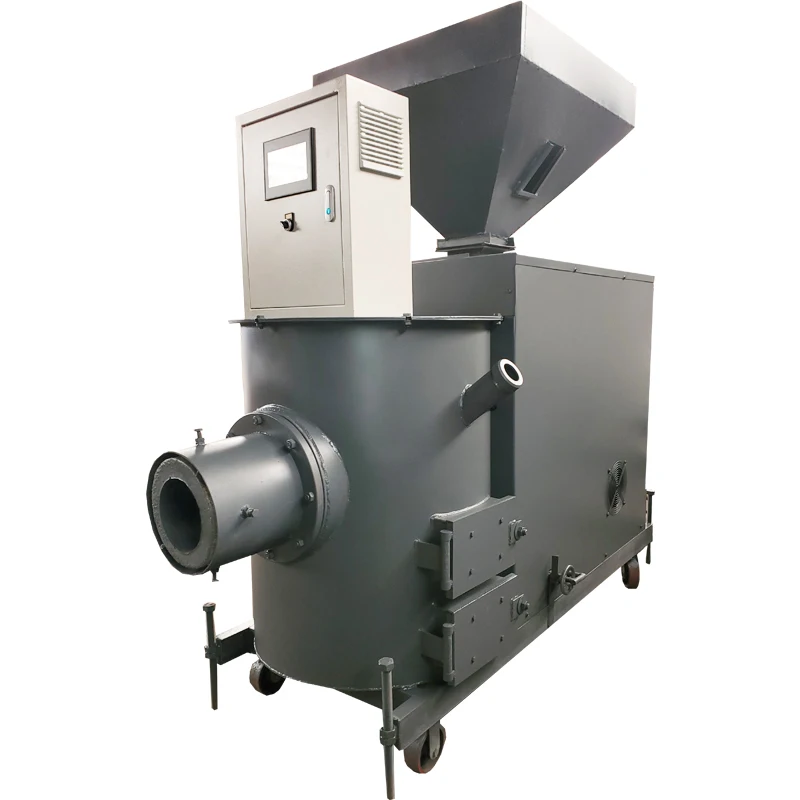

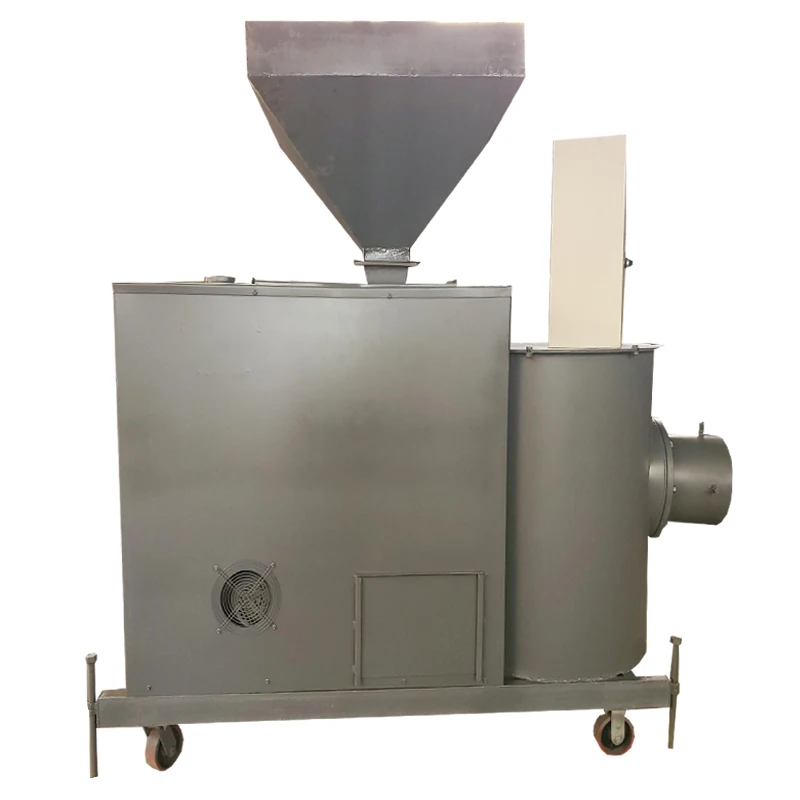

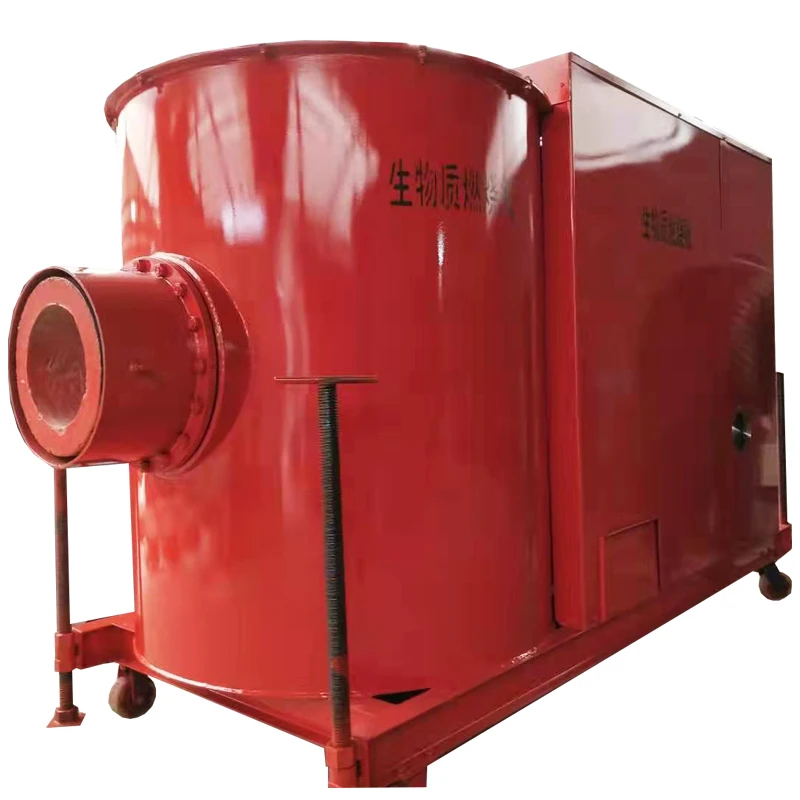

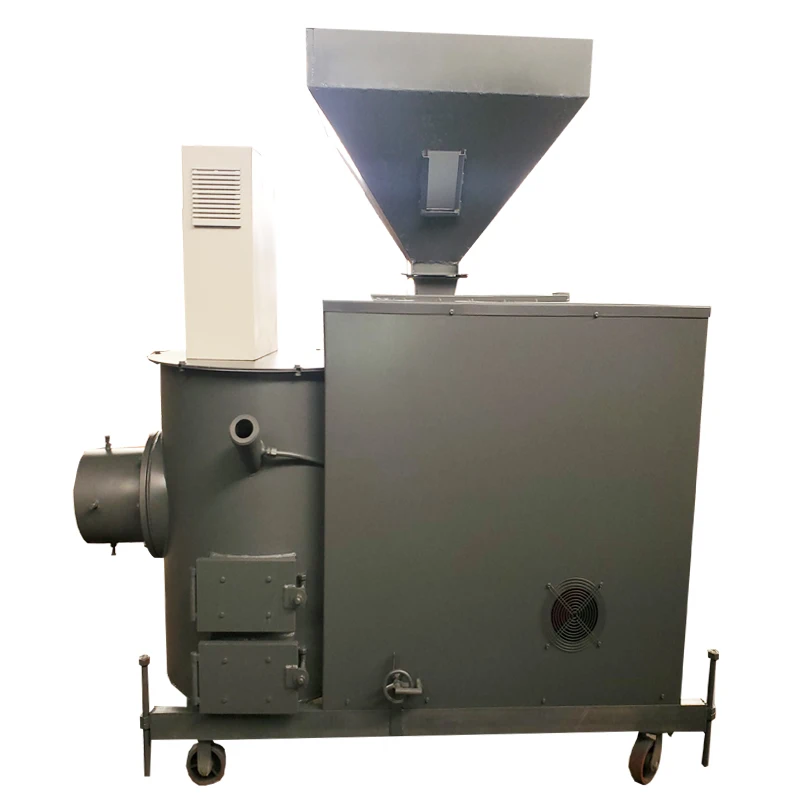

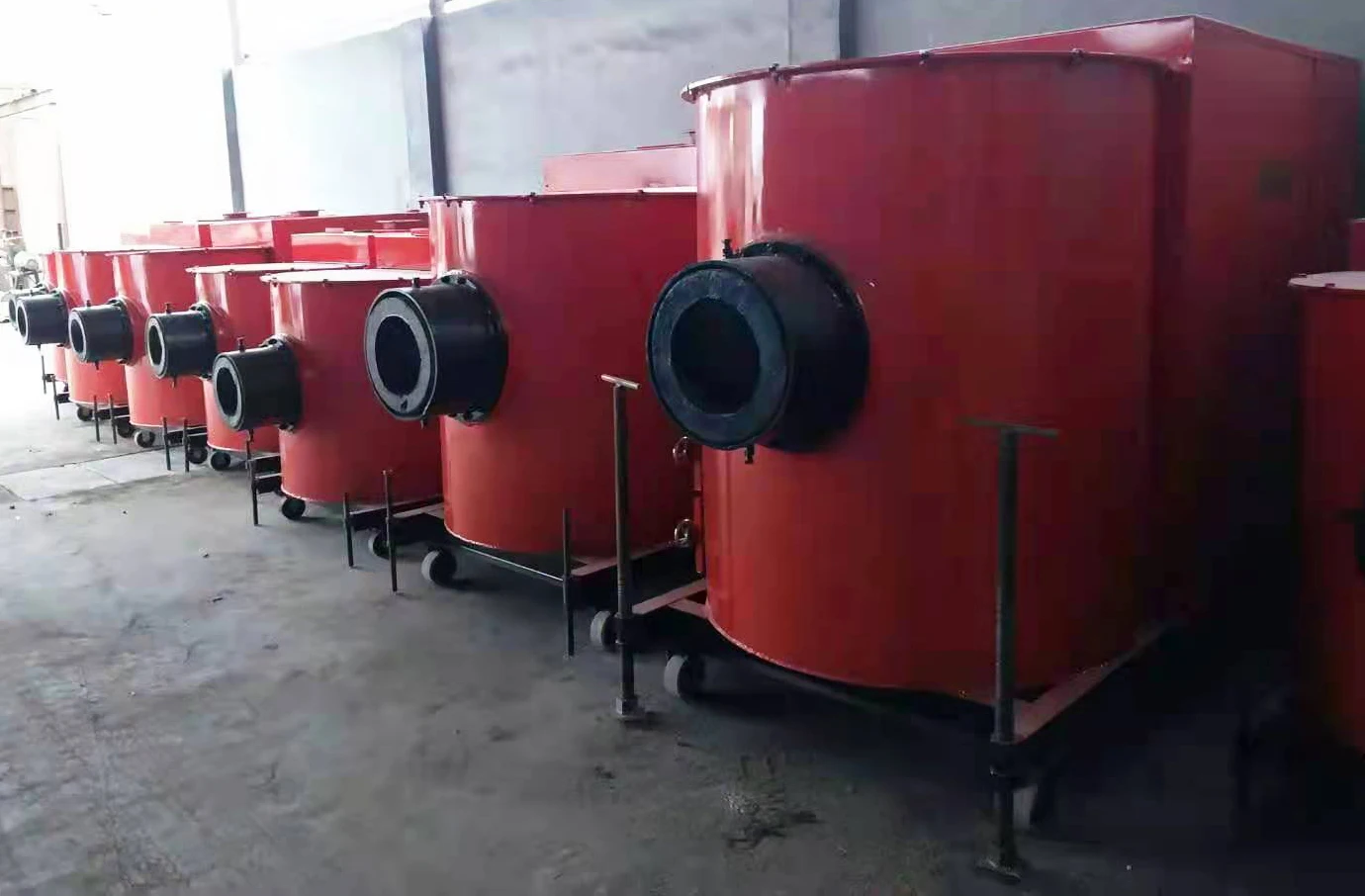

Smoke free and energy saving wood chips biomass pellets burner for food drying equipment
- Category: >>>
- Supplier: Jinan Minglun Machinery Co. Ltd.
Share on (1600812800981):
Product Overview
Description
Model | Heat output(kcal/h) | Motor(KW) | Corresponding boilers(T) | Maximum fuel consumption | Size(mm) | Weight(t) |
HBL-45 | 450000 | 2.05 | 0.5-0.75 | 100kg | 1990*850*2100 | 0.96 |
HBL-90 | 900000 | 3.75 | 1-1.5 | 200kg | 2280*920*1850 | 1.5 |
HBL-120 | 1200000 | 3.75 | 2 | 266kg | 2450*1020*1980 | 1.86 |
HBL-180 | 1800000 | 7 | 3 | 400kg | 2700*1190*2100 | 2.64 |
HBL-240 | 2400000 | 8.2 | 4 | 533kg | 3050*1400*2300 | 3.1 |
HBL-300 | 3000000 | 8.6 | 5 | 667kg | 3200*1600*2600 | 4.3 |
HBL-360 | 3600000 | 10 | 6 | 800kg | 3850*1785*2720 | 4.8 |
HBL-420 | 4200000 | 12 | 7 | 933kg | 4150*1900*2800 | 5.1 |
HBL-480 | 4800000 | 14 | 8 | 1066kg | 4460*2068*2900 | 5.65 |

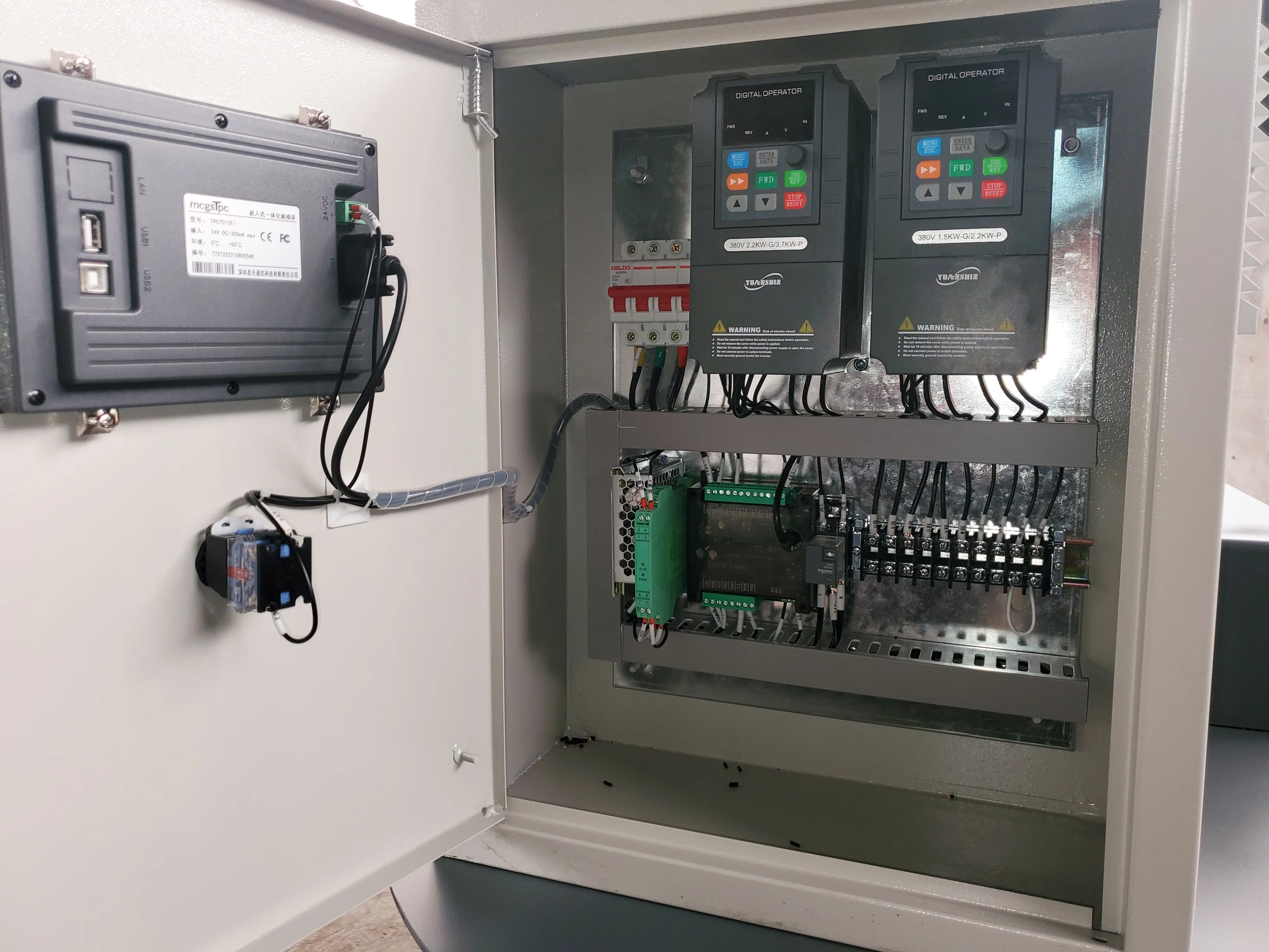

Power Distribution Boxes
Distribution box is according to the electrical wiring requirements of the switch gear, measuring instruments, protection appliances and auxiliary equipment assembled in the closed or semi-enclosed metal cabinet or screen width, constituting a low-voltage power distribution device. Easy to manage, when the circuit failure is conducive to maintenance.

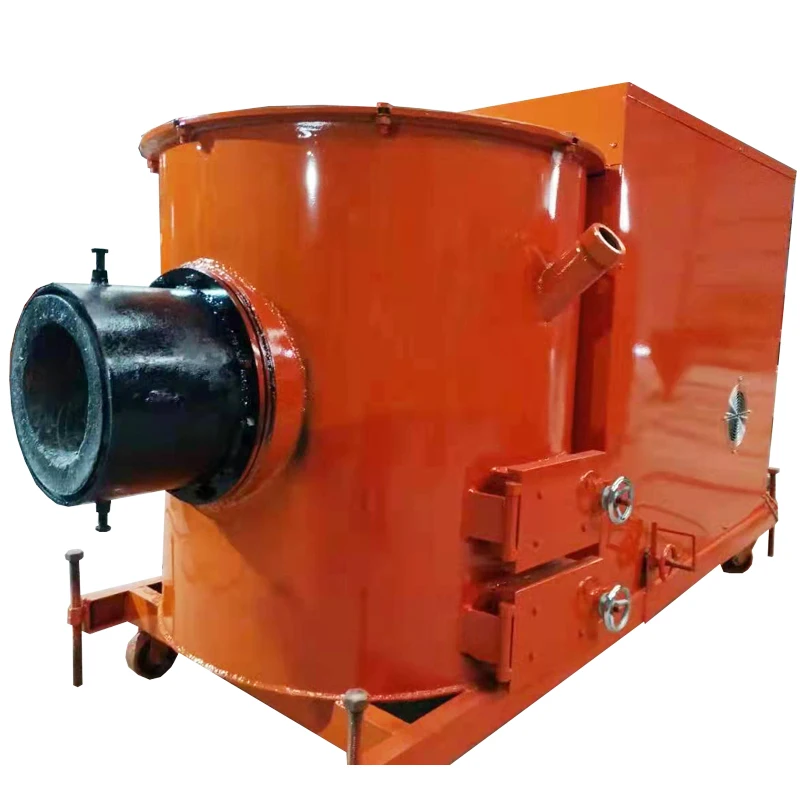

Combustion chambers
1、Ensure that the pulverized coal airflow sent into the furnace can quickly and steadily catch fire and burn
2、Supply reasonable secondary wind, so that it can mix well with the primary wind in time to ensure high combustion efficiency.
3, the flame in the furnace chamber is filled with good degree, and will not rush the wall to avoid cinder.
4、Better combustion suitability and load adjustment range.
5、Smaller flow resistance, less pollutant generation.

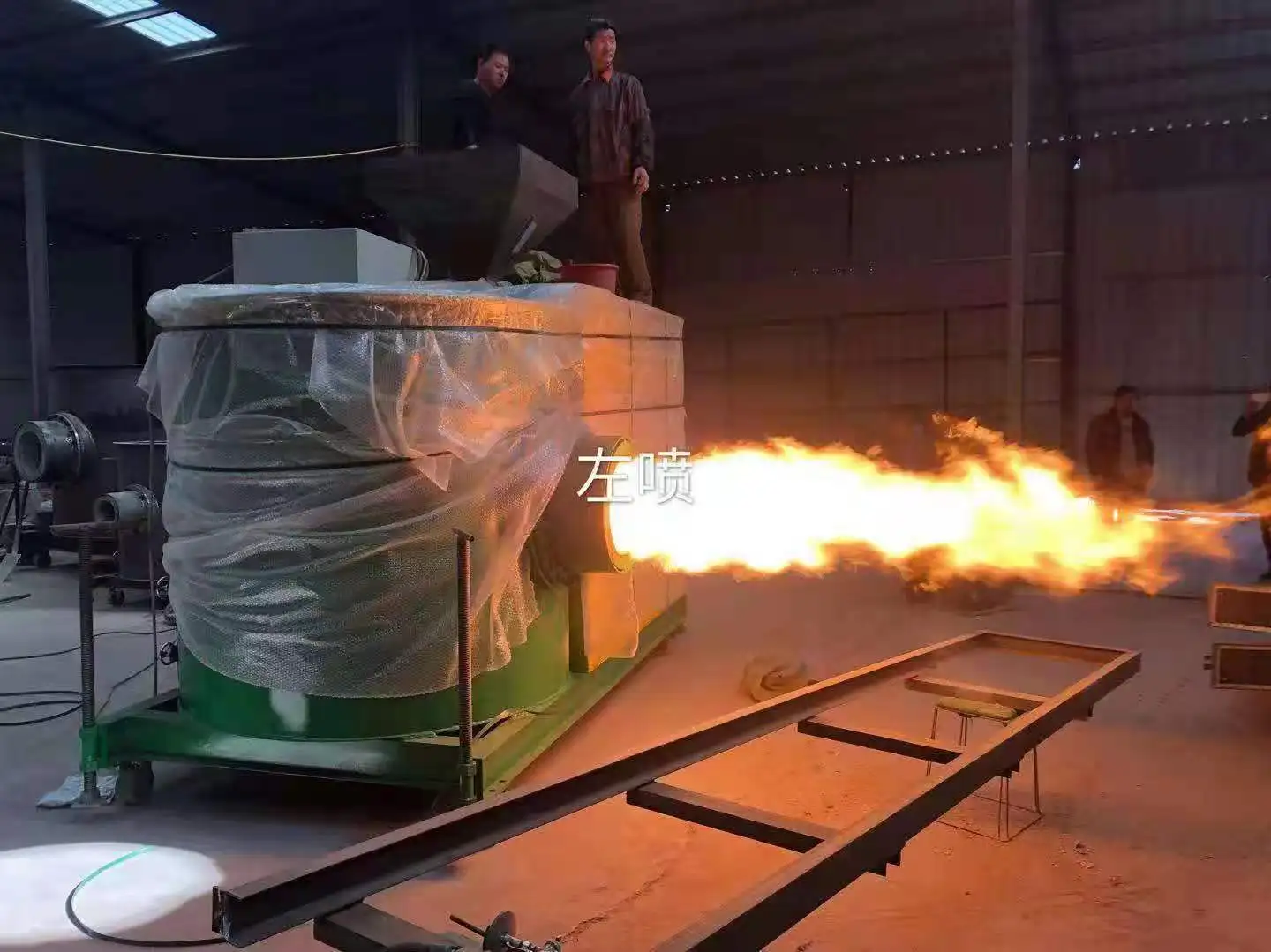

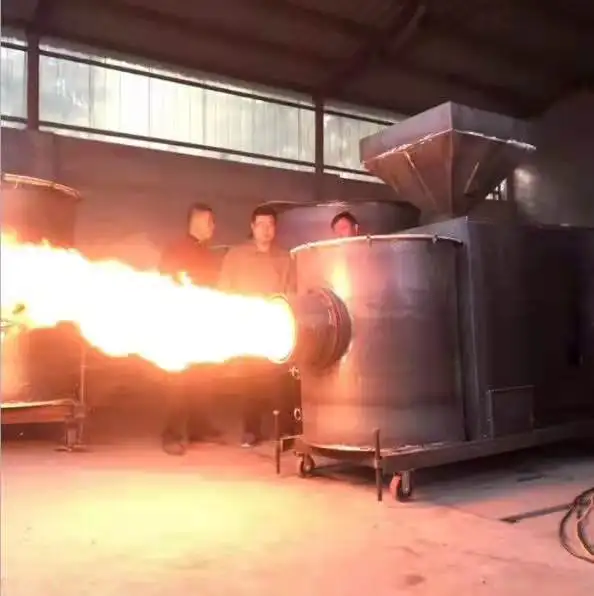

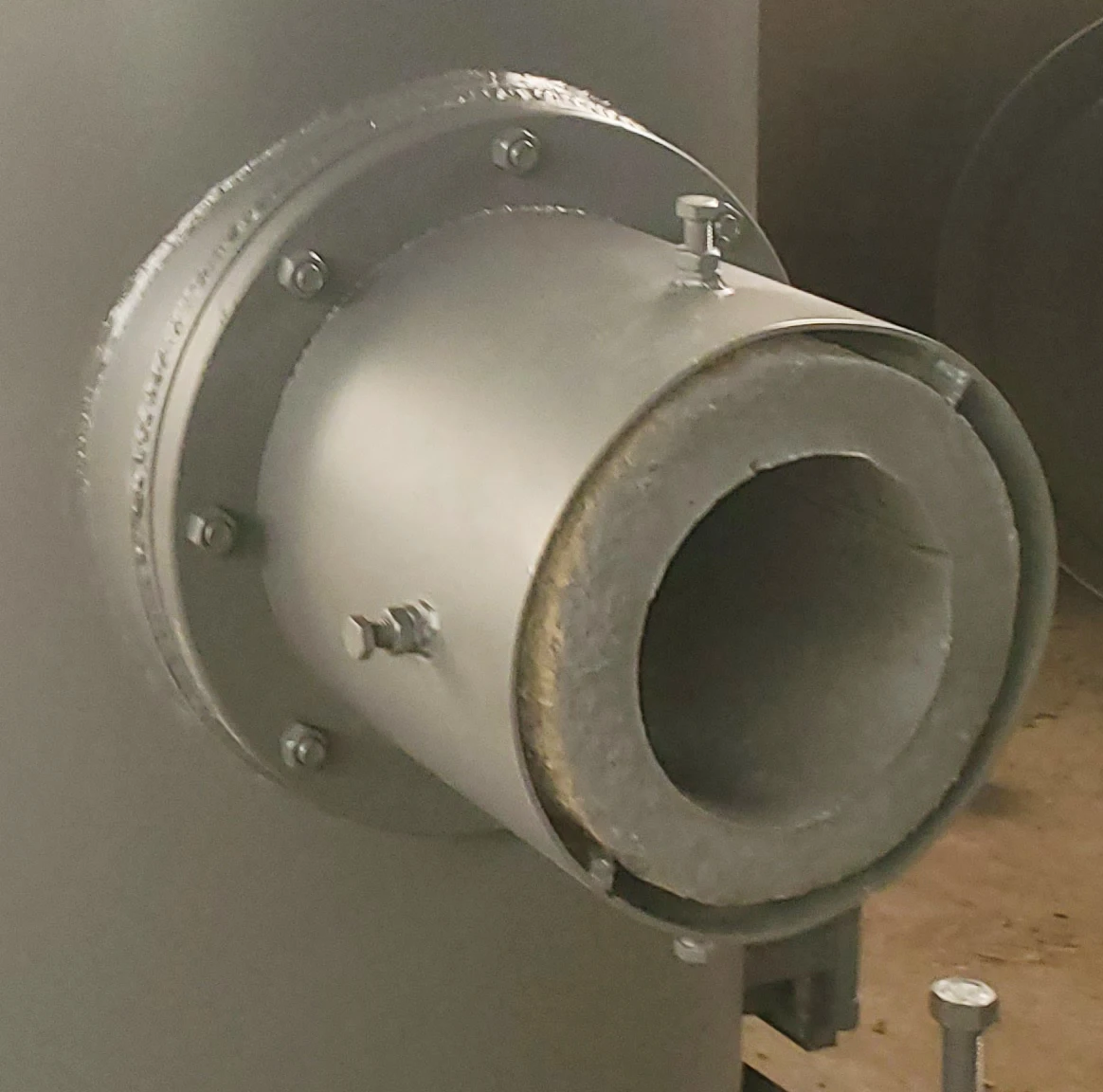

Burner outlet
Equipped with refractory nozzle, the nozzle is made of special stainless steel or refractory materials, heat-resistant temperature up to 1500 ℃, long service life.

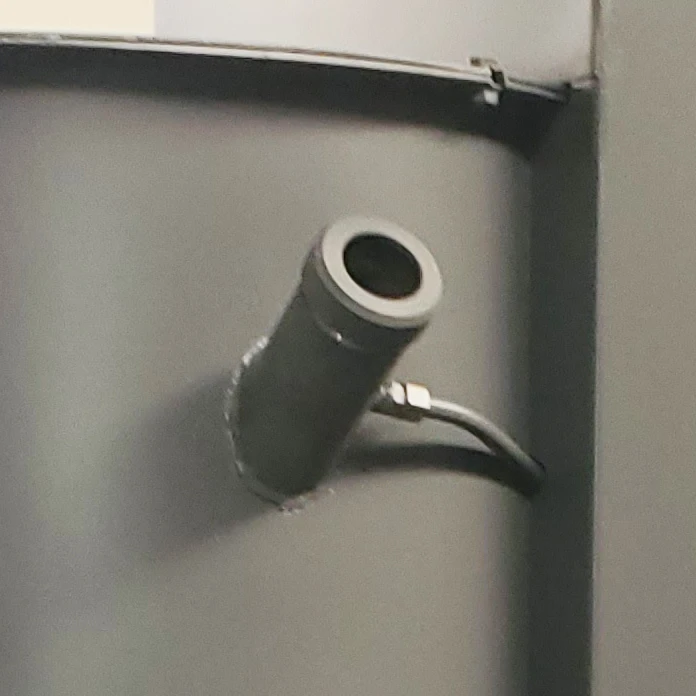

Burner view port
Adopt intelligent control, automatic feeding, wind dust removal, reduce labor intensity, simple operation, easy maintenance, small workload, no need for manned duty
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
Jinan Minglun Machinery Co., Ltd. is a manufacturer specializing in the production of wood pellet burner, wood pellet machine,wood pellet stove. Accessories supply is complete, large, medium and small equipment models are complete. Committed to serving overseas customers, providing excellent after-sales service, professional technical team, complete accessories supply, and hope to cooperate with you for a long time.
Fully enclosed wooden box packaging.
FAQ
Q: Are you a manufacturer or an agent?
We are the manufacturer which has 6 years experience and own research and development team.
Q:Can your company help me design the model of the machine I want?
We can help you design the model and output of the machine you need for free, and put forward our Suggestions scientifically.
Q:How long is your after-sales service?
We provide two years of after-sales service, within the warranty period, free of charge to provide related accessories.we can provide free raw material test video and photos, and test the performance index of each machine before delivery.the machine can be packed in wooden cases before leaving the factory and packed in cartons cases for each machine.
We are the manufacturer which has 6 years experience and own research and development team.
Q:Can your company help me design the model of the machine I want?
We can help you design the model and output of the machine you need for free, and put forward our Suggestions scientifically.
Q:How long is your after-sales service?
We provide two years of after-sales service, within the warranty period, free of charge to provide related accessories.we can provide free raw material test video and photos, and test the performance index of each machine before delivery.the machine can be packed in wooden cases before leaving the factory and packed in cartons cases for each machine.
