MC 315 Aluminum Stainless Steel Electrical Hydraulic Pneumatic Manual Cutter Pipe Cutting Machine

Product Overview

Description

Introduction of MC-315 Aluminum Stainless Steel Electrical Hydraulic Pneumatic Manual Cutter Pipe Cutting Machine

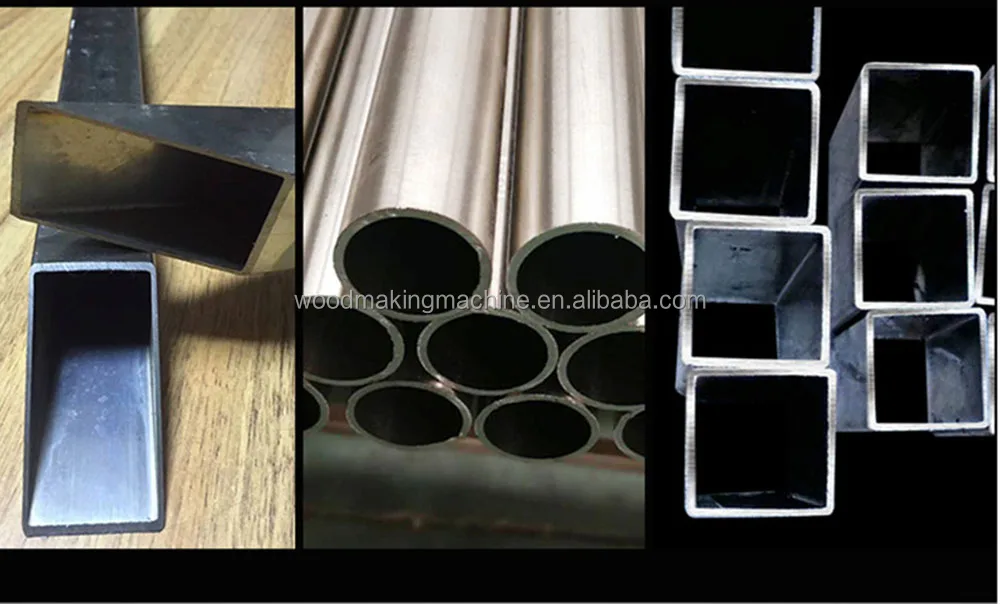

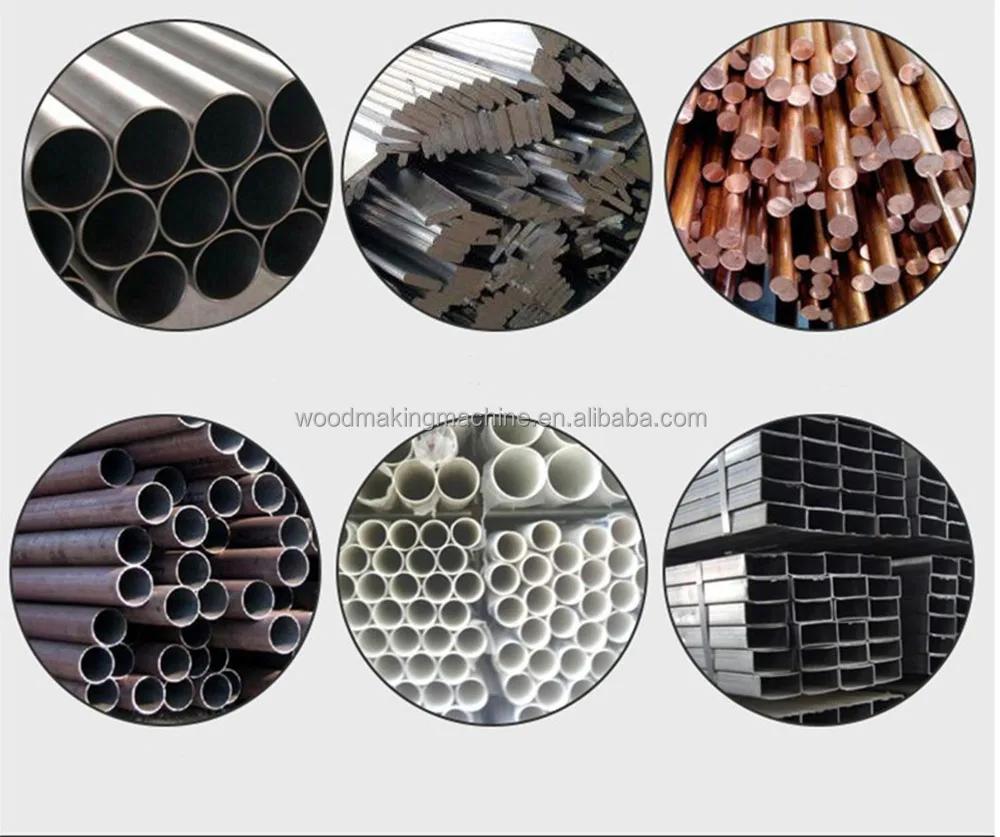

Semi-automatic pneumatic circular saw metal cutting machine is suitable for aluminum, iron pipes, copper pipes, galvanized pipes, etc, 45 and 90 degree sawing.



Parameter of MC-315 Aluminum Stainless Steel Electrical Hydraulic Pneumatic Manual Cutter Pipe Cutting Machine



Model		MC-275	MC-315	MC-350
Cutting capacity		80mm	95mm	115mm
	¨	75*75mm	85*85mm	110*110mm
	L	75*75mm	85*85mm	110*110mm
	¨	85*65mm	110*75mm	150*90mm
		38mm	55mm	60mm
		38*50mm	50*50mm	60*60mm
Max. Gear of clamping		85mm	110mm	150mm
Main motor		4/2 grade frequency conversion 2.4/3kw	4/2 grade frequency conversion 2.4/3kw	4/2 grade frequency conversion 3/4kw
Saw blade size		250/275mm	250/275/300/315mm	300/325/350mm
Cooling pump		90W
Spindle speed		42/21RPM
Air pressure		0.4~0.6Mpa
Dimension(mm)		790*950*1400
Machine weight		300kg
Rotating angle		90/45°
Cutting material		Cutting non-metallic materials such as aluminum, aluminum alloys, copper alloys and PVC.

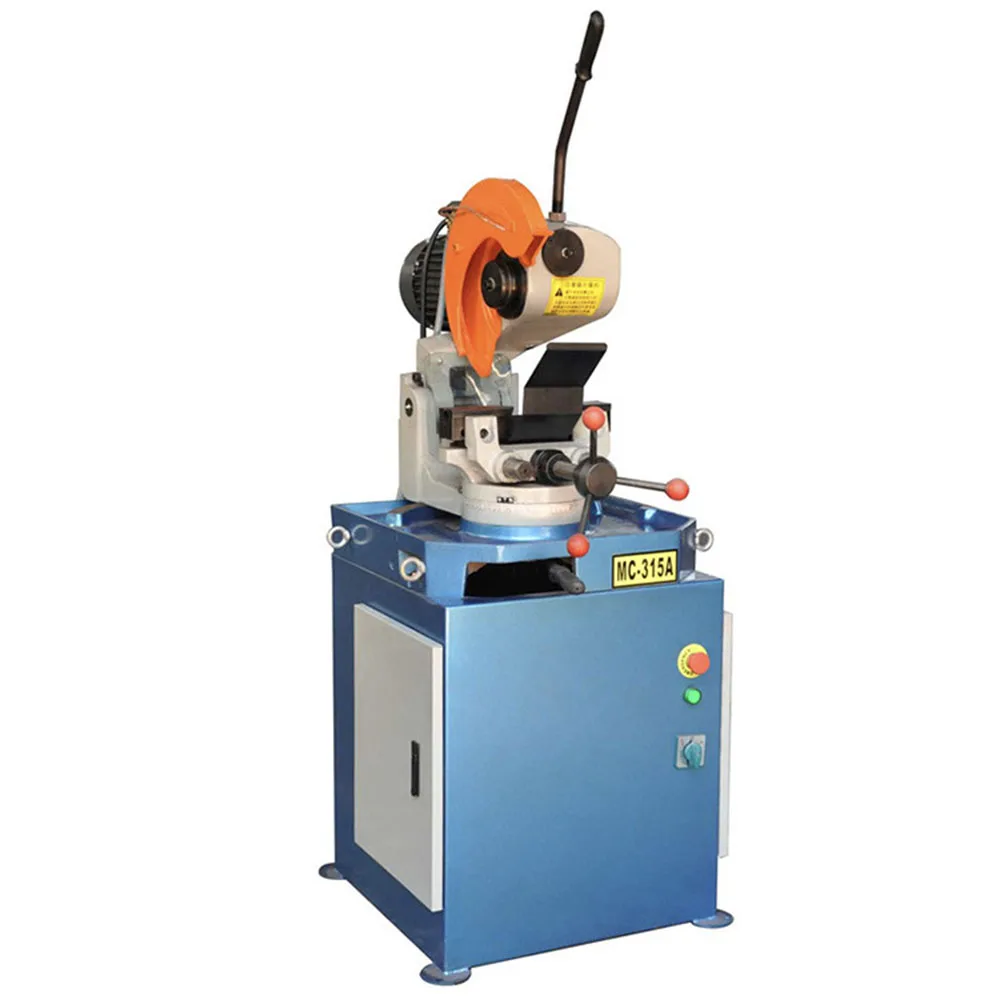

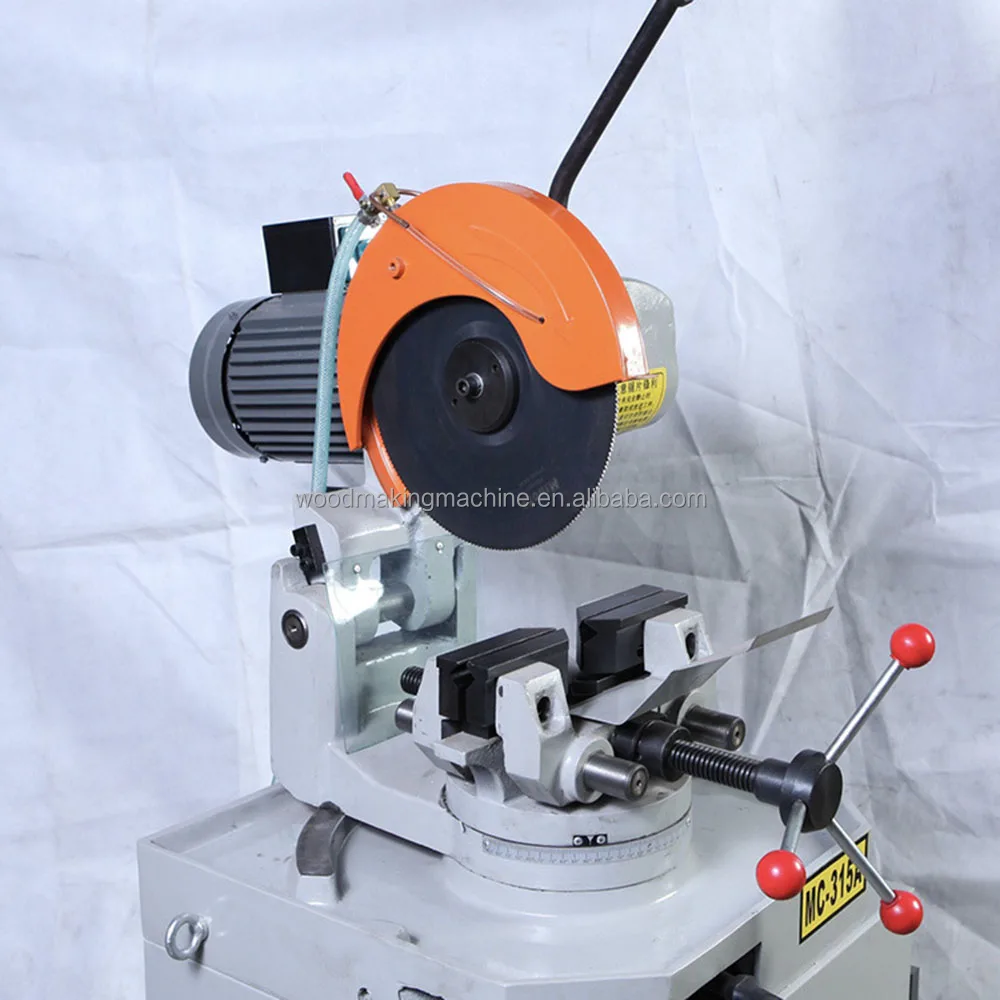

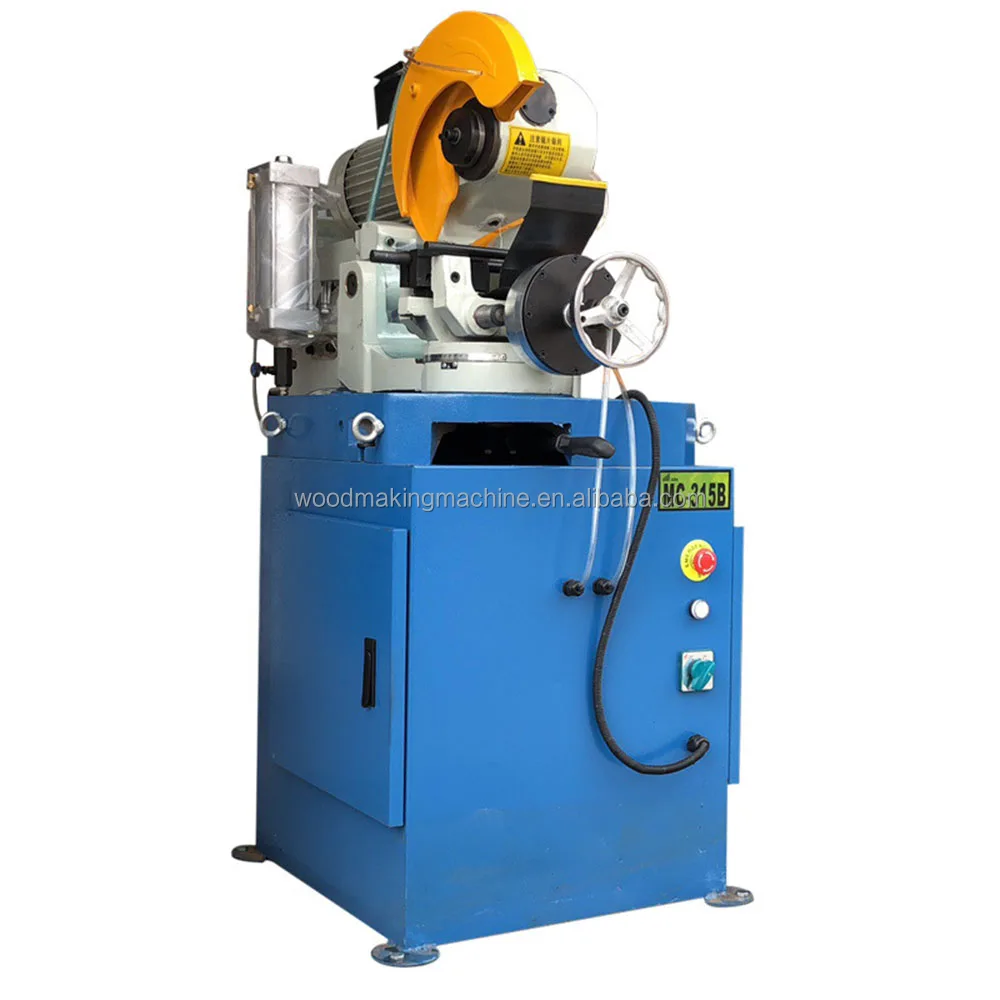

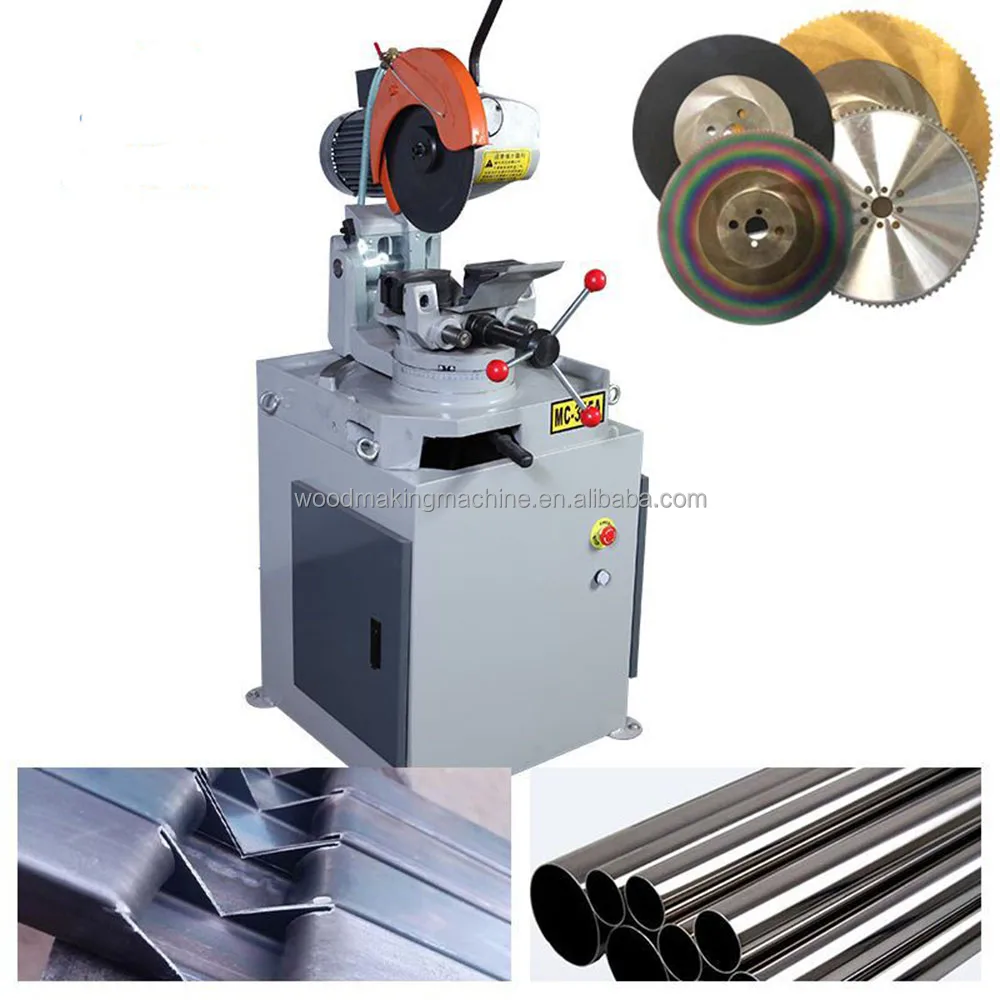

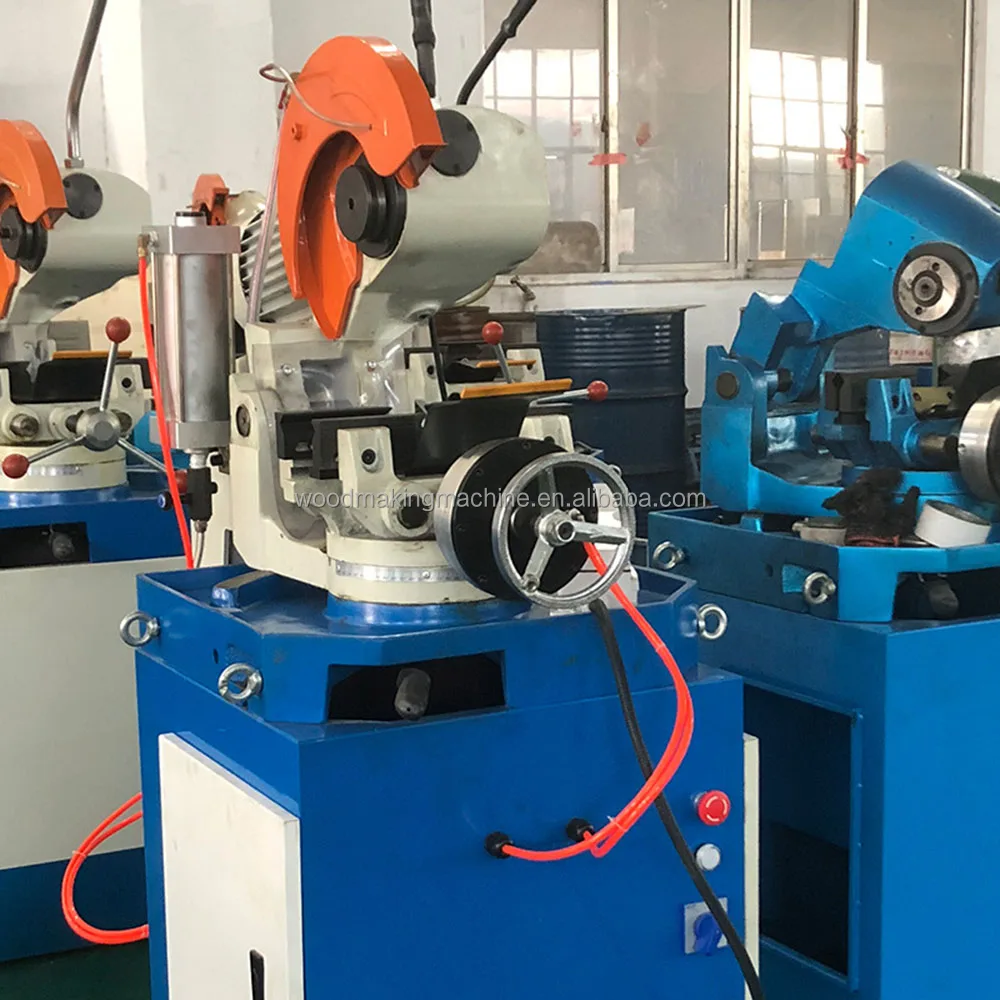

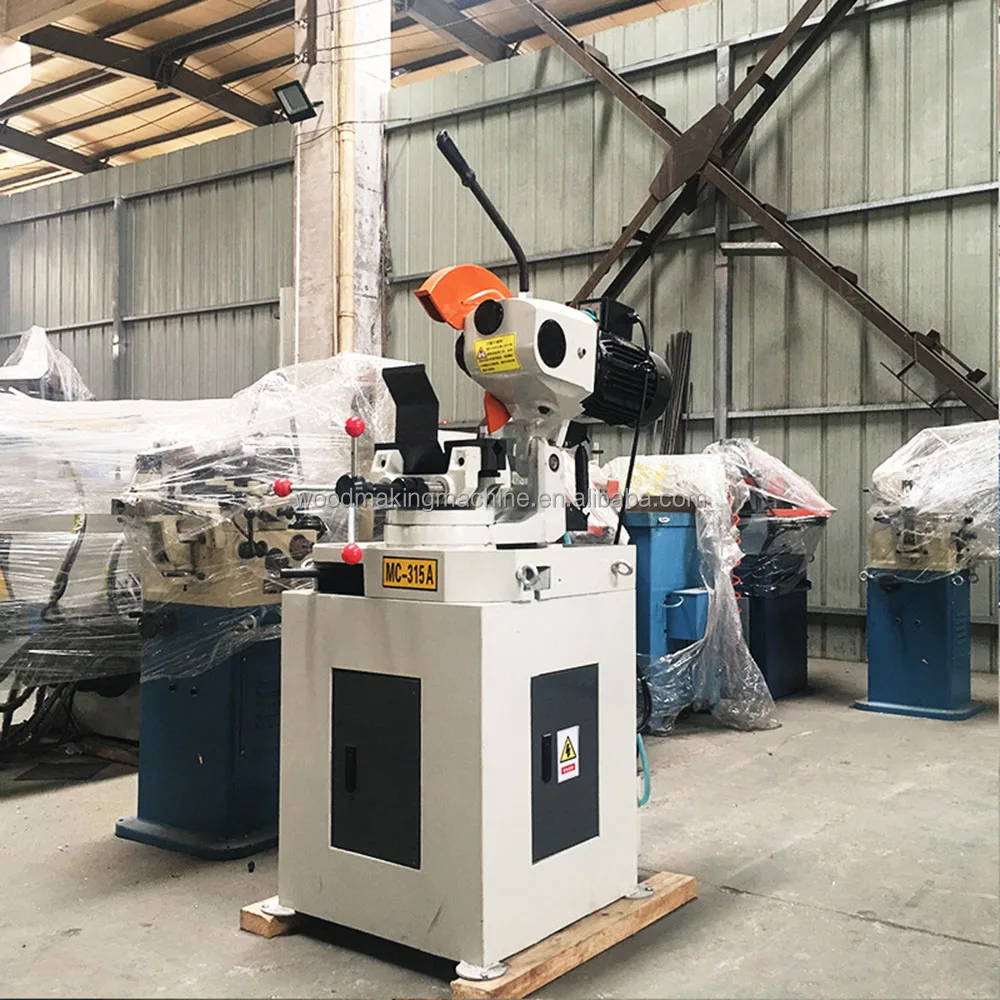

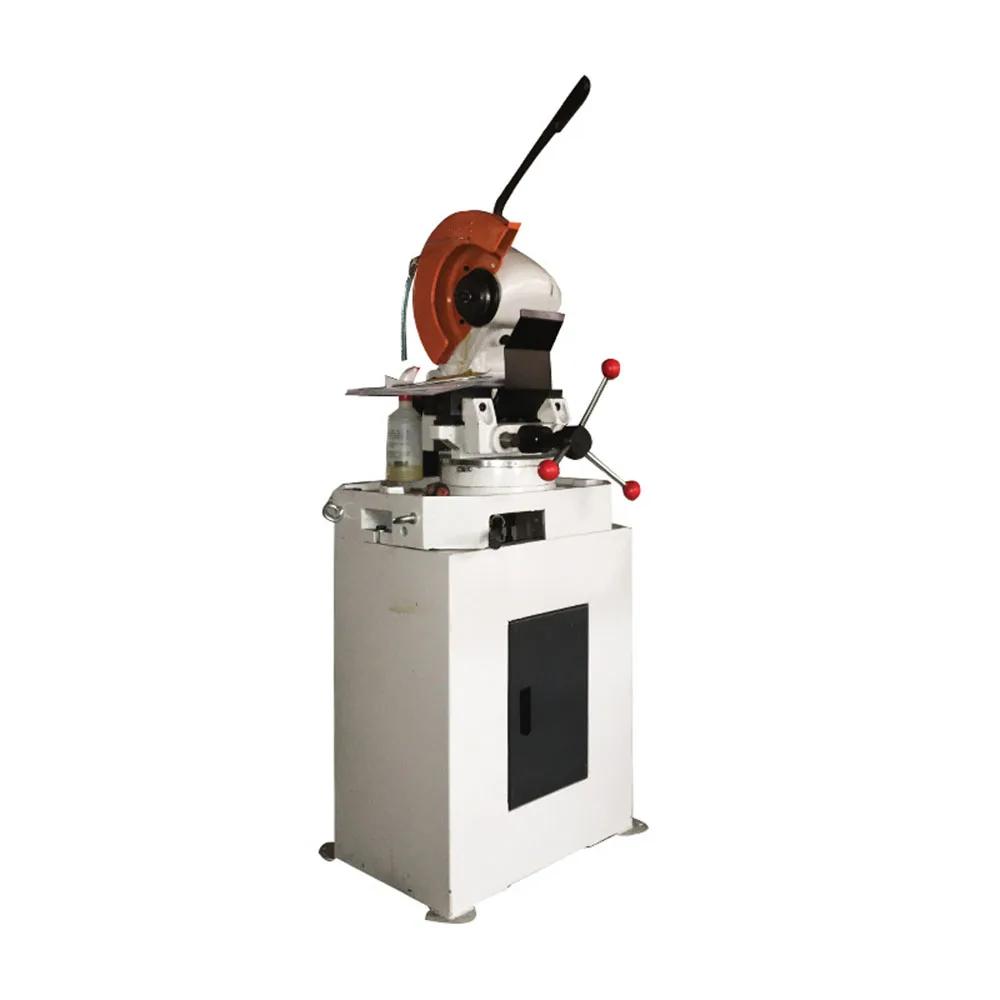

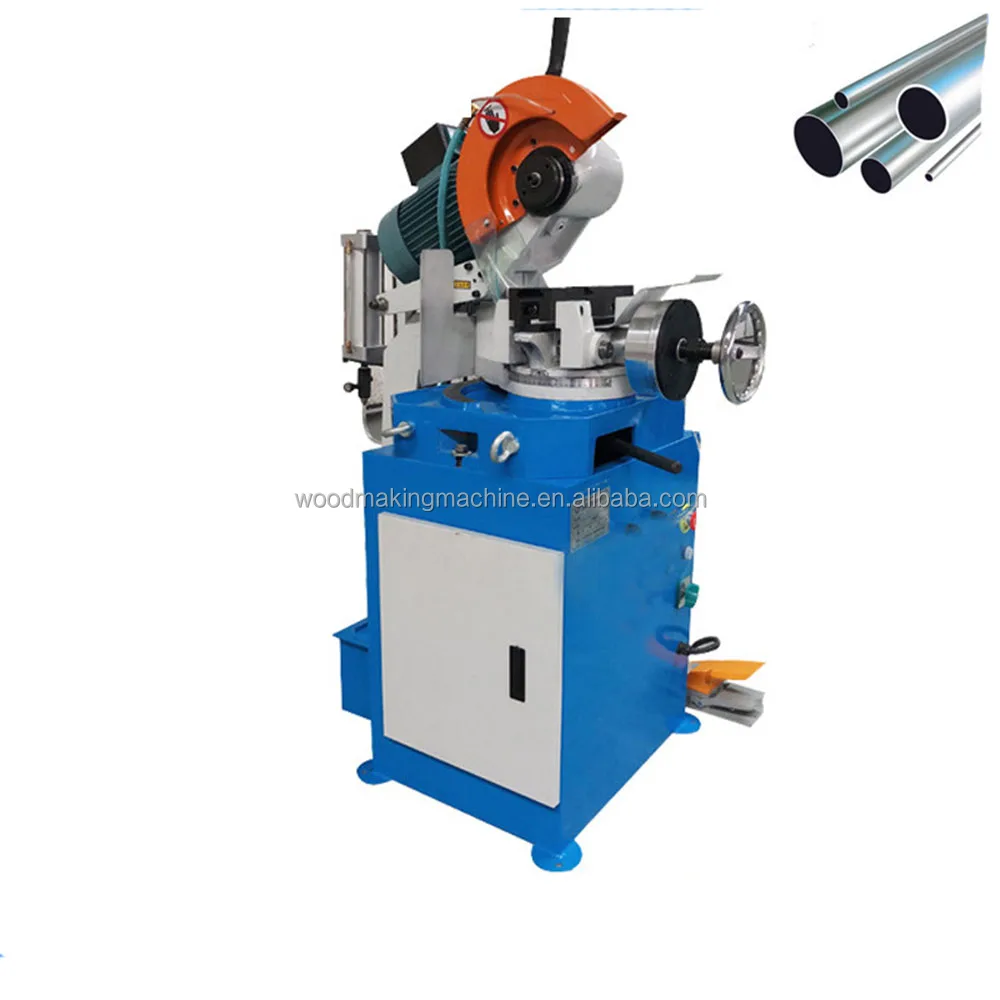

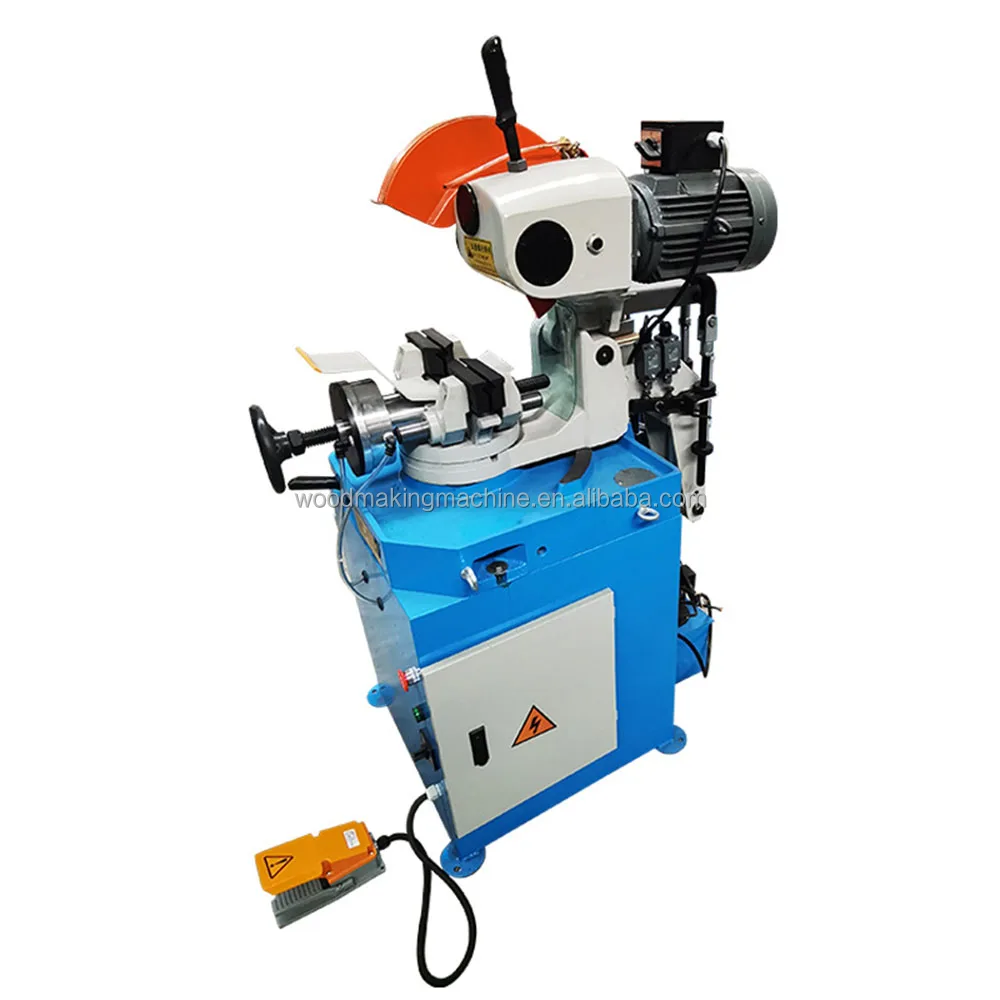

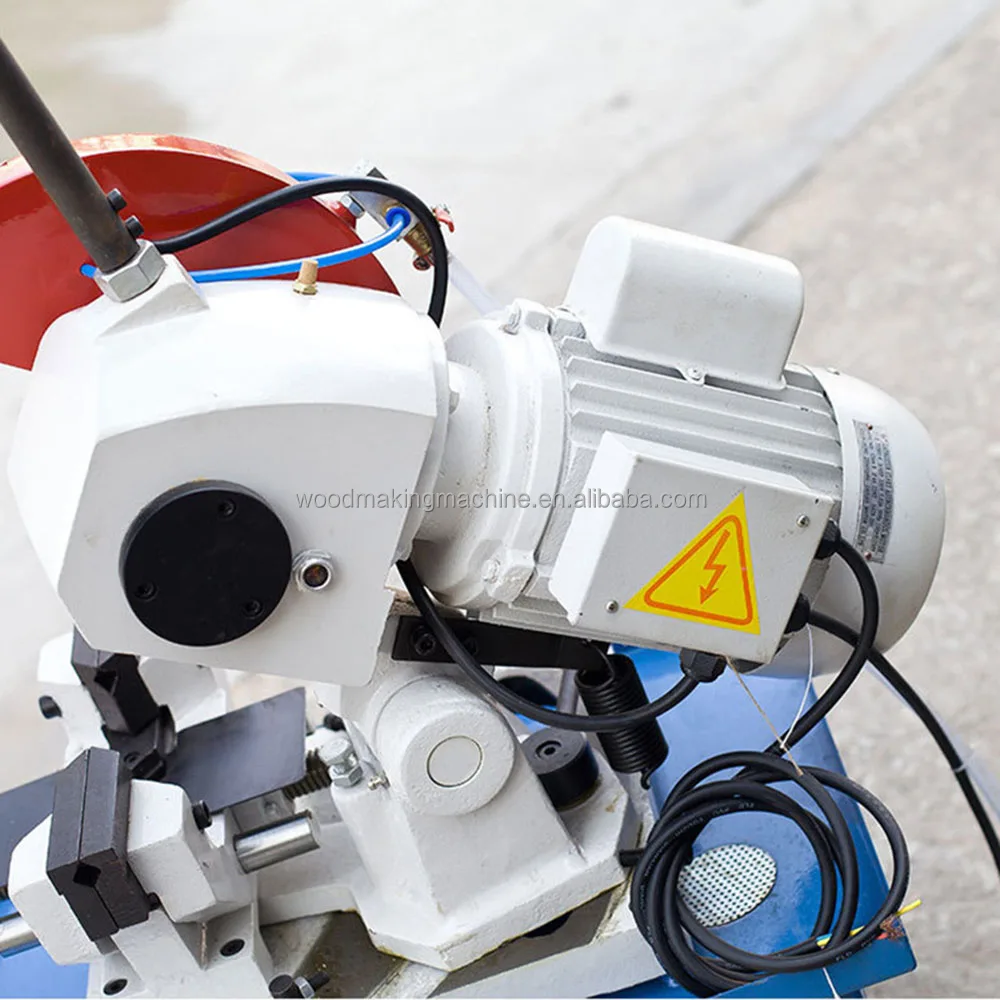

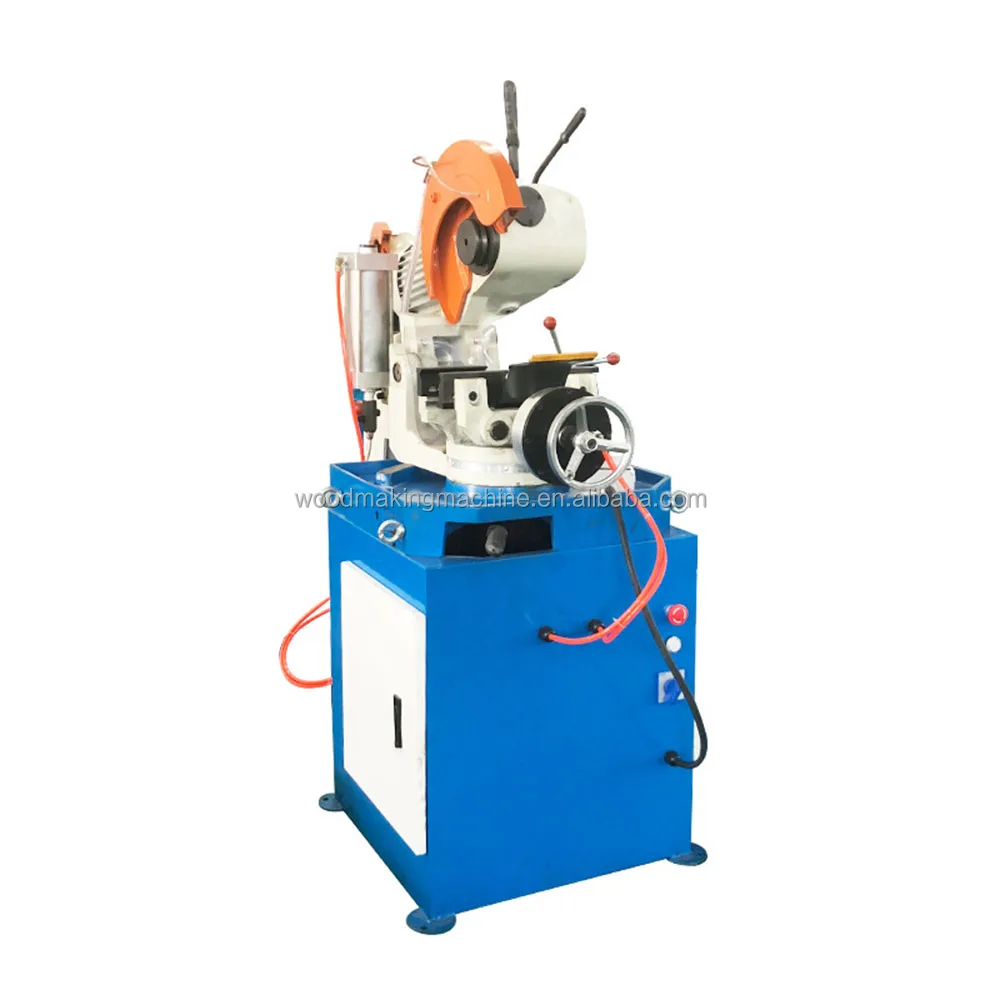

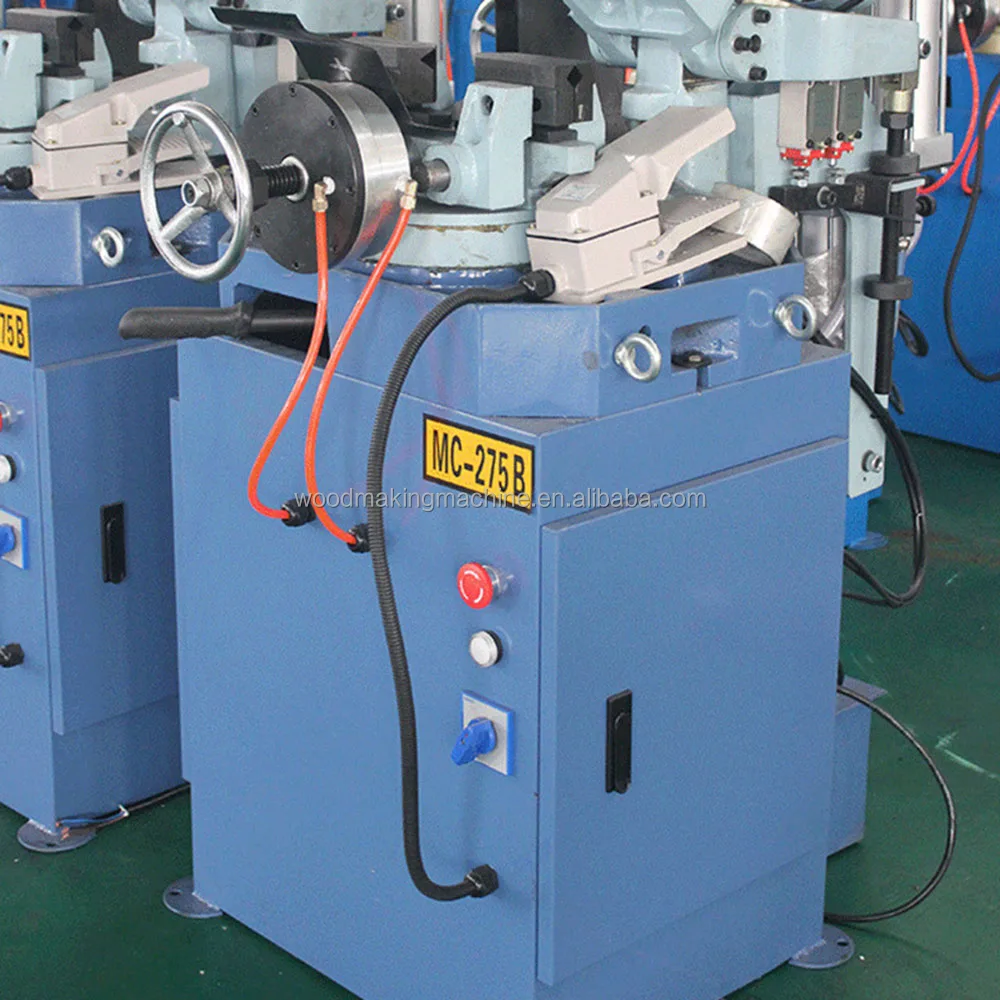

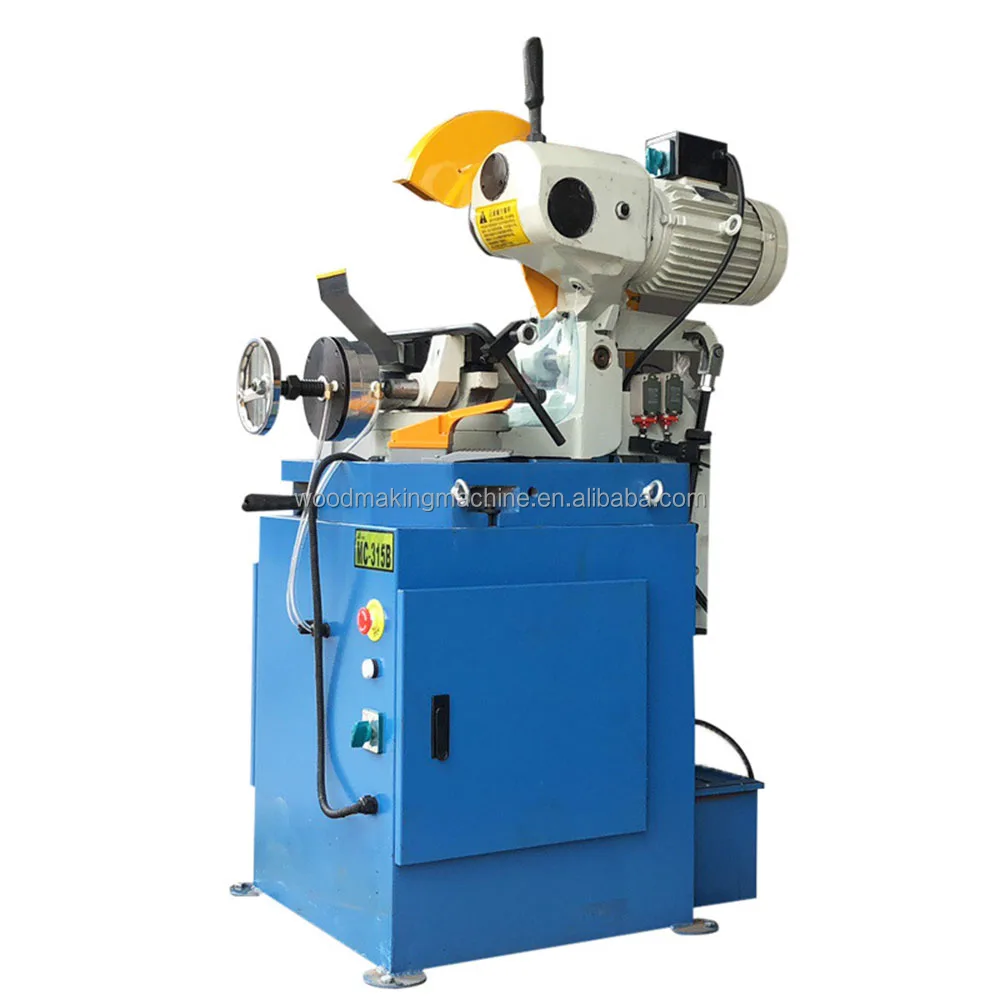

Photo of MC-315 Aluminum Stainless Steel Electrical Hydraulic Pneumatic Manual Cutter Pipe Cutting Machine
