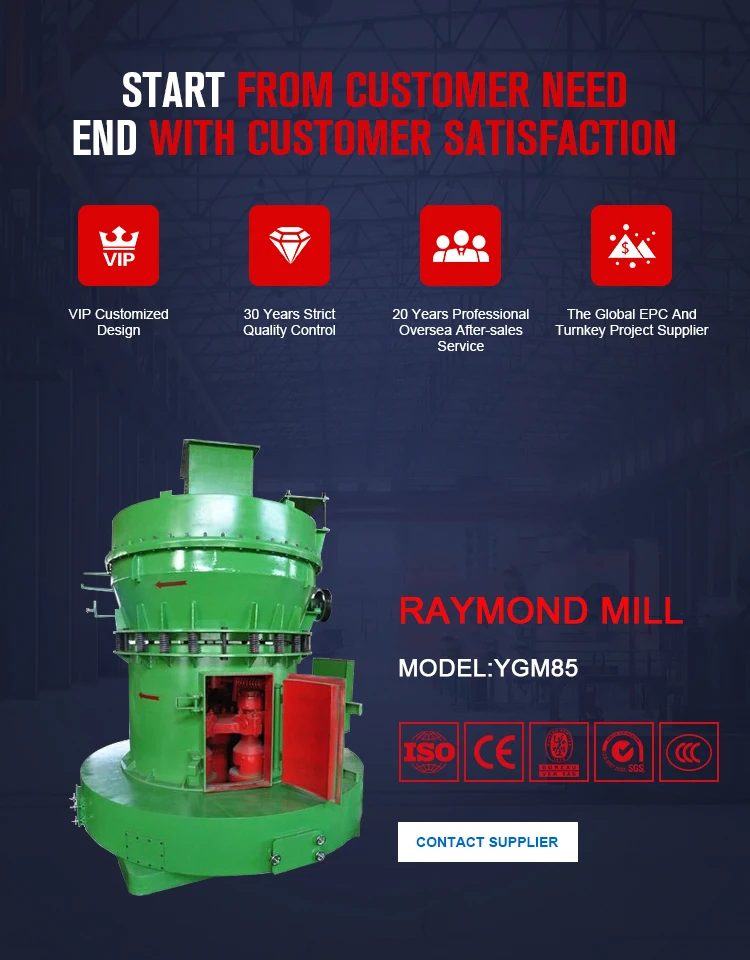

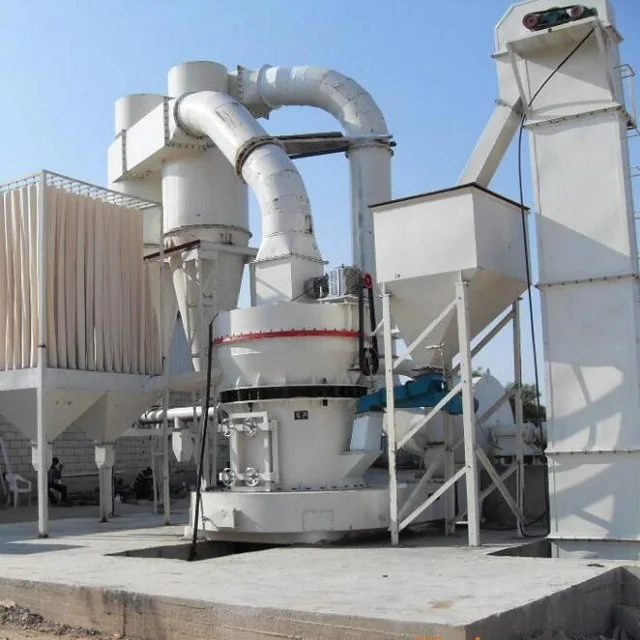

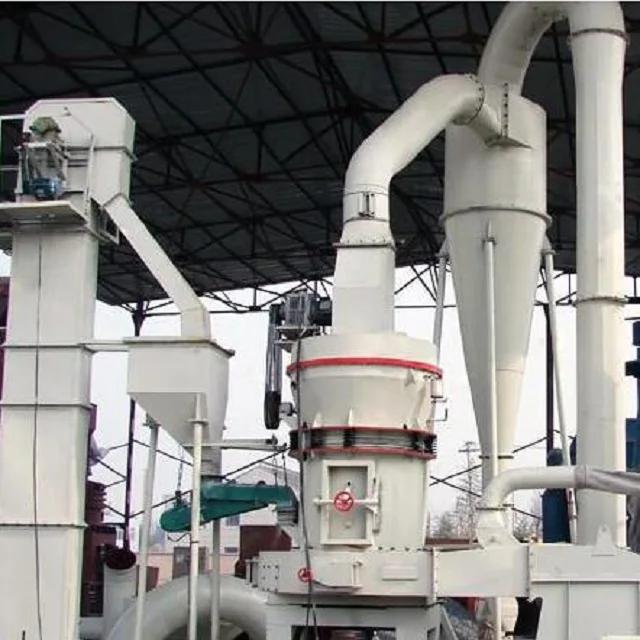

Kaolin Carbonate Powder Making Machine High Pressure Overhang Roll Mill

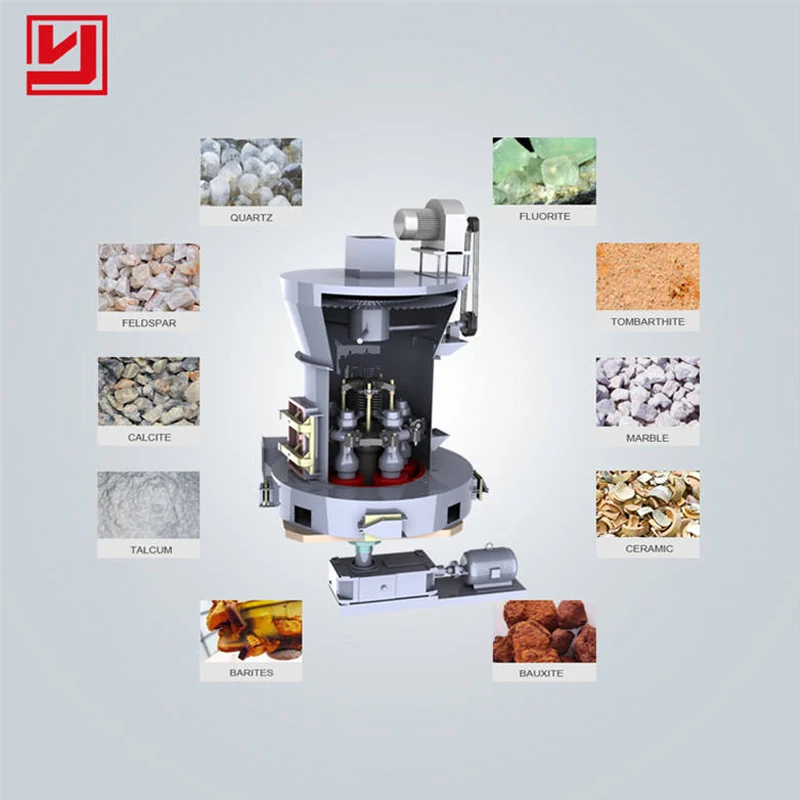

High Pressure Overhang Roll Mill is a applicable to process high-level milling of more than 280 kinds of materials in the areas of non-flammable mine,metallurgy,chemical,construction materials etc,such as bartie,limestone,ceramics and slag etc.with the moth's hardness less than 9.3 and moisture less than 8%.The size of the finished products can be adjusted from 80 to 425.

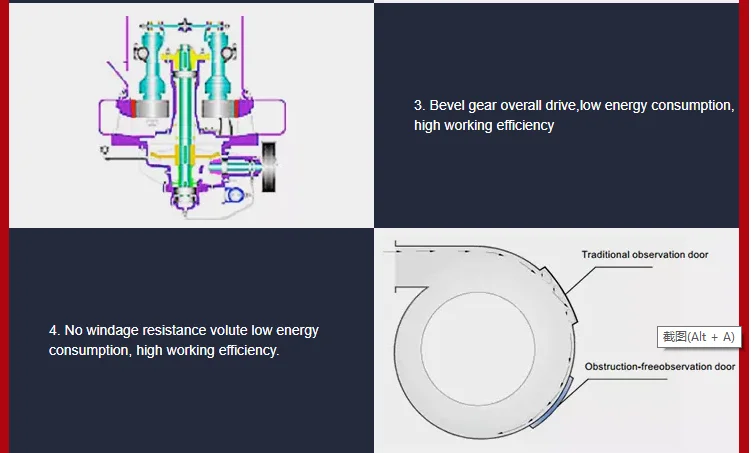

1.It used overall transmission of the angle gear with small energy loss and high efficiency.

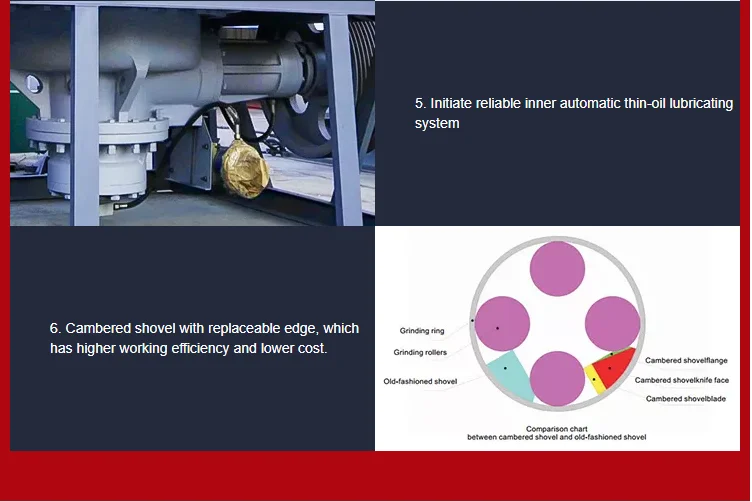

2.The internal thin oil lubrication system is adopted,and the operation is more convenient and reliable.

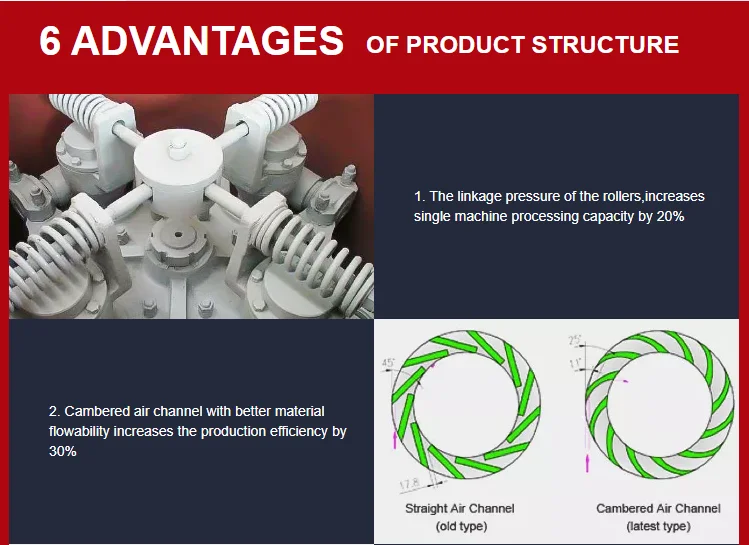

3.The arc air duct is adopted,and the air volume loss is small,and the material fluidity is good.

4.The special grinding roller and grinding ring strctyre design was adopted,the curved blade can replace the blade,so that the grinding efficiency is incresaed and the use cost is reduced.

                                                             Working Principle

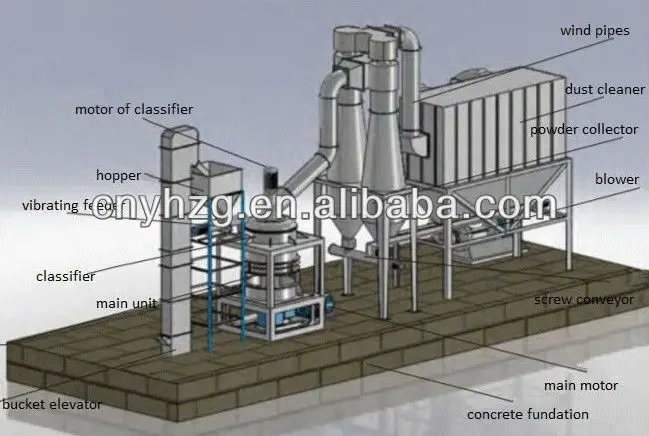

   Material by the automatic feeding machine, from the inlet evenly into the flour mill, hanging in the plum flower rack cylinder device, rotating around the vertical axis of rotation, rotate itself at the same time, due to the effect of rotating centrifugal force, when the drum is swung outward, pressed into the ring, shovel knife scooping up material between grinding roller and grinding ring, for roller rolling rolling and achieve the goal of crushing material. After grinding, the material is blown into the chassis by the fan, and the powder is blown out. After analysis, the fine material is sorted in the grinding room on the top of the machine. The fine material enters the grinding room through the coarse material and is reground. The Merry return air duct at the top of the large cyclone collector enters the fan, and the air duct is round, and the negative pressure is in the flow state. The circulating air duct that increases the air volume by the fan enters the small cyclone collector with the exhaust pipe in the middle of the host machine for purification treatment.

      Henan Yuhong Heavy Machinery Co.,Ltd is a large-scale enterprise with an integration of research and development, manufacturing and sales.Main products are :crushing series, industrial grinding series, ore dressing equipments and cement equipment. Henan Yuhong Heavy Machinery Co.,Ltd is a large-scale enterprise with an integration of research and development, manufacturing and sales.Main products are :crushing series, industrial grinding series, ore dressing equipments and cement equipment.
