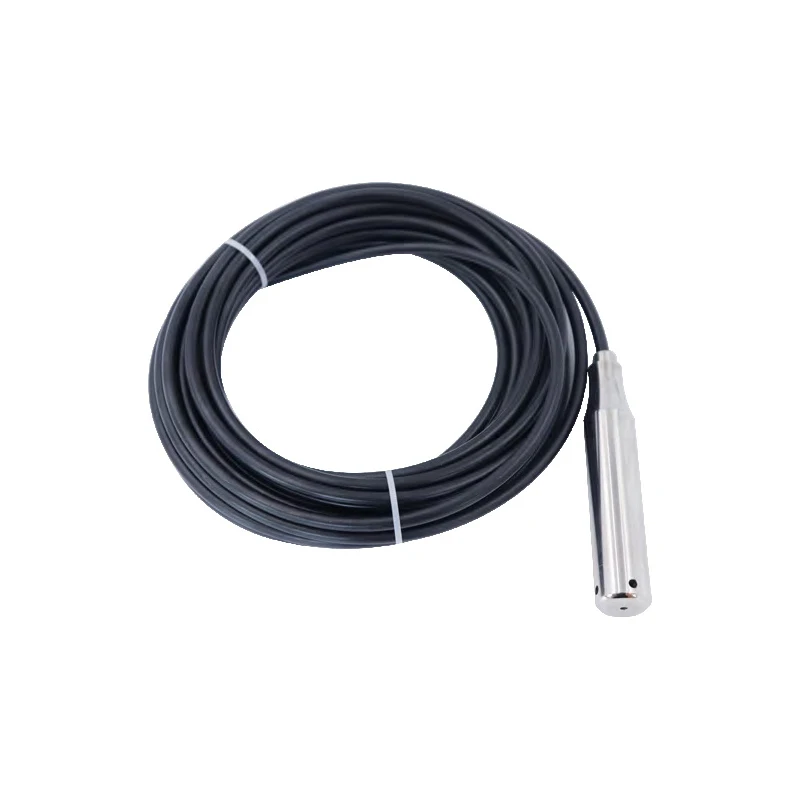

WNK Submersible Level Transmitter RS485 Waste Tank Water Level Sensor 4 20ma For Deep Well Pump
- Category: >>>
- Supplier: Hefei Wnk Smart Technology Co. Ltd.
Share on (1600812941309):
Product Overview
Description
WNK Submersible Level Transmitter RS485 Waste Tank Water Level Sensor 4-20ma For Deep Well Pump
Product Description

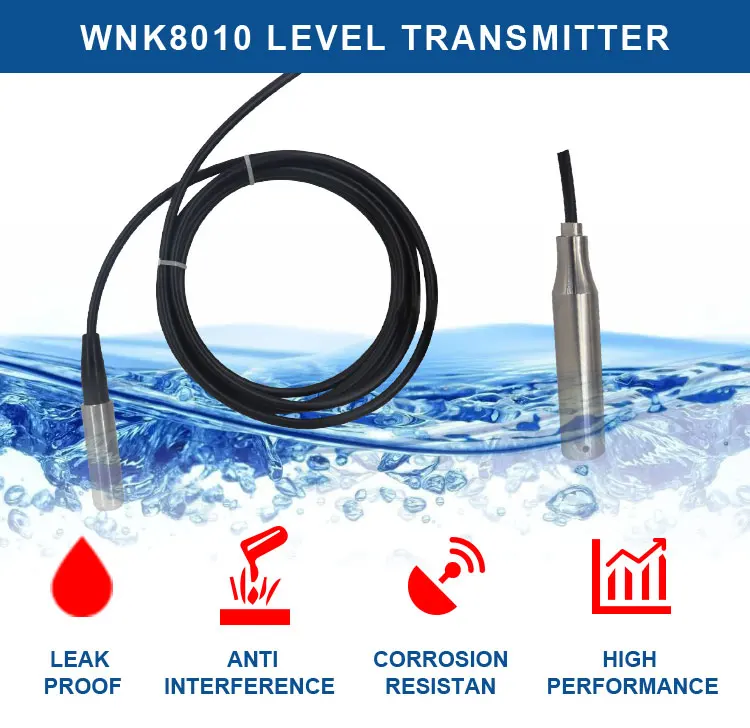

- WNK8010 liquid leve probe with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Output | 4~20mA, 0-10mA, 0-5V, 1-5V, customization |
Level range | 0-0.5~200mH2O |
Overload | 150% of sensor range |
Measuring medium | Liquid |
Accuracy | ±0.2%FS, ±0.5%FS |
Stability | 0.25%FS/ year |
Housing material | Stainless steel |
Cable material | Polyvinyl Fluoride, PTFE |
Power Supply | 24VDC |
Ambient temperature | -20~85℃ |
Process temperature | -20~85℃ |
Compensation temperature | -20~85℃ |
Protection class | IP68 |
Ordering Code
Product Spec
Company Information
Exhibition
Application
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
