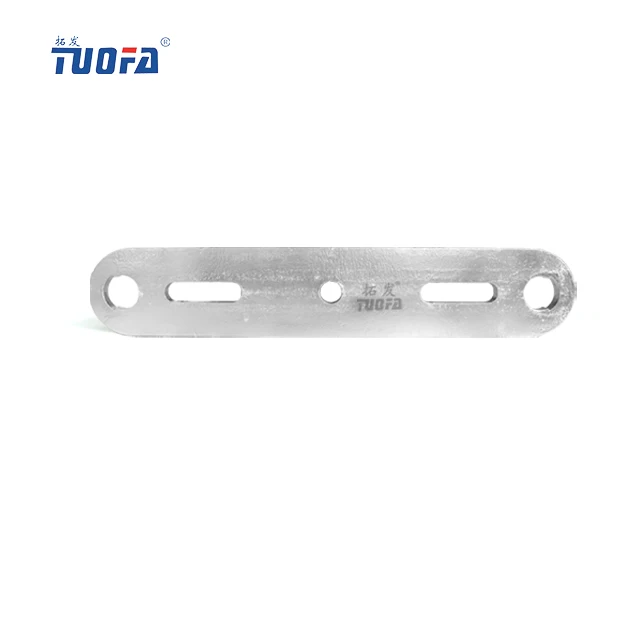

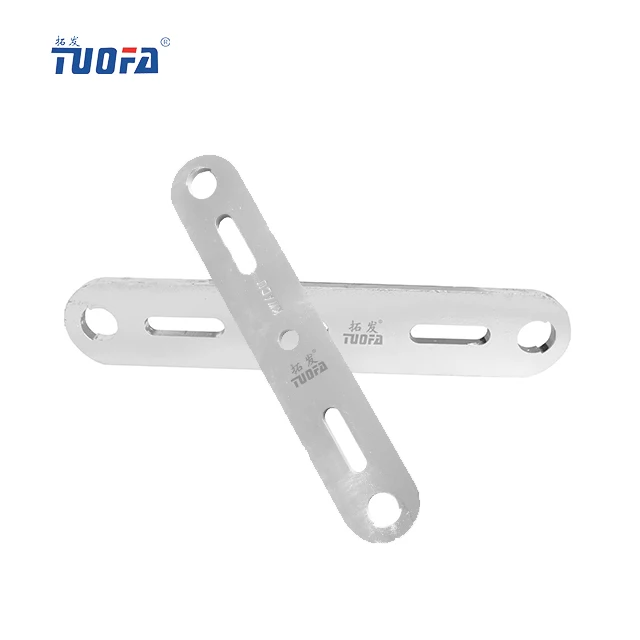

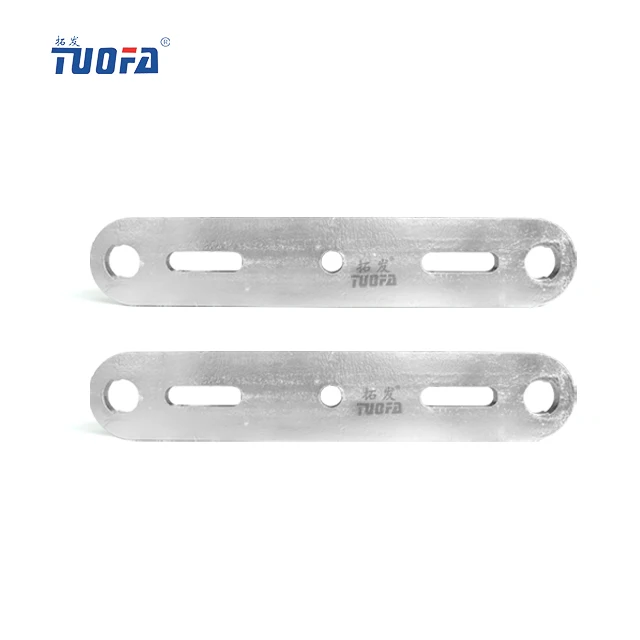

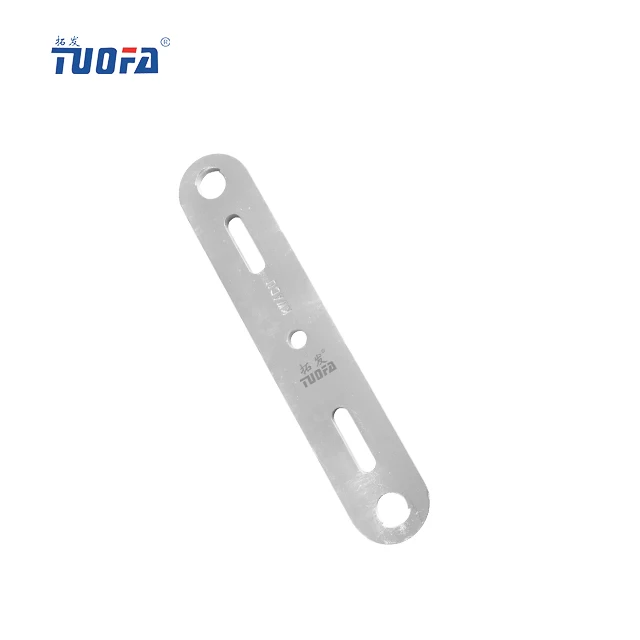

Hebei tuofa Yoke clevis plate on power transmission lines hot dip galvanized yoke plate

Share on (1600812957014):


Price:$1.69 - $2.90

Quantity:


Product Overview

Description



Product Description


Definition of Yoke Plate

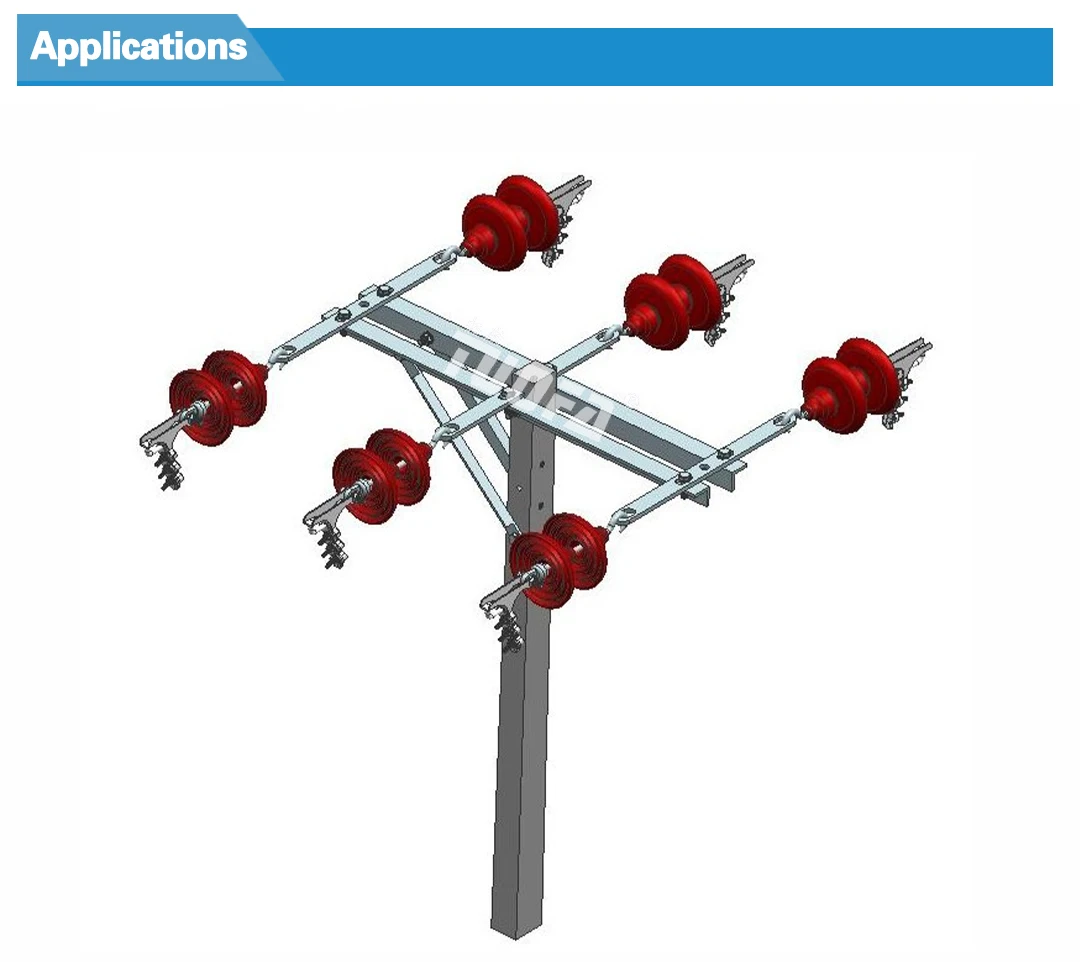

Yoke plate is a type of string hardware used for coupling the electrical clevis and the insulators or the socket tongue on the transmission line. During the yoke plate installation process, the insulators that are connected to the cross arm will be on one side and the conductor termination is on the other side.
The yoke plate is also called the clevis plate. The yoke plate is string hardware which used to couple the electrical clevis, socket tongue, or insulators. We often see the yoke plate on overhead power lines, and power transmission lines. The yoke plate is installed to attach the insulators to the cross arm on one hand and to the conductor termination on the other hand. According to the shape, there are triangular yoke plates, rectangular yoke plates, and irregular yoke plates.
Yoke plate is made from carbon steel which is more than 16mm thick. The raw material has no welded or jointed points. Before mass production, the Rax Industry QC department will test the raw material carefully to prevent any accidents from happening.


FEATURES AND BENEFITS

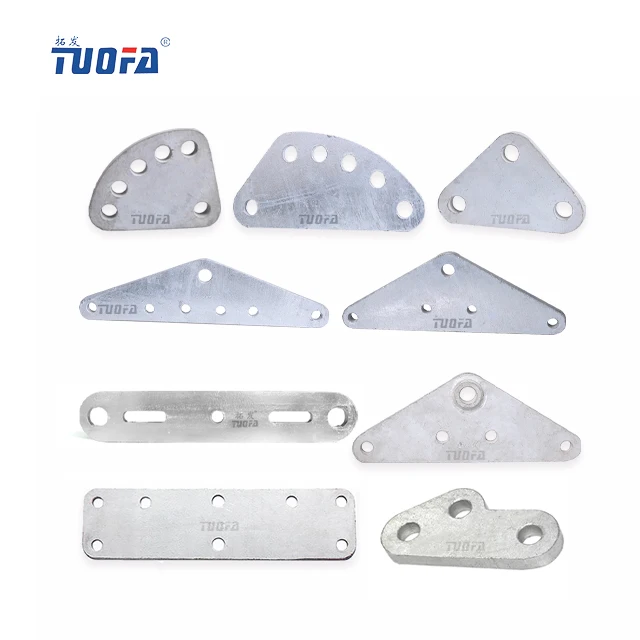

For the design, the most common shape of the yoke plate is the triangular yoke plate. This shape is considered universal as it can easily fit into a wide range of applications.

However, there are other shapes for this overhead line accessory. You can find a rectangular yoke plate and even an irregularly-shaped yoke plate. So, when buying a yoke plate, you should specify the design or shape that you want. Of course, the choice of the shape will depend on your area of application.

Yoke plates have grooves or holes through which connections are made. The diameters of these holes tend to vary. This means that you need to be more specific with the size of the holes that you want.

What is a Yoke Plate for transmission line?
A yoke plate is among the most common insulator fittings that are used on overhead transmission lines. It is a string hardware that is used for stringing different components of an overhead power line.

A yoke plate is stringed to the insulators on one side and the other side is stringed to the conductor terminal point.

Other components of an overhead pole line such as socket tongue and clevis are also attached to the yoke plate. The connection between the yoke plate and the associated components must be fault-proof to guarantee structural and electrical integrity of the transmission line.

Also, the yoke plates themselves must be of high quality to ensure that they execute their jobs without breaking or getting damaged.




Specification


item
value
Place of Origin
China
Hebei
Brand Name
Tuofa
Model Number
All
Product name
Yoke plate
Material
Aluminum alloy
Surface treatment
Hot dip galvanized
Sample
1 or 2 FREE
Weight
4.5kg~22.3kg
Application
Overhead line accessories
Function
Transmission line fittings
Package
Tray
MOQ
500PCS
OEM
Accept


Application




Packing & Delivery


Plastic bag+wooden pallet or as requirement




Company Profile




Brief Introduction:
Hebei Tuofa Telecommunication and Electric Equipment Manufacturing Co., Ltd. was founded in 1992, integrating the R&D, production and sale of high-tech communication equipment and electrical fittings.

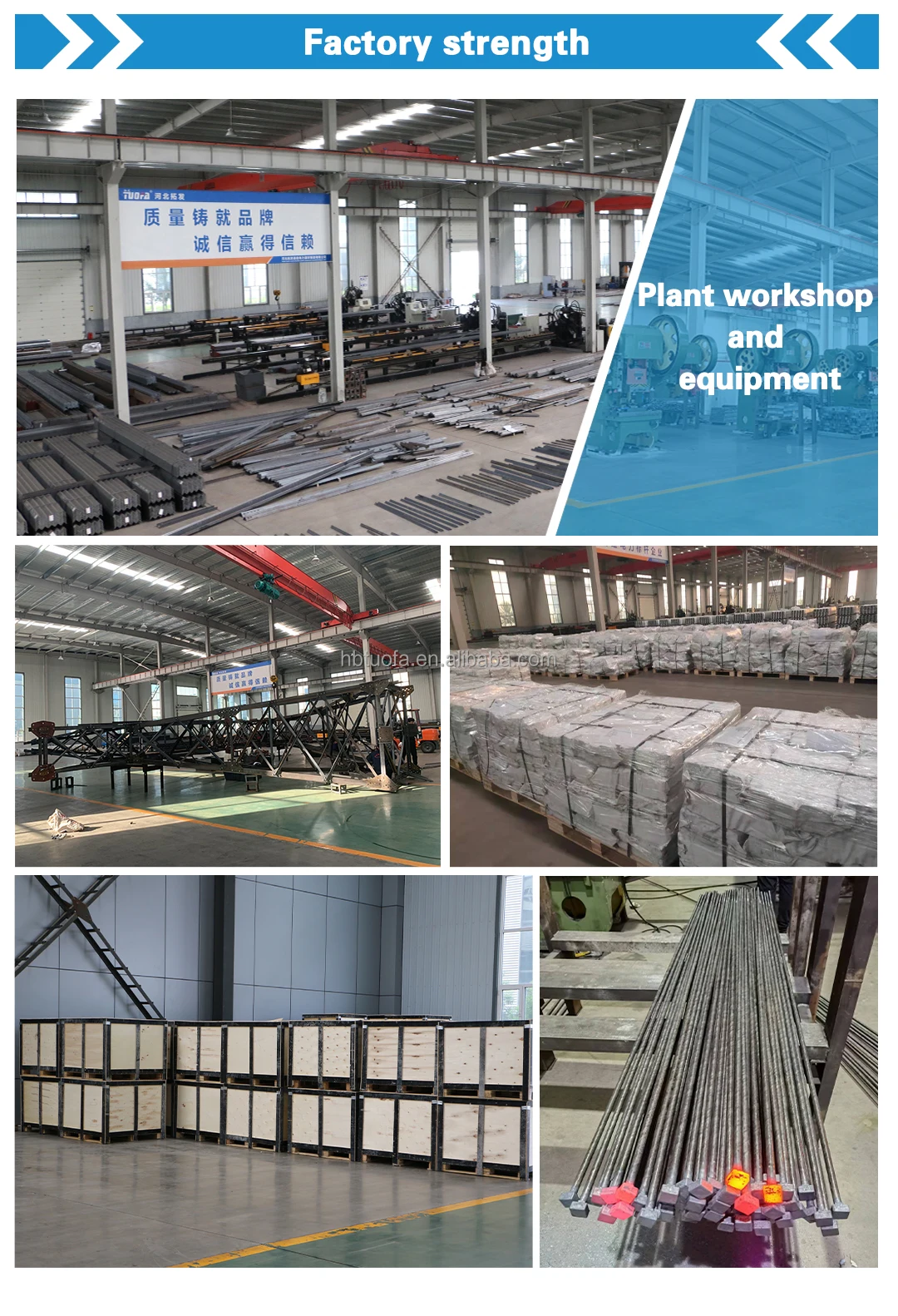

Our company covers an area of more than 28,000 square meters with a plant construction area of over 16,000 square meters. Our company staffs more than 280 members, including over 60 professionals and 28 quality management personnel.
Certification:
Our company has attained ISO9001:2000 quality management system certification by the provincial Administration of Industry and Commerce
Our company has been awarded as "A Contract And Promise Keeping Unit In Hebei Province", "The Seventh Unit Of Consumer Trust", "The Governing Unit", "Product Quality Trustworthy Enterprise" and more.
Export:
Our products have been sold to all over the country, and have entered the overseas markets with export value doubling year-on-year. Our products are widely sold to Korea, Japan, Southeast Asia, Iraq, Zambia, the Middle East, Saudi Arabia, Australia and other countries and regions.









Recommended by seller




FAQ


1. Are you a factory?
Our Company is a professional factory of manufacturing.
2.Can I get a sample?
We can supply 1 or 2 samples for free.
3.How is the price benefit?
Based on market, we will keep giving best and competitive price for each customer.
4.Can you make it according to my drawing?
Yes, we can make various products according to your demands.
