ORIGINAL INDUSTRIAL MOTHERBOARD FOR COMMELL HE 772 Half size PCI bus SBC with Intel Atom dual core processor

Product Overview

Description

TEKET INNOVATION founded in year 2003 in Beijing, provides embedded motherboard, industrial PC and related parts (chassis, power supply, RAM, SSD, LCD panel and wireless input device). We also sell VIA / ASUS / ASRock / Gigabyte / MSI industrial motherboards, Intel NUC mini PC and laptop.

Intel,VIA,Asus,Asrock,Gigabyte,MSI and TEKET embedded motherboard Intel,ASUS,Gigabyte,MSI and TEKET mini pc AUO,BOE industrial panel touchscreen and LVDS/eDP cable PC chassis, power supply module, RAM and SSD support Our main target customers are system integrators and equipment manufacturers. In short, we are committed to researching, developing and producing space-saving and energy-saving embedded computer systems, which are usually applied to the fields of embedded industrial automation/control, inquiry machine, VR(virtual reality), medical equipment, education & training, digital signage, digital security & surveillance, soft routing, network security,PFsense,firewall,retail (POS/Kiosk/ATM),HTPC and thin client.

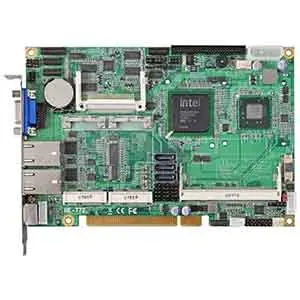

HE-772
Half-size PCI-bus SBC with Intel® Atom™ dual-core processor

Intel® Atom™ Processor, Onboard LVDS, VGA, Giga LAN, 6 x USB2.0,
SATA, CF , PCIE Mini card socket, 6 x COM, LPT, HD Audio, SMBUS.



Overview
Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Single Board Computer, introduced the HE-772 - Half-Size PCI-bus SBC based on the Intel Atom processor single core N450/ D410/ dual core D510, implemented in 45nm technology, is power-optimized and delivers robust performance-per-watt for cost-effective embedded solutions, the N450 TDP rating is only 5.5Watts, D410 is 10W and D510 dual core is still only 13W. The board is designed to enable x86 to be built into embedded systems where it was previously impractical for space reasons. It is especially suitable for applications that must be contained in a limited space control systems.

The HE-772 SBC consists of the Intel ATOM N450/ D410/ D510 and ICH8M, Graphic Processing Unit features power-efficient 32-bit 3D graphics core based on Intel GMA 3150 architecture, video capability with up to 384MB of shared graphics memory, delivers sophisticated graphics for large display applications and with Dual display types such as VGA+LVDS, Enables smoother playback for MPEG-2 codec, a standard video compression format used on Blue-ray, DVDs, broadcast, and broadband content.

COMMELL's HE-772 supports DDR2 SO-DIMM up to 2.0 / 4.0 GB, and comes with PS/2 Keyboard and Mouse, 6 x RS232C, Networking is provided by Intel 82583V Giga LAN, 6 x USB2.0 ports, HD audio, SATAII interface, CompactFlash socket, Expansion with two PCIE mini card sockets for COMMELL's Mini-PCIe add on card.

Key Feature
CPU: Intel® Atom™ D510 & D525 dual-core / N450 & D410 single-core processor.

Chipset: Intel® ICH8M Chipset.

Memory: 1 x DDR2 SO-DIMM up to 2.0 GB or 4.0 GB.

VGA Interface: Intel® integrated extreme GMA 3150 technology.

LVDS interface: Onboard 18-bit single channel LVDS.

Serial ATA: Support 3 x SATAII interface with 300MB/s transfer rate

Solid State Disk: 1 x Compact Flash Type II socket. 1 x 44-pin IDE.

Audio: Intel® ICH8M integrated with Realtek ALC888 HD Audio.

LAN Interface: 2 x Intel® 82583V Giga LAN.

Extended interface: 2 x PCIE mini card sockets

I/O ports: 6 x RS232 Serial Ports, 6 x USB2.0 ports, 1 x VGA port, 1 x SMBUS, 1 x PS/2 keyboard and mouse ports, 2 x LAN, LVDS & Inverter, 1 x LPT

Specification
Form Factor

Half-size PCI-bus SBC

CPU

Intel® Atom™ N450, 1.66GHz, 512KB cache (HE-772G)

Intel® Atom™ D410, 1.66GHz, 512KB cache (HE-772H)

Intel® Atom™ D510, 1.66GHz, 1MB cache (HE-772A)

Intel® Atom™ D525, 1.80GHz, 1MB cache (HE-772C)

Package type : Micro-FCBGA (FCBGA559)

Memory

1 x 200-pin DDR2-667 SO-DIMM up to 2.0 GB (HE-772G)

1 x 200-pin DDR2-667 SO-DIMM up to 4.0 GB (HE-772H/A/C)

Support Non-ECC, unbuffered memory only

Chipset

Intel® ICH8M

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset internal timer for 1min/sec ~ 255min/sec

Power Management

ACPI 2.0 compliant, supports power saving mode

Integrated Graphics

Intel® integrated extreme GMA 3150 Technology

Video Memory

Up to 384MB shared with system memory

LVDS Interface

Chipset Integrated 18-bit single channel LVDS

Serial ATA Interface

3 x SATAII interface with 300MB/s transfer rate

Solid State Disk

1 x Compact Flash Type-II, 1 x 44-pin IDE

Audio Interface

Intel® ICH8M integrated with Realtek ALC888 HD Codec

LAN Interface

2 x Intel® 82583V Gigabit Ethernet controller

GPIO Interface Onboard programmable 8-bit Digital I/O interface
Expansion Interface

2 x PCIe mini card sockets

Internal I/O Port

1 x Audio, 6 x USB2.0, 1 x LVDS, 1 x LCD Inverter, 1 x LPT

1 x RS232/422/485, 5 x RS232, 1 x SMBUS, 1 x IrDA, 1 x GPIO

External I/O Port

2 x RJ45 LAN, 1 x DB15 VGA, 1 x PS2 keyboard/mouse

Power Requirement

DC 5V & 12V power required, optional 5VSB for ATX

Board Dimension

185mm x 122mm

Temperature

Operating within 0~60 centigrade

Storage within -20~85 centigrade
