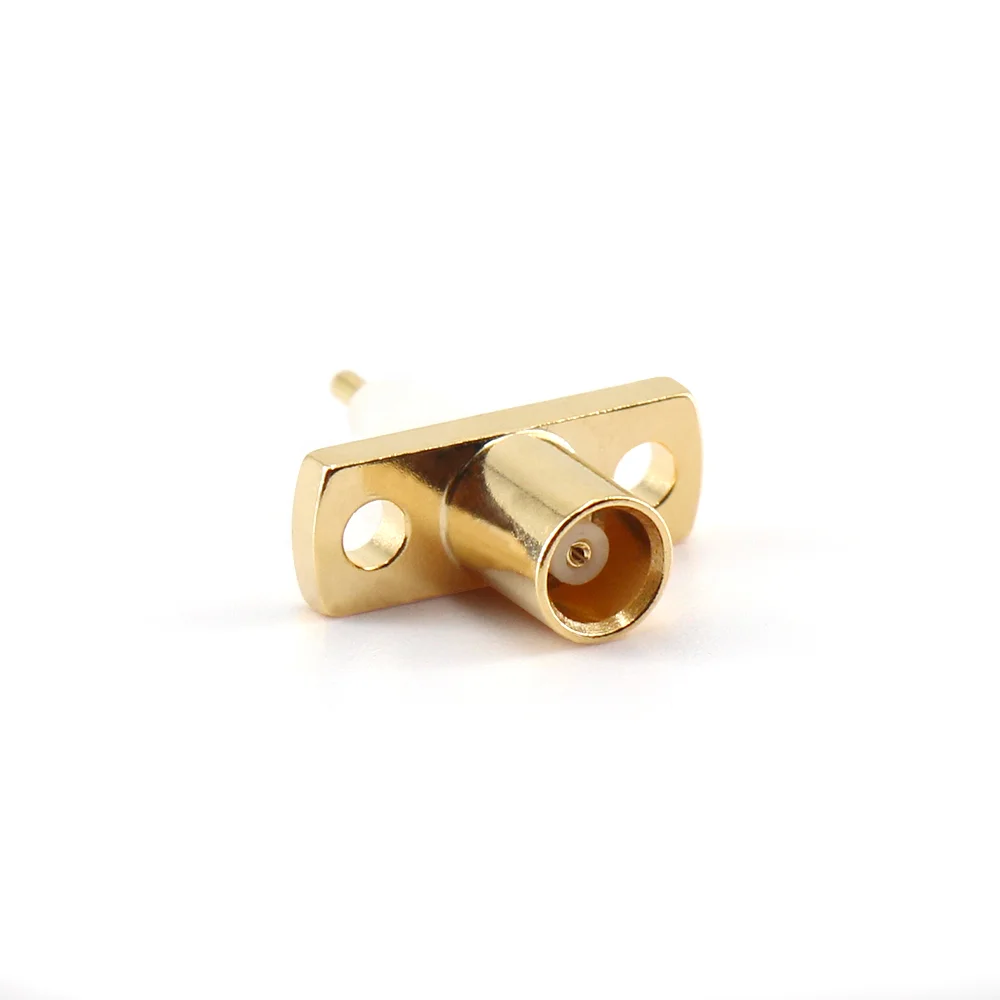

MCX Female PCB Mount with 2 Hole Flange Connector for Telecommunications WLAN

Product Overview

Description

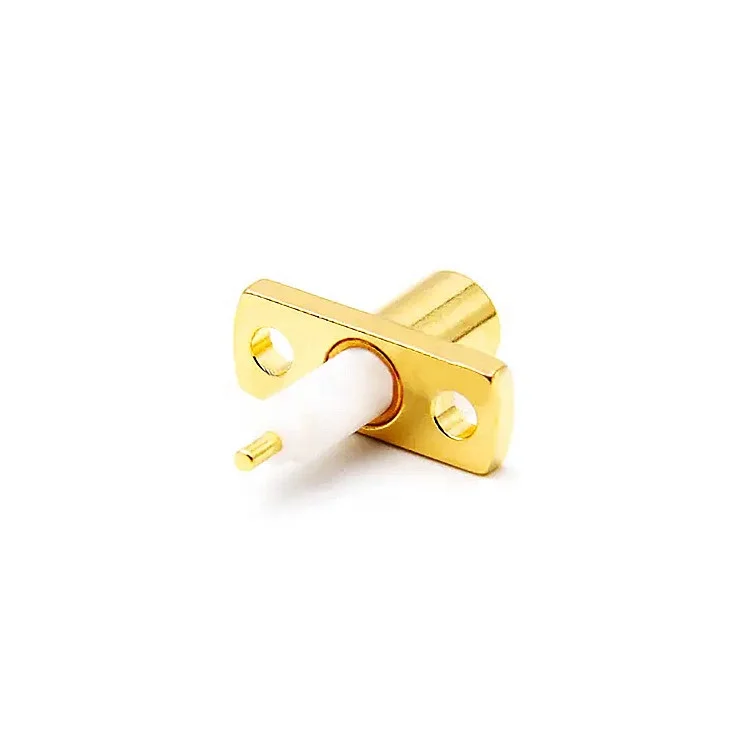

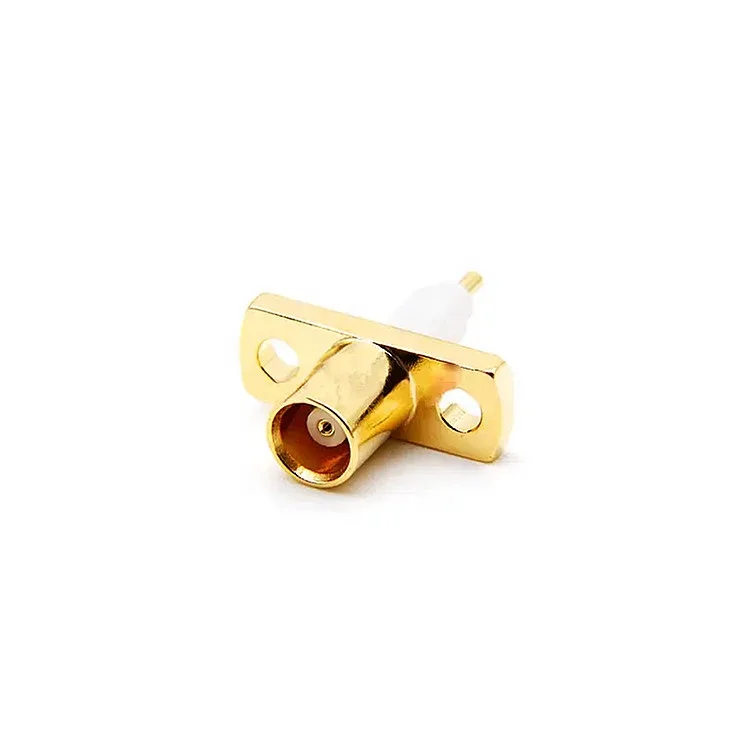

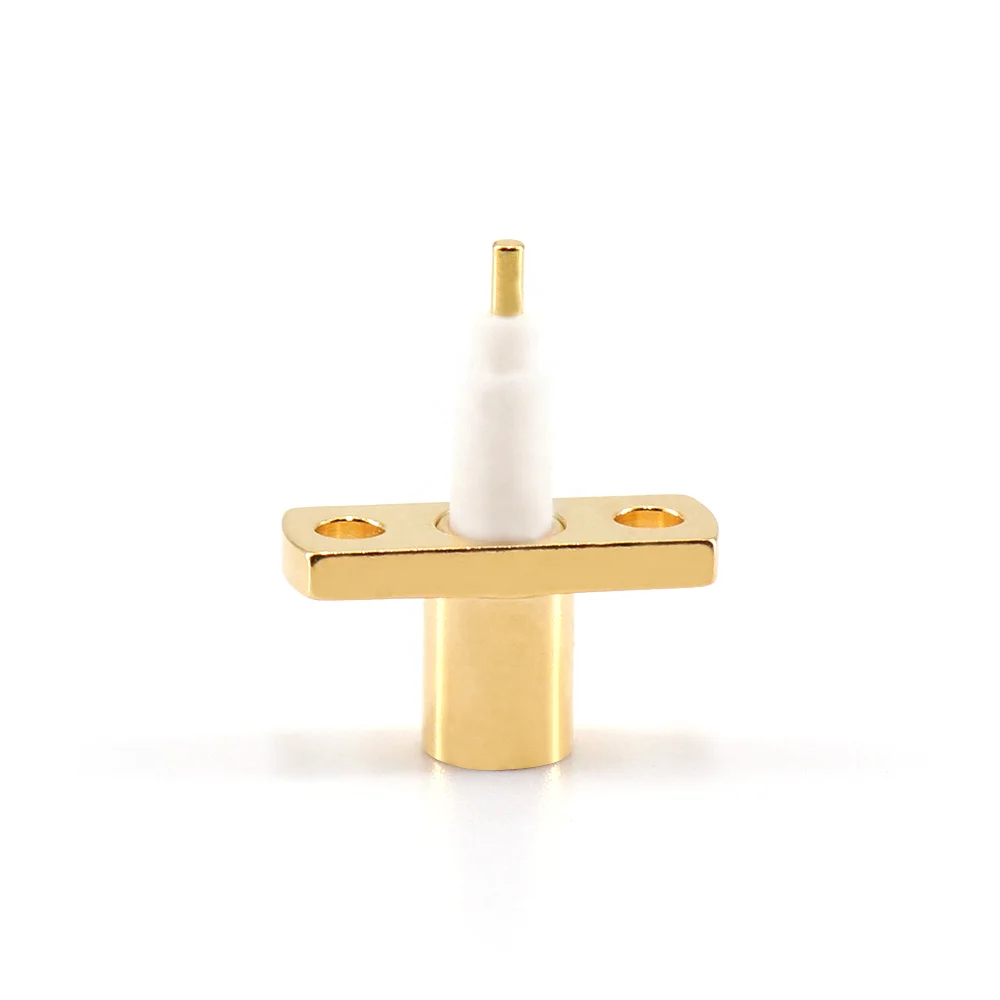

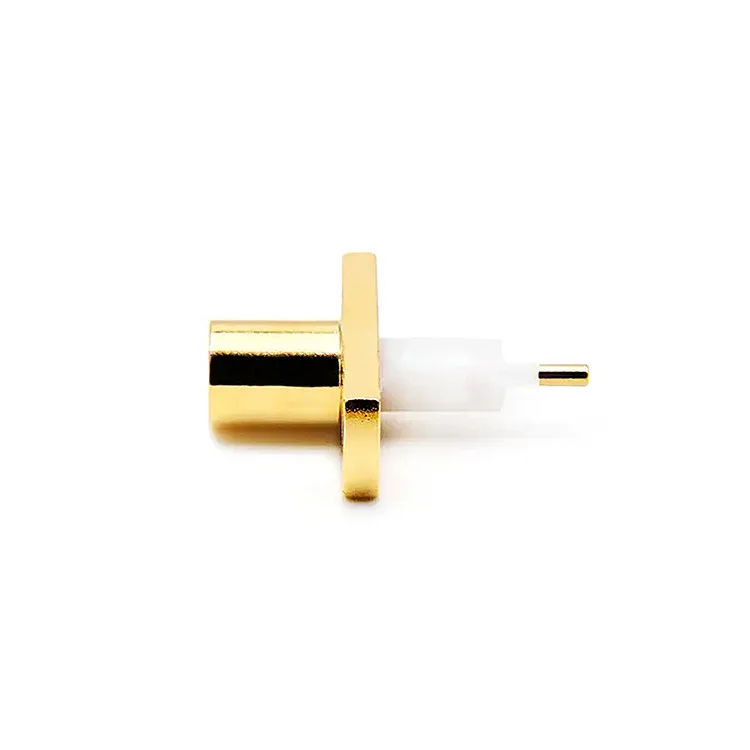

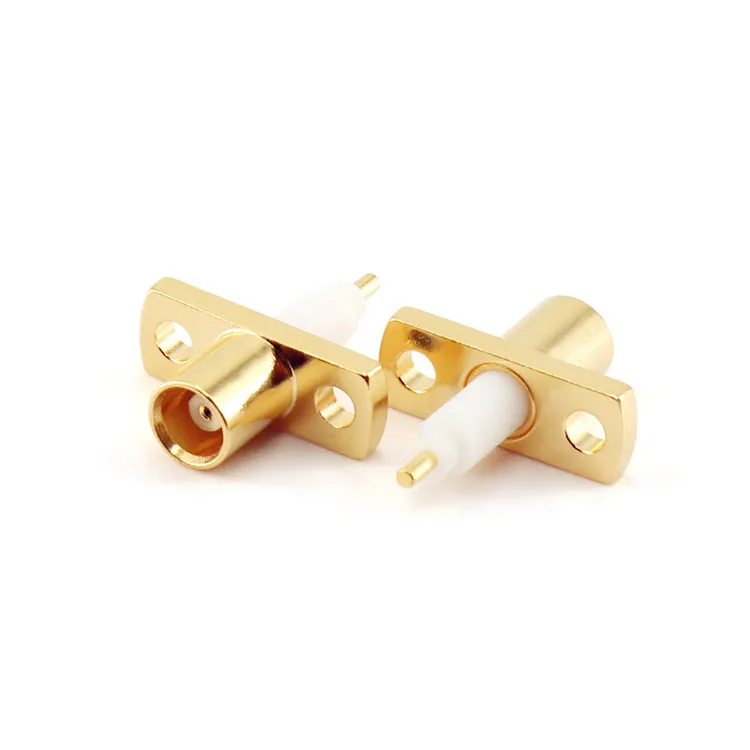

MCX  Female PCB Mount with 2 Hole Flange Connector for Telecommunications WLAN



Overview

MCX connectors use a snap-on interface and usually have a 50 ohm impedance. It offers broadband capability from DC to 6 GHz. They have the same inner contact and insulator dimensions as the SMB connector but are 30% smaller. Miniature snap-on connectors which offer an excellent blend of size, weight, durability, and performance for applications such as GPS, wireless communication, testing, and measurement.



Electrical Performance	Impedance:50 ohm Frequency Range: 0~6 Ghz VSWR: Straight type ≤ 1.3max / R/A type ≤ 1.5max  Dielectric Withstanding Voltage: 1000 V rms Working Voltage: 335V rms Center Contact Resistance: ≤ 5.0 mΩ  (Milliohms max.)  Outer Contact Resistance: ≤ 1.0 mΩ  (Milliohms max.)  Insultation Resistance: ≥ 1000mΩ (Megohms min.)
Mechanical Performance	Coupling: Push-in Contact Retention: 15 lbs min. Coupling nut torque:4lbs. min. Durability(mating) : ≥ 500 cycles (For Beryllium Copper Contact)
Environmental Performance	Temprature Range: -65°C ~ +155°C Vibration: MIL-STD-202 Meth.204 Corrosion resistance: MIL-STD-202 Meth. 101
