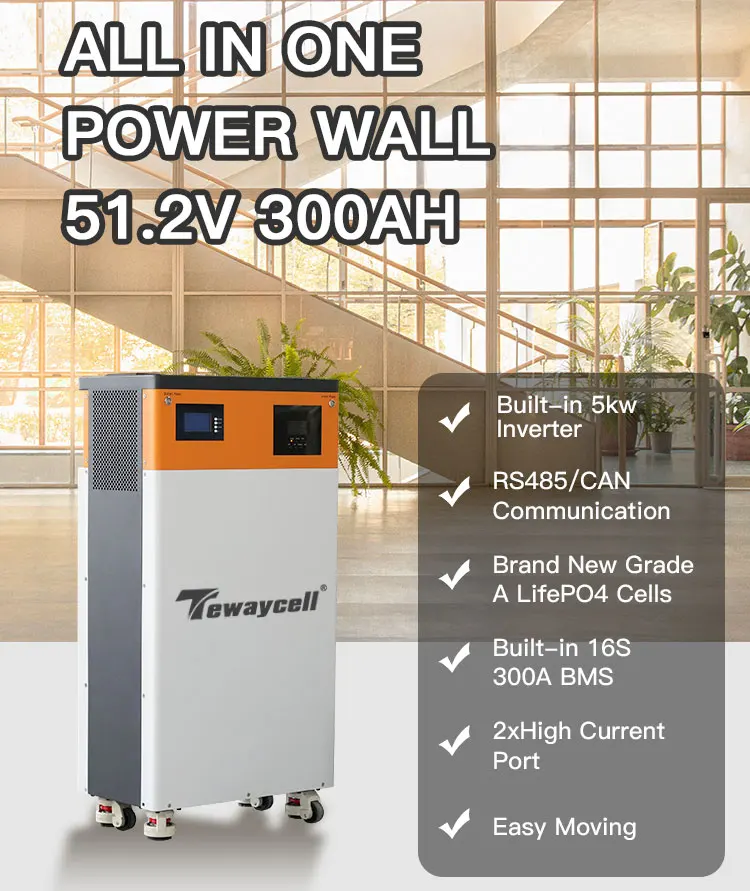

Tewaycell All In One ESS 51.2V 300Ah 15kwh Lifepo4 Battery with 5kw Inverter For House energy storage system
- Category: >>>
- Supplier: Shenzhen Topway New Energy Co. Ltd.
Share on (1600813248705):
Product Overview
Description
Products Description
Model | 7.5kWh(150Ah) | 10kWh( 200Ah) | 15kWh( 300Ah) | ||
Nominal Voltage | 51.2V(16S) | 51.2V(16S) | 51.2V(16S) | ||
Energy | 7680Wh | 10210Wh | 15360Wh | ||
Cycle | 6000 | 6000 | 6000 | ||
Internal Resistance | 30≤mΩ | 30≤mΩ | 30≤mΩ | ||
Bulit in Inverter | 5KW inverter | 5KW inverter | 5KW inverter | ||
Modes | Mobile ESS | Mobile ESS | Mobile ESS | ||
Charging Mode(CC/CV) | At 0℃~45℃ temperature, charge to 57.6V at a constant current of 0.2C, and then, change continuously with constant voltageof 57.6V until the current was not more than 0.02C. | ||||
Charging Current | 20A | 20A | 20A | ||
Max.Charging Current | 100A | 100A | 100A | ||
Discharging Current | 20A | 20A | 20A | ||
Max. Continuous Current | 100A | 100A | 100A | ||
Discharging Cut-off Voltage | 43.2~44.8V | 43.2~44.8V | 43.2~44.8V | ||
Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | ||||
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | ||||
Water Dust Resistance | IP22 | ||||
Cell & Format | IFR N100,16S1P | ||||
Casing | SPCC | ||||
Dimension(L*W*H) | 81*52*30cm | 100.5*52*30cm | 100.5*52*30cm | ||
Weight | 90.8Kg | 97Kg | 140kg | ||
Communication | RS485/CAN/RS232 | ||||
Support Inverter | Deye, Voltronic Power, Growatt, GOODWE, Victron energy, SRNE, PYLONTECH, SOFAR, MUST, MEGAREVOk, YWT, SRD, STUDER, SMA, DIDU, GINLONG | ||||
Customer Review
Company Profile
Support Inverter
Certification
Packing & Shipping
ETD:3-7 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By sea+FEDEX Delivery(DDP,Tax free) | |
ETA:35-40 days after delivery | |||
ETD:3-7 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By sea/train+UPS Delivery(DDP,Tax free) | |
ETA:40-55 days after delivery | |||
ETD:7-10 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By sea+Delivery(DDP, Tax free or DAP) | |
ETA:40-55 days after delivery |
