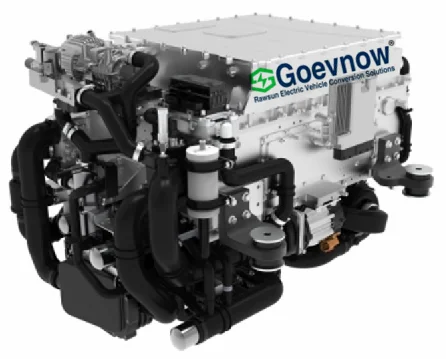

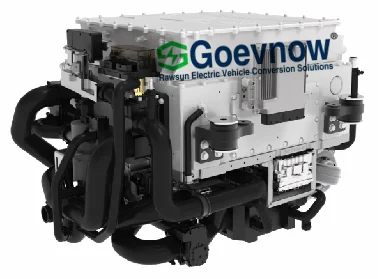

Renewable energy 120kw hydrogen cell fuel battery power supply DC540 water cooling for construction machine
- Category: >>>
- Supplier: Shantou Goevnow Technology Co. Ltd.
Share on (1600813257532):
Product Overview
Description
Products Description
Renewable energy 120kw hydrogen cell fuel battery power supply DC540 water cooling for construction machine
Goevnow Basic structure of fuel cell engine
Its composition includes fuel cells, air subsystem, high temperature cooling subsystem, hydrogen subsystem, control system, high pressure system, low pressure system, as well as pipes, wiring harnesses, supports and other parts that play the role of connection and support between parts.
Fuel Cell System-Control System Advantages | ||
Control System | ▶Self-developed integrated PCU ▶Stack operation status monitoring system | |
Start-stop performance | ▶Shutdown cathodic closure protection function ▶System life prediction function ▶-30℃ low temperature start | |
Air System | ▶Oil-free air bearing air compressor | |
Hydrogen system | ▶Hydrogen injector replaces hydrogen circulating pump ▶Self-developed hydrogen ejector and water gas thruster | |
Goevnow fuel cell engine adopts hydrogen injection and reflow system, which can effectively reduce the complexity of the hydrogen system,and has greater performance advantages compared with similar products | ||

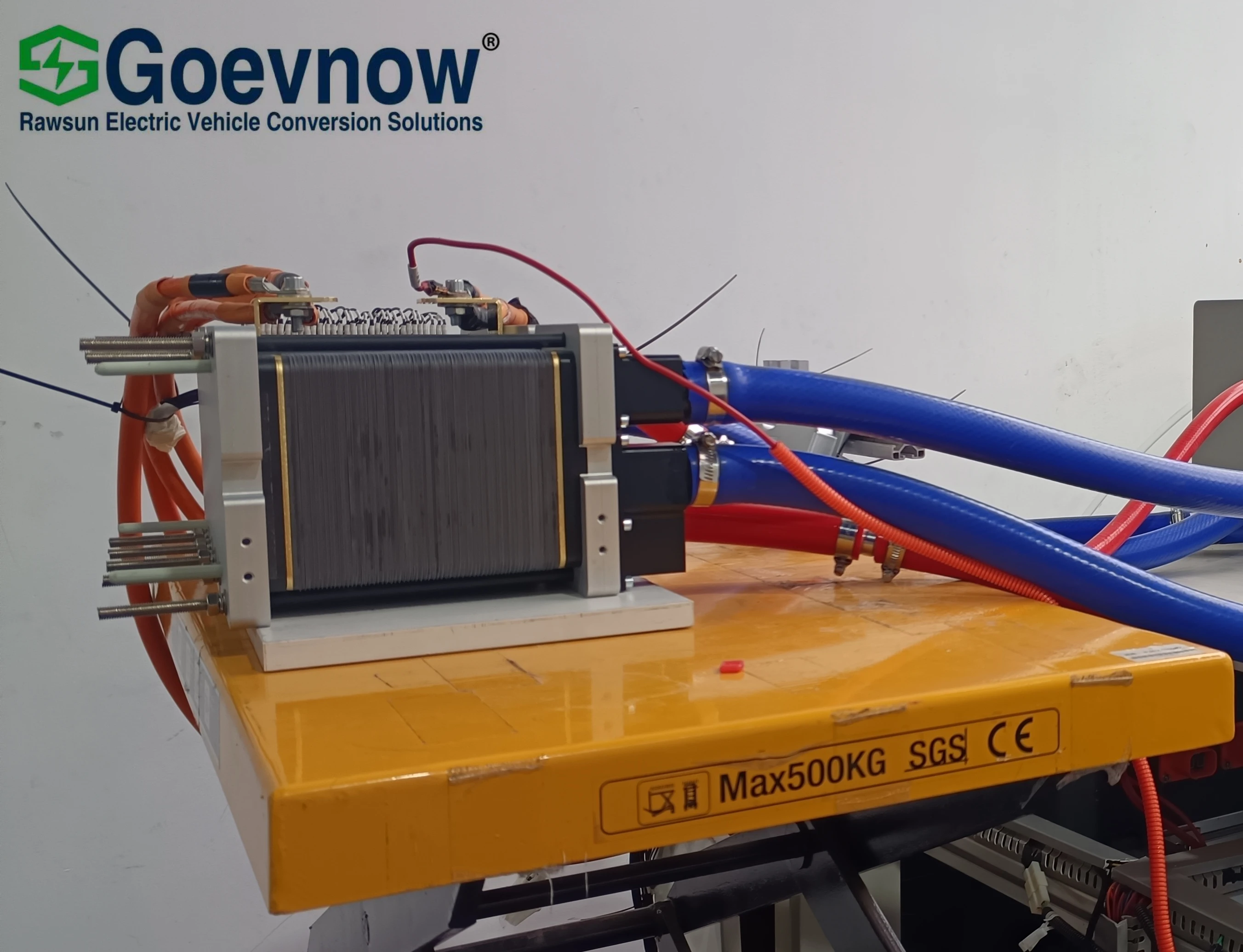

RHF Serier Stack Product
The range of power cover 50-150kW
Large batches and low cost, steep cost reduction curve
High volumetric power density：more than 4kW/L
Life：up to 15,000 hours
High Specific Power Stack Design and development technology
High specific power Long durability Fast startup at low temperature
Bipolar plate
Excellent high current water management performance Long life coating Easy processing
System Efficient Integration Technology
Integrated PCU System Life Prediction
Stack operation status monitoring
Shutdown cathodic closure protection
Hydrogen injector replaces hydrogen circulating pump
Stack operation status monitoring
Shutdown cathodic closure protection
Hydrogen injector replaces hydrogen circulating pump
RHF30 Fuel Cell System | ||
Rated power | 30KW | |
Max efficiency | 50% | |
Output voltage（DC） | 320V | |
IP Grade | IP67 | |
Weight | 115kg | |
Design life | 15000h | |
Cold start temperature | -30℃ | |
Dimension | 645*482*513mm | |
RHF05G-5KW Fuel Cell Emergency Power | ||
Rated power | 5KW | |
Max efficiency | ≥42% | |
Output voltage（DC） | DC48/AC220V | |
IP Grade | IP55 | |
Weight | 140kg | |
Design life | 15000h | |
Cold start temperature | ≥-30℃ | |
Dimension | 850*505*520mm | |
RHF10G-10KW Fuel Cell Backup Power | ||
Rated power | 10KW | |
Max efficiency | ≥42% | |
Output voltage（DC） | DC336V/AC380V | |
IP Grade | IP55 | |
Weight | 380kg | |
Design life | 15000h | |
Cold start temperature | ≥-30℃ | |
Dimension | 1120*762*1502mm | |
RHF15G-15KW Fuel Cell Emergency Power | ||
Rated power | 15KW | |
Max efficiency | ≥42% | |
Output voltage（DC） | AC220V | |
IP Grade | IP55 | |
Weight | 450kg | |
Design life | 15000h | |
Cold start temperature | ≥-30℃ | |
Dimension | 1700*900*1080mm | |
RHF20G-20KW Fuel Cell Backup Power | ||
Rated power | 20KW | |
Max efficiency | ≥42% | |
Output voltage（DC） | AC220V/380V | |
IP Grade | IP55 | |
Weight | 492kg | |
Design life | 15000h | |
Cold start temperature | ≥-30℃ | |
Dimension | 1140*765*1720mm | |
RHF100G-100KW Fuel Cell Emergency Power | ||
Rated power | 100KW | |
Max efficiency | ≥50% | |
Output voltage（DC） | AC380V | |
IP Grade | IP55 | |
Weight | 492kg | |
Power generation | 300kwh | |
Cold start temperature | -30℃ | |
Dimension | 6050*2400*2500mm | |
The 100kW fuel cell distributed power generation system is mainly suitable for emergency power generation and power supply in factories, communities, construction sites and other places. While meeting the demand for power supply, it also has the advantages of energy saving, environmental protection, and zero emissions.
The system is highly integrated, has good durability and stability, and has the advantages of reasonable design, high power density, fast start-up speed, strong environmental adaptability, and convenient maintenance.
RHF65-65KW Fuel Cell Commercial Vehicle Engine System | ||
Rated power | 65KW | |
Max efficiency | 50% | |
Output voltage（DC） | 540V | |
IP Grade | IP67 | |
Weight | 175kg | |
Design life | 20000h | |
Cold start temperature | -30℃ | |
Dimension | 851*653*620mm | |
RHF80 Fuel Cell System Application
The 4.5T fuel cell refrigerated truck has a cruising range of up to 427 km, meeting the needs of cold chain transportation in urban areas.
RHF80 Fuel Cell System | ||
System rated power | ≥84KW | |
System peak power | ≥85KW | |
System idle power | ≤7KW | |
Max system efficiency | ＞45% | |
Low temperature cold start temperature | -30℃ | |
Design life | ＞15000h | |
System output voltage range | 175~300V | |
System output current range | 0~569.8A | |
Power supply high voltage | 450~750V | |
Power supply low voltage | 18~32V | |
Dimension | 959×630×619mm | |
RHF100 Fuel Cell System Application
The 18-ton hydrogen fuel cell wing-span van is equipped with Rawsuns Technology's 102kw high-power hydrogen fuel cell system, and is equipped with a high-capacity power battery, which can last for a long time.
RHF100 Fuel Cell System | ||
System rated power | ≥102KW | |
System peak power | ≥103KW | |
System idle power | ≤7.3KW | |
Max system efficiency | ＞45% | |
Low temperature cold start temperature | -30℃ | |
Design life | ＞15000h | |
System output voltage range | 209～350V | |
System output current range | 0~615A | |
Power supply high voltage | 450~750V | |
Power supply low voltage | 18~32V | |
Dimension | 990×657×533mm | |
RHF120Fuel Cell System | ||
System rated power | ≥120KW | |
System peak power | ≥122KW | |
System idle power | ≤8.6KW | |
Max system efficiency | ＞60% | |
Low temperature cold start temperature | -30℃ | |
Design life | ＞15000h | |
System output voltage range | 276~402V | |
System output current range | 0~560A | |
Power supply high voltage | 450~750V | |
Power supply low voltage | 18~32V | |
Dimension | 1000*667*712mm | |
Product Detail
Related Product
Company Profile

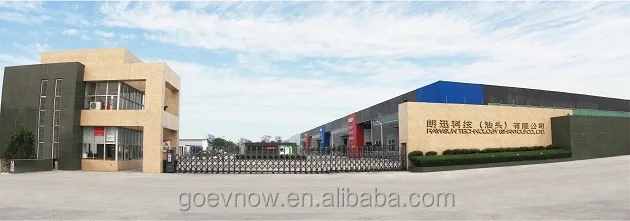

Brief introduction of Shantou Goevnow Technology Co Ltd
Goevnow products conform to the trend of green environmental protection concept of all countries in the world, Electric vehicles and electric boats with Goevnow EV systems are conducive to reduce road exhaust pollution and oil pollution on the water surface. Goevnow customize complete set of Goevnow electric vehicle/electric boat solutions for overseas customers according to different vehicle parameters.
Goevnow has provided full electric systems for electric trucks, electric yachts, electric farming vehicles, electric buses, electric trucks, electric garbage trucks, electric sightseeing boats，electric winches, hybrid amphibious vehicles, electric tractors, electric heavy trucks ect.to vehicle/boat/ machinery manufacturer customers from East Asia, Southeast Asia, Africa，Oceania , Mid-east, Europe and America.
We are committed to promoting the electrification of the world, reducing carbon emissions, and making the world more environmentally friendly and better.
