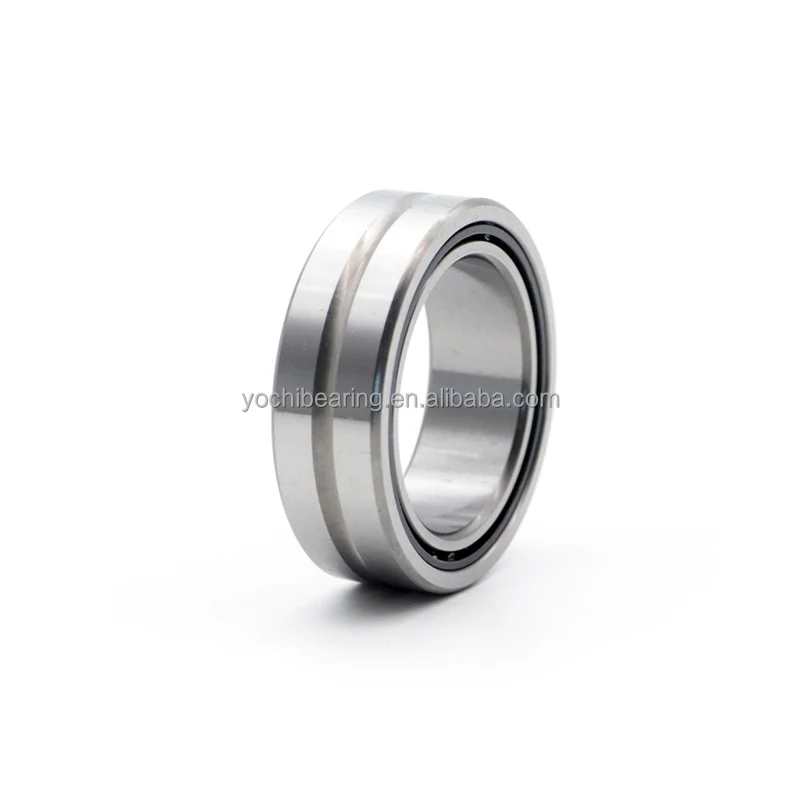

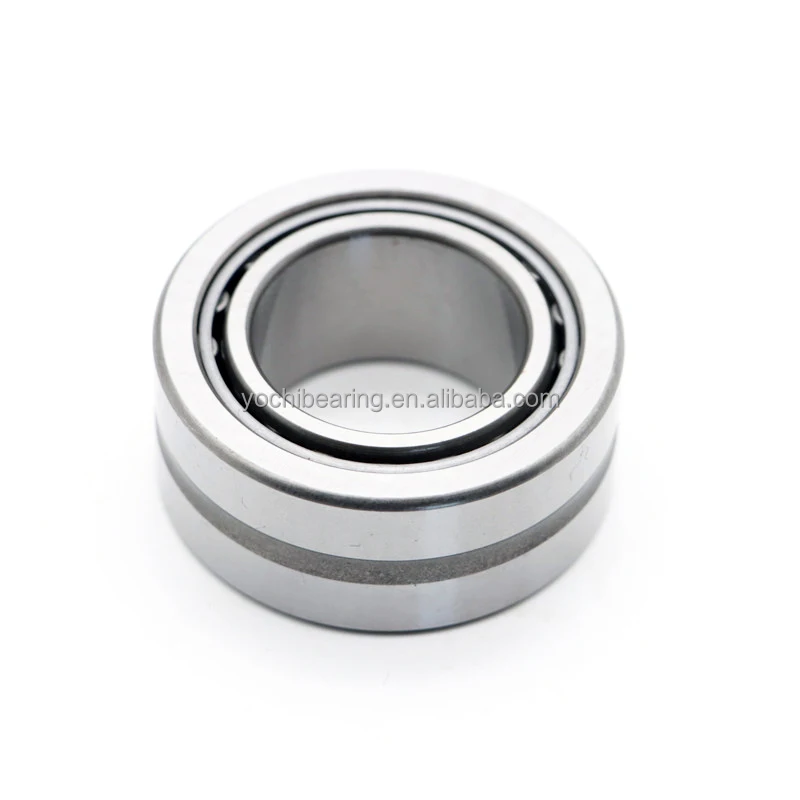

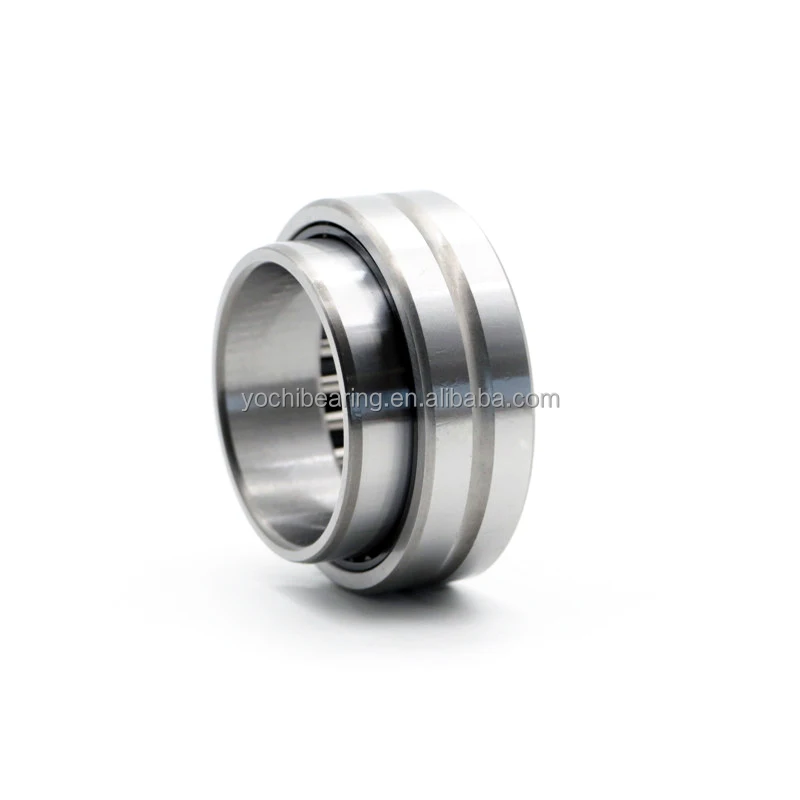

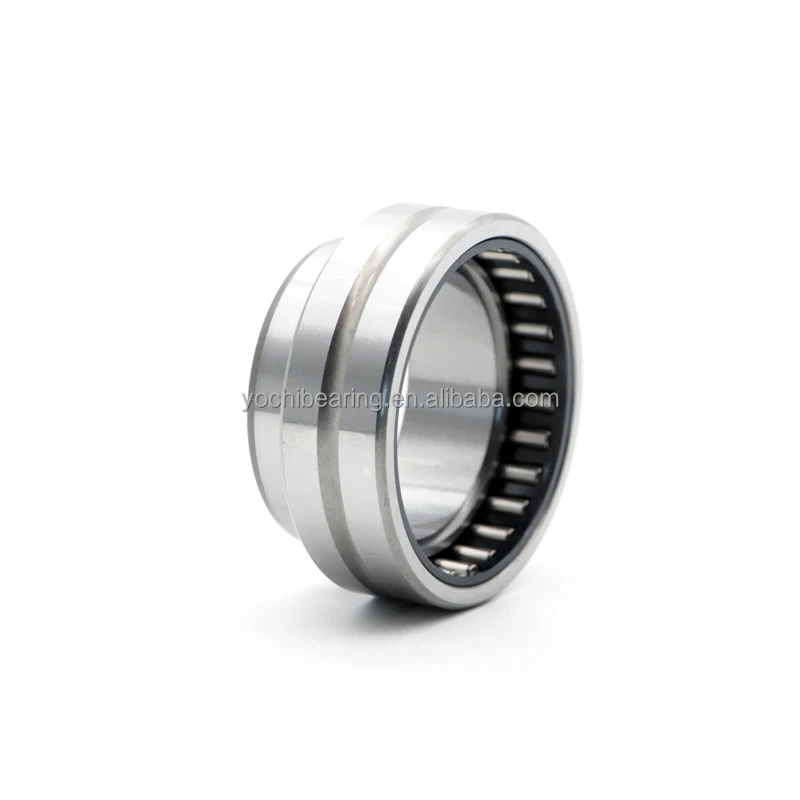

Stable Operation Needle Bearings NKIB5905 Import IKO Brand Needle Roller Bearing
- Category: >>>
- Supplier: Shandong Yochi Bearing Co. Ltd.
Share on (1600813258317):
Product Overview
Description
Product Description
Stable Operation Needle Bearings NKIB5905 Import IKO Brand Needle Roller Bearing
Needle roller / angular contact ball bearings:
Needle roller / angular contact ball bearings combine a radial needle roller bearing with an angular contact ball bearing. The radial loads are accommodated exclusively by the needle roller bearing and the axial loads exclusively by the angular contact ball bearing.
These low cross section bearings can operate at high speeds and accommodate heavy radial and light axial loads. Supplies these bearings without seals in the following two series:
NKIA series bearings can accommodate axial loads in one direction.
NKIB series bearings can accommodate axial loads in both directions.
Bearings in both series are separable i.e. the inner ring can be mounted separately from the outer ring, rolling element and cage assemblies. However, the inner rings in the NKIB series are not interchangeable with those from another seemingly identical bearing. Therefore, the bearings must be kept together as supplied.
These combination bearings have the following characteristics:
1: Composed of radial needle roller bearings and angular contact ball bearings
2: Only by the needle roller bearing to bear high radial load
3: Only angular contact ball bearings to bear light axial load
4: low bearing cross section
5: Can run at high speed
6: separable type, that is, the inner ring can be installed separately from the outer ring, rolling body and cage assembly.
7: According to the application situation, grease or lubricating oil can be used for lubrication. In the case of grease, both needle roller bearings and angular contact ball bearings should be filled with the same grease prior to installatio
Needle roller / angular contact ball bearings combine a radial needle roller bearing with an angular contact ball bearing. The radial loads are accommodated exclusively by the needle roller bearing and the axial loads exclusively by the angular contact ball bearing.
These low cross section bearings can operate at high speeds and accommodate heavy radial and light axial loads. Supplies these bearings without seals in the following two series:
NKIA series bearings can accommodate axial loads in one direction.
NKIB series bearings can accommodate axial loads in both directions.
Bearings in both series are separable i.e. the inner ring can be mounted separately from the outer ring, rolling element and cage assemblies. However, the inner rings in the NKIB series are not interchangeable with those from another seemingly identical bearing. Therefore, the bearings must be kept together as supplied.
These combination bearings have the following characteristics:
1: Composed of radial needle roller bearings and angular contact ball bearings
2: Only by the needle roller bearing to bear high radial load
3: Only angular contact ball bearings to bear light axial load
4: low bearing cross section
5: Can run at high speed
6: separable type, that is, the inner ring can be installed separately from the outer ring, rolling body and cage assembly.
7: According to the application situation, grease or lubricating oil can be used for lubrication. In the case of grease, both needle roller bearings and angular contact ball bearings should be filled with the same grease prior to installatio
PS:We have all kinds of bearing parts, if you want to buy bearings, please contact us for discount.

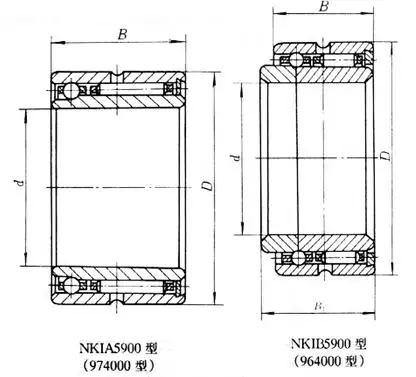

Model | d mm | D mm | H mm | W kg |
NKIA5901 | 12 | 24 | 16 | 0.04 |
NKIA5902 | 15 | 28 | 18 | 0.05 |
NKIA5903 | 17 | 30 | 18 | 0.056 |
NKIA5904 | 20 | 37 | 23 | 0.103 |
NKIA5905 | 20 | 37 | 23 | 0.13 |
NKIA5906 | 30 | 47 | 23 | 0.147 |
NKIA5907 | 35 | 55 | 27 | 0.243 |
NKIA5908 | 40 | 62 | 30 | 0.315 |
NKIA5909 | 45 | 68 | 30 | 0.375 |
NKIA5910 | 50 | 72 | 30 | 0.38 |
NKIA5911 | 55 | 80 | 34 | 0.55 |
NKIA5912 | 60 | 85 | 34 | 0.59 |
NKIA5913 | 65 | 90 | 34 | 0.635 |
NKIA5914 | 70 | 100 | 40 | 0.98 |
NKIB5901 | 12 | 24 | 16 | 0.043 |
NKIB5902 | 15 | 28 | 18 | 0.052 |
NKIB5903 | 17 | 30 | 18 | 0.058 |
NKIB5904 | 20 | 37 | 23 | 0.107 |
NKIB5905 | 25 | 42 | 23 | 0.134 |
NKIB5906 | 30 | 47 | 23 | 0.151 |
NKIB5907 | 35 | 55 | 27 | 0.247 |
NKIB5908 | 40 | 62 | 30 | 0.32 |
NKIB5909 | 45 | 68 | 30 | 0.38 |
NKIB5910 | 50 | 72 | 30 | 0.385 |
NKIB5911 | 55 | 80 | 34 | 0.555 |
NKIB5912 | 60 | 85 | 34 | 0.595 |
NKIB5913 | 65 | 90 | 34 | 0.64 |
NKIB5914 | 70 | 100 | 40 | 0.985 |
