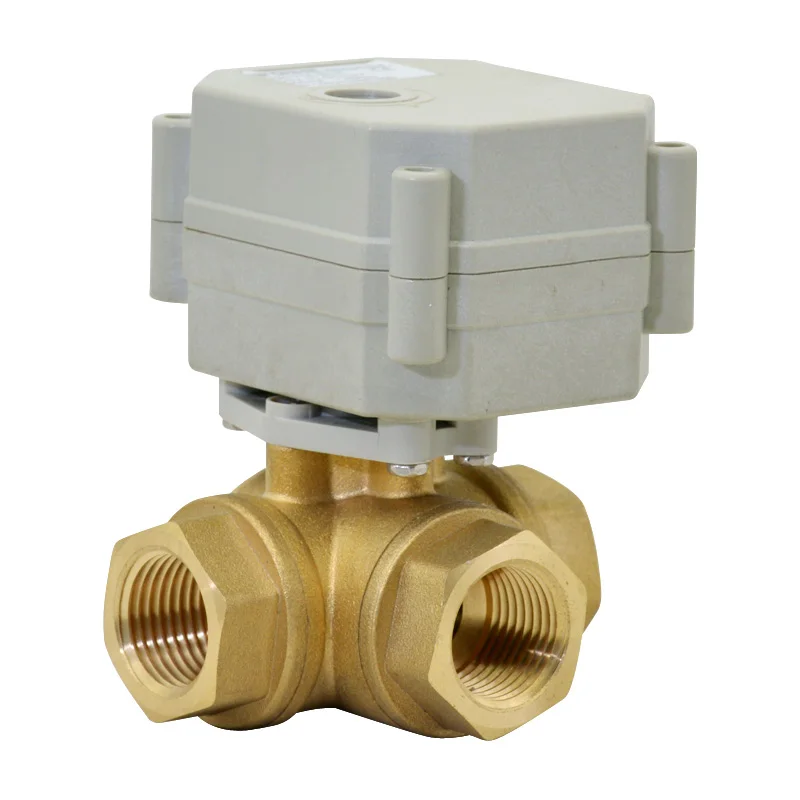

Tonheflow A20 M15 B3 C 3 way L port DN15 brass 4 20mA signal control DC9 24v proportional valve 0.5m cable
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.
Share on (1600813288084):
Product Overview
Description
Product Description
4-20mA 5 wire modulating electric motorized valve proportionate control 2 port valves
Technical Parameters
NPT/BSP 1/2” | |
Flow Direction | L port |
Maximum workingpressure | 1.0MPa |
Circulation medium | Fluid, air |
Rated voltage | DC9-24V |
4-20mA ,0-5V,0-10V | |
Wiring control methods | 5 wire control with feedback signal |
Make as your requirement, for example, 4 position, 5 position,etc. | |
Open/close time | ≤7S |
Life time | 100000 times |
Valve Body material | Brass |
Actuator material | Engineering Plastics |
Sealing material | FKM& PTFE |
Actuator rotation | 90° |
Max. torque force | 3 N.M |
Cable Length | 0.5m 1.5m |
Environment temperature | -15℃~60℃ |
Liquid temperature | 2℃~90℃ |
Manual override | No |
Indicator | Yes |
Protection class | IP67 |
Certificate | LVD, EMC,ROHS and SS304 valve passed NSF61-G |
Company passed | ISO9001:2015 |
Locked-rotor Current | 500mA |
Locked-rotor Delay Time |

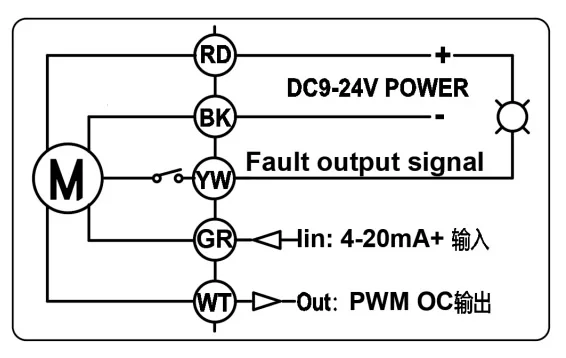

Wire Drawing below:
1, RD connect DC9-24V positive
2, BK connect DC9 ~ 24V-/ 4-20mA-/0-5V-/0-10V-
3 GR connect position input /control current +/ control voltage +(4-20mA, 0-5V, 0-10V)
4, YW connect ERR output ,OC output
5, WTconnectposition feedback ,OC output PWM signal
Application
Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.
Pls confirm the above different versions of actuators
When you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail DN15
2, working voltage DC9-24v
3, signal control 4-20mA? 0-5v? 0-10v?

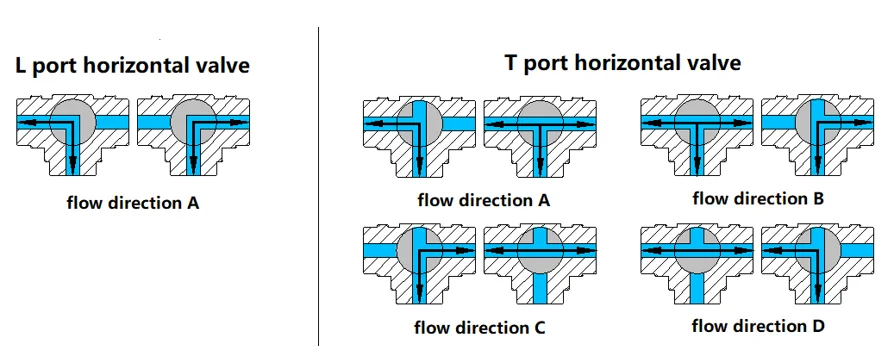

4, flow direction?
5, actuator cable length 0.5m?
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
Packaging & Shipping
FAQ
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: How about your products and company approved?
A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
