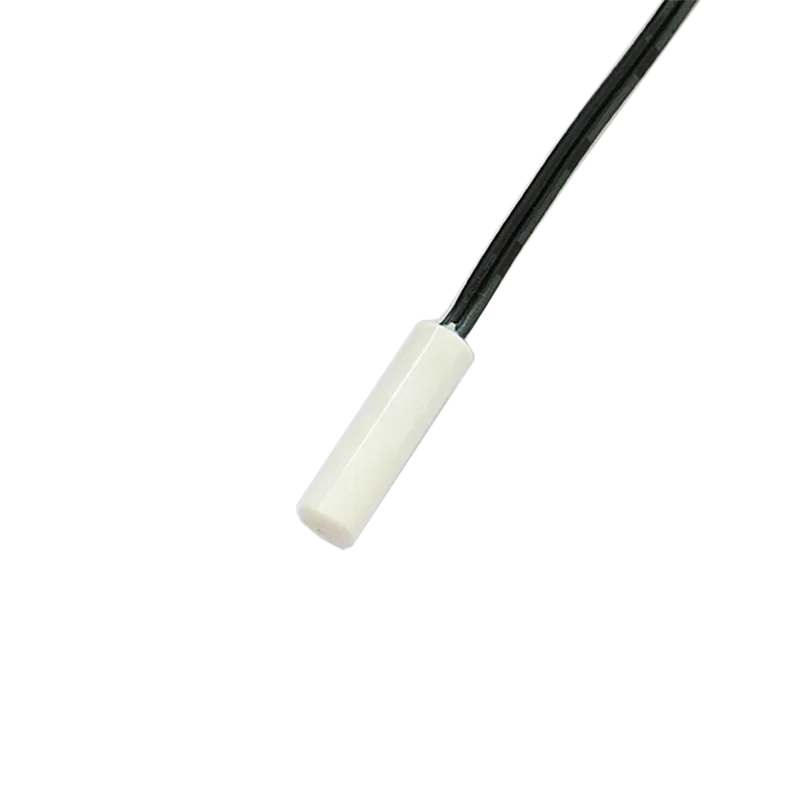

NTC TEMPERATURE SENSOR OF BOSCH FREEZER
NTC TEMPERATURE SENSOR OF BOSCH FREEZER
NTC TEMPERATURE SENSOR OF BOSCH FREEZER

NTC TEMPERATURE SENSOR OF BOSCH FREEZER

Share on (1600813289061):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Model Number
SFHB-50K
Type
NTC THERMISTOR
Place of Origin
China
Shandong
Usage
Temperature Sensor
Theory
Resistance Sensor
Output
Resistance Value
Description
Temperature Sensor


Product Paramenters


Use
Temperature control/Overheat protection
Electrical Rating
15A / 125VAC, 7.5A / 250VAC
Fuse Temp
72 or 77 Deg C
Max. Operating Temperature
150°C
Min. Operating Temperature
-20°C
Tolerance
+/-5 C for open action(Optional +/-3 C or less)
Protection class
IP00
Dielectric Strength
AC 1500V for 1 minute or AC 1800V for 1 second
InsulationResistance
More than 100MW at DC 500V by Mega Ohm tester
Resistance Between Terminals
Less than 100mW
Approvals
UL/ TUV/ VDE/ CQC/KC
Terminal/Housing type
Customized
Wire
Customized


Applications
- Refrigerator
- Showcase
- Ice Machine

Features
- Ideal for where space is premium
- Plastic seal available for hermetic protection
- Leadwire and terminal can be attached upon order
- UL, VDE and TUV certificated
- Environmental friendly comply with RoHS, REACH

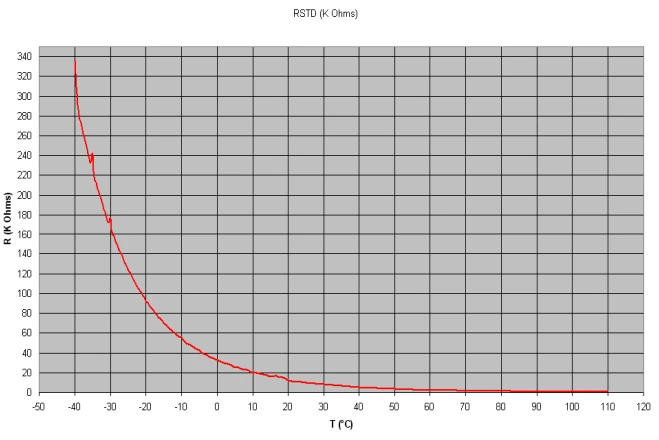

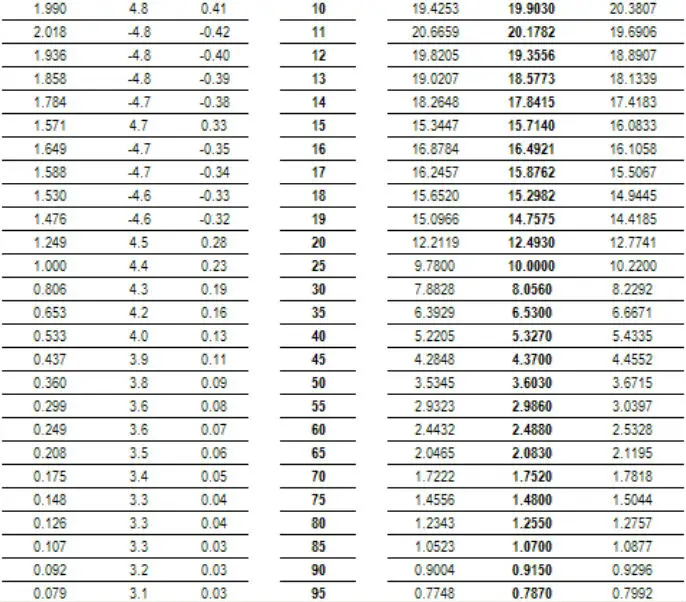

Thermistor R-T DATA










Packing & Delivery


Packaging Details Standard Export
Packing.Port Qingdao, Shanghai
Lead Time 20-30Days


Company Profile






Weihai Sunfull Hanbecthistem Intelligent Thermo Control Co., Ltd. is a joint venture company established by Hanbecthistem Co., Ltd., which is the leading company in temperature controller field from Korea and Weihai Sunfull Electronics Group Co., Ltd. We are specialized in development, design and manufacture of thermostats and electronic sensors which are applied to cars, refrigerators, air-conditioners, washing machines, micro-wave ovens, electric cookers, coffee makers and other consumer appliances or HVAC appliances. Current annual manufacturing capacity is over 20,000,000pcs. We carry out the strict quality management system, and win the global customers' satisfaction by the stable quality and reliable performance products at the most competitive price. Our products are exported to Europe, America, Australia and Korea etc. We have built long-term cooperation with Electrolux, LG, Samsung, etc.

With sincere services, we are expecting to link your hands to create a better tomorrow.


Certifications






FAQ


1. who are we?
We are based in Shandong, China, start from 2003,sell to Domestic Market(50.00%),South Asia(12.00%),Southeast Asia(9.00%),Western Europe(9.00%),North America(9.00%),Oceania(9.00%),Eastern Asia(2.00%). There are total about 1-4 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Defrost Thermostat,Bimetal Thermostat,Thermal Protector,Wire harness,NTC Temperature Sensor.
And we can also provide customize service according to your demand.
4. why should you buy from us not from other suppliers?
We are a joint venture company from Korea and China, Thermostats and Electronic Sensors are our main products. With the stable quality and reliable performance, our products won the global customers' satisfaction, such as Electrolux, LG, Samsung, etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Russian,Korean,Hindi
