Technical Specifications
Datasheet |

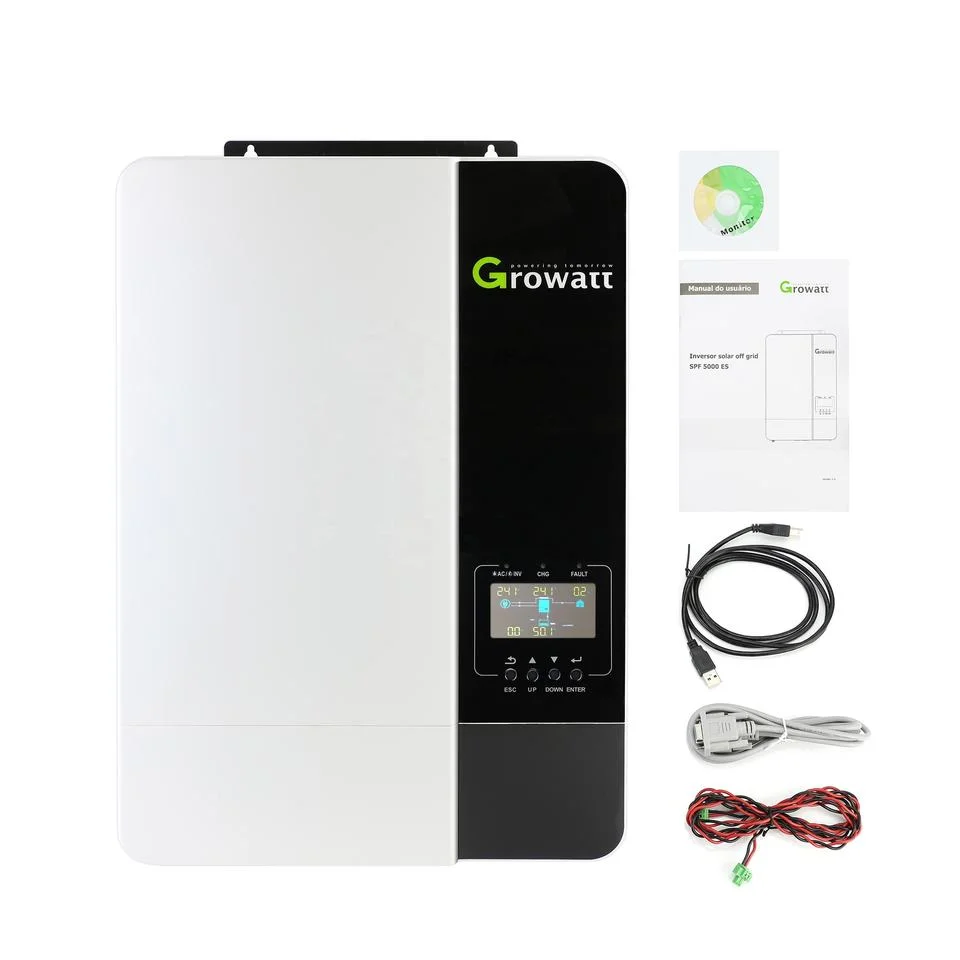

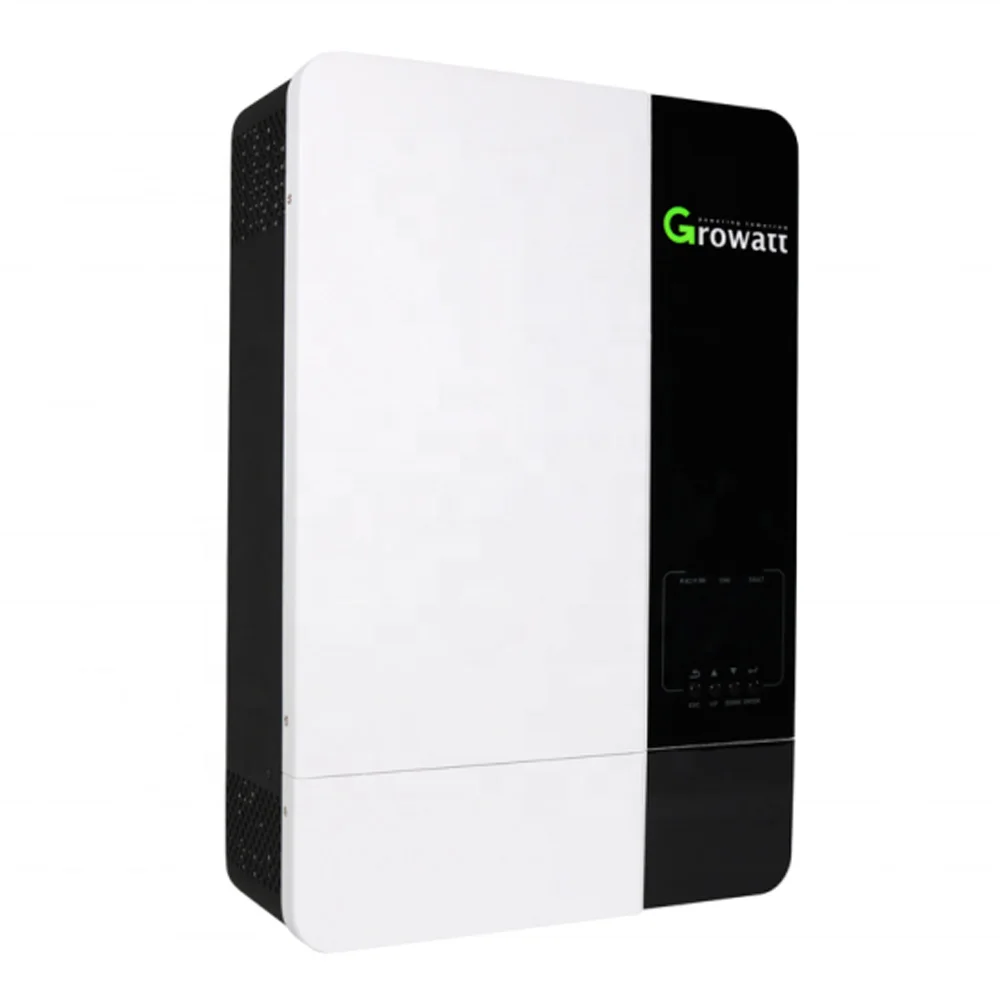

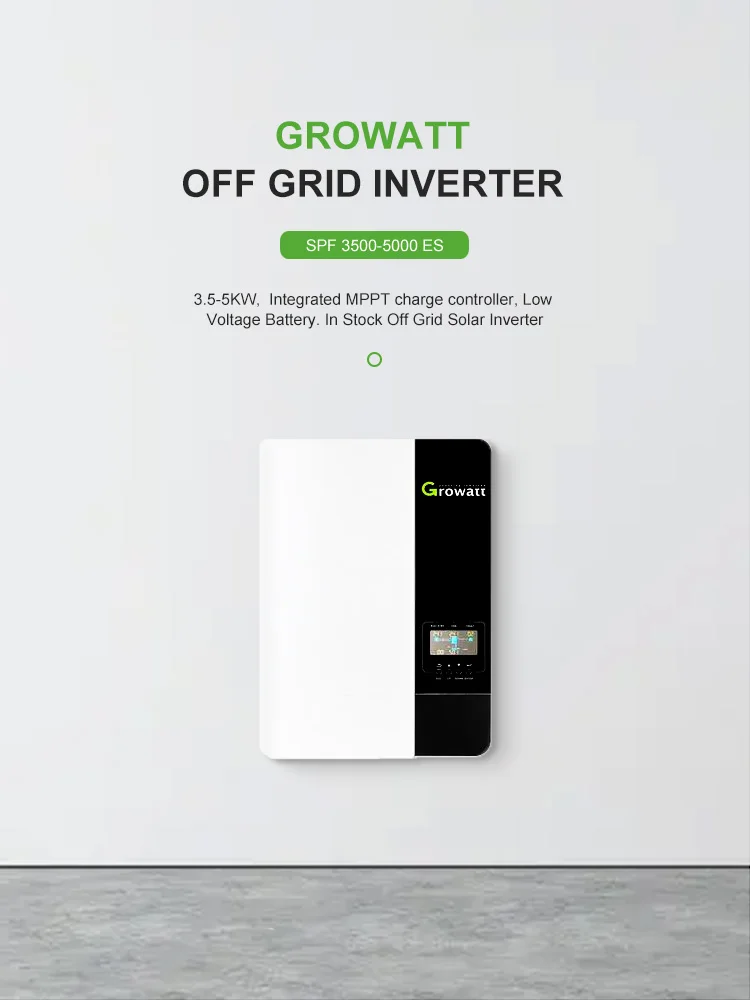

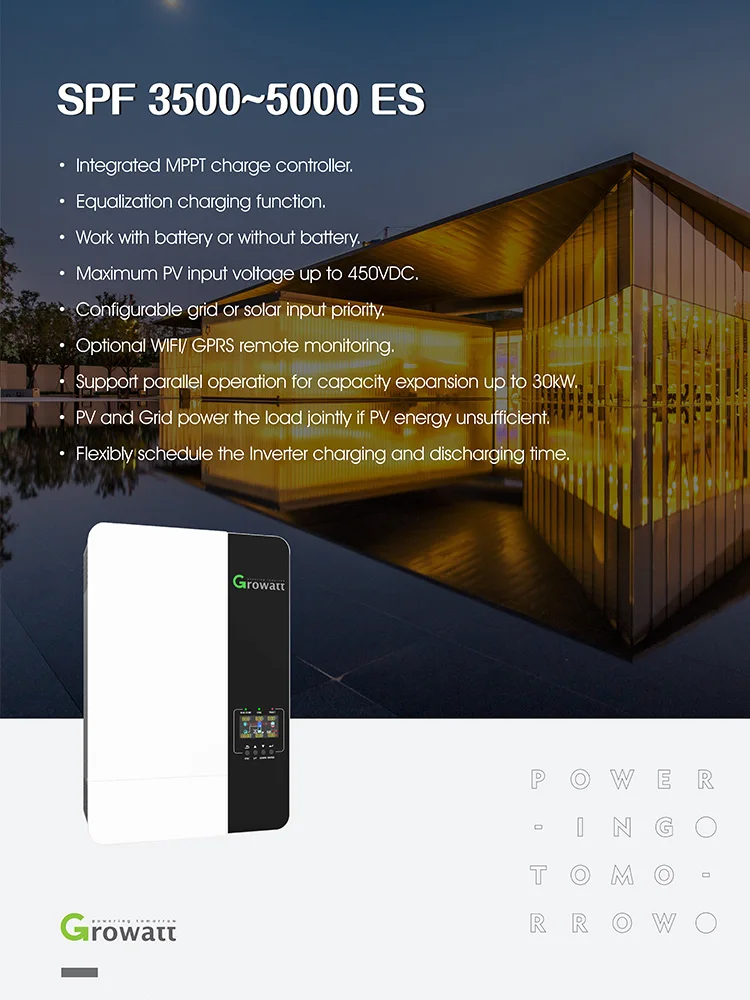

SPF 3500 ES |
SPF 5000 ES |
Battery Voltage |
Lithium/Lead-acid |
INVERTER OUTPUT |
Rated Power |
3500VA/ 3500W |
5000VA/ 5000W |
Parallel Capability |
Yes, 6 units maximum |
AC Voltage Regulation
(Battery Mode) |
230VAC ± 5% @ 50/60Hz |
Surge Power |
7000VA |
10000VA |
Efficiency (Peak) |
93% |
Waveform |
Pure sine wave |
Transfer Time |
10ms typical, 20ms Max |
SOLAR CHARGER |
Maximum PV Array Power |
4500W |
6000W |
MPPT Range @ Operating Voltage |
120VDC ~ 430VDC |
Number of Independent MPP Trackers/Strings Per MPP Tracker |
1/1 |
Maximum PV Array Open
Circuit Voltage |
450VDC |
Maximum Solar Charge Current |
80A |
100A |
AC CHARGER |
Charge Current |
60A |
80A |
AC Input Voltage |
230 VAC |
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
Frequency Range |
50Hz/60Hz (Auto sensing) |
PHYSICAL |
Protection Degree |
IP20 |
Dimension (W/H/D) |
330/485/135mm |
330/485/135mm |
Net Weight |
11.5kgs |
12kgs |
Our advantages
Our advantages |
|
|
 |
|
 |
Years in industry(8) |
Full customization |
ODM services available |
Supplier assessment procedures |
The data is from the latest inspection report assessed by independent third parties |
The data is from past contract of the latest inspection report as assessed by independent third parties. |
The data is from past contract of the latest inspection report as assessed by independent third parties. |
The data is from onsite check of the latest inspection report assessed by independent third parties |
 |
Total trading staff (9) |
Total floorspace (190m2) |
Finished product inspection |
Sample-based customization |
The data is from onsite check of the latest inspection report assessed by independent third parties |
The data is from onsite check of the latest inspection report assessed by independent third parties |
The data is from onsite check of the latest inspection report assessed by independent third parties |
The data is from past contract of the latest inspection report as assessed by independent third parties. |
 |
Minor customization |
Design-based customization |
On-site material inspection |
Cooperated suppliers (125) |
The data is from past contract of the latest inspection report as assessed by independent third parties. (Minor means customized on logo/package/graphic customization) |
The data is from past contract of the latest inspection report as assessed by independent third parties. |
The data is from onsite check of the latest inspection report assessed by independent third parties |
The number of factories the supplier has cooperated with in the past three years, as assessed by independent third parties. |
Our Company
 |
Pangu New Energy (Hangzhou) Co., Ltd, We founded in 2015, is located in Hangzhou, Zhejiang Province, close to Ningbo and Shanghai Port. Our main products are Solar Panels, Solar Inverter, Energy Storage Battery, Home Solar System, Portable Solar System. We have a high-quality and experienced team to provide customers with high-performance products at competitive prices. |
 |
Approved by many international authoritative certificates, including ISO, TUV, CSA, CEC, IEC, CE, INMETRO, RETIE, JP-AC, DEWA, MCS and CQC Solar Product Certificates. |
 |
PAYMENT Online trade assurance order , all is up to you. More payment terms could be provided (T/T, PAYPAL,WESTERN UNION)

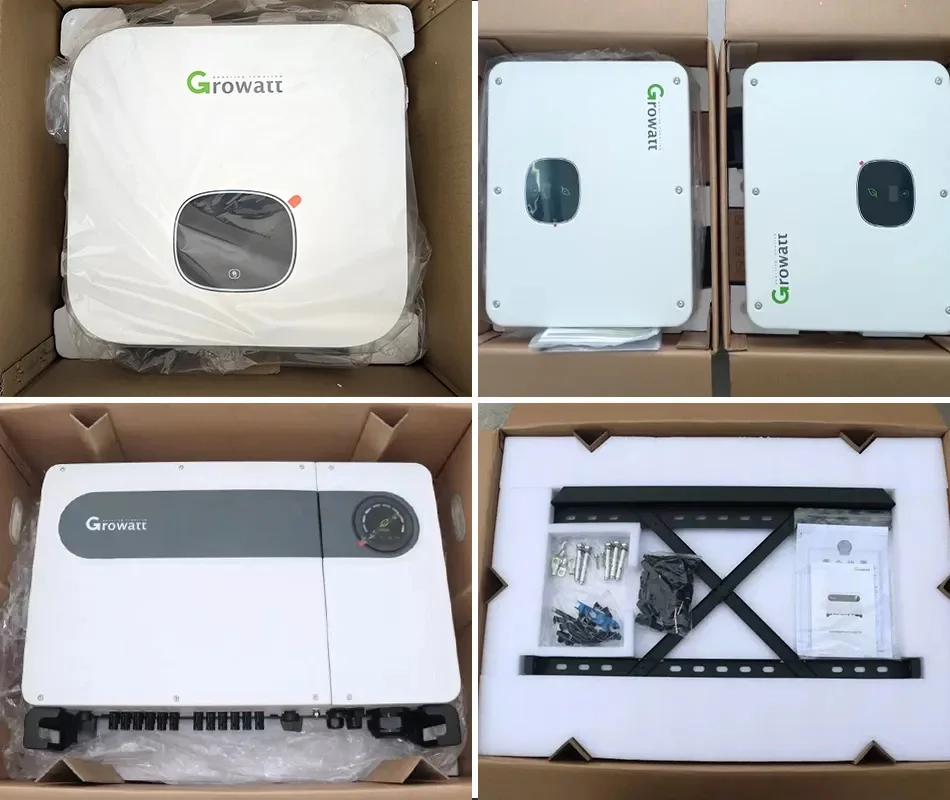

SHIPPING Delivery time: 3-20 working days after payment receipt confirmed (based on actual quantity) Packing: standard export packing, or customized packing as your request. Professional goods shipping forwarder.
FAQ
Q. What can we provide? We can provide solar panel,solar inverter,solar energy system. Q.Why choose us? A.Higher power generation
B.Competitive price
C.High quality standard
D.Customized service Q. What services can we provide? Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type:
T/T,L/C,PayPal,Western Union,Cash.
|
