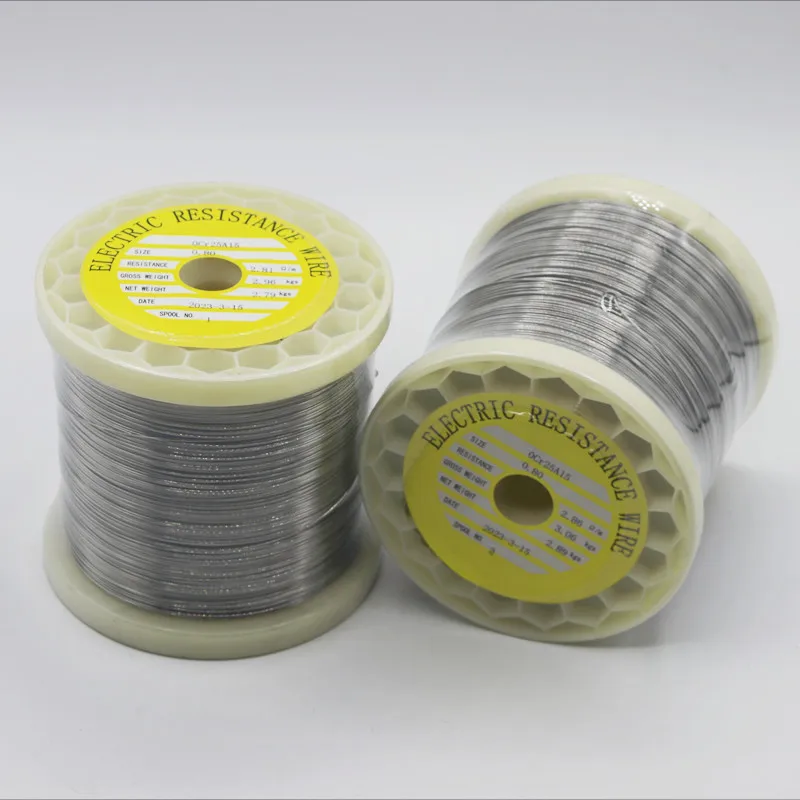

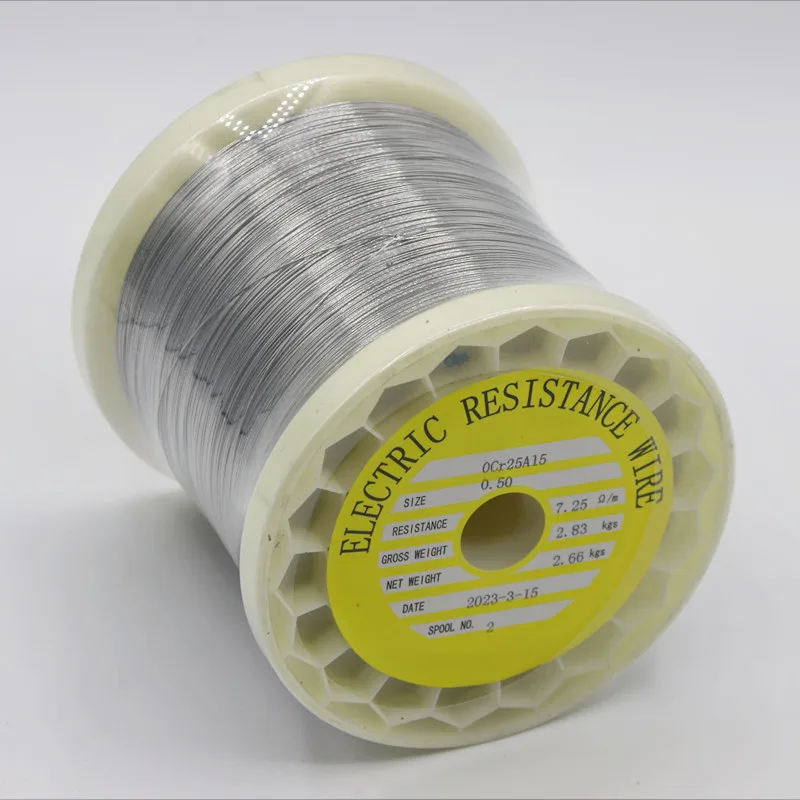

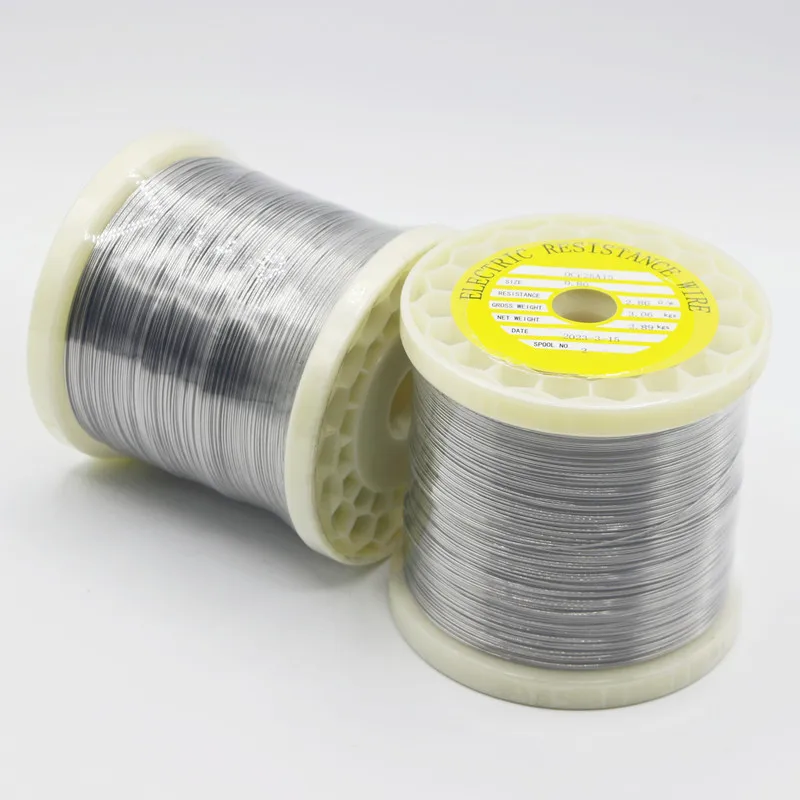

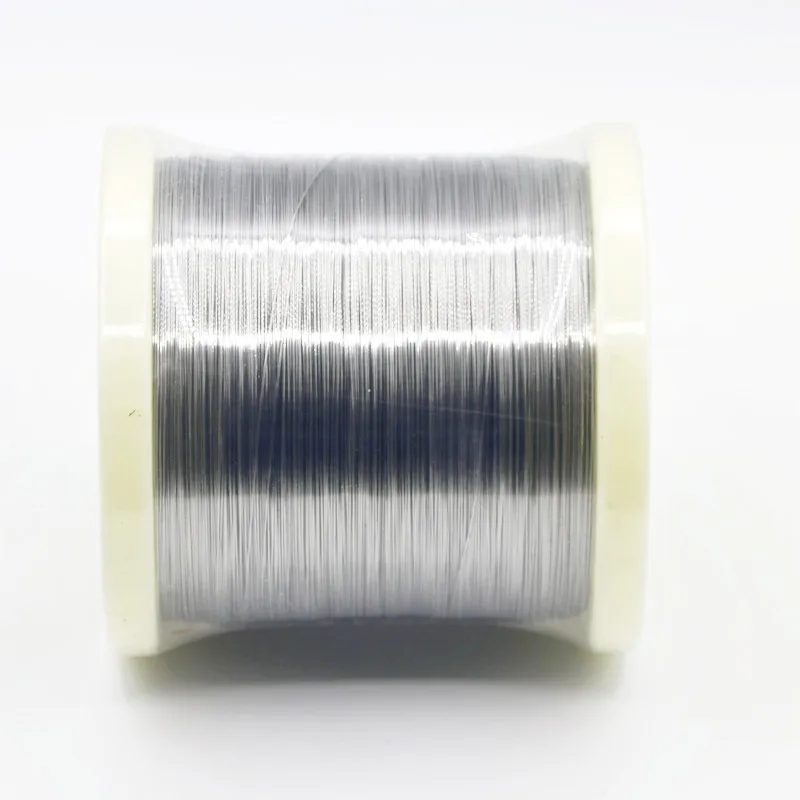

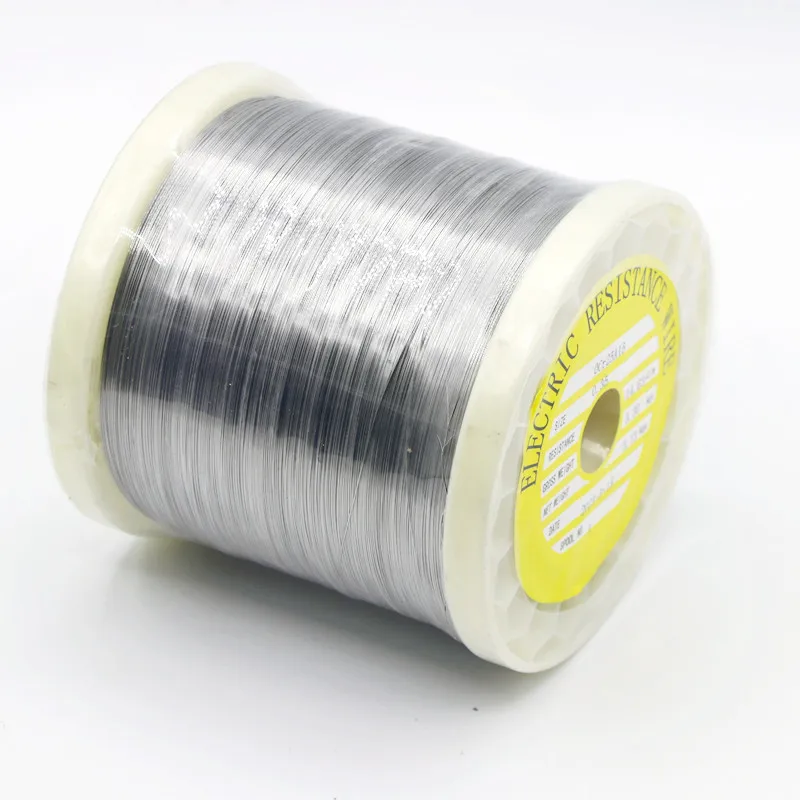

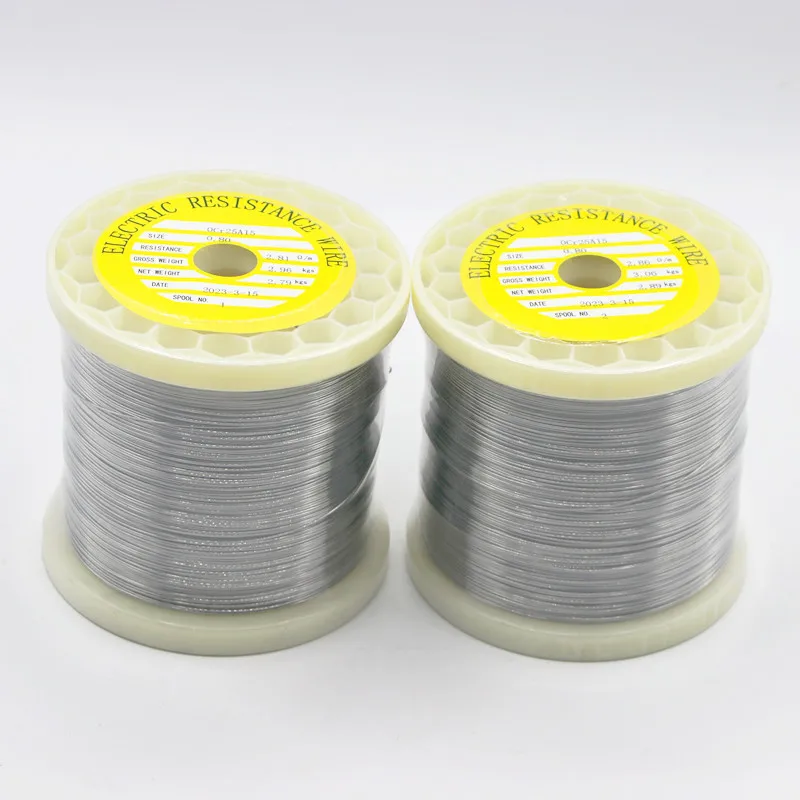

NK high temperature heating electrical resistance FeCrAl 0Cr25Al5 alloy wire
- Category: >>>
- Supplier: Suzhou Nickel Alloy Co. Ltd.
Share on (1600813456243):
Product Overview
Description
Best Selling
Product Description
NK high temperature heating electrical resistance FeCrAl 0Cr25Al5 alloy wire
Nichrome heating alloy includes pure nickel, NiCr alloy, Fe-Cr-Al alloy and copper nickel alloy.
FeCrAl resistance wire grade: 0Cr25AL5, 0Cr23AL5, 0Cr27AL7Mo2, 0Cr21AL6Nb, 0Cr21AL4, 0Cr21Al6.
In the form of wire, ribbon and strip
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
FeCrAl resistance wire grade: 0Cr25AL5, 0Cr23AL5, 0Cr27AL7Mo2, 0Cr21AL6Nb, 0Cr21AL4, 0Cr21Al6.
In the form of wire, ribbon and strip
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
1. Introduction of FeCrAl resistance wire
FeCrAl
Iron-chromium-aluminium (FeCrAl) metallic alloy is a high temperature alloy which can be used up to 1400° C and is a popular
material choice for industrial furnaces.
2. FeCrAl resistance wire feature
1) Excellent resistance to oxidation under heating condition;
2) High resistance and long lifetime;
3) Low temperature coefficient;
4 )Good performance of anti-carburizing, the atmosphere and surface of sulfur pollution.
3. FeCrAl resistance wire advantage
Fe-Cr-Al resistance alloy has a good corrosion resistance at high temperature.
Fe-Cr-Al resistance alloy is much cheaper than Nickel Chrome wire.
Fe-Cr-Al resistance alloy wires are widely used in industrial furnacess, household appliances and far-infrared devices.
Fe-Cr-Al resistance alloy surface useing temperature can be 1400 degree, (0Cr21A16Nb, 0Cr27A17Mo2 and so on).
FeCrAl
Iron-chromium-aluminium (FeCrAl) metallic alloy is a high temperature alloy which can be used up to 1400° C and is a popular
material choice for industrial furnaces.
2. FeCrAl resistance wire feature
1) Excellent resistance to oxidation under heating condition;
2) High resistance and long lifetime;
3) Low temperature coefficient;
4 )Good performance of anti-carburizing, the atmosphere and surface of sulfur pollution.
3. FeCrAl resistance wire advantage
Fe-Cr-Al resistance alloy has a good corrosion resistance at high temperature.
Fe-Cr-Al resistance alloy is much cheaper than Nickel Chrome wire.
Fe-Cr-Al resistance alloy wires are widely used in industrial furnacess, household appliances and far-infrared devices.
Fe-Cr-Al resistance alloy surface useing temperature can be 1400 degree, (0Cr21A16Nb, 0Cr27A17Mo2 and so on).
Main characteristic of FeCrAl electric heating alloy wire | ||||||||||||||||
Alloy Nomenclature Performance | 1Cr13Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |||||||||
Main Composition | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 | ||||||||
Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |||||||||
Re | opportune | opportune | opportune | opportune | opportune | opportune | opportune | |||||||||
Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest | |||||||||
Nb0.5 | Mo1.8-2.2 | |||||||||||||||
Max. continuous service temp. of element(°C) | 950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |||||||||
Resistivity at 20ºC(μΩ@m) | 1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | |||||||||
Density(g/cm3) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |||||||||
Thermal conductivity(KJ/m@h@ºC) | 52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | ||||||||||
Coefficient of lines expansion(α×10-6/ºC) | 15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 | |||||||||
Melting point approx.( ºC) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |||||||||
Tensile strength(N/mm2) | 580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | |||||||||
Elongation at rupture(%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 | |||||||||
Variation of area(%) | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | |||||||||
Repeat Bending frequency(F/R) | >5 | >5 | >5 | >5 | >5 | >5 | >5 | |||||||||
Hardness(H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |||||||||
Continuous servicetime(Hours/ ºC) | -- | ≥80/1300 | ≥80/1300 | ≥80/1300 | ≥80/1300 | ≥80/1250 | ≥50/1350 | |||||||||
Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |||||||||
Magnetic properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |||||||||
4. FeCrAl resistance wire application
FeCrAl alloy wire is typically used in industrial furnaces and home appliances. Examples of applications are elements embedded in
ceramics for panel heaters, infrared heaters, warming plates, irons, ceramic pots, in cartridge heaters for liquid heating,
storage heaters, in ceramic heaters for cooking plates, air guns, hobby kilns, radiators, in quartz tube heaters for space
heating, toasters, toaster ovens, grills, industrial infrared dryers, coils on molded ceramic fibre for cooking plates with
ceramic hobs.
FeCrAl 125: Low-cost heating element used in toasters and other small appliances. Long life performance for element operating
temperatures up to 1150°C.
FeCrAl 135: Used as heating elements in hot plates, irons, electric furnaces, etc. Improved hot strength compared to 125 grade.
Good for continuous element operating temperatures up to 1200°C. Also used in resistor applications and heavy relay switches.
FeCrAl 145: Used for industrial furnaces, kilns and other high temperature applications. Long-life for continuous operating
temperatures up to 1300°C. Less increase in resistance on heating and higher oxidation resistance compared to other grades.
FeCrAl alloy wire is typically used in industrial furnaces and home appliances. Examples of applications are elements embedded in
ceramics for panel heaters, infrared heaters, warming plates, irons, ceramic pots, in cartridge heaters for liquid heating,
storage heaters, in ceramic heaters for cooking plates, air guns, hobby kilns, radiators, in quartz tube heaters for space
heating, toasters, toaster ovens, grills, industrial infrared dryers, coils on molded ceramic fibre for cooking plates with
ceramic hobs.
FeCrAl 125: Low-cost heating element used in toasters and other small appliances. Long life performance for element operating
temperatures up to 1150°C.
FeCrAl 135: Used as heating elements in hot plates, irons, electric furnaces, etc. Improved hot strength compared to 125 grade.
Good for continuous element operating temperatures up to 1200°C. Also used in resistor applications and heavy relay switches.
FeCrAl 145: Used for industrial furnaces, kilns and other high temperature applications. Long-life for continuous operating
temperatures up to 1300°C. Less increase in resistance on heating and higher oxidation resistance compared to other grades.
Related Products
$15 - $ 20 Pieces
100 Pieces (MOQ)
$15 - $ 20 Pieces
100 Pieces (MOQ)
$15 - $ 20 Pieces
100 Pieces (MOQ)

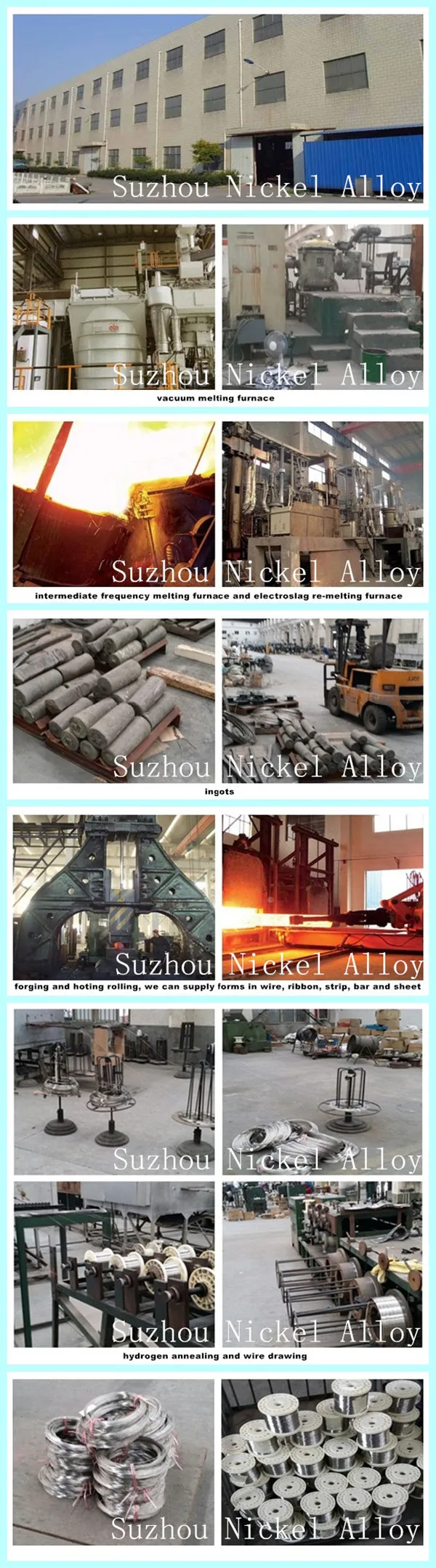

Production Process

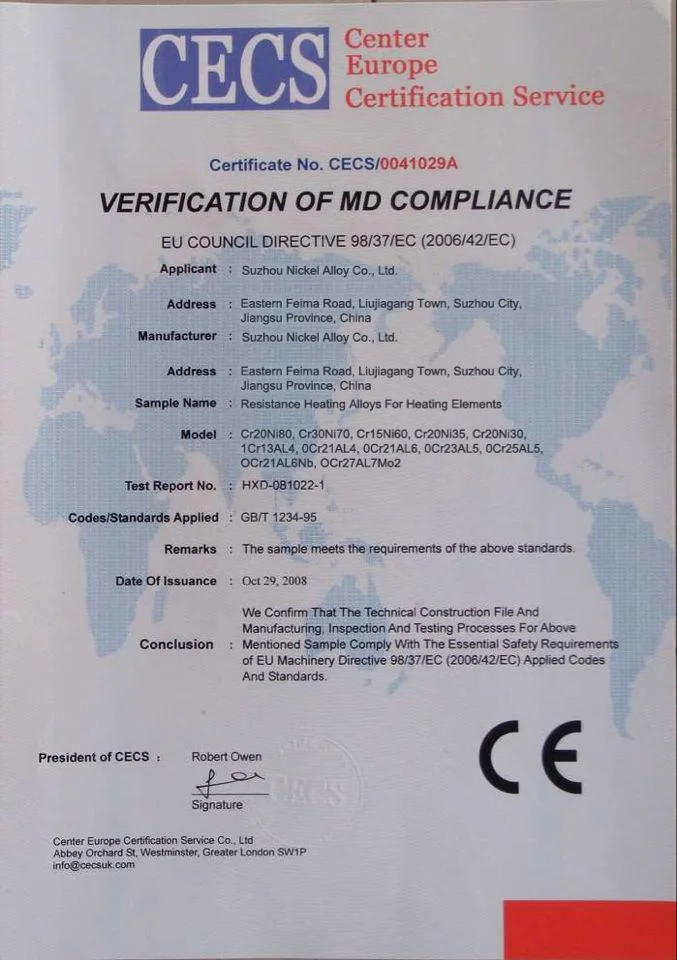

Certificate

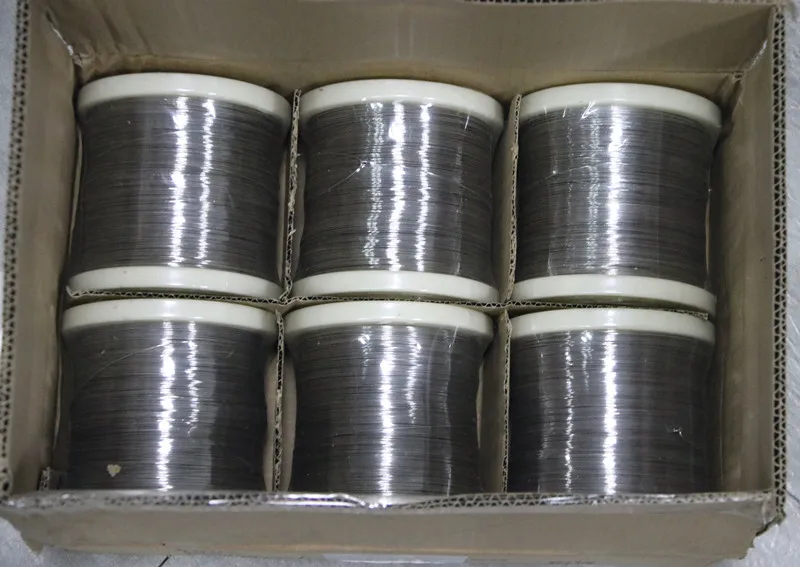

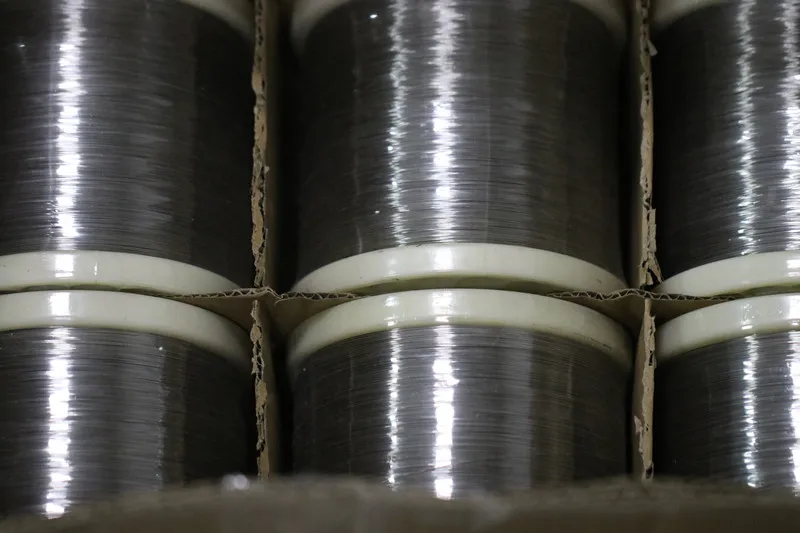

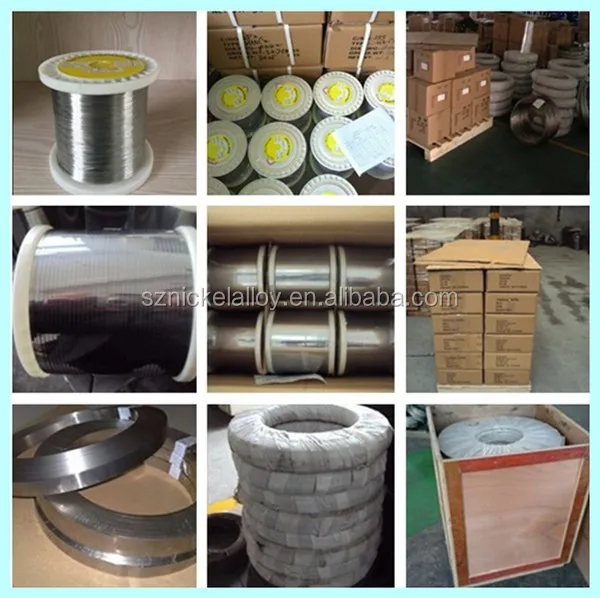

Packing & Delivery
