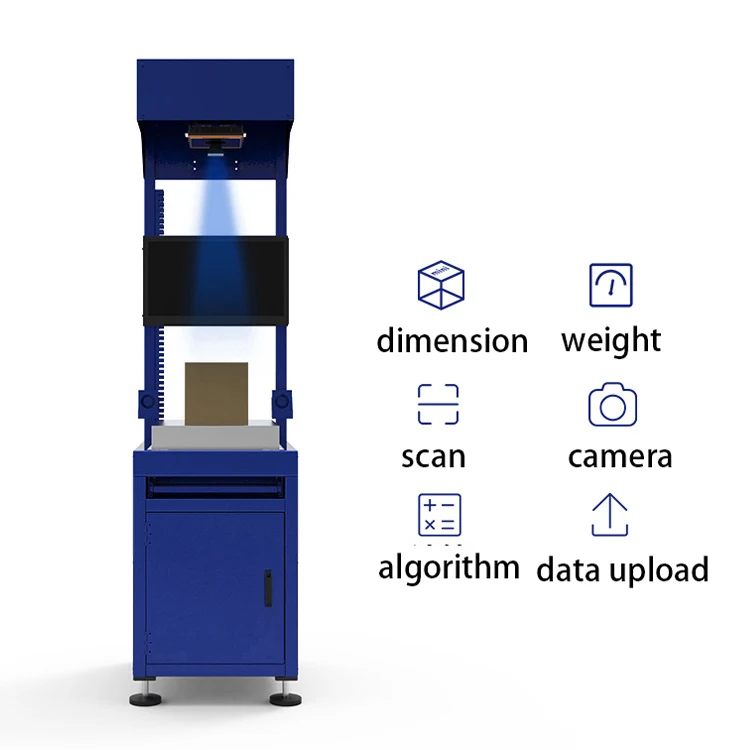

Logistics Automation Dims And Weight Dimensional Weight Scale Small Parcel Cubing Weighing System
- Category: >>>
- Supplier: Senad Robot(Shanghai) Co. Ltd.
Share on (1600814215684):
Product Overview
Description
Products Description
The workers put the parcel on the DWS workbench, and at the same time of weighing, the scanning code and measuring square(optional) on the top automatically carries out barcode identification and volume measurement for the parcel, and the goods can be removed after data collection. Static fast hand is used for weighing and scanning small parcels of express parcels. It integrates automatic scanning, automatic photographing, automatic weighing and automatic piecework functions, and carries out multi-grid sorting and sorting of parcels and goods according to sorting rules through system communication. The software system is independently developed, safe, stable and efficient, and supports on-demand customization.
Work Flows:
1, Put the parcel onto the surface of conveyor
2, The weighing scanning machine automatically reads the barcode and weight
3, Image of parcel & barcode is captured
4, The parcel is conveyed away automatically
The machine is designed to handle small parcels. It can designed in high weighing accuracy as 1g.
It is quite a mature and stable equipment but also an economic choice..
1, Put the parcel onto the surface of conveyor
2, The weighing scanning machine automatically reads the barcode and weight
3, Image of parcel & barcode is captured
4, The parcel is conveyed away automatically
The machine is designed to handle small parcels. It can designed in high weighing accuracy as 1g.
It is quite a mature and stable equipment but also an economic choice..
Feature：
1、Capture Parcel Dimensions and Weight
Identifies the parcel dimensions and weight accurately. Dimensions and weight can be captured in as little as 100 milliseconds. Allows customisation of volume measurement algorithms
2、Customisation of Backend Flows
Includes an Administrative Backend that is compatible with open API connectors. Allows customisation of processes and workflow in the backend.
3、Intuitive Interface
Custom front-end user interface. Integration with mobile frontend. Easy-to-use and intuitive user interface for staff and operators.
4、Multiple 3D Camera Options
Having multiple options for 3D stereo cameras to pick from helps to control costs and ensures accurate measurements for all types of shipments.
5、Easy to Operate
Quick re-calibration module – simple to start for the operators even when the conditions of the environment alter
6、Extensible to integrate with existing WMS and sorting workflow
Have full control of your inventory – keep information organised, tracked, and documented. It speeds up logistics and operations with faster data capture, digitised process, minimising errors
7、Sustainable, End-to-End DWS Solution
Easily install and set up the system in a few minutes. Complete solution with barcode scanning for accurate and real-time static and dynamic volume measurement systems and cargo information processing.
1、Capture Parcel Dimensions and Weight
Identifies the parcel dimensions and weight accurately. Dimensions and weight can be captured in as little as 100 milliseconds. Allows customisation of volume measurement algorithms
2、Customisation of Backend Flows
Includes an Administrative Backend that is compatible with open API connectors. Allows customisation of processes and workflow in the backend.
3、Intuitive Interface
Custom front-end user interface. Integration with mobile frontend. Easy-to-use and intuitive user interface for staff and operators.
4、Multiple 3D Camera Options
Having multiple options for 3D stereo cameras to pick from helps to control costs and ensures accurate measurements for all types of shipments.
5、Easy to Operate
Quick re-calibration module – simple to start for the operators even when the conditions of the environment alter
6、Extensible to integrate with existing WMS and sorting workflow
Have full control of your inventory – keep information organised, tracked, and documented. It speeds up logistics and operations with faster data capture, digitised process, minimising errors
7、Sustainable, End-to-End DWS Solution
Easily install and set up the system in a few minutes. Complete solution with barcode scanning for accurate and real-time static and dynamic volume measurement systems and cargo information processing.
Product Paramenters
Items | For reference |
Main functions | 1D/2D code scanning; weight scale;(volume measurement if needed) |
Package type | paper boxes; soft package; nylon bag; thin envelope etc. |
Scanning mim. size | 50*50*5mm |
Scanning max. size | 500*500*500mm |
Rating power | 1500W |
Working voltage | 380V/220V |
Temperature | -20~50℃ |
Rating efficiency | 1500--2000 Ps/hour |
Code identify accuracy | 99.9% |
Weighing range | 10g--60,000g |
Inaccurate range | ±10g |
Remarks | remarks | |
Equipment size | 600*600*2200mm(L*W*H) | |
Software type | SENAD DWS software | |
Support system | windows 7/10 or above; 32/64 bits | |
Software interface | http; tcp; 485; | |
Product Details
__________
recognition capabilities
__________
information of each package, including weight and size, and then performing automatic sorting operations to improve work
efficiency
__________
__________
The operation interface displays the size, weight and bar code information, the language can be customized, docking with the customer system, and automatically outputting the form information

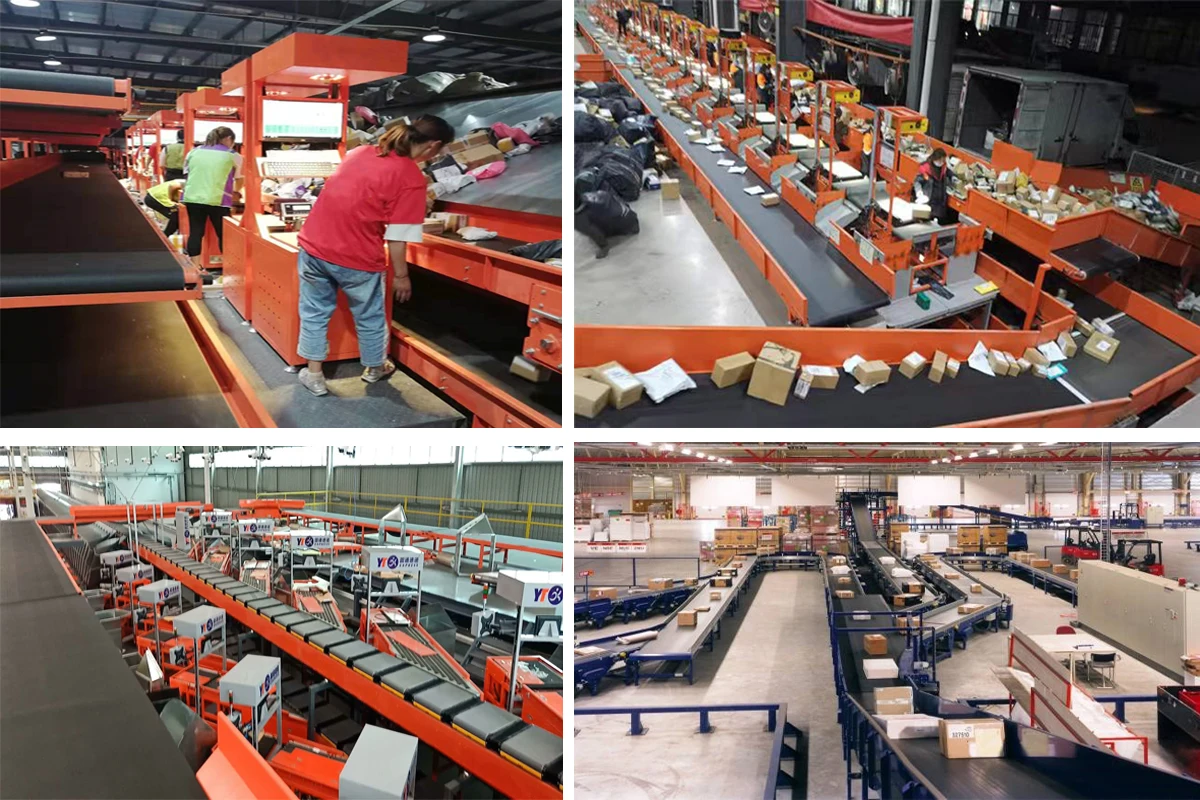

Application
