5kva hybrid off grid inverter 24v dc to 220v ac 10000 watt power inverter
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. ltd.
Share on (1600814344902):

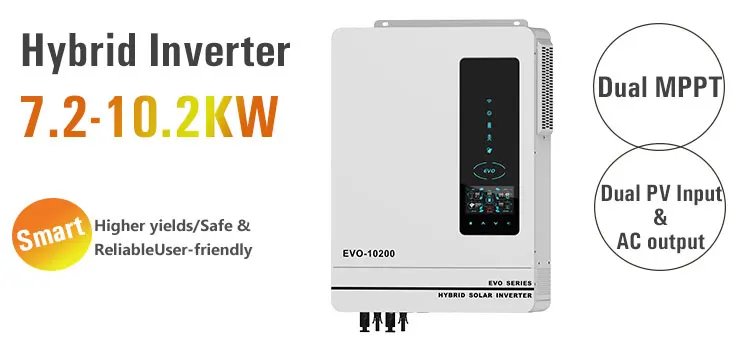

Product Overview
Description
Products Description

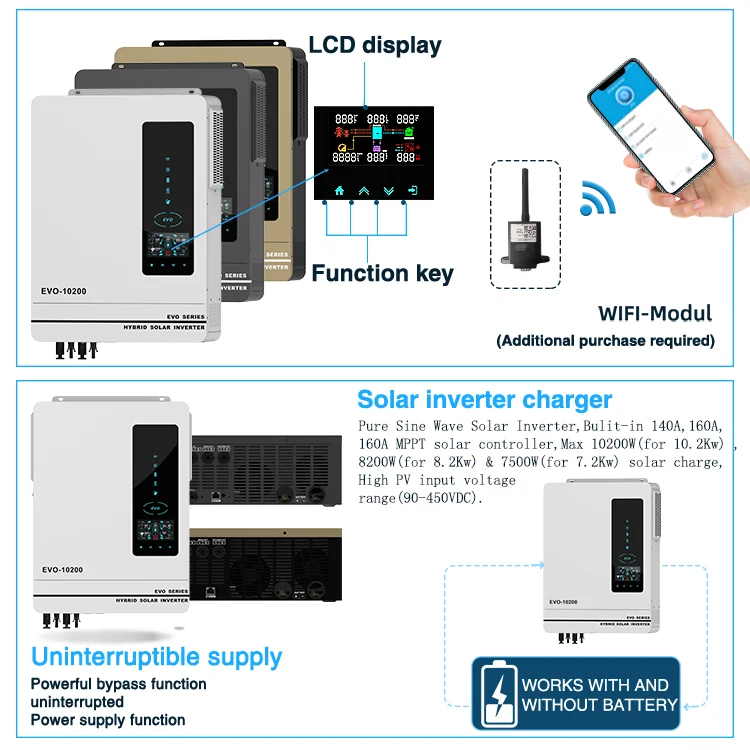

Solar Inverter Advantage：
◆ Pure Sine Wave Solar Hybrid Inverter;
◆ Be able to run without battery;
◆ One-key restoring to factory default settings;
◆ Built-in Lithium battery automatic activation;
◆ Bulit-in 160A MPPT solar controller(for 10.2KW), 140A(for 7.2KW);
◆ Max 7500W & 10800W solar input power respectively;
◆ Wide PV input voltage range (90-450VDC);
◆ Built-in anti-dusk kit for harsh environment;
◆ Smart battery charge design to maximize battery lifespan;
◆ Dual PV Input & AC output;
◆ WIFI available for IOS and Android systems.
◆ Pure Sine Wave Solar Hybrid Inverter;
◆ Be able to run without battery;
◆ One-key restoring to factory default settings;
◆ Built-in Lithium battery automatic activation;
◆ Bulit-in 160A MPPT solar controller(for 10.2KW), 140A(for 7.2KW);
◆ Max 7500W & 10800W solar input power respectively;
◆ Wide PV input voltage range (90-450VDC);
◆ Built-in anti-dusk kit for harsh environment;
◆ Smart battery charge design to maximize battery lifespan;
◆ Dual PV Input & AC output;
◆ WIFI available for IOS and Android systems.

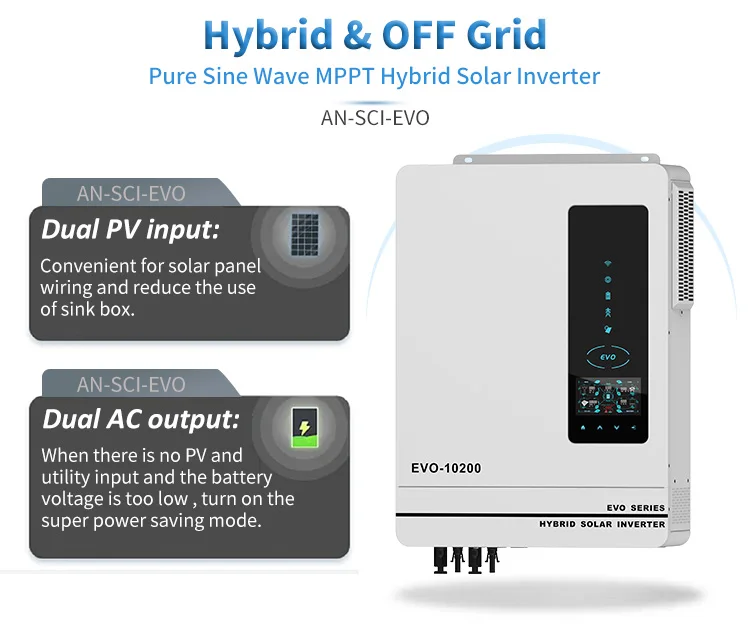

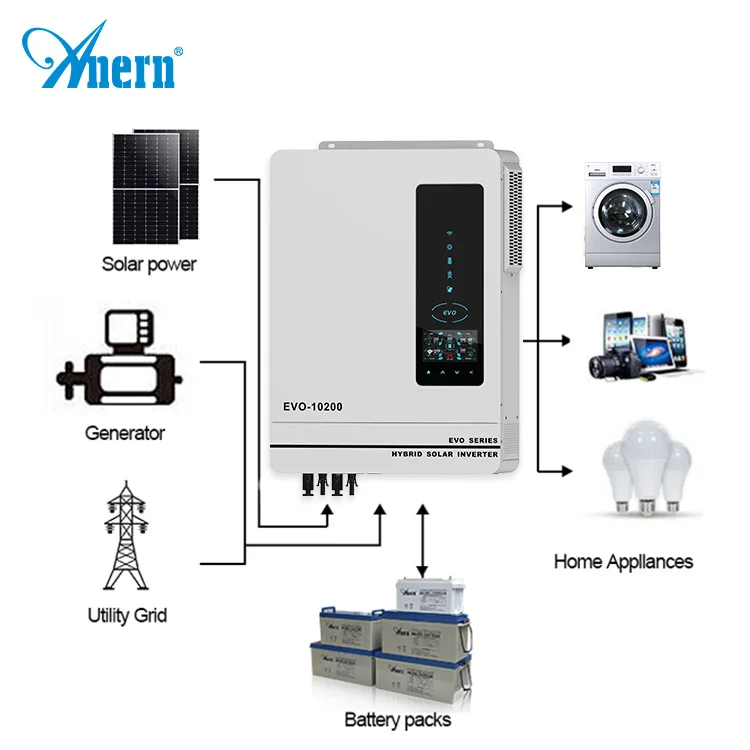

Dual PV Input & Dual AC output:
◆Dual PV input: facilitate the connection of solar panel and reduce the use of combiner box.
◆AC dual output: under normal conditions, the main circuit and secondary circuit outputs are used normally. When there is no PV and mains power input and the battery voltage is too low, the main circuit is disconnected and only the secondary circuit output is retained to save power.

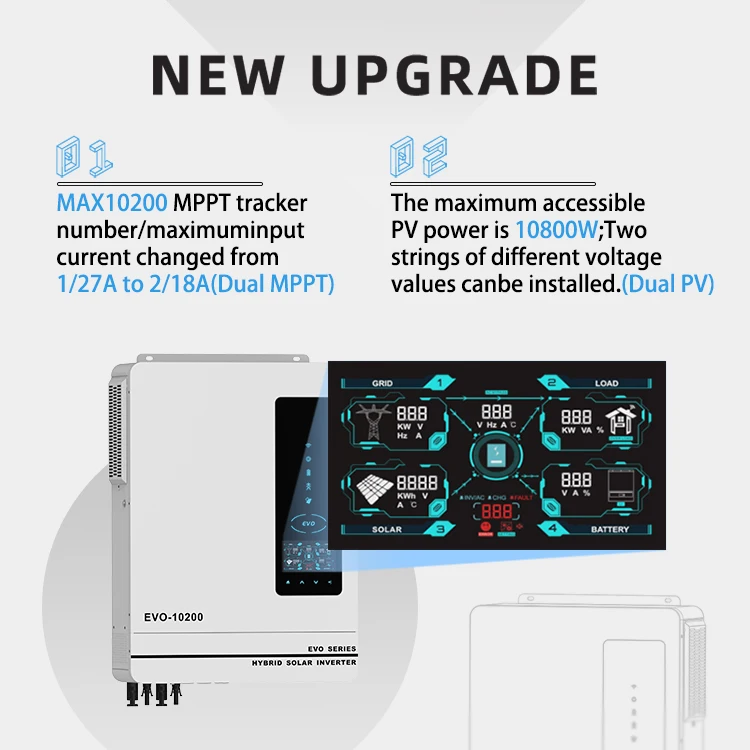

Upgrade:
The MPPT access of EVO/MAX 10200 is changed from 1 channel of 27A to 2 channels of 18A(Dual MPPT)Max. accessible PV power is 10800W (previously 10200W).,still with dual PV input and dual AC output, and the newly developed color display is adopted in the whole series.
◆Dual PV input: facilitate the connection of solar panel and reduce the use of combiner box.
◆AC dual output: under normal conditions, the main circuit and secondary circuit outputs are used normally. When there is no PV and mains power input and the battery voltage is too low, the main circuit is disconnected and only the secondary circuit output is retained to save power.
Upgrade:
The MPPT access of EVO/MAX 10200 is changed from 1 channel of 27A to 2 channels of 18A(Dual MPPT)Max. accessible PV power is 10800W (previously 10200W).,still with dual PV input and dual AC output, and the newly developed color display is adopted in the whole series.

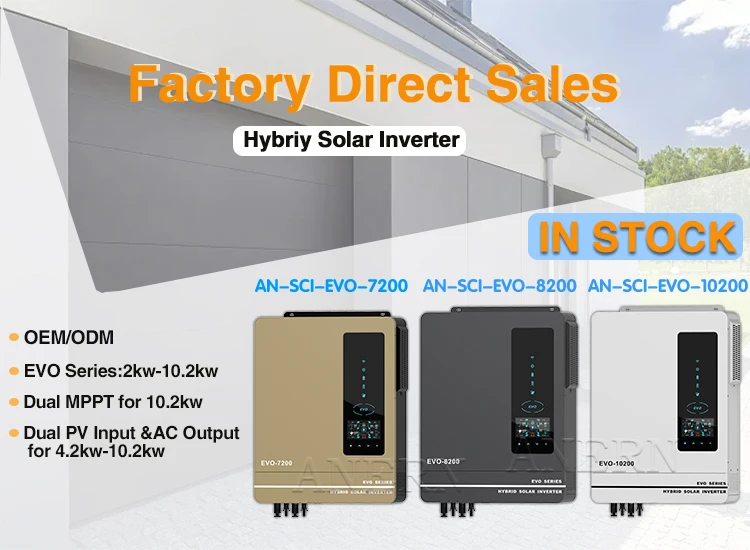

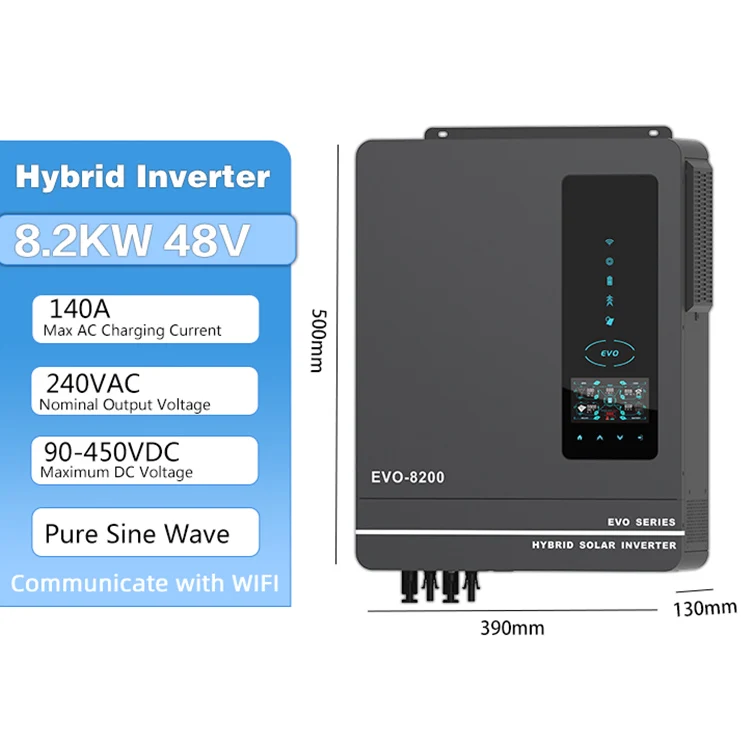

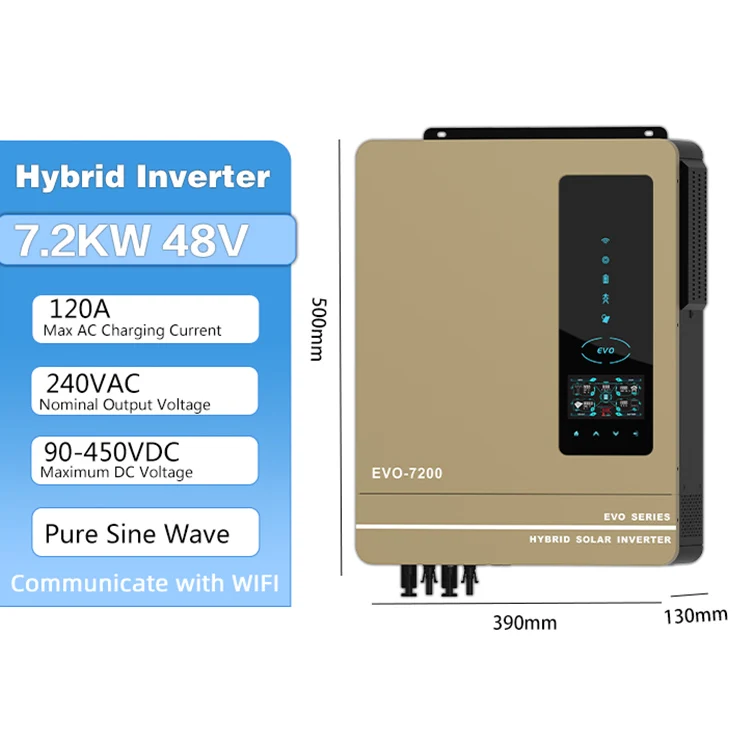

Model | SCI-EVO-7200 | SCI-EVO-8200 | SCI-EVO-10200 | |||
RATED POWER | 7200W | 8200W | 10200W | |||
Maximum PV Input Power | 7500W | 8200W | 10800W | |||
GRID-TIED OPERATION | ||||||
PV INPUT (DC) | ||||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |||||
MPPT DC Voltage Range | 90-450VDC | |||||
Number of MPPT Trackers/Maximum Input Current | 1/27A | 1/27A | 2/18A | |||
GRID OUTPUT (AC) | ||||||
Nominal AC Output Voltage | 220/230/240VAC | |||||
AC Output Voltage Range | 195.5-253VAC | |||||
Nominal AC Output Current | 31.3A | 35.6A | 44.3A | |||
Power Factor | >0.99 | |||||
Feed-in Grid Frequency Range | 49-51±1Hz / 59-61±1Hz | |||||
EFFICIENCY | ||||||
Maximum Conversion Efficiency (Solar to AC) | 98% | |||||
TWO LOADS OUTPUT POWER | ||||||
Full Load | 7200W | 8200W | 10200W | |||
Maximum Main Load | 7200W | 8200W | 10200W | |||
Maximum Second Load (battery mode) | 2400W | 2733W | 3400W | |||
Main Load Cut Off Voltage | 44VDC | 44VDC | 44VDC | |||
Main Load Return Voltage | 48VDC | 48VDC | 48VDC | |||
OFF-GRID OPERATION | ||||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||||
Acceptable AC Input Voltage Range | 90-280VAC or 170-280VAC | |||||
Maximum AC Input Current | 40A | 40A | 50A | |||
Nominal Operating Frequency | 50/60Hz | |||||
Surge Power | 14400W | 16400W | 20400W | |||
BATTERY MODE OUTPUT (AC) | ||||||
Nominal Output Voltage | 220/230/240VAC | |||||
Output Waveform | Pure sine wave | |||||
Efficiency (DC to AC) | 94% | |||||
BATTERY & CHARGER | ||||||
Nominal DC Voltage | 48VDC | 48VDC | 48VDC | |||
Maximum Charging Current(Solar to AC) | 140A | 160A | 160A | |||
Maximum AC Charging Current | 120A | 140A | 160A | |||
GENERAL | ||||||
Dimension, D x W x H (mm) | 500*390*130mm | 500*390*130mm | 530*390*130mm | |||
Net Weight (kgs) | 13.1kg | 13.1kg | 14.5kg | |||
Communication interface | WIFI | |||||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||
Operating Temperature | –10°C - 50°C | |||||
Storage Temperature | –15°C - 60°C | |||||
Product Details

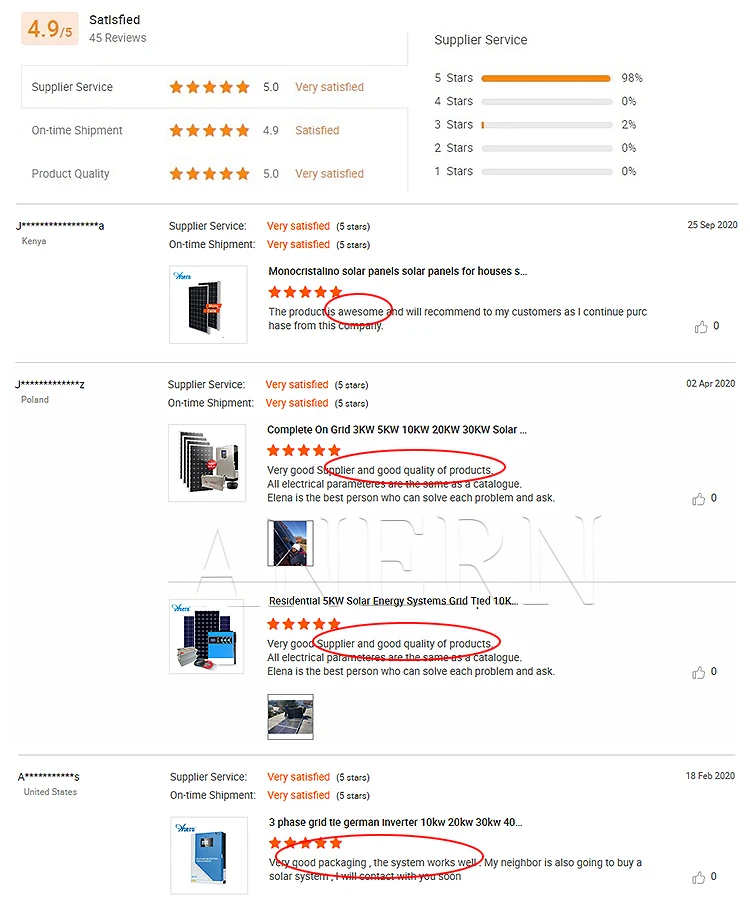

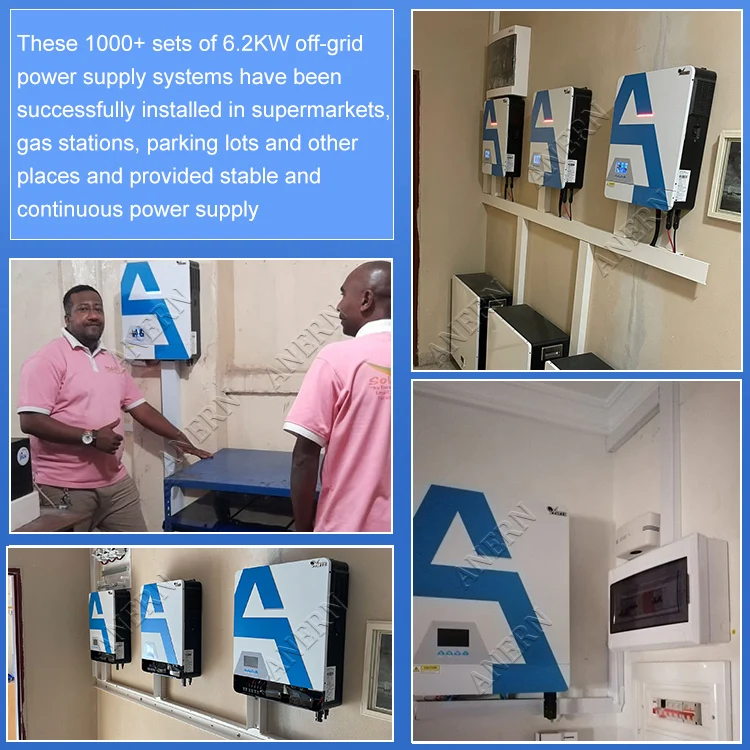

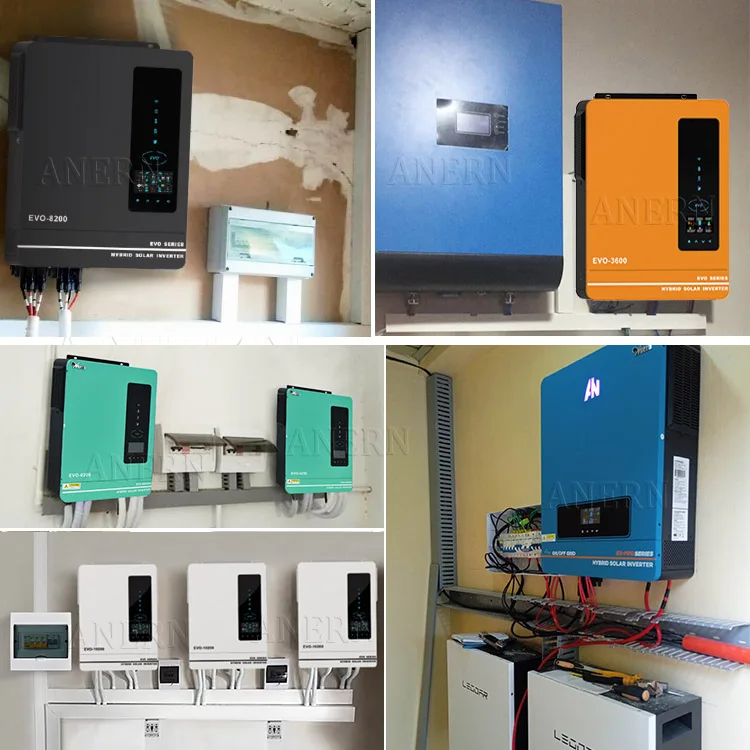

Project & Feedback

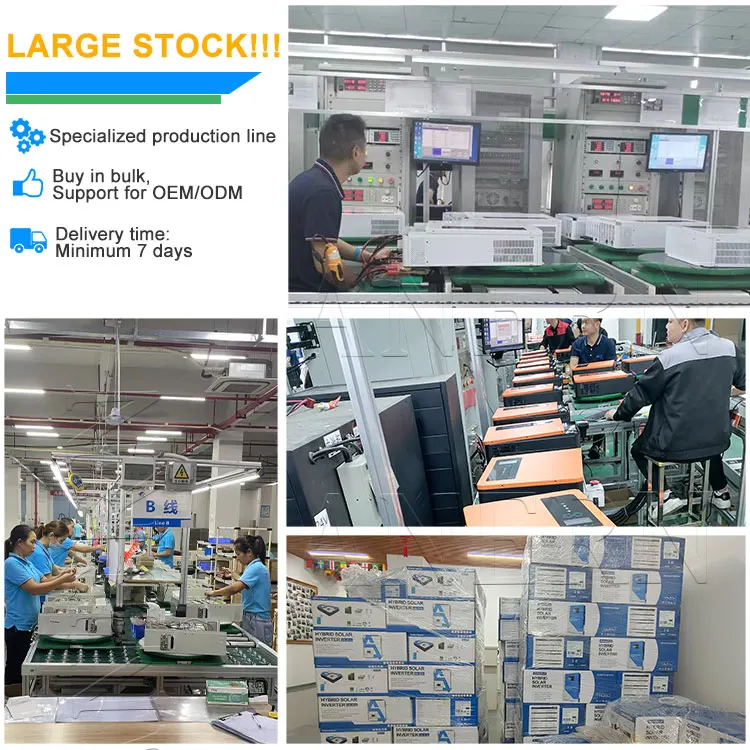

Anern Factory
We can offer OEM services as your specific requirements, provide a cost effective, energy efficient, and long term outdoor solar solution.
Certificate
Anern products have passed international testing and certification reports including UL, TUV，CE, FCC，ROHS, etc which is sure to meet the import needs of different countries. So far, Anern LED and solar series of products have put into use in many important government projects around the world and won high praise from our customers.
Company Introduction
Anern is headquartered in Guangzhou, which is one of most important Chinese Central Cities, with occupying area of 5,000 sqm, among which a modern showroom with area of 7,000 sqm. Each year there are over 1,000 personnel from various countries clients and governemnt institutions come to visit us.
