15L 20LPM High Purity Zeolite Molecular Sieve New Oxygen Generator Concentrator for Manufacturing Plant for Ozone Use

Product Overview

Description

15L 20LPM High purity 10 liter zeolite molecular sieve china oxygen generator oxygen concentrator





Description:

1- Patented products

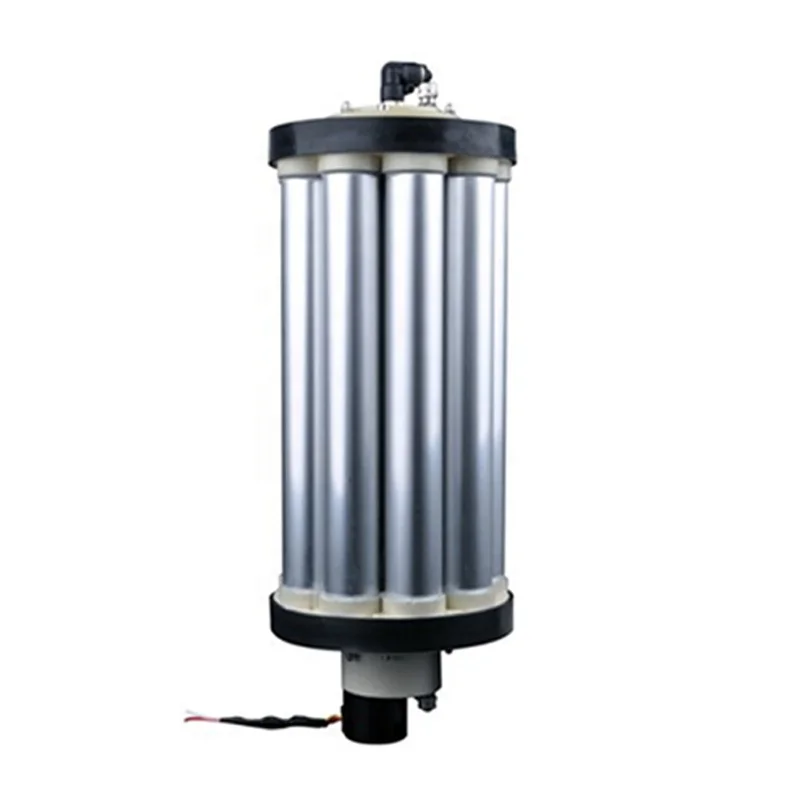

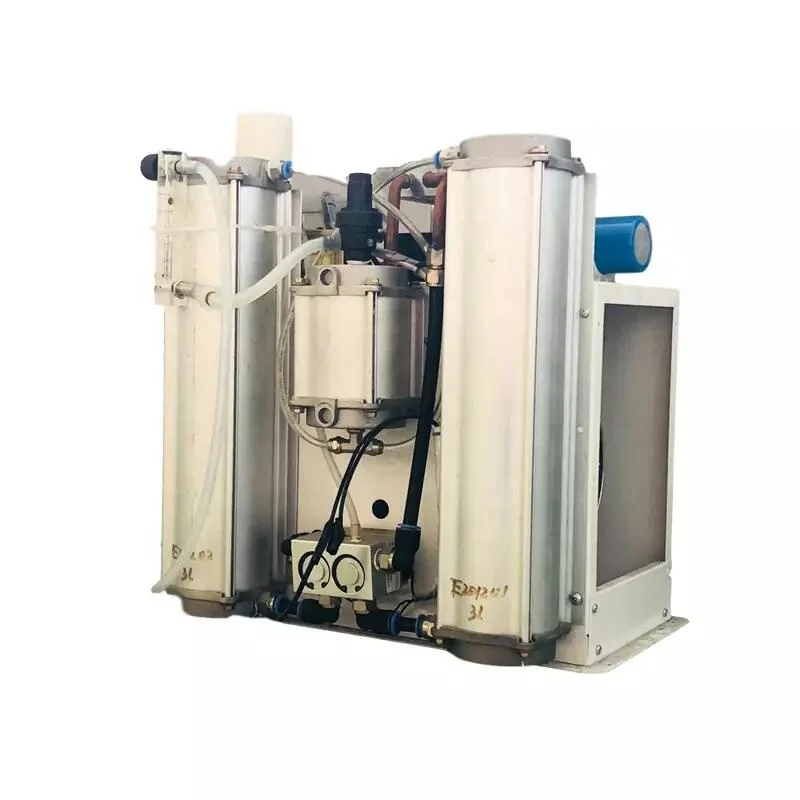

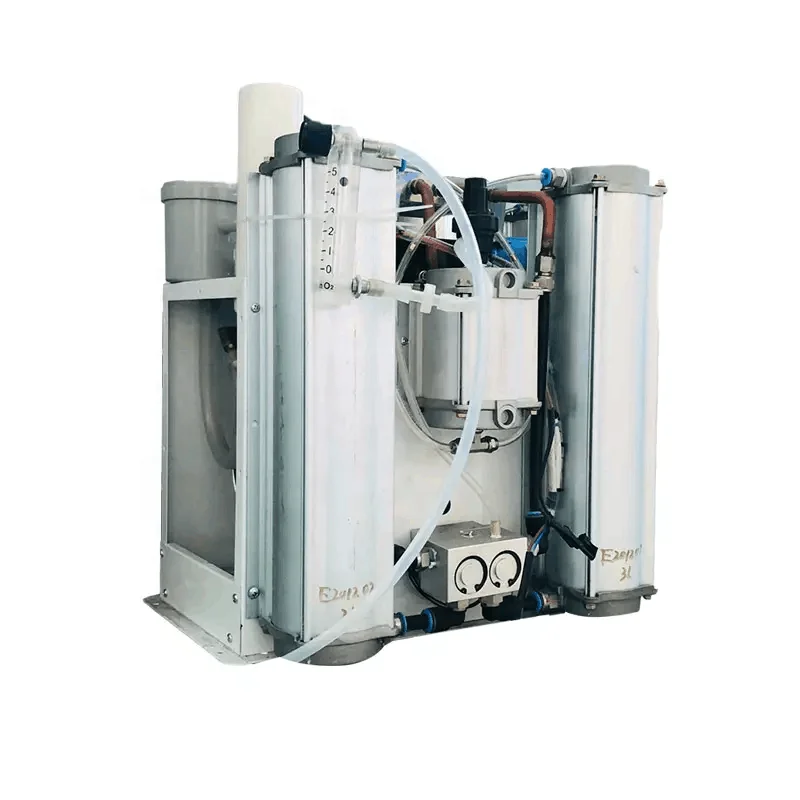

OGP-OX series molecular sieve is a air separation plant which has already obtained domestic patent.

2-Rational construction

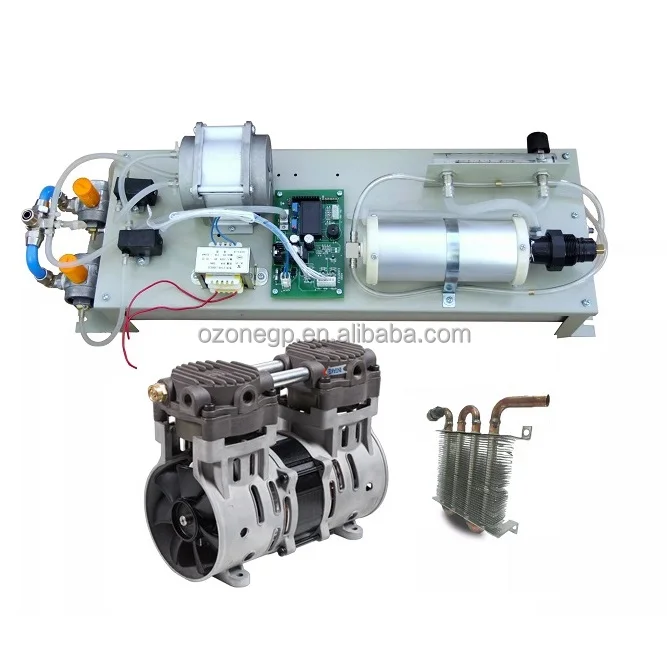

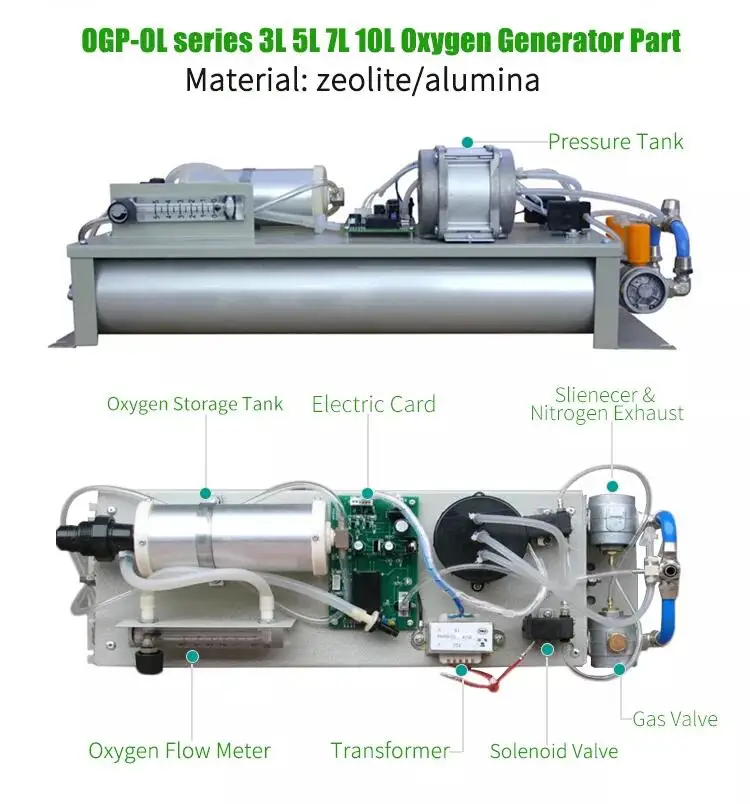

Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 3LPM to 15LPM, even higher.

3- The oxygen output is stable and continuously

4- Low-pressure oxygen production working pressure 1.5-2 Bar.

Specification

Item	Unit	OGP-OX3L	OGP-OX5L	OGP-OX7L	OGP-OX10L	OGP-OX15L
Oxygen output	LPM	3	5	7.5	10	15
Oxygen concentration	%	90%±3%
Air flow rate	LPM	36-45	60-75	90-115	150-200	180L/Min
Pressure(inlet)	Mpa	0.14-0.18	0.14-0.18	0.15-0.2	0.18-0.25	0.35
Pressure(outlet)	Mpa	0.06-0.08
Temperature	℃	indoor temperature
Relative humidity	%	≤ 70%±10%
Noise	Db	≤60	≤60	≤60	≤60	≤60
Dimension	mm	200×290	200×410	200×470	200×500	200×880
Net weight	kg	14	17.85	19.1	21.3	32.5
