Waste oil separation machine oil filter decanter centrifuge with CE
- Category: >>>
- Supplier: Nanjing FiveMen Machine Co. Ltd.
Share on (1600814407231):
Product Overview
Description
Product Description
Main Features:
1, Low noise, its vibration intensity is less than 4.5, and the running noise of the machine is less than 85dB (A).
2 High Speed up to 3600RPM & Variable Speed by frequency converter
3 The main body of the decanter centrifuge made from stainless stee: SS304/SS316/Titanium Alloy
4 The screw propeller made from stainless steel (SS304/SS316) protected by Tungsten carbide alloy or Ceramic
5 Solids discharge stainless steel protected by high-chromium iron
6 Solids Liquid separation system package available
7 Germany FAG/SKF brand bearings
8 Eletrical Components: SIEMENS/Schneider/ABB
3 The main body of the decanter centrifuge made from stainless stee: SS304/SS316/Titanium Alloy
4 The screw propeller made from stainless steel (SS304/SS316) protected by Tungsten carbide alloy or Ceramic
5 Solids discharge stainless steel protected by high-chromium iron
6 Solids Liquid separation system package available
7 Germany FAG/SKF brand bearings
8 Eletrical Components: SIEMENS/Schneider/ABB
9 All the seals of the machine are imported , adopting the Taiwan TTK brand
Product Application :
The LWS decanter separator is suitable for plant oil,( such as palm oil, coconut oil, olive oil separation ,) animal oil(such as fish oil, restaurant garbage ect) fish meal, coal tar dehydration and slag, adapted to the different viscosity and water content in coal tar separation (emulsion), after separating the tar reach national standard.
Model: | LW260X800 |
Drum diameter: | 260mm |
Drum length: | 800mm |
Drum speed: | 0—5000r/min(adjustable) |
Speed Difference: | 0—30r/min(adjustable) |
Length Diameter Ratio: | 3.5-4 |
Motor Power: | 7.5KW |
Auxiliary power | 4KW(In power generation state) |
Weight: | 900kg |
Capacity: | ≥1T/h |
Type | Bowl diameter(mm) | Bowl length/ Bowl diameter | Bowl speed (r/min) | Main Power(Kw) |
LWS355 | 355 | 3.3-4.5 | 4000 | 15-18.5 |
LWS420 | 420 | 4.1 | 3600 | 22 |
LWS500 | 500 | 4.2 | 3000 | 30 |
LWS530 | 500 | 4.2 | 3000 | 30 |
LWS580 | 580 | 4.1 | 2800 | 45 |
LWS620 | 620 | 4 | 2800 | 45 |
Note: In case of differences between the table and the user manual, the latter shall prevail. | ||||

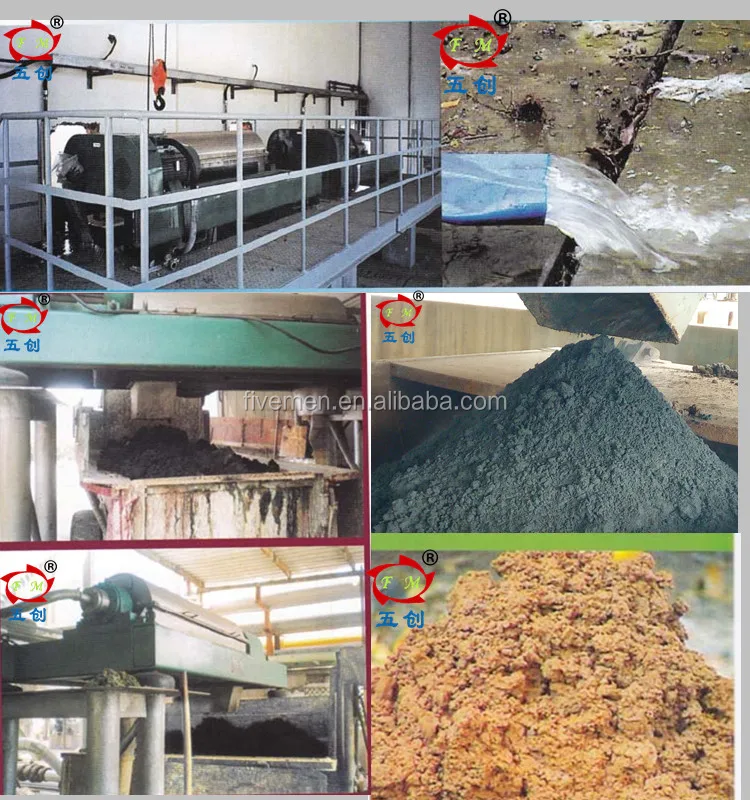

Appication site in oil decanter centrigal separator
Detailed Images
PLC Control Panel
The electrical control adopts the double conversion auto control system, which can display the parameters such as frequency, rotation speed, differential speed and current of operating major and auxiliary electrical engine.
Eletrical Components: SIEMENS/Schneider/ABB
Drum
The drum is cast by 304 stainless steel in centrifugal casting, the forging process is adopted , which can enhance its corrosion resistance, The replaceable alloy sleeve is installed in the solid state outlet, so that the mother material of the drum's outlet is not worn, and the wear-resistant bar is installed in the drum to make the drum inside not worn.
Spiral feeder
The spiral feeder is made of 304 stainless steel, and the forging process is adopted , which can enhance its corrosion resistance. BD structure, spraying hard alloy powder on the surface of the blade. The thickness is over 3mm .
Large end cap shaft
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Engineers available to service machinery overseas
* Sample testing support. * Training how to instal the machine, training how to use the machine
* View our Factory.
Our Company
Over the years, our products have beensuccessfully applied in the mineral oils, dairies, fruit and vegetable juices,pigments, animal and plant oils, starches, bio-pharmacy, fermentation broth,additives, foods, oil extraction, fish oil feeds, grading of non-metallicminerals, petroleum chemistry, sewage treatment and other industries. Ourcustomers spread through the whole nation except Tibet, and our products aresuccessfully exported to Japan, North Korea, South Korea, Taiwan, Thailand,Malaysia, Vietnam, Burma, India, U.S.A., Africa and some Latin Americancountries.
We have passed ISO9000 quality system certificationawarded by China Classification Society; In the past years, we have been awarded a number of honors such as "High-qualityProducts in Jiangsu Province", "Grade AAA Demonstration Unitin Quality, Service and Credit of Jiangsu Province", "StarEnterprise in Jiangsu Province", "Grade AAA Brand Enterprisein Quality and Integrity of Jiangsu Province" and so on.
