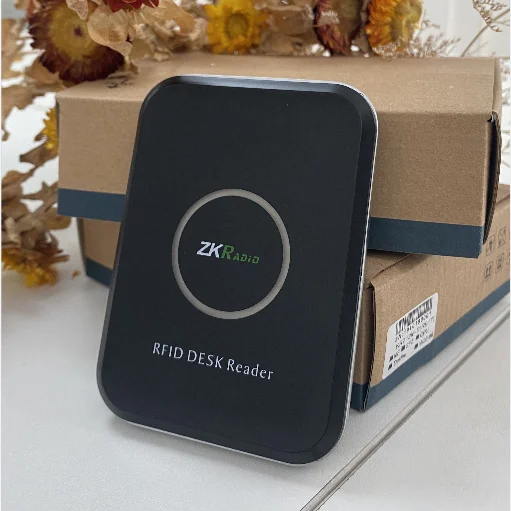

Desktop 13.56MHz IC Muilt Protocol Card Reader/Writer Support ISO14443A/B/ISO15693 and HID/CPU Card
- Category: >>>
- Supplier: Shenzhen radio Technology Co. Ltd
Share on (1600814468356):
Product Overview
Description
Kevin
Overview
ZD310 Series desktop card issuer is a contactless card issuer developed based on ISO/IEC14443A/B, ISO/IEC15693 international standard protocol. This series of card issuers is based on USB drive-free design, supports 125kHz and 13.56MHz frequency bands, and supports different models such as ID cards; IC card; second-generation Chinese ID card.
This series of products has been widely used in personal authentication, network login, micro-payment, membership management and other scenarios, and designed with metal middle frame. It has the characteristics of strong anti-interference ability, high integration, and USB communication.

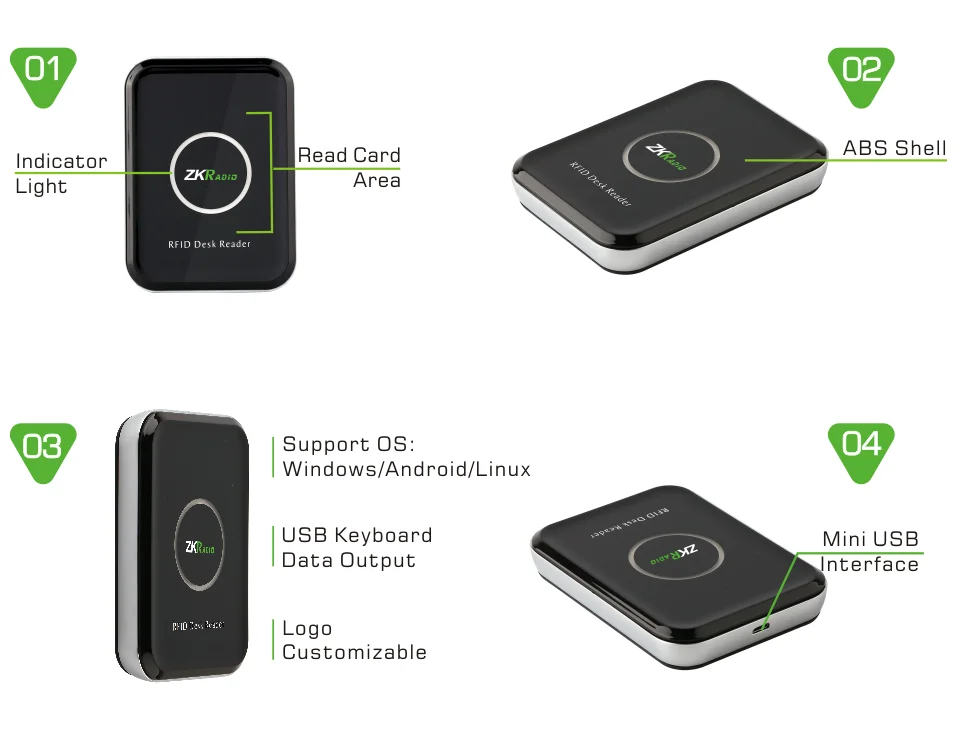

Features
USB powered, plug and play, drive-free;
- Support online update firmware;

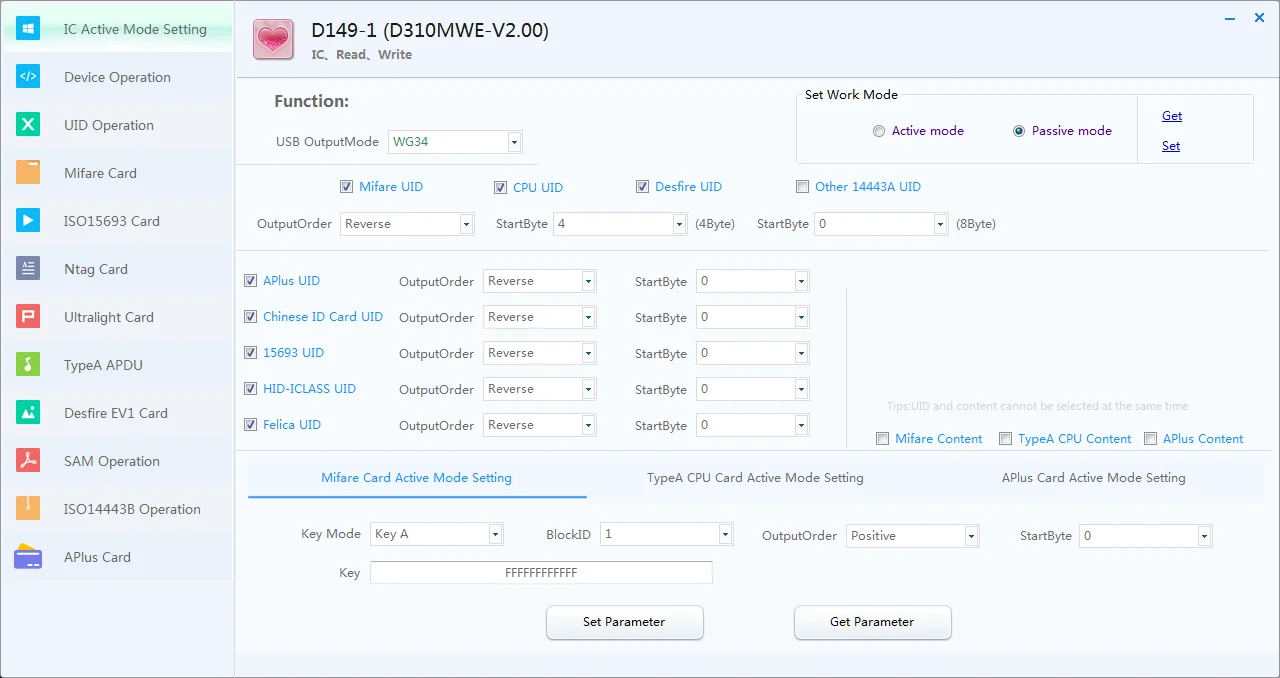

- The output format of the card number can be set independently through the software;
- Support Windows/Android/Linux multi-system;
Specifications
Params. | Description |
Working frequency | 13.56MHz / ISO14443A |
Working voltage | USB+5V |
Working current | Less than 150mA |
Standby current | Less than 150mA |
Working temperature | -10℃~+60℃ |
Store temperature | -20℃~+70℃ |
Working humidity | 15% ~ 90% |
Sensing distance | Less than 30mm(depends on card types and environment) |
Sensing time | Less than 100ms(in sensing distance) |
Sensing speed | 0.2s |
Sensing interval | 0.5s |
Interface | USB |
Size | 110*80*16.2mm(tolerance±0.3mm) |
Models
Model | Code | Description |
ZD310E | D126 | ID read-only issuer, support EM4100; EM4102; EM4200, ID thick card, ID thin card, ID key-chain card. Support configuring output formats. |
ZD310MA | D132 | IC read-only card issuer Support read UID of MIFARE Classic Mini/EV1, MIFARE DESFire EV1/Light/EV2/EV3, MIFARE Plus S/X , MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; Support read UID of CPU; Support configuring output formats. |
ZD310MB | D134 | IC read-only card issuer Support read UID of MIFARE Classic Mini/EV1, MIFARE DESFire EV1/Light/EV2/EV3, MIFARE Plus S/X , MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; Support read UID of CPU; Support read UID of the second-generation Chinese ID card; Support configuring output formats. |

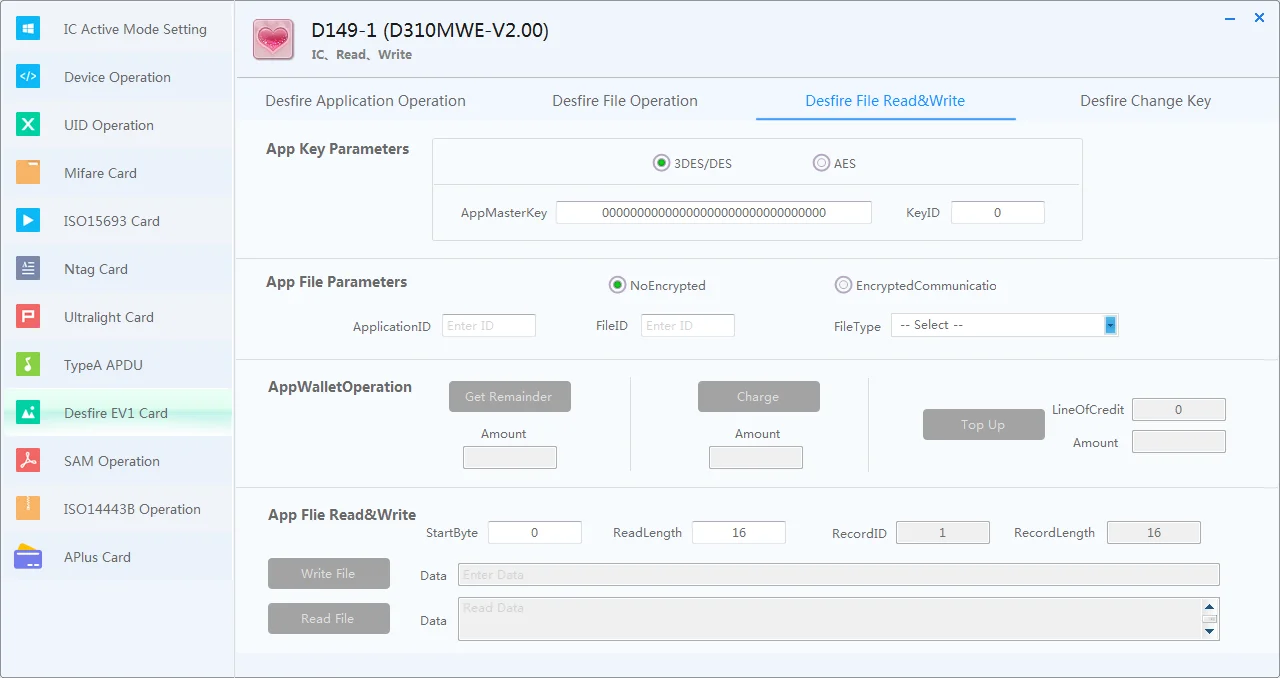

ZD310MWE | D149 | IC/CPU read&write card issuer Support read UID of MIFARE Classic Mini/EV1, MIFARE DESFire EV1/Light/EV2/EV3, MIFARE Plus S/X , MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; Support read and write MIFARE S50/S70 card sector content, modify sector key; Support read UID of the CPU card, encrypted content, and writing the CPU card; Support DESFire EV1 card application file read and write operations; Support read&write MIFARE Ultralight/Ultralight C; Support read&write NTAG2xx; Support read&write ISO15693 card(eg: ICODE 2 ); Support read UID of the second-generation Chinese ID card; Support read UID of HID iClass card; Support to read FELICA card physical card number (for example: Hong Kong Octopus); Support national secret SAM card read and write operations; Support active and passive card reading mode switching, configurable active card reading output format. |

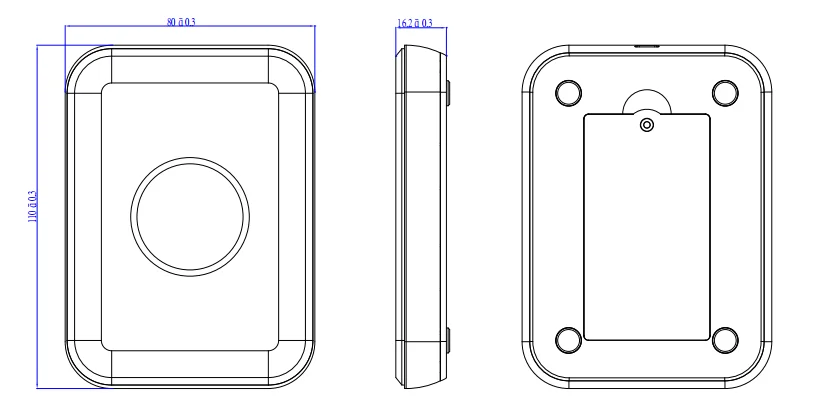

Dimension
