Dongfeng 8x4 30 50T Wrecker Tow Trucks LHD DFAC Heavy Duty Road Wrecker For Sale
Dongfeng 8x4 30-50T Wrecker Tow Trucks LHD DFAC Heavy Duty Road Wrecker For Sale
Dongfeng 8x4 30-50T Wrecker Tow Trucks LHD DFAC Heavy Duty Road Wrecker For Sale
Dongfeng 8x4 30-50T Wrecker Tow Trucks LHD DFAC Heavy Duty Road Wrecker For Sale
Dongfeng 8x4 30-50T Wrecker Tow Trucks LHD DFAC Heavy Duty Road Wrecker For Sale
Dongfeng 8x4 30-50T Wrecker Tow Trucks LHD DFAC Heavy Duty Road Wrecker For Sale
Dongfeng 8x4 30-50T Wrecker Tow Trucks LHD DFAC Heavy Duty Road Wrecker For Sale

Dongfeng 8x4 30 50T Wrecker Tow Trucks LHD DFAC Heavy Duty Road Wrecker For Sale

Share on (1600814487655):


Price:$101,150.00 - $101,450.00

Quantity:


Product Overview

Description



Dongfeng Heavy Duty Flatbed Towing Mounted Crane Platform Rotating 8x4 Wrecker Truck For Sale


Product Overview

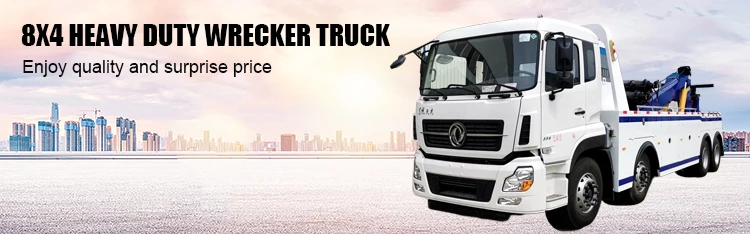

Dongfeng 8x4 Heavy Duty Wrecker Truck
The full name of wrecker truck is named road wrecker truck, also called trailer and road rescue truck. It has the powerful function and can carry two cars at the same time. It is the ideal choice for road management department and automobile repair plat to proceed to the road repair and rescue.
If you choose other configurations or models, please send an inquiry and contact the sales staff. We will configure a suitable car according to your needs and give you apreferential price.





PRODUCT SPECIFICATIONS




Chassis specifications
Drive mode
8×4
Chassis
DFD1311A4
Engine
Model
Cummins C315 33
Type
231/2200
Power/Displacement(Kw/ml)
231KW/8900
Type of fuel
Diesel
Oil Consumption(km/L)
22.4
Tyre
Size
11.00R20
Gear Box
Mechanical 6 speed gear box
Steering
Power assist steering
Air conditioner
A/C
Dimensions
Overall dimension (mm)
11310×2500×3520
Wheel base (mm)
1950+4250+1300
Front/Rear tread(mm)
2022/1830
Performance
Max. speed(Km/h)
90
App./Dep. angel (°)
16/18
Max. gradability (%)
30
Min.turning diameter(m)
22
Min.ground clearance(mm)
240
Mass
Payload (Kg)
25000
Curb weight(Kg)
20770
G.V.W (Kg)
45000
Axle Loading Weight(Kg)
6000/7000/17500
Special Device
16T30D rotary crane
Lifting Structure
Max lifting capacity(kg)
20000/12000
All stretch out maximum lift capacity(kg)
12500/8300
Maximum effective length of the arm
3350
Support arm telescopic stroke
1650
Lifting load folding angle
-7～16
folding angle
-7～92
All stretch out the maximum distance from the ground
1835

Hoisting Structure
Max Hoisting capacity(kg)
20000
Fully retracted lifting angle when lifting angle 30°
12000
Fully extended lifting angle 30° lifting capacity
9000
Basic length of boom
5580
Cylinder stretching stroke
6000
Max lifting height
12300
Max working radius
10710
Boom section
3
Boom Angle
0～60
rotation angle
360° continuous rotation
Winch
Winch number
2
rated traction force (kN)
200
Wire rope model
22-6x25Fi+IWR1870
Wire rope diameter
￠22
Wire rope length
60
Wire rope minimum line speed
5
outrigger
Front leg type
Under-mounted H-type
Rear leg type
L-type rear leg
Front leg transverse span (mm)
6200
Rear transverse span (mm)
4030
Front and rear leg longitudinal span (mm)
7760


Recommend Products




Company Profile


Henan Elorry Industrial Co., LTD.

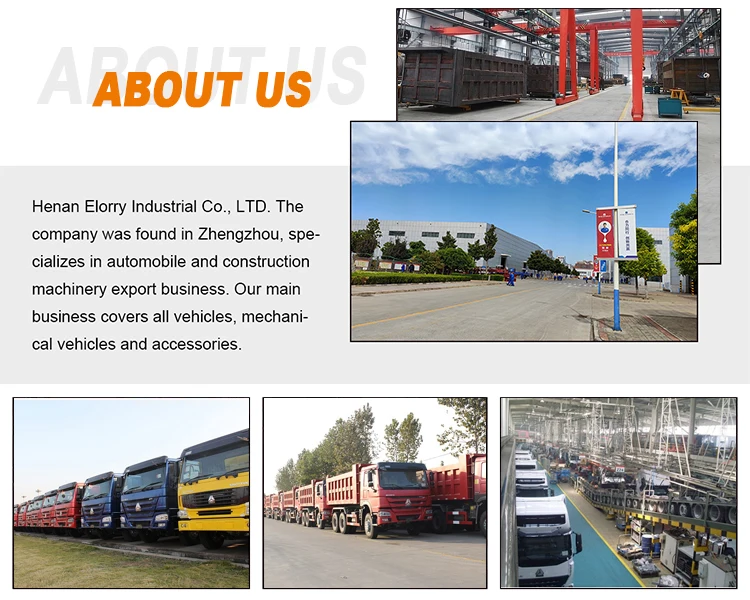

Henan Elorry Industrial Co., LTD. The company was found in Zhengzhou, specializes in automobile and construction machinery export business. Our main business covers all vehicles, mechanical vehicles and accessories, the annual export of more than 2000 cars, the cumulative export of more than 6000 cars. Our products are oriented to the world, and we have provided high-quality, cost-effective products and perfect after-sales service process for more than 300 customers. We strive to improve the quality of our products and service standards. We adhere to the principle of good faith and win-win, look forward to working with you to create a brilliant future.
