TS 40G high quality good price linear guide horizontal CNC lathe
- Category: >>>
- Supplier: Liuzhou Gluck Imp& Exp Co. Ltd.
Share on (1600814501875):
Product Overview
Description
Product Description

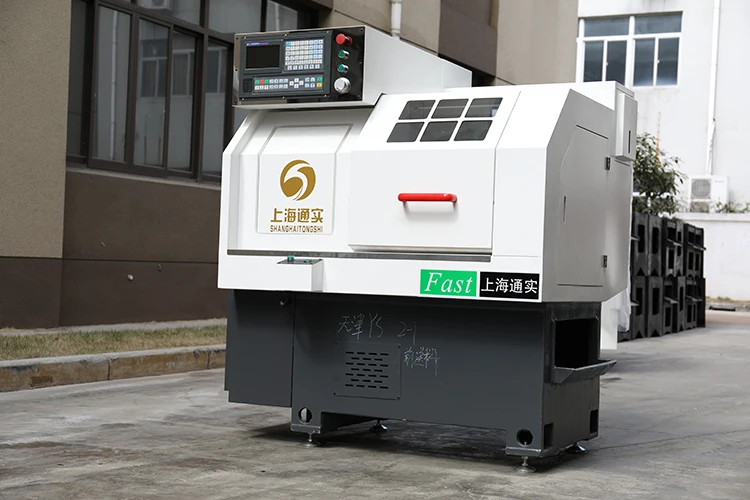

TS 40G high speed linear guideway automatic CNC lathe machine
Max. Swing Diameter over bed | 300mm |
Max. Swing Diameter over carriage | 120mm |
Max Working Length | 280mm |
Spindle Speed | 150-3000r/min |
Spindle Motor Power | 3kW |
Spindle Bore | 48mm |

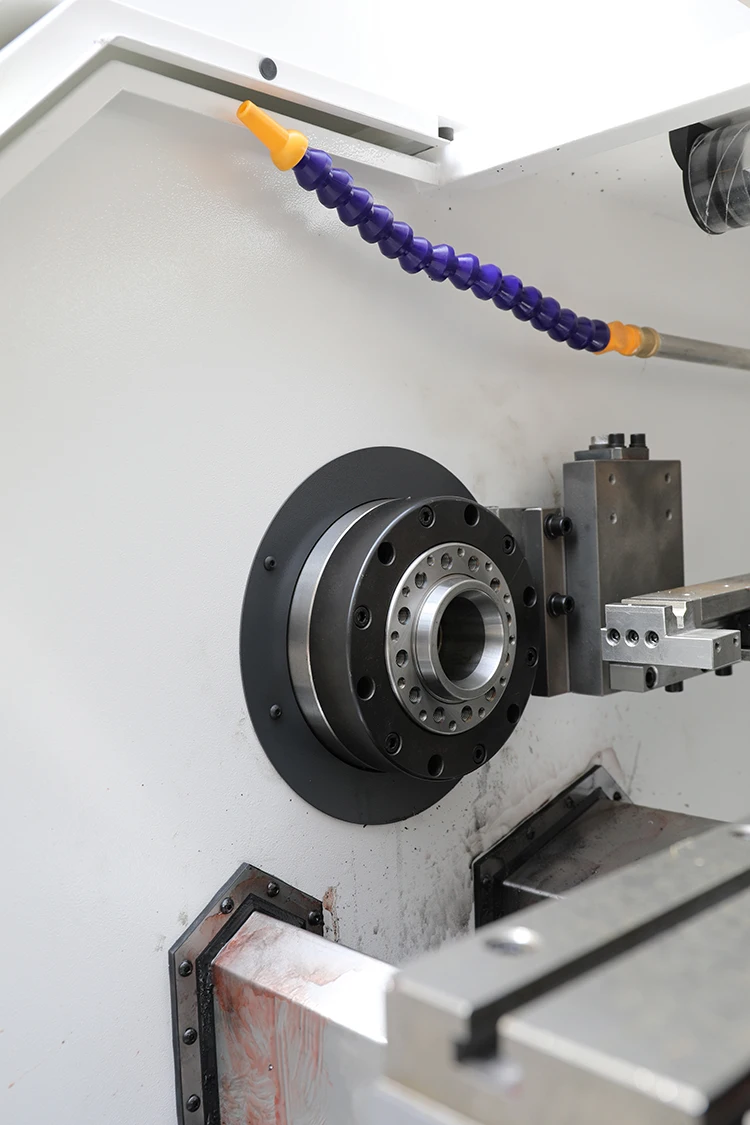

Spindle type | Pneumatic collet |
X travel | 460mm |
Z travel | 280mm |
X axix max moving speed | 15000mm/min |
Z axix max moving speed | 15000mm/min |
Tool Post Stations | Row knife |
Tool Dimension | 20mm×20mm |
Repeatability accuracy (X/Z) | 0.005mm/0.005mm |
CNC System | GSK 980TC3 or As required |
Weight (NW) | 1000kg |
Dimension(L*W*H) | 1500×1200×1620mm |

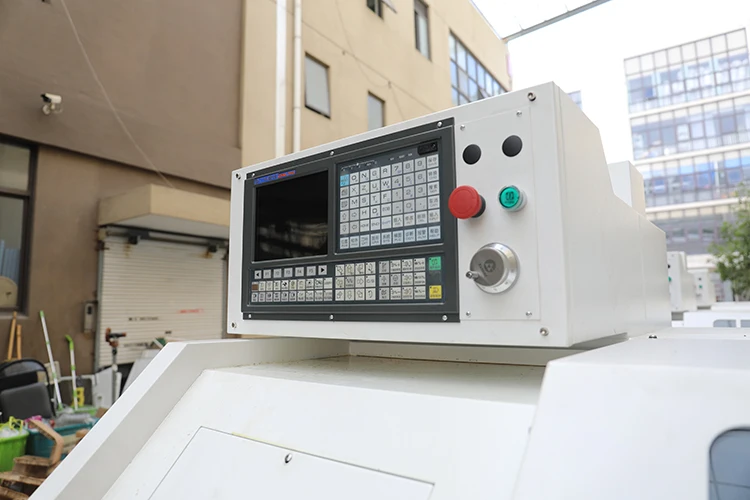

GSK 980TC3 control system
Recommend Products
Model | Structure Style | Swing Diameter over bed(mm) | Processing Length(mm) | Guideway | X travel (mm) | Z travel (mm) | Tailstock |
0630 | Flat bed | 300 | 180 | Hard guideway | 180 | 180 | ○ |
0640 | Flat bed | 400 | 180 | Hard guideway | 250 | 180 | ○ |
6132 | Flat bed | 320 | 350 | Hard guideway | 200 | 400 | ● |
6136 | Flat bed | 360 | 750 | Hard guideway | 180 | 750 | ● |
6140 | Flat bed | 400 | 750 | Hard guideway | 240 | 750 | ● |
6150 | Flat bed | 500 | 1000 | Hard guideway | 300 | 1000 | ● |
6180 | Flat bed | 800 | 1500 | Hard guideway | 500 | 1500 | ● |
30G | Flat bed | 300 | 350 | Linear guideway | 300 | 350 | ○ |
40G | Flat bed | 300 | 280 | Linear guideway | 280 | 280 | ○ |
Model | Structure Style | Swing Diameter over bed(mm) | Processing Length(mm) | Guideway | X travel (mm) | Z travel (mm) | Tailstock | Other |
32L | Slant bed | 320 | 100 | Linear guideway | 600 | 250 | ○ | |
36L | Slant bed | 400 | 160 | Linear guideway | 600 | 250 | ○ | |
46L | Slant bed | 450 | 160 | Linear guideway | 720 | 310 | ○ | |
46T | Slant bed | 450 | 300 | Linear guideway | 150 | 450 | ● | Hydraulic tool turret |
52T | Slant bed | 500 | 400 | Linear guideway | 220 | 480 | ● | Hydraulic tool turret |
Processed products
Why Choose Us
Customer Photos
Certifications
Packing & Delivery
Port of loading: Shanghai China.
By Express, by Sea, by Air Freight, depending on your choice.
FAQ
Q1: Where is the factory located? How can I visit there?
A1: Our factory is located in Shanghai, China. And we warmly welcome you to visit us.
Q2: Do you have CE certification?
A2: Yes, we have CE certification, the quality of our machines is guaranteed.
Q3: What's your payment terms?
A3: Our payment term is 30% T/T in advance, 70% T/T before shipment.
Q4: How can I get the quotation?
A4: You can send the inquiry on alibaba.com, or send email to us. It is better if you can tell what is your detailed requests.
Q5: How can I choose the most suitable machines ?
A5: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q6: If still confused. What can I do?
A6: Please feel free to contact us via Email or trade manager. Thanks !
A1: Our factory is located in Shanghai, China. And we warmly welcome you to visit us.
Q2: Do you have CE certification?
A2: Yes, we have CE certification, the quality of our machines is guaranteed.
Q3: What's your payment terms?
A3: Our payment term is 30% T/T in advance, 70% T/T before shipment.
Q4: How can I get the quotation?
A4: You can send the inquiry on alibaba.com, or send email to us. It is better if you can tell what is your detailed requests.
Q5: How can I choose the most suitable machines ?
A5: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q6: If still confused. What can I do?
A6: Please feel free to contact us via Email or trade manager. Thanks !
