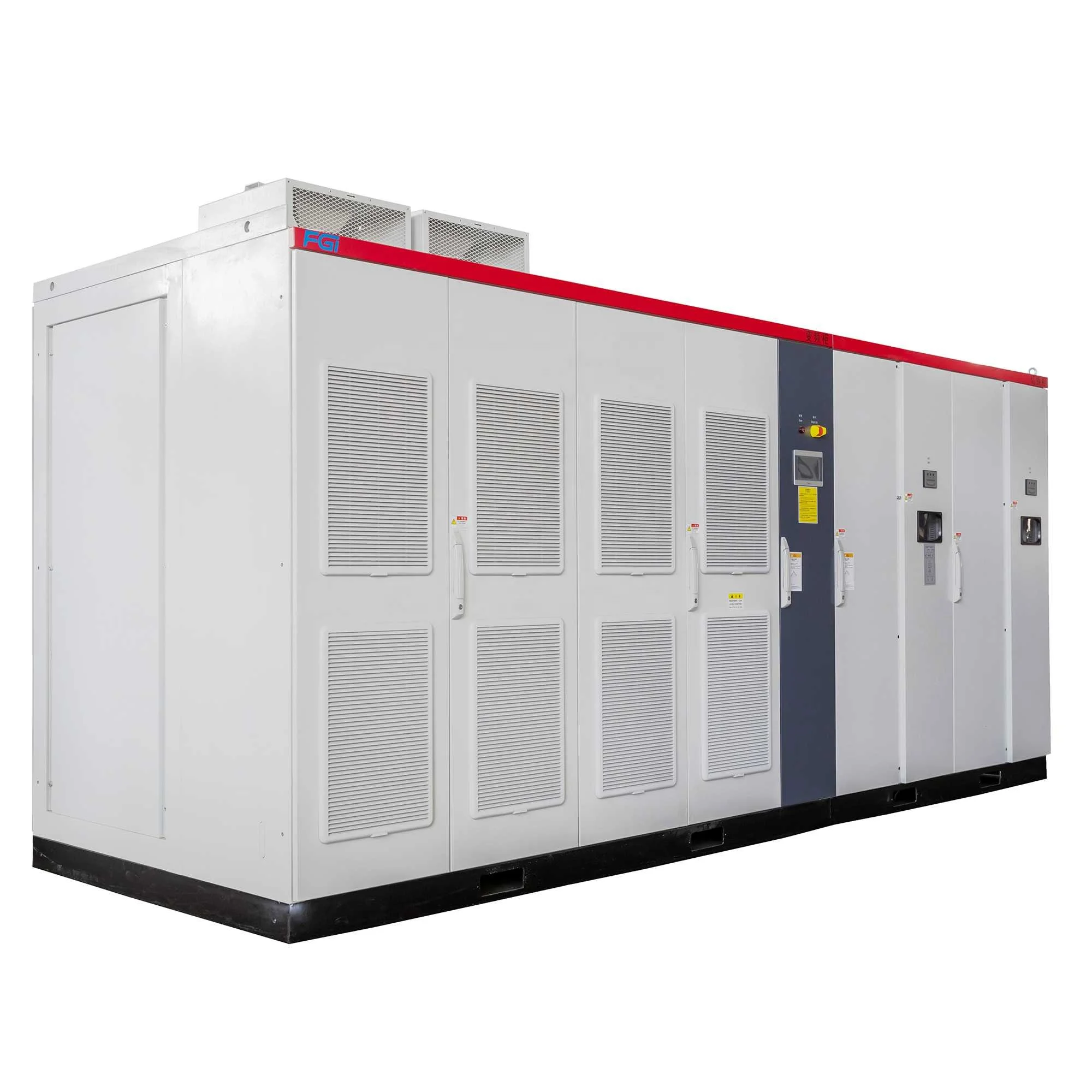

New Arrivals Easydrive 300KW 0.3MW 3000KW 3MW Adjustable speed Drive Medium Voltage High Voltage Inverter for Chemical Fields
- Category: >>>
- Supplier: Fgi Science And Technology Co. Ltd.
Share on (1600814545291):
Product Overview
Description
Product Description

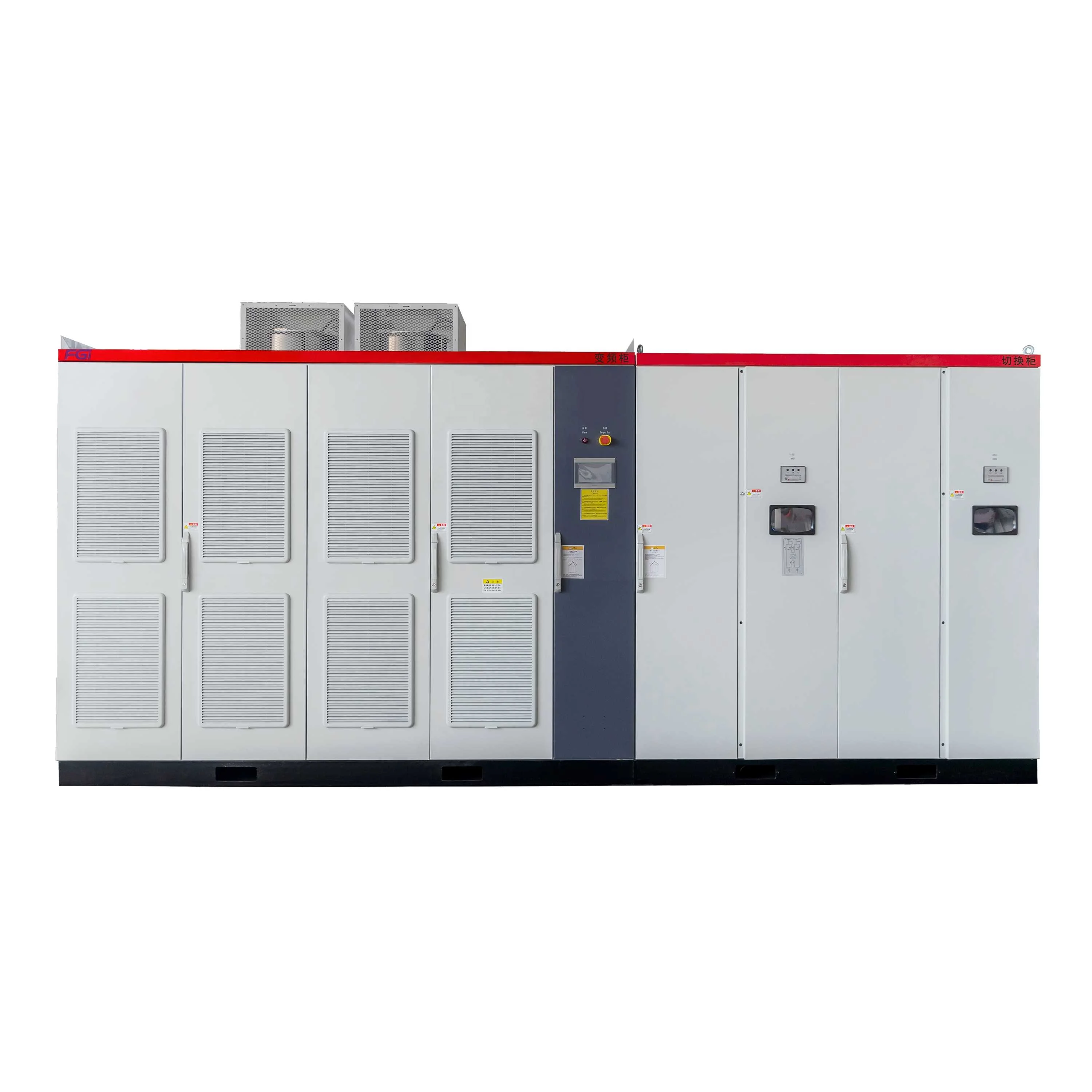

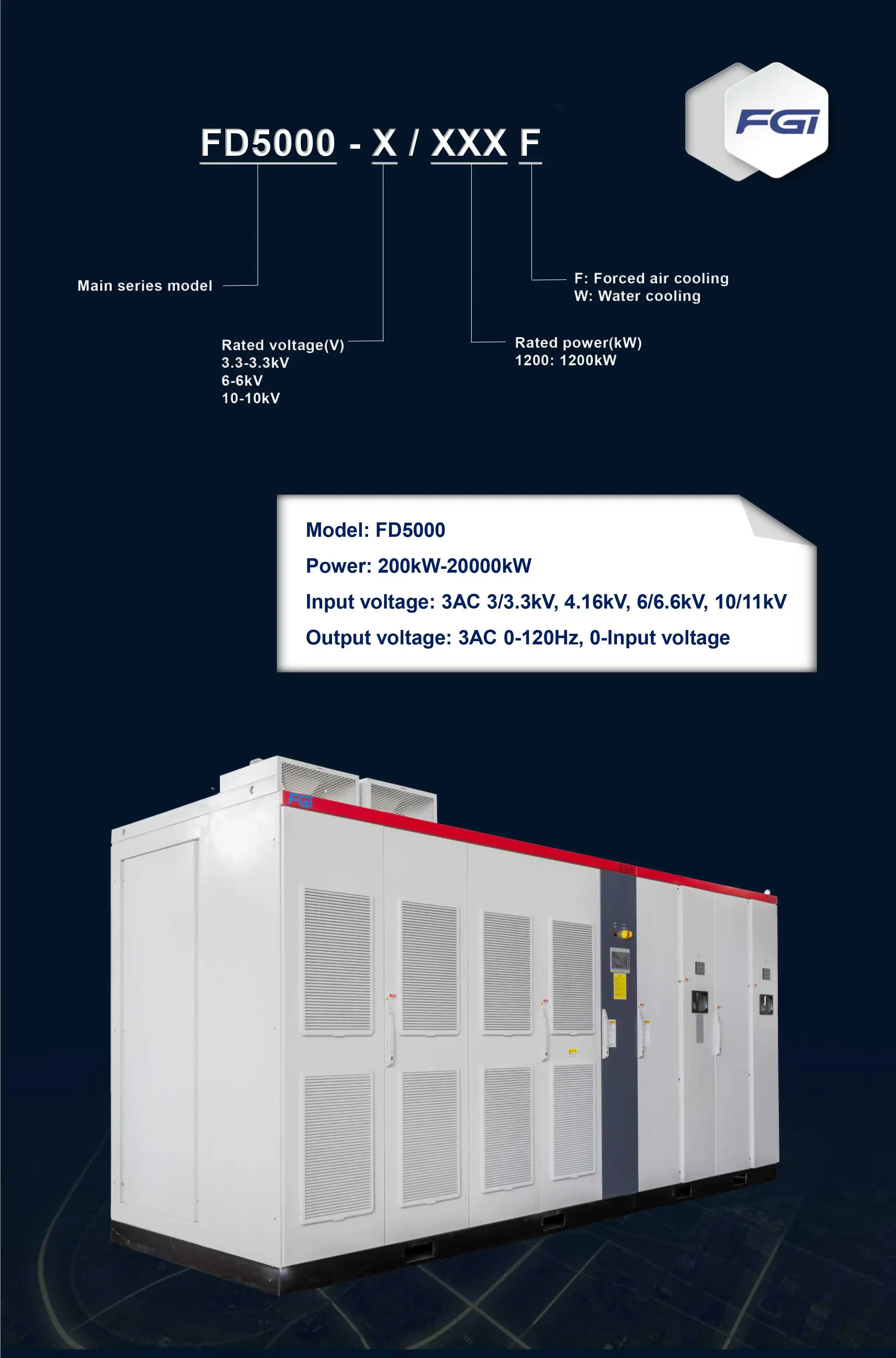

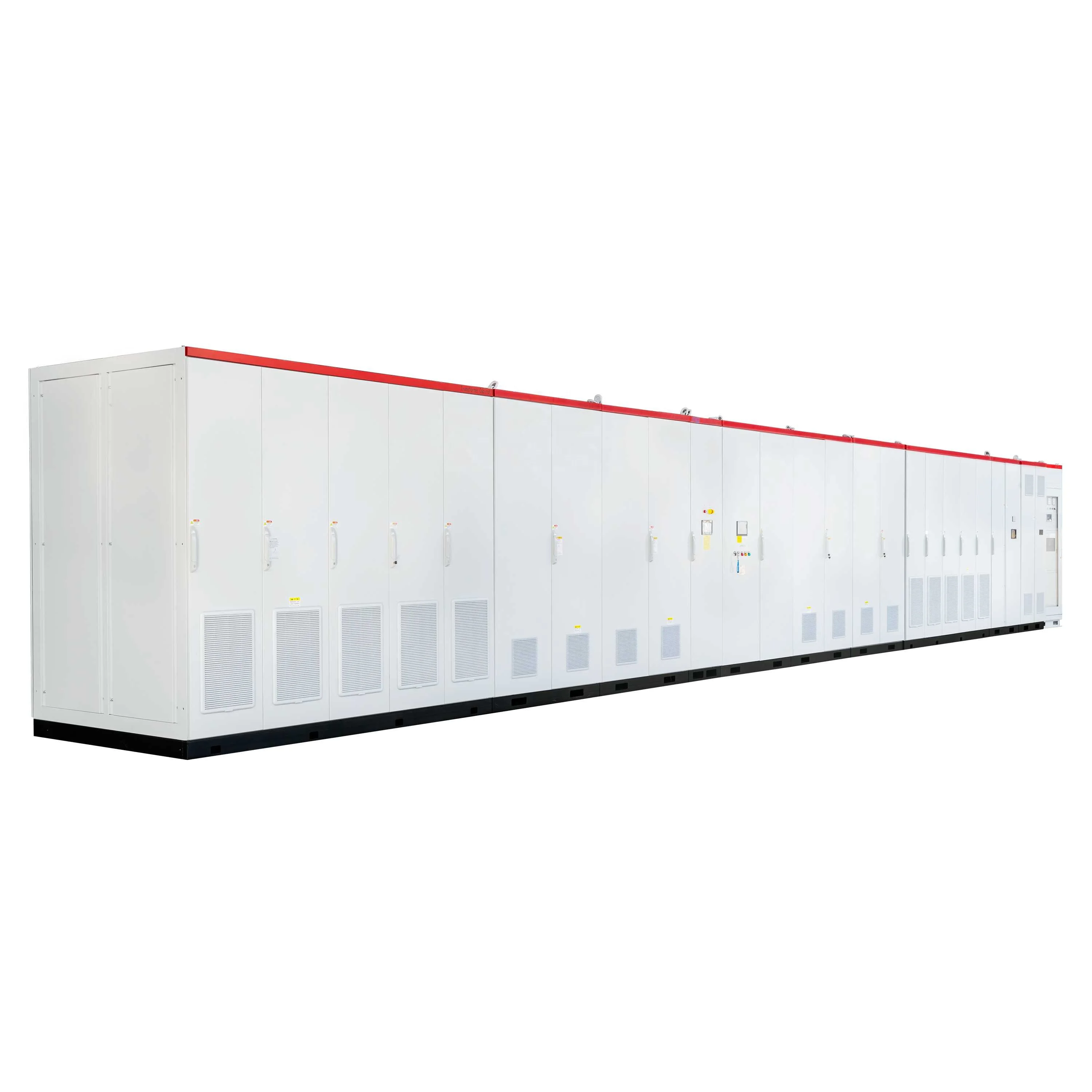

FD5000 series

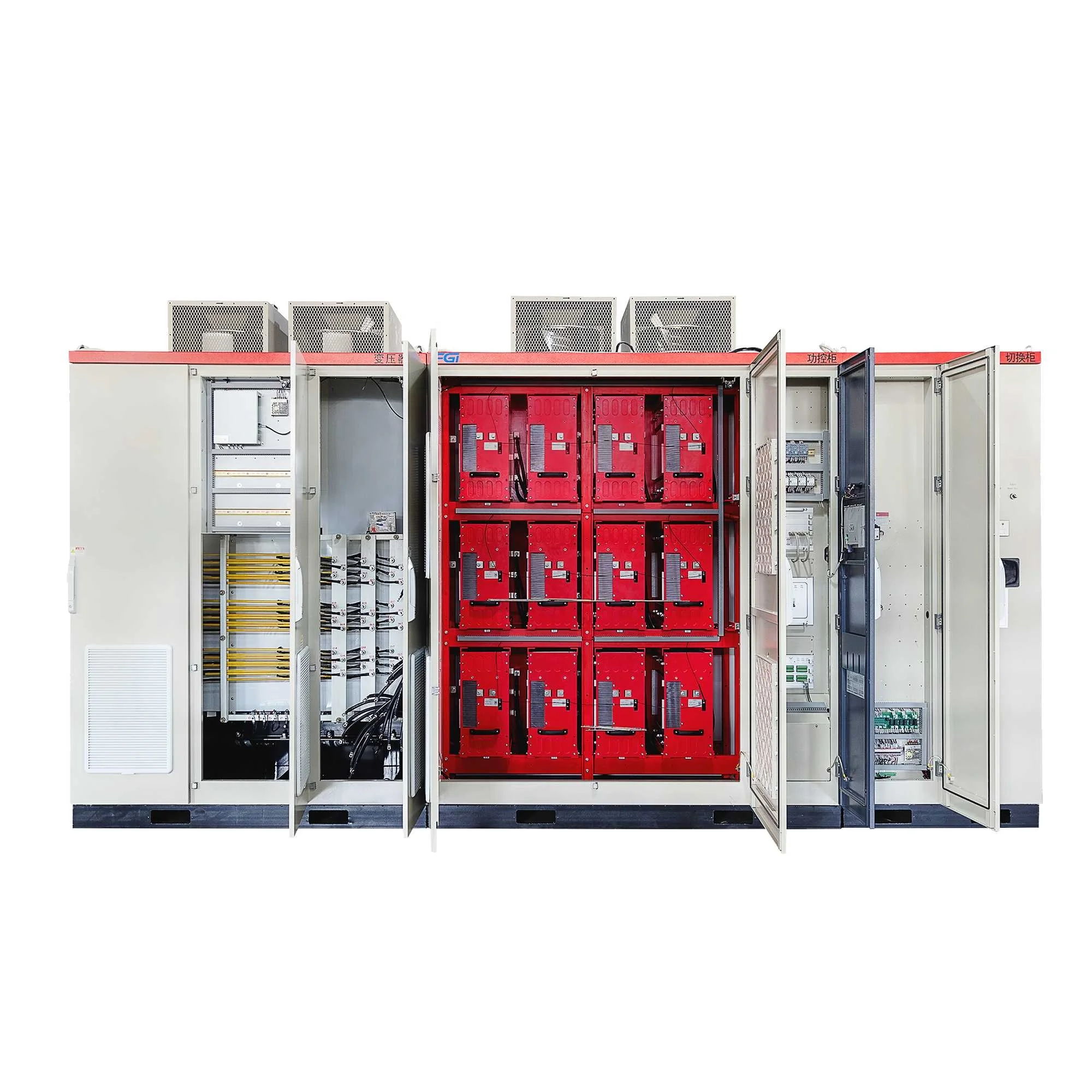

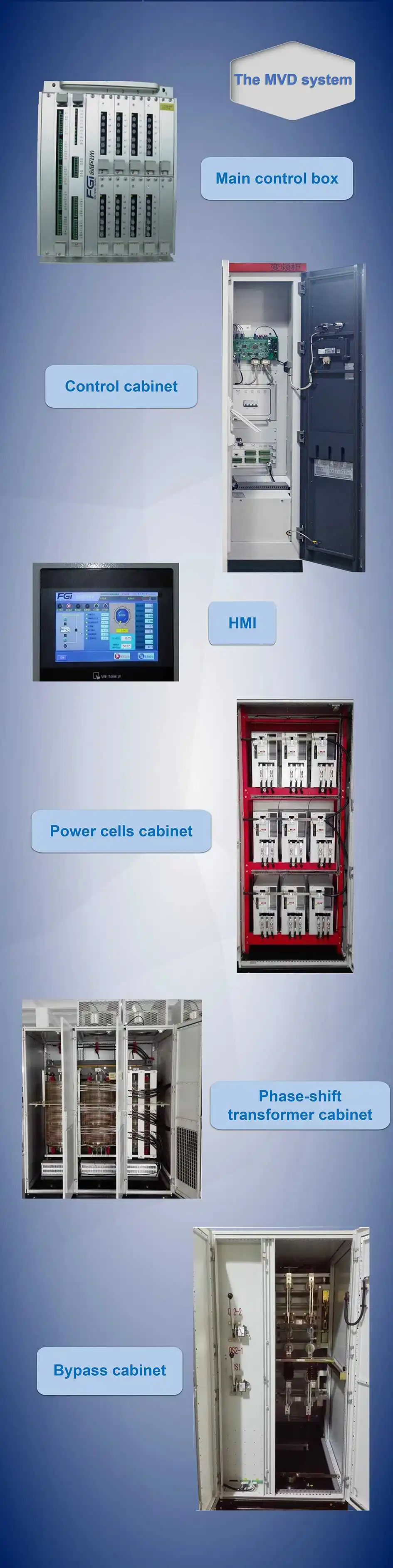

The FD5000 series high voltage inverter is high-high voltage device, which is controlled by DSP, with the SVPWM and cell in series multi-level technology to guarantee the inverter suits different industrial fields. The product was awarded as national key new products in 2003,high voltage hoister inverter was awarded as National Torch Project in 2005 and funded by Ministry of Science and Technology Innovation Fund for SMEs project. The FD5000 series high voltage inverter includes the phase shifting transformer, power cell and controller.
Details Images
Product Paramenters
Rated output | 105% continuing 130% 60 seconds 150% 3 seconds 180% turning off | ||
Output voltage | Three phase：0-Reated voltage | ||
Output frequency | 0~120Hz | ||
output wave | Multiple SPWM sine waves | ||
Input voltage | Phase, Frequency, Voltage | Three phase，50Hz, 3/3.3/6/6.6/10/11kV | |
Vibration range | Voltage：-10%~+10% Frequency：±5%； Continuous running at the low power of -15% ~ -35% | ||
Input and output terminals basic features | Input digital terminals | 15 | |
Input analog terminals | 3 (4~20mA) | ||
Output digital terminals | 15 | ||
Output analog terminals | 4 (4~20mA) | ||
Start frequency | The value can be set from 0 to 10Hz | ||
Analog setting: 0.3% of the highest frequency setting value (25 ±100C) Digital setting: 0.1% of the highest frequency setting value (-10~+500C) | |||
Resolution | Analog setting: 0.05% of the highest frequency setting value Digital setting: 0.01 Hz (less than99.99Hz) , 0.1Hz ( larger than100Hz) | ||
Efficiency | >98% (at rated output power) | ||
Power factor | >0.95 | ||
Current harmonic distortion index (THDi) | Not more than 5% | ||
MTBF | >100,000 hours | ||
Control features | The time of acceleration and deceleration | 0.1~6000.0s, acceleration and deceleration time can be set separately | |
The feature of voltage and frequency | Set by the V/F curve | ||
PID | Standard PID function build-in | ||
V/F curve, Compensation for the low frequency, Rated current, The value of the protection current | |||
electromagnetic coupling and more optical fiber channels | |||
The input control voltage | AC 220V / 2kVA | ||
Communication protocol | Modbus (standard) / Profibus (optional) | ||
Run | Operation modes | HMI, Remote control, Host computer control (optional) | |
Frequency setting modes | Setting on touch screen, Multistage speed setting, Analog signal setting (0-20 mA) | ||
The running state | Instructions of relays, Fault, Alarm, Running or stop | ||
Input/output voltage, Input/output current, setting value, Power cells states, Running states, Transformer states, DC bus voltage of power cells. | |||
Protection | Protection function | Over-current of the motor, Over-voltage of the inverter, Under-voltage of the inverter, Over-current of the cell, Over-voltage of the cell, Over-heat of the cell, Lack phase of cell, Communication failure. | |

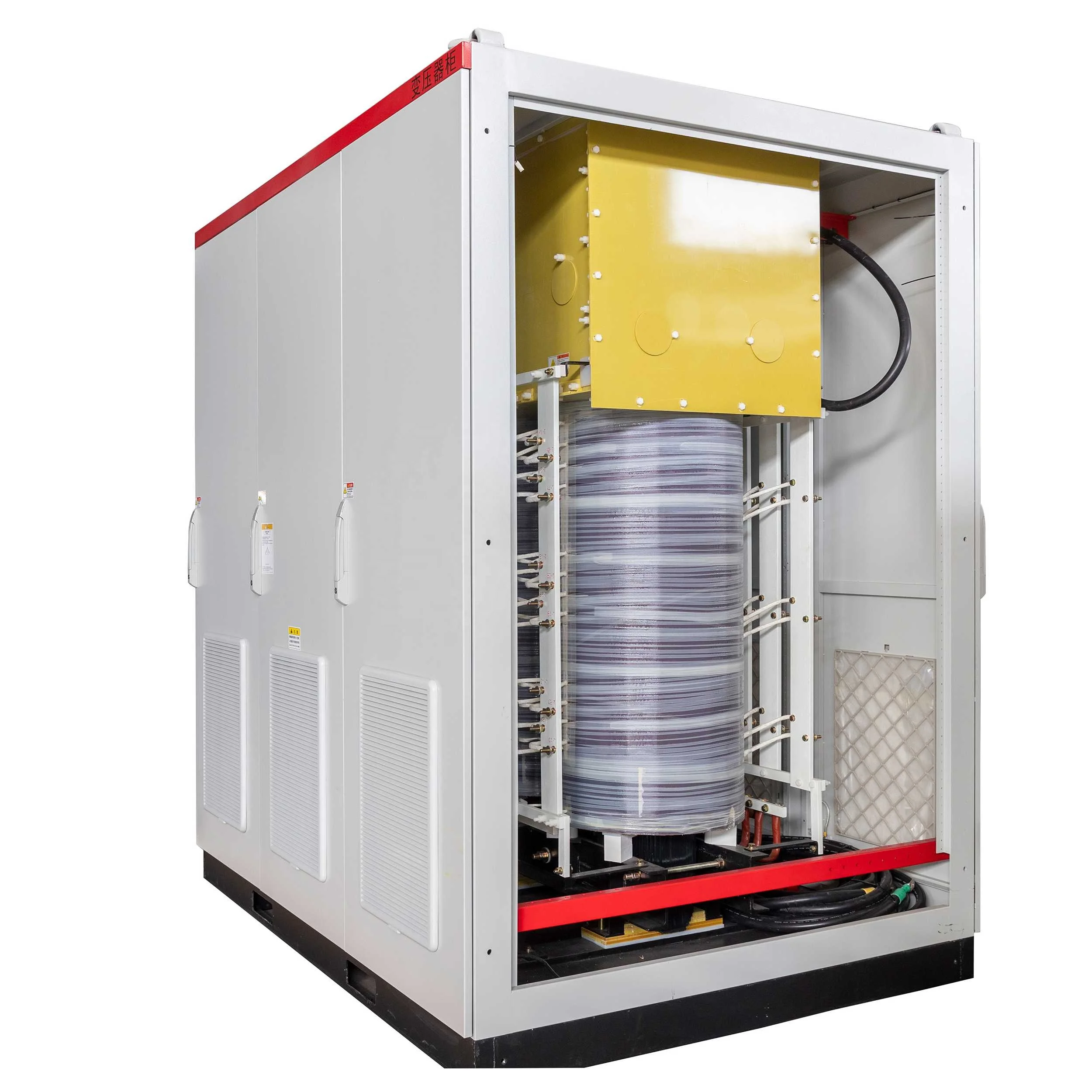

Phase shifting transformer | Type | Dry multi-winding | |
Material | Copper | ||
Insulation class | H (180°С) | ||
Additional taps on the primary side | -5%, 0, +5% | ||
Winding temperature monitoring | built-in controller, indicator placed on the front panel | ||

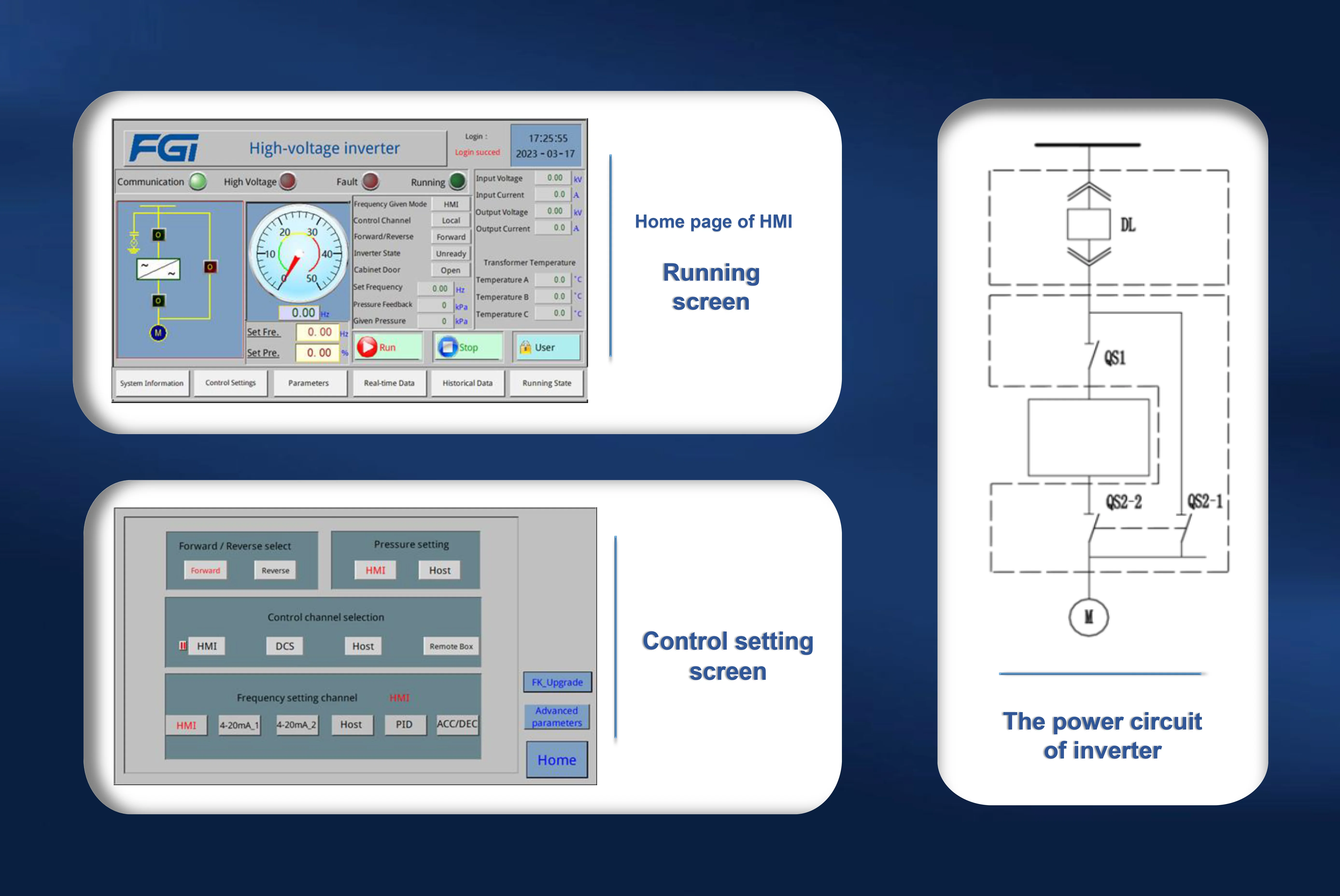

HMI | Size | 10.4 inches | |
Language | English, Russian, etc. | ||
Environment | Application fields | Indoor, Non-corrosive and conductive gas, dust, direct sunlight, the altitude below 1,000 meters (high altitude can be customized) | |
Temperature and humidity | -10℃~+50℃, higher than 40℃, output power derated 20~90%RH, no condensation | ||
Vibration | 5m/ s2 (below 0.6g) | ||
Storage temperature | -20~+65℃, short time transportation allowed | ||
Cooling method and shell safety level | Forced air cooling / IP31 | ||
