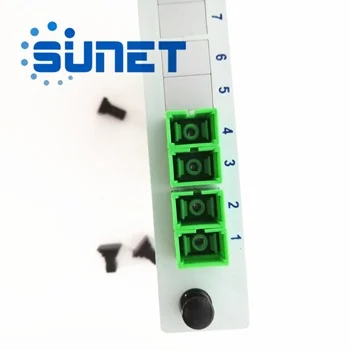

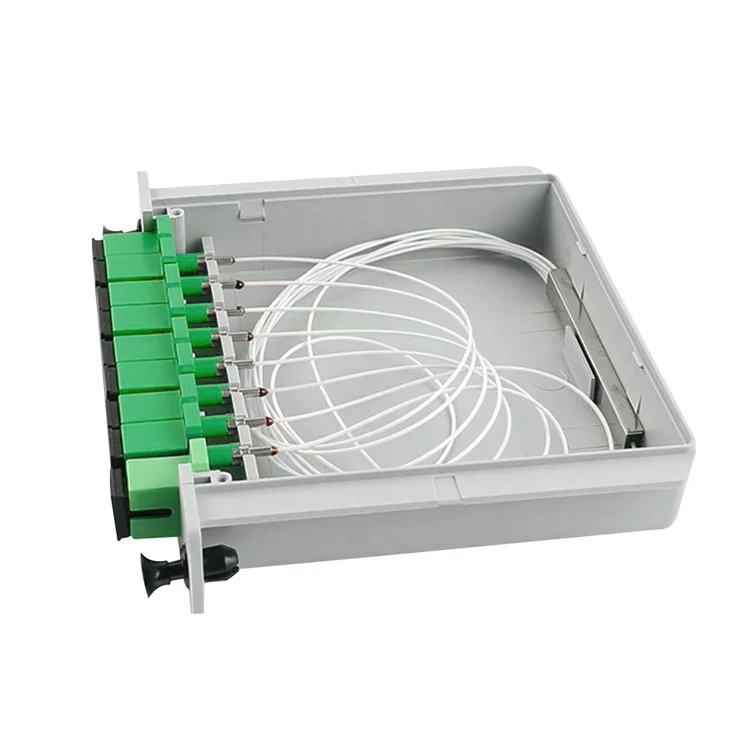

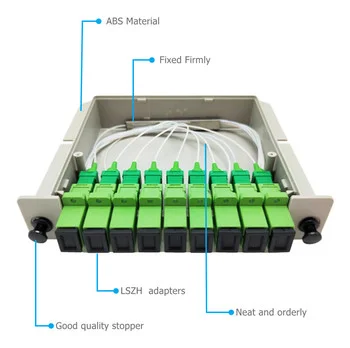

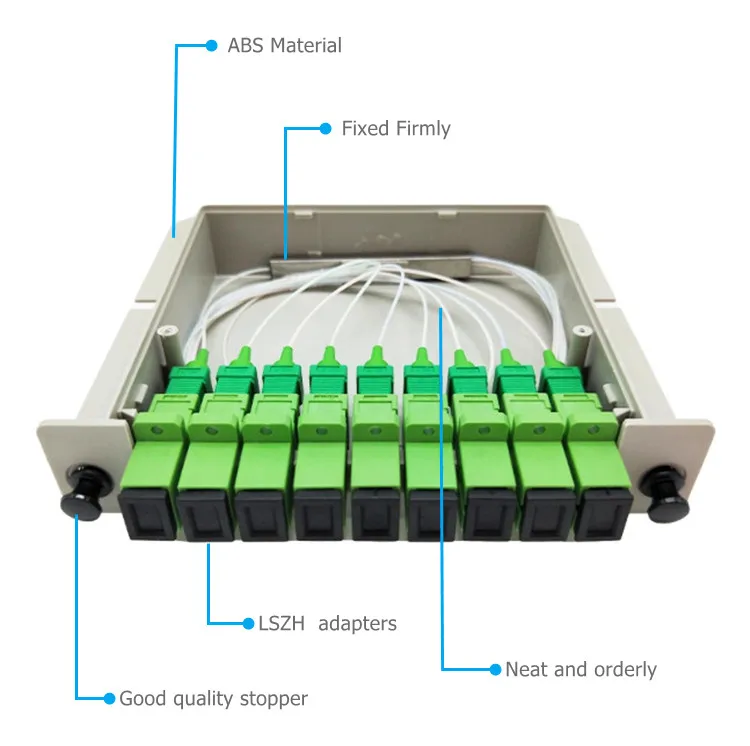

FTTH Sunet 1x8 SC/UPC SC/APC Cassette Card LGX Module 1:8 Ports Fiber Optical PLC Splitter
- Category: >>>
- Supplier: Qingdao Sunet Technologies Co. Ltd.
Share on (1600814546358):
Product Overview
Description
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | SMF-28e or customer specified | |||||
| Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 ℃)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40~85 | |||||
| Storage Temperature (℃) | -40~85 | |||||

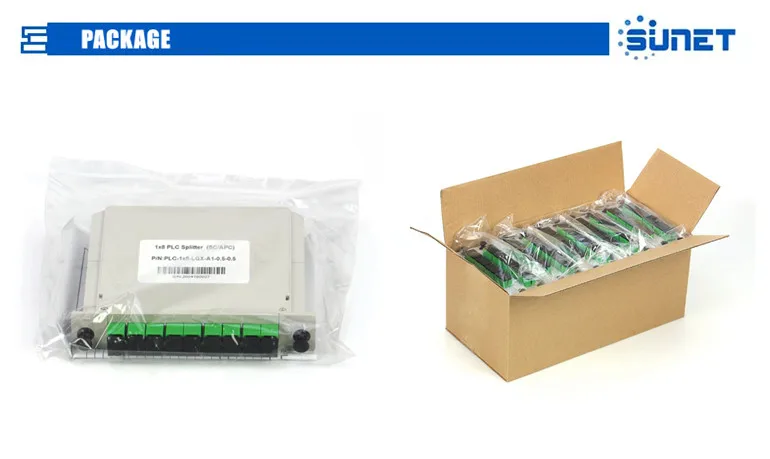

| Packaging Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4 |
