6kg 8kg 9kg 12kg 18kg 22kg 24kg 30kg Light Steel Rail Light Rail Railway Steel Rail Railway Rail Track For Train | ||
Standard | GB | |
Steel Type | QU70 QU80 QU90 QU100; | |
Alloy Or Not | Non-Alloy | |
Tolerance | ±1% | |
1.Seaworthy Packing; 2.Wooden Case; 3.Carton,Woven Bag Or At Client's Requires; | ||
Delivery Time | 8-14 days | |
Product name | Light rail | |
MOQ | 25 tons | |
Length | 1-12m | |
Transport Package | Request | |
PaymentTerm | L/CT/T(30%TTDeposit) | |
Trade term | CIF CFR FOB | |
Delivery state | Ingot | |
1.Very Fast Delivery Time 2.High Quality And Reasonable Price 3.Sizes Are Enough 4.Many In stocks In warehouse 5.Provide The Sample For Free |
China Standard Light Rail (YB222-63) | ||||||||||||||
Size | Head Width (mm) | Bottom Width (mm) | Rail Height (mm) | Web Thickness (mm) | Weight (Kg/m) | Material | Length (m) | |||||||
6kg | 25.4 | 50.8 | 50.8 | 4.76 | 5.98 | Q235 | 6-12 | |||||||
9kg | 32.1 | 63.5 | 63.5 | 5.90 | 8.94 | Q235 | 6-12 | |||||||
12kg | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 | Q235/55Q | 6-12 | |||||||
15kg | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | Q235/55Q | 6-12 | |||||||
18kg | 40 | 80 | 90 | 10 | 18.06 | Q235/55Q | 6-12 | |||||||
22kg | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 | Q235/55Q | 6-12 | |||||||

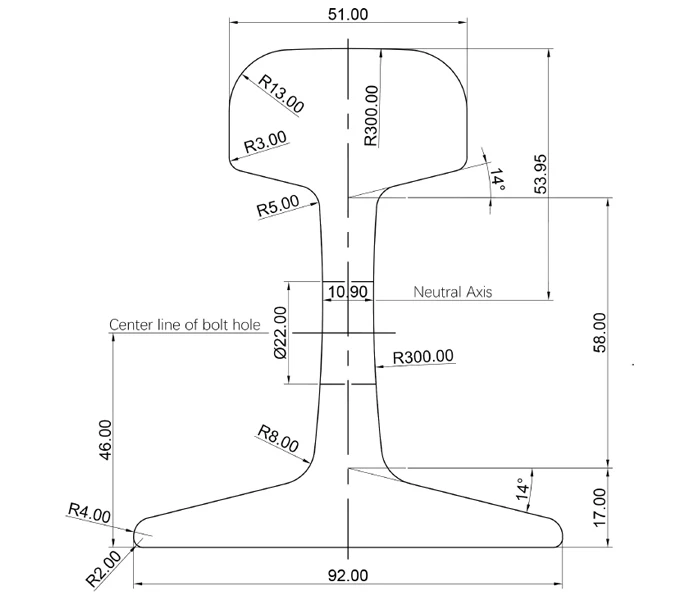

24kg | 51 | 92 | 107 | 10.9 | 24.46 | Q235/55Q | 6-12 | |||||||
30kg | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | Q235/55Q | 6-12 | |||||||
38kg | 134 | 114 | 68 | 13 | 38.733 | 50Mn/U71Mn | 12.5-25 | |||||||
43kg | 140 | 114 | 70 | 14.5 | 44.653 | 50Mn/U71Mn | 12.5-25 | |||||||
45kg | 145 | 126 | 67 | 14.5 | 45.546 | 50Mn/U71Mn | 12.5-25 | |||||||
50kg | 152 | 132 | 70 | 15.5 | 51.514 | 50Mn/U71Mn | 12.5-25 | |||||||
60kg | 176 | 150 | 73 | 16.5 | 60.64 | 50Mn/U71Mn | 12.5-25 | |||||||
QU70 | 120 | 120 | 70 | 28 | 52.8 | U71Mn | 12 | |||||||
QU80 | 130 | 130 | 80 | 32 | 63.69 | U71Mn | 12 | |||||||
QU90 | 150 | 150 | 100 | 38 | 88.96 | U71Mn | 12 | |||||||
QU100 | 170 | 170 | 120 | 44 | 118.1 | U71Mn | 12 |
EN 13674.1 Standard Steel Rails | ||||||||||||||
54E1 | 72.22 | 159 | 140 | 16 | 54.77 | R260,R350HT,R350LHT. | 12-25 | |||||||
60E1 | 72 | 172 | 150 | 16.5 | 60.21 | |||||||||
60E2 | 72 | 172 | 150 | 16.5 | 60.03 | |||||||||
AREMA Standard Steel Rail | ||||||||||||||
Size | Dimension | Weight | Material | Length | ||||||||||
Head Width | Height | Base Width | Web Thickness | KG/M | M/PCS | |||||||||
ASCE25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | Q235 | 6-12 | |||||||
ASCE30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | Q235/55Q | ||||||||
ASCE40 | 47.62 | 88.90 | 88.9 | 9.92 | 19.84 | |||||||||
ASCE60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | |||||||||
ASCE75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 900A/U71MN | 12 | |||||||
ASCE85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 | |||||||||
ASCE90 | 65.09 | 142.88 | 130.18 | 14.29 | 44.65 | |||||||||
ASCE115 | 69.06 | 168.28 | 139.7 | 15.88 | 56.9 | SS,900A | 11.89-25 | |||||||
ASCE136 | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 | |||||||||
DIN536 Crane Rail | ||||||||||||||
Size | Dimension | Weight | Material | Length | ||||||||||
Head Width | Height | Base Width | Web Thickness | KG/M | M/PCS | |||||||||
A45 | 45 | 55 | 125 | 24 | 22.1 | 50MN,U71MN,900A. | 12 | |||||||
A55 | 55 | 65 | 150 | 31 | 31.8 | |||||||||
A65 | 65 | 75 | 175 | 38 | 43.1 | |||||||||
A75 | 75 | 85 | 200 | 45 | 56.2 | |||||||||
A100 | 100 | 95 | 200 | 60 | 74.3 | |||||||||
A120 | 120 | 105 | 220 | 72 | 100 | |||||||||
A150 | 150 | 150 | 220 | 80 | 150.3 | |||||||||
JIS E1103/1101 STANDARD | ||||||||||||||
Size | Dimension | Weight | Material | Length | ||||||||||
Head Width | Height | Base Width | Base Width | KG/M | M/PCS | |||||||||
JIS 15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | Q235,55Q | 6-11 | |||||||
JIS 22KG | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 | |||||||||
JIS 30A | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | |||||||||
JIS 37A | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 50MN,U71MN,900A | 10-12 | |||||||
JIS 50N | 65 | 153 | 127 | 15 | 50.4 | |||||||||
CR73 | 100 | 135 | 140 | 32 | 73.3 | |||||||||
CR100 | 120 | 150 | 155 | 39 | 100.2 |
UIC860 Standard Steel Rail | ||||||||||||||
Size | Dimension | Weight | Material | Length | ||||||||||
Head Width | Height | Base Width | Web Thickness | KG/M | M/PCS | |||||||||
UIC54 | 70 | 159 | 140 | 16 | 54.43 | 900A/U71Mn | 12-25 | |||||||
UIC60 | 74.3 | 172 | 150 | 16.5 | 60.21 |
