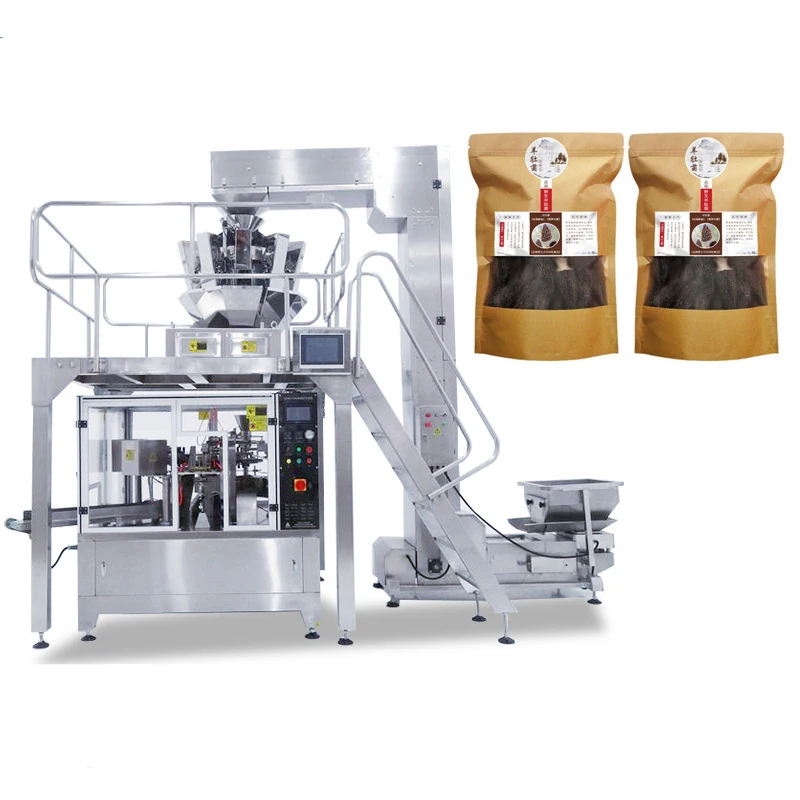

Multi Function Automatic Weighing Packaging Machine 10/14 Heads Sunflower Seed Pistachio Nut Snack Wrapping Packager Paper
- Category: >>>
- Supplier: Shanghai Leadworld Machinery Technology Co. Ltd.
Share on (1600814591986):
Product Overview
Description
1. Volume：200L
2. Capacity: 180kg/batch,not less than 4 batchs per hour.
3. Knife-chop speed: 750/1500/3000/4500r/min
4. Power: 54KW
5. Weight：2500kg
Made of high-quality stainless steel, reliable and useable, easy to wash, and well sealed. It is opened backward, and ensures accuracy of processing. The machine appearance is special treatment, coordination generous. Machine is ingenious design, noise and vibration small. Selection of machines imported bearings, to use stainless steel pot for the casting of special treatment. The combination of reasonable chopped to cut product fineness, and small warming, the greatest degree of emulsified meat products increased level of flexibility and delicate degrees, the meat production of major equipment. This makes the machine work smoothly safely silently. It is one of the best machines of the industry.
2. Capacity: 180kg/batch,not less than 4 batchs per hour.
3. Knife-chop speed: 750/1500/3000/4500r/min
4. Power: 54KW
5. Weight：2500kg
Made of high-quality stainless steel, reliable and useable, easy to wash, and well sealed. It is opened backward, and ensures accuracy of processing. The machine appearance is special treatment, coordination generous. Machine is ingenious design, noise and vibration small. Selection of machines imported bearings, to use stainless steel pot for the casting of special treatment. The combination of reasonable chopped to cut product fineness, and small warming, the greatest degree of emulsified meat products increased level of flexibility and delicate degrees, the meat production of major equipment. This makes the machine work smoothly safely silently. It is one of the best machines of the industry.

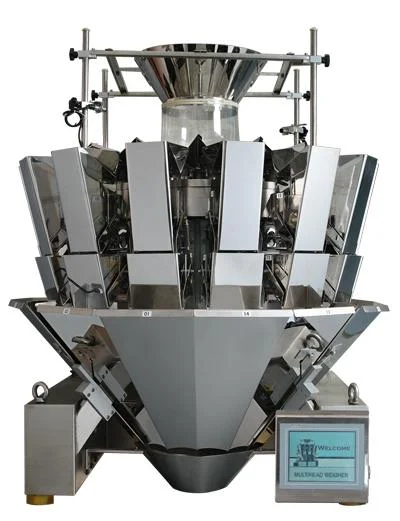

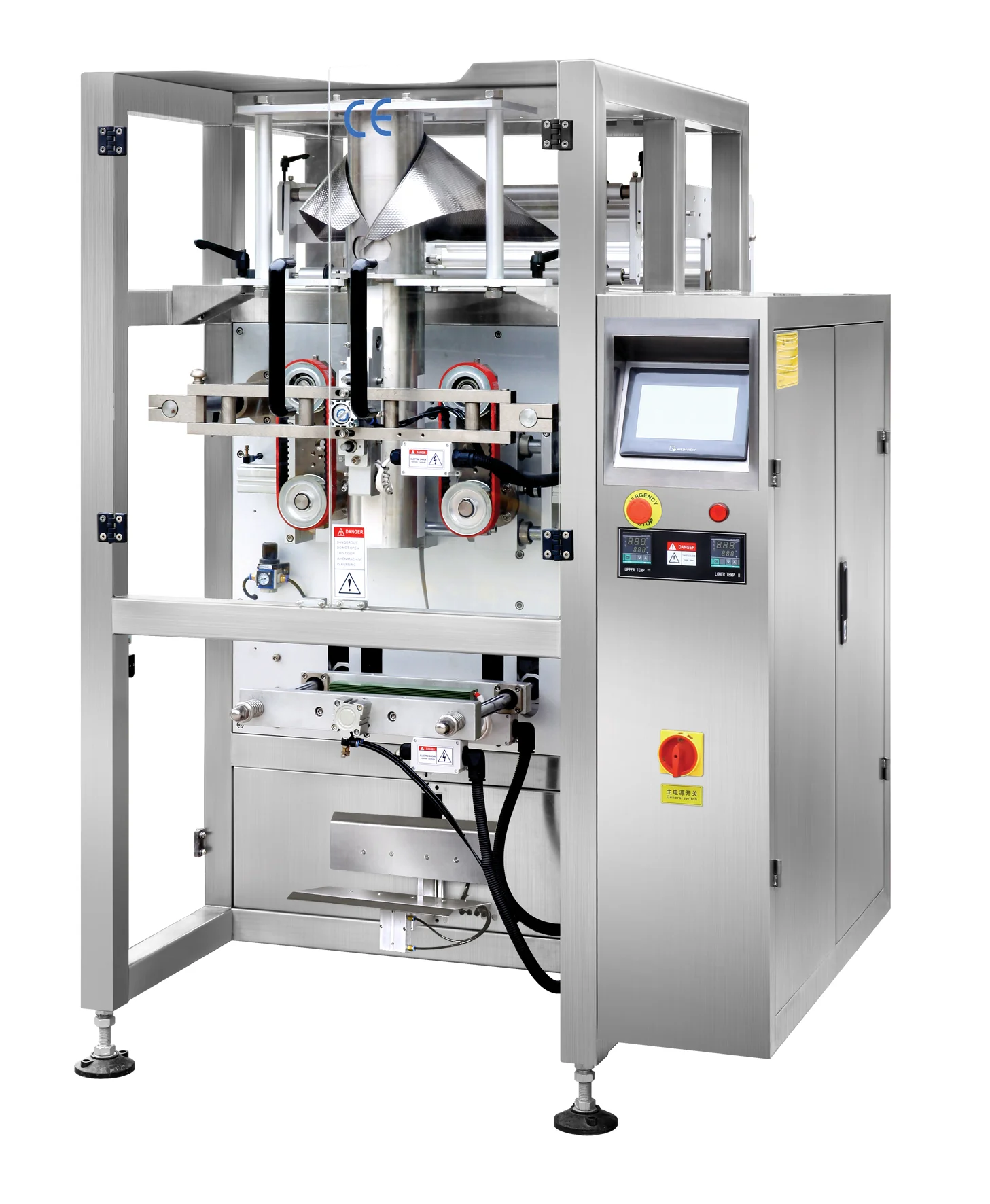

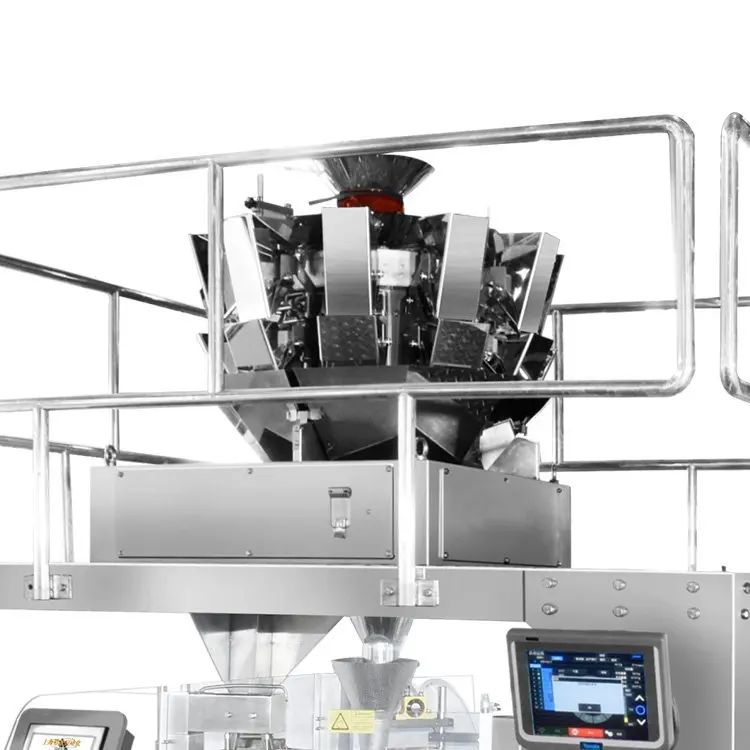

Automatic packing machine | 14 heads Multi-heads filling | |||||
Type | LWT-720 | Model | LWT-14 | |||
Bag length | 100-420mm(L) | Max weight capacity(once) | 10-2000g | |||
Bag width | 80-350mm(W) | Weighing Accuracy(g) | ±0.5-1.5g | |||
Max width of roll film | 720mm | Max. Weighing Speed | 120Bags/Min (depends on weight) | |||
Packing speed | 5-50bags/min | Hopper Volume | 2500 mL | |||
Air consumption | 0.65mpa | Control Panel | 7" LCD Touch Screen | |||
Gas consumption | 0.4m³/min | Options | Dimple Plate/Timing Hopper/Printer/Rotary Top Cone | |||
Power voltage | 220V/50HZ | Driving System | Step Motor | |||
Power | 4KW | Power Requirements | 220V / 1500W / 50/60HZ / 10A | |||
Dimension | (L)1500mm×(W)1170mm×(H)1650mm | Packing Dimension(mm) | 1720(L) ×1100(W) ×1230(H) | |||
Weight of machine | 750Kg | Gross WGT | 490KG | |||

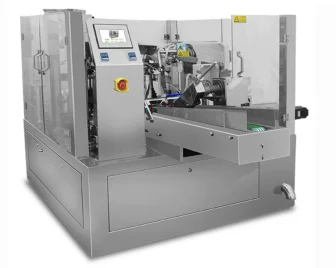

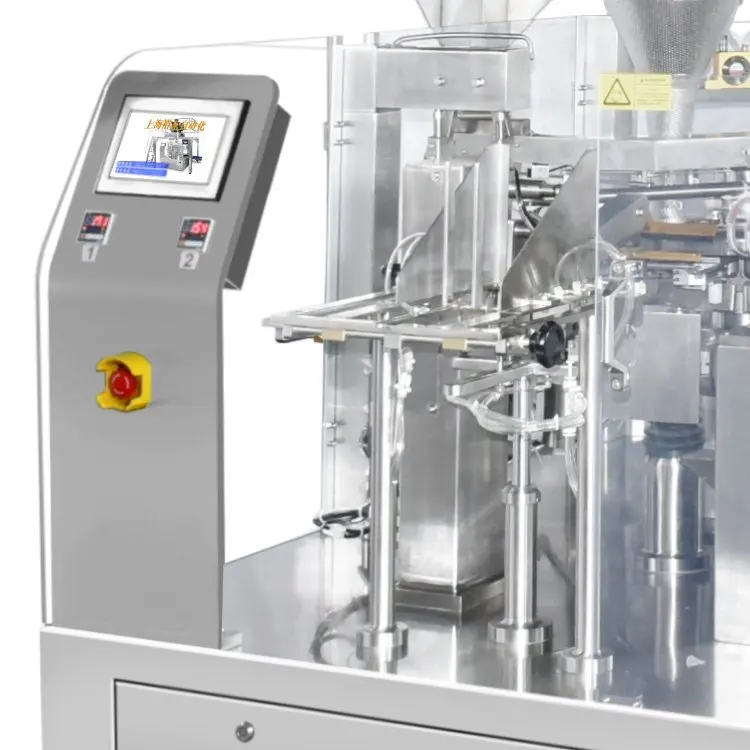

Introduce:
The machine can quickly change the packaging specifications, and the height of the automatic bag picking device can be adjusted at one time. All parts in contact with food or packaging are processed with food-grade 304 stainless steel or other materials that meet the hygiene requirements of food (medicine) to ensure the hygiene and safety of food (medicine).
The equipment is easy to operate, using advanced PLC and POD (touch screen) electrical control system, friendly man-machine interface, convenient and flexible operation. If the material is not cut, it will not be sealed, and the waste of packaging bags will be eliminated.
The equipment is easy to operate, using advanced PLC and POD (touch screen) electrical control system, friendly man-machine interface, convenient and flexible operation. If the material is not cut, it will not be sealed, and the waste of packaging bags will be eliminated.

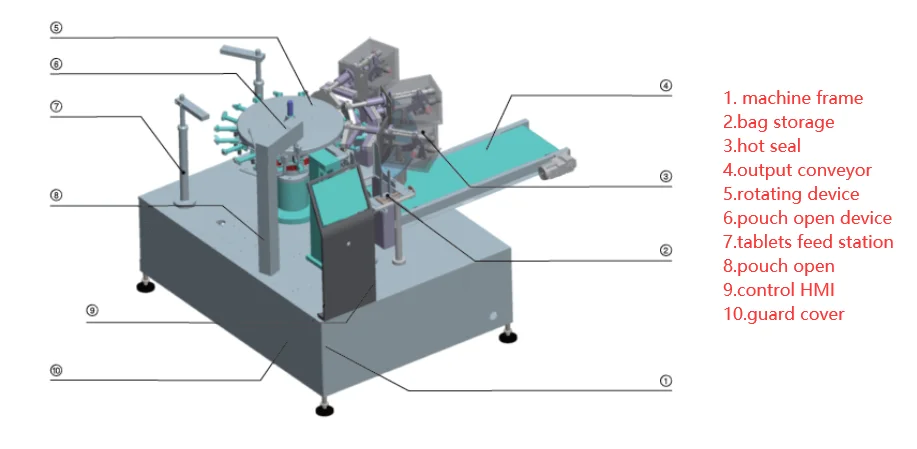

machine type | LWZDH-230A |
Equipment materials | 304 stainless steel |
Pneumatic Components | Germany Festo FESTO, Japan SMC (standard parts), Taiwan AirTAC (non-standard parts) |
drive mode | Mechanical transmission (cam gear lever fully mechanical mode) |
Measurement method | counter |
Applicable materials | Pill/tablets |
work process | 1, upper bag 2, reserved space 3, open bag, support bag 4, blank one 5, blank two 6, straighten 7, seal one 8, seal two |
sealing method | According to the product, it can be sealed twice to ensure that the seal is beautiful and firm |
packing speed | 35 packs-45 packs/min (depending on product characteristics and cutting method) |

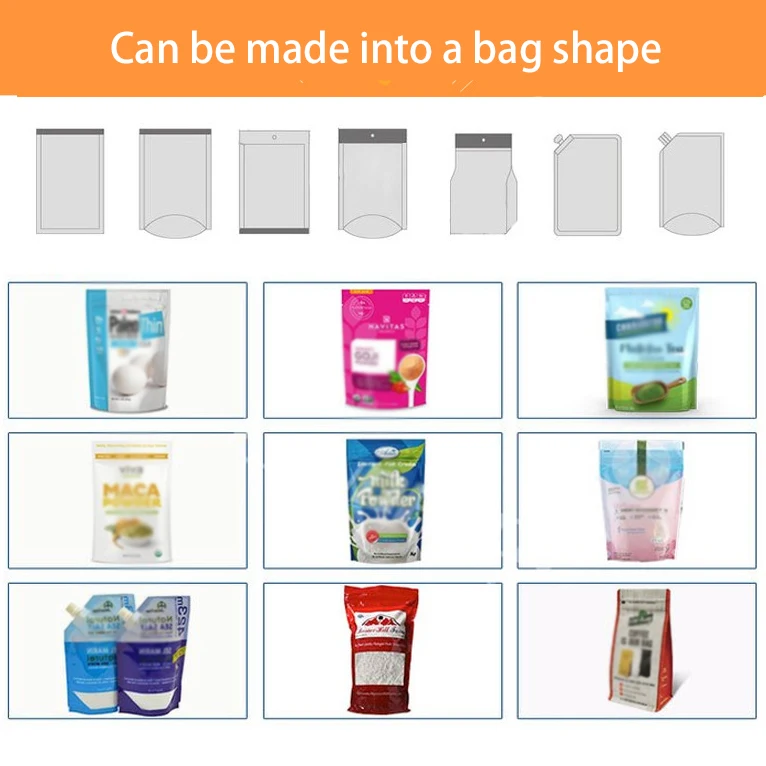

Packaging bag material | Stand-up bag, zipper bag, four-side sealing bag, three-side sealing bag, paper bag (surface covered with paper), etc. |
Packaging bag specifications | Width 100mm-230mm; Length 80mm-400mm |
total power | Host power ≈ 9kW |
Drive power | Three-phase 380V50HZ (non-national standard three-phase 380V60HZ) |
Machine shape | 2510mm×1600mm×1600mm (L×W×H) (excluding elevator) |
Use environment | Room temperature -10-40 degrees Celsius 30-90%RH, no dew, no corrosive gas, no dust and other harsh environments |

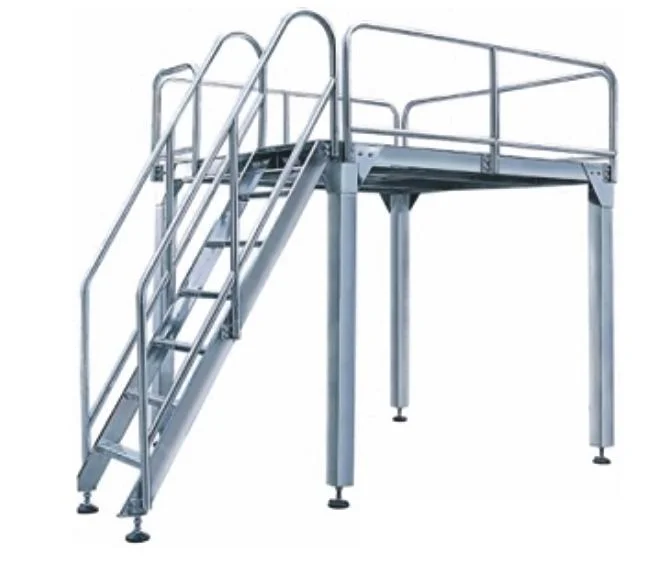

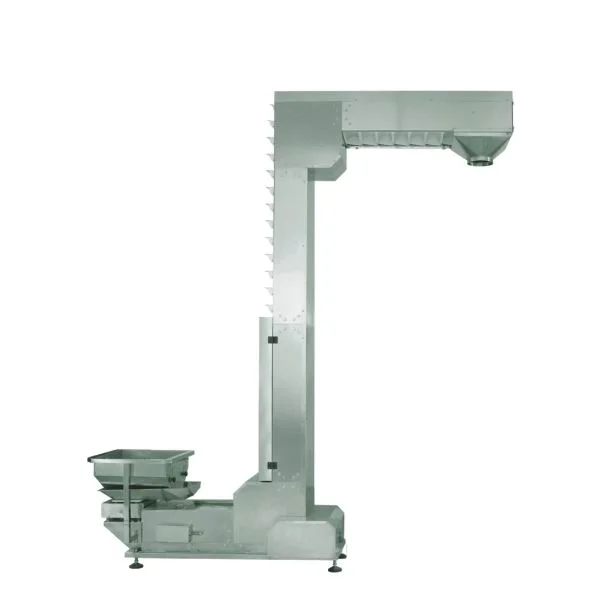

Platform | Elevator | |||||
Model | LWT-2Platform | Model | LWT-300 | |||
Maximum Loading Weight | 2T-3T | Convey speed | 3750mm/min | |||
Equipment Size | 2000mm*2000mm*2000mm | Power | 750W | |||
Net Weight | 350kg | Convey Measure | 4T/H(Rice) | |||
Overall size | 3000(L)×650(W)×3750(H)mm | |||||

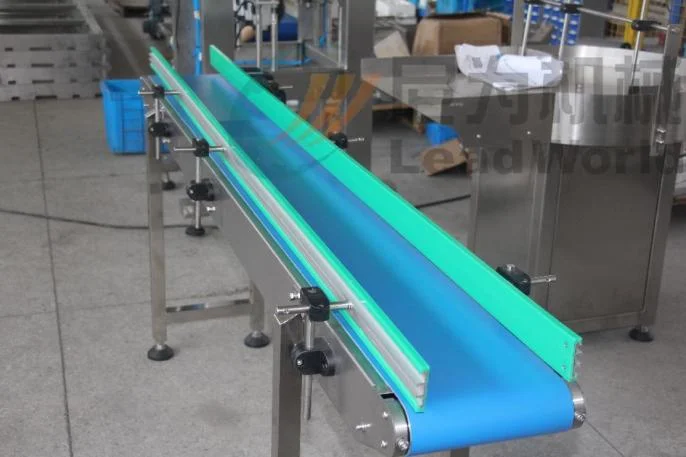

Detailed instruction:

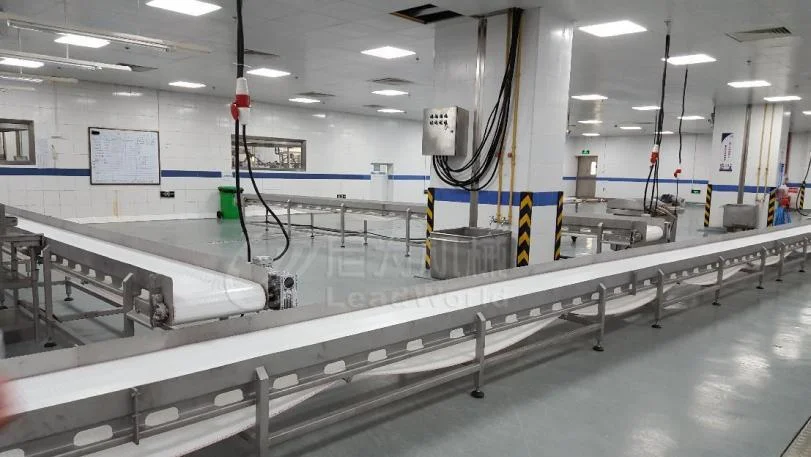

1.Conveyor body part:
1.1 Main body side chain plate:Plate thickness:δ2.0mm Material:SUS304.
When produced according to the actual size.
1.2 Roller:Material SUS304，diameter is based one the actual
load,cooperate with the plus or minus tolerance.
1.3 Riding wheel：Material Nylon processing molding，diameter is based one the actual load,cooperate with the plus or minus tolerance.
1.4 Bun foot：Nylon injection molding，Cooperate with stainless steel adjusting screw M16.
1.5 Guardrail part adopts big Caluminum trackCooperate with wear-resisting sheath；
1.6 Connecting plate:plate wicknessδ3.0mm Material:Stainless steel bending forming；
1.7 Accessories:Mounted Bearings、kinds of SUS304 screws,etc.
2.Conveying carrier part
2.1 Belt length
1.Conveyor body part:
1.1 Main body side chain plate:Plate thickness:δ2.0mm Material:SUS304.
When produced according to the actual size.
1.2 Roller:Material SUS304，diameter is based one the actual
load,cooperate with the plus or minus tolerance.
1.3 Riding wheel：Material Nylon processing molding，diameter is based one the actual load,cooperate with the plus or minus tolerance.
1.4 Bun foot：Nylon injection molding，Cooperate with stainless steel adjusting screw M16.
1.5 Guardrail part adopts big Caluminum trackCooperate with wear-resisting sheath；
1.6 Connecting plate:plate wicknessδ3.0mm Material:Stainless steel bending forming；
1.7 Accessories:Mounted Bearings、kinds of SUS304 screws,etc.
2.Conveying carrier part
2.1 Belt length

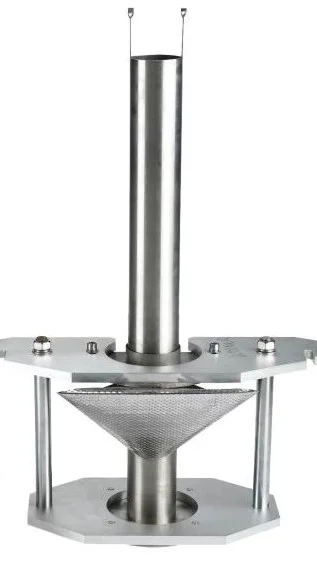

Collecting table | Bag former | |||||
Model | LWT-C | Packing machine has one bag forming tube. If the bag width is fixed, no need to buy extra tube. If you have different bag widths, you have to buy extra tubes. For example, you have 3 bag widths, you have to buy extra two tubes. If only the bag length change, no need to buy extra bag forming tube. You can modify the parameter on the touch screen. | ||||
Convey speed | Speed can be changed(fast or slow depends on your choice) | |||||
Diameter | 1.2m | |||||
Surface | Concave | |||||
Power | 220V/370W/50HZ | |||||
Weight of machine | 100KG | |||||
Packaging size | 1300mm(L)*380mm(W)*1300mm（H） | |||||

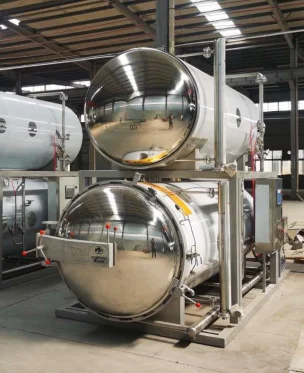

project | Content |
Retort inner diameter/cylinder length/volume | 1200mm /3600mm /about 4.5m3 |
Effective use size of sterilizer (length/width/volume) | 3600mm /800mm /800mm |
design pressure | 0.35Mpa |
maximum working pressure | 0.3Mpa |
Pressure test pressure | 0.44Mpa |
maximum operating temperature | 143℃ |
total installed power | Water pump 7.5kw，cycle pump 5.5kw，exchange use |
voltage | 380V |
Pot body material | SUS30408 |
pot body wall thickness | 5mm |
Footprint (L/W/H) | About 5500mm×2200mm×3100mm |
Explanation of the design plan
⚫According to the product information described by the customer, our company recommends the use of a stainless steel computerized automatic double-layer water bath/steam sterilizer.
⚫ The hot water is stored in the upper tank, which can be quickly filled during sterilization, the product heats up quickly, the product is completely immersed in the sterilization water, the temperature penetrates into the product in all directions, and the product matures quickly.
⚫ The design of this product is based on canned and flexible packaging sterilization, excluding glass bottles, the heating method is direct heating by a heating tube, the sterilization method is a circulating water bath, and the cooling method is
The formula is direct cooling.
⚫ The control method is fully automatic computer control, the operator is only responsible for entering and leaving the sterilization material, all sterilization processes are automatically controlled, and can also be manually controlled.
⚫ The quality of the equipment is stable, durable, and the optimally designed sealing structure is more durable and easy to maintain; easy to operate and easy to install, according to ergonomic
The design makes the machine safer and more convenient.
⚫ The hot water is stored in the upper tank, which can be quickly filled during sterilization, the product heats up quickly, the product is completely immersed in the sterilization water, the temperature penetrates into the product in all directions, and the product matures quickly.
⚫ The design of this product is based on canned and flexible packaging sterilization, excluding glass bottles, the heating method is direct heating by a heating tube, the sterilization method is a circulating water bath, and the cooling method is
The formula is direct cooling.
⚫ The control method is fully automatic computer control, the operator is only responsible for entering and leaving the sterilization material, all sterilization processes are automatically controlled, and can also be manually controlled.
⚫ The quality of the equipment is stable, durable, and the optimally designed sealing structure is more durable and easy to maintain; easy to operate and easy to install, according to ergonomic
The design makes the machine safer and more convenient.
Company Profile
LWT has always adhered to the business philosophy of innovation leading development, quality winning the market, and customer service first. With the goal of becoming the world's leading canning automatic production Packing line solution expert, it is committed to guiding the Production Packaging line industry's machinery production standards and actively promoting the improvement of the canning & Packaging industry's mechanical automation level.
LWT has always adhered to the business philosophy of innovation leading development, quality winning the market, and customer service first. With the goal of becoming the world's leading canning automatic production Packing line solution expert, it is committed to guiding the Production Packaging line industry's machinery production standards and actively promoting the improvement of the canning & Packaging industry's mechanical automation level.
