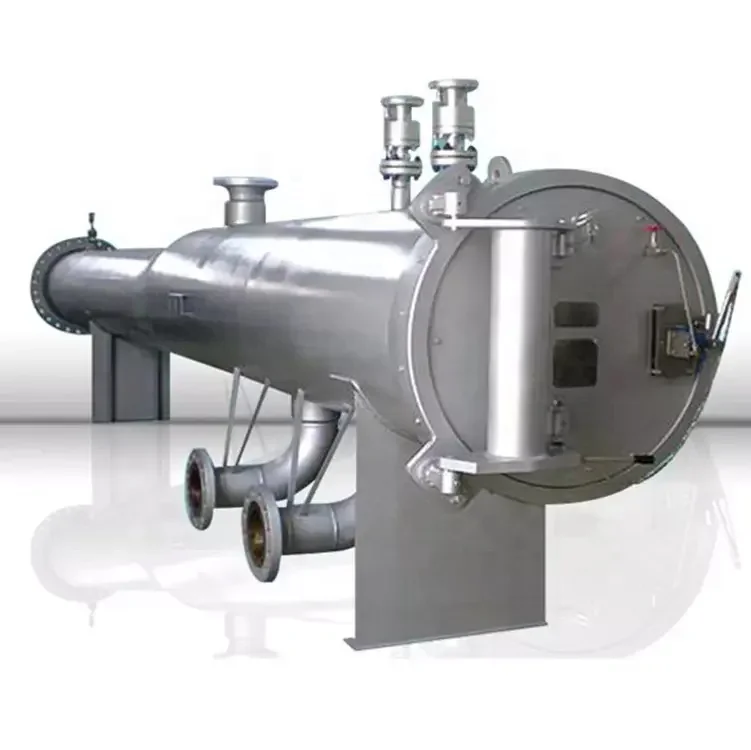

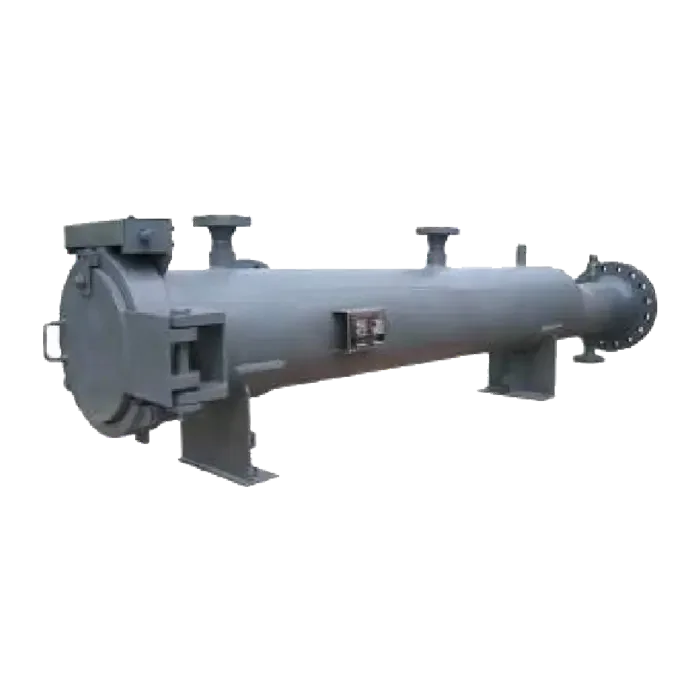

Pig Launcher and Pig Receiver With Clamp Ring Type Bandlocking For High Pressure Pipeline
- Category: >>>
- Supplier: Shenyang Emt Piping Technology Co. ltd.
Share on (1600814644429):
Product Overview
Description
Product Description

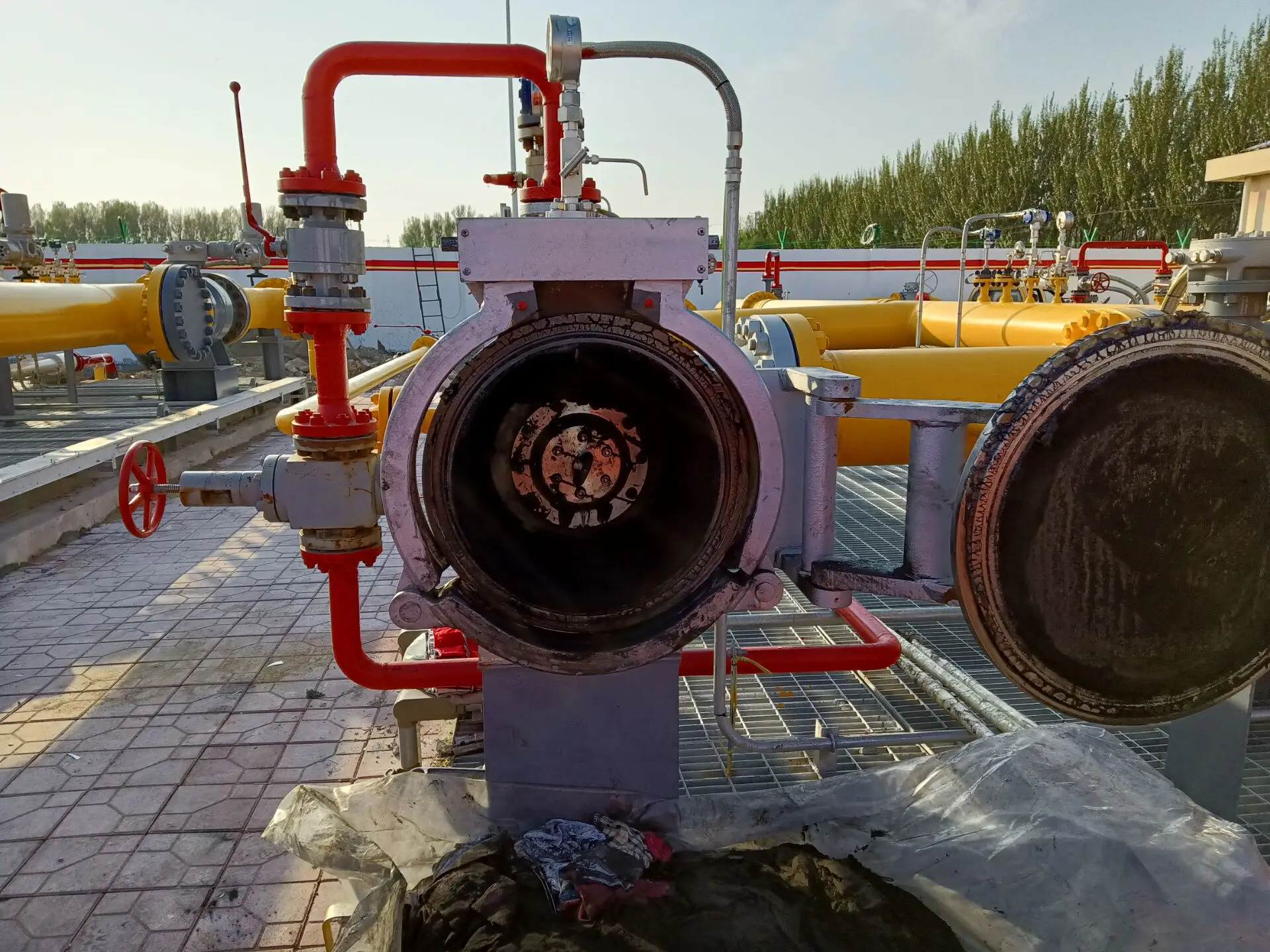

PIG launchers and PIG receivers are the sections of the pipeline which allow the PIG to enter and exit the pipeline. They are
generally funnel, Y-shaped sections of the pipe which can be pressurized or depressurized and then safely opened to insert or
remove PIGs. They could be horizontal or vertical as your request.
generally funnel, Y-shaped sections of the pipe which can be pressurized or depressurized and then safely opened to insert or
remove PIGs. They could be horizontal or vertical as your request.
If you have any request of pig launcher receiver,just contact us,we can design products as your require!
Detail Images
·Pig Launcher Structure Drawing (Model No.PL - CRT)
A. Quick Opening Closure B. Pressure Gauge C. Major Barrel D. Utility Nozzle E. Inlet F. Vent G. Reducer H. Minor Barrel I.Pipeline Connection J. Support K. Drain
·Pig Receiver Structure Drawing (Model No.PR - CRT)
A. Quick Opening Closure B. Pressure Guage C. Major Barrel D. Utility Nozzle E. Inlet F. Vent G. Reducer H. Minor Barrel I.Indicator J. Pipeline Connection K. Support L. Drain
Design Conditions | ||||||||||||||
1 | Pipeline Size | From 6" up to 56" | ||||||||||||
2 | Design Code | ASME VIII Div 1; ASME B31.3; ASME B31.4; ASME B31.8, etc. | ||||||||||||
3 | Design Factor | 0.5, 0.6, 0.7, etc. | ||||||||||||
4 | Corrosion Allowance | 0-5mm or more | ||||||||||||
5 | Design Pressure | CL150, CL300, CL600, CL900, CL1500, CL2500, or as required. | ||||||||||||
6 | Design Temperature (Min/Max) | -50℃ / 200℃ | ||||||||||||

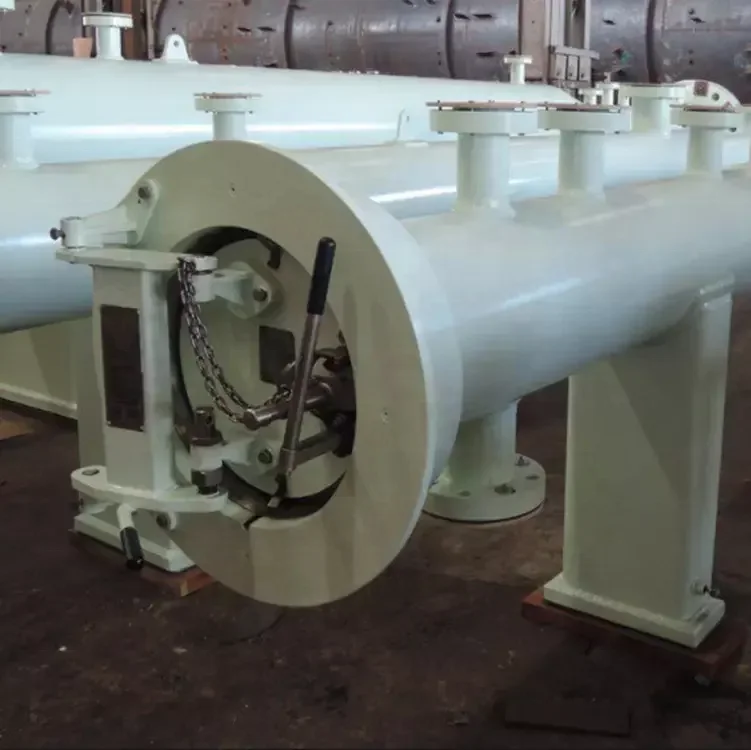

7 | Closure Type | Band Lock and Clamps Type Quick Opening Closure | ||||||||||||
8 | Installation Orientation | Installation Orientation | ||||||||||||
9 | Applicable Medium | Applicable Medium | ||||||||||||
Pig Launcher and Pig Receiver With Clamp Ring Type Bandlocking For High Pressure Pipeline | ||||||||||||||
1 | Major Barrel/Min Barrel | ASTM A106, ASTM A516 Gr.70, APIX42 X52 X60 X65, or as required. | ||||||||||||
2 | Quick Opening Closure (with Interlock System) | ASTM A515 Gr.70, ASTM A516 Gr.70, ASTM A105, ASTM A350 LF2 Class1, ASTM A694 F42 F46 F48 F50 F52 F56 F60 F65 F70, or as required. | ||||||||||||
3 | Sealing Ring for the Closure | Viton, Nitrile | ||||||||||||
4 | Saddle Support | Q235, or as required. | ||||||||||||
5 | Flange | ASTM A105, ASTM A694 F70, or as required. | ||||||||||||
6 | Lifting Lug/Eyes | Q235, or as required. | ||||||||||||
7 | Grounding | Yes | ||||||||||||
8 | Name Plate | Stainless Steel, or as required. | ||||||||||||
Certificates | ||||||||||||||
1 | ASME U Stamp Certificate | Applicable | ||||||||||||
2 | Third Party Inspection | BV, SGS, ABS, DNV, or as required. | ||||||||||||
Why Choose Us
2. Samples will be offered to attest to the quality and our services.
3. The fastest feedback!
4. The fastest delivery time.
5.24 hours,7 days online.
EMT Pigging has own factory and reliable raw material supplier, so you can enjoy no MOQ and prompt delivery!
Packing & Delivery
We use PLYWOOD CASE as packaging,it has the following advantages:
1.Light weight,clear lines,insulation,high strangth,not easy to deformation;
2.No fumigation required.
1.Light weight,clear lines,insulation,high strangth,not easy to deformation;
2.No fumigation required.
Transport
By Air
We cooperate with many express companies. That could help you choose a courier company with cheaper freight.
By Sea
Shenyang is close to Dalian Port, inland transportation costs almost nothing and takes short time.
We cooperate with many express companies. That could help you choose a courier company with cheaper freight.
By Sea
Shenyang is close to Dalian Port, inland transportation costs almost nothing and takes short time.
