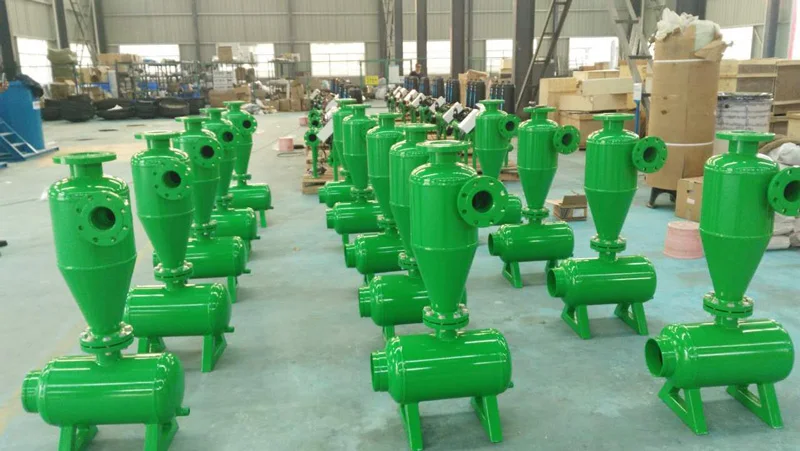

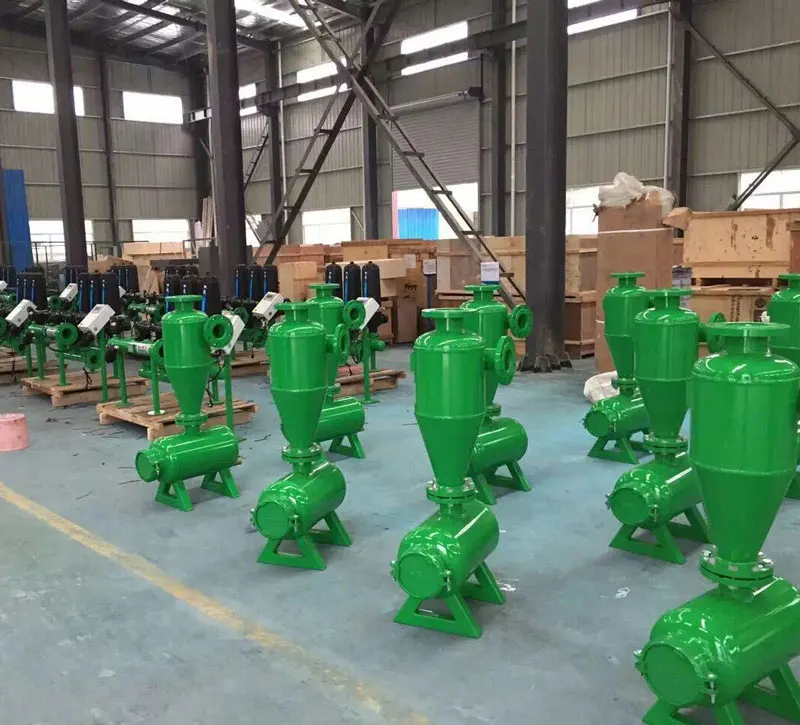

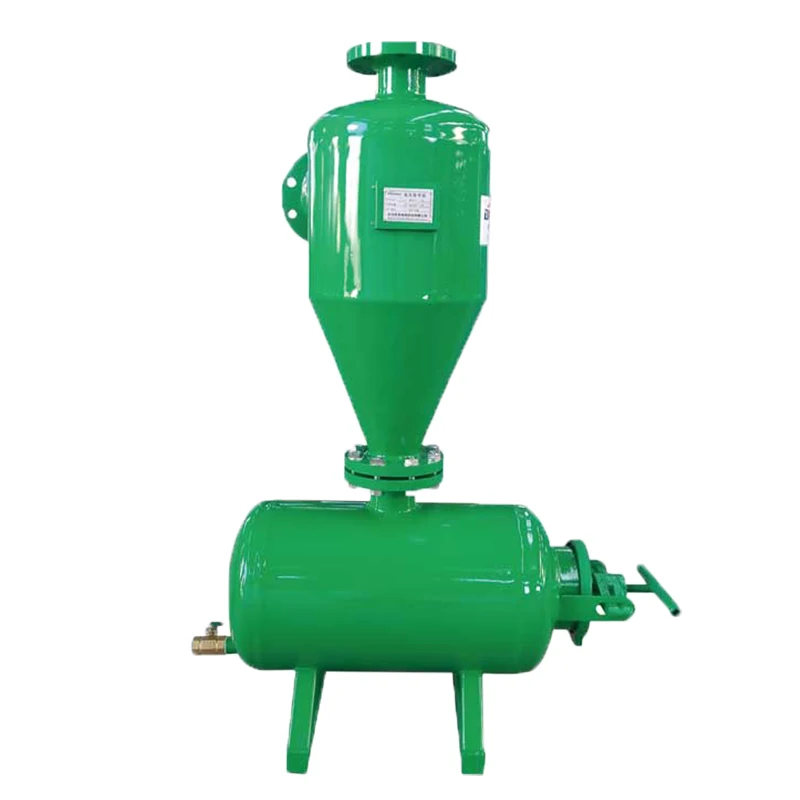

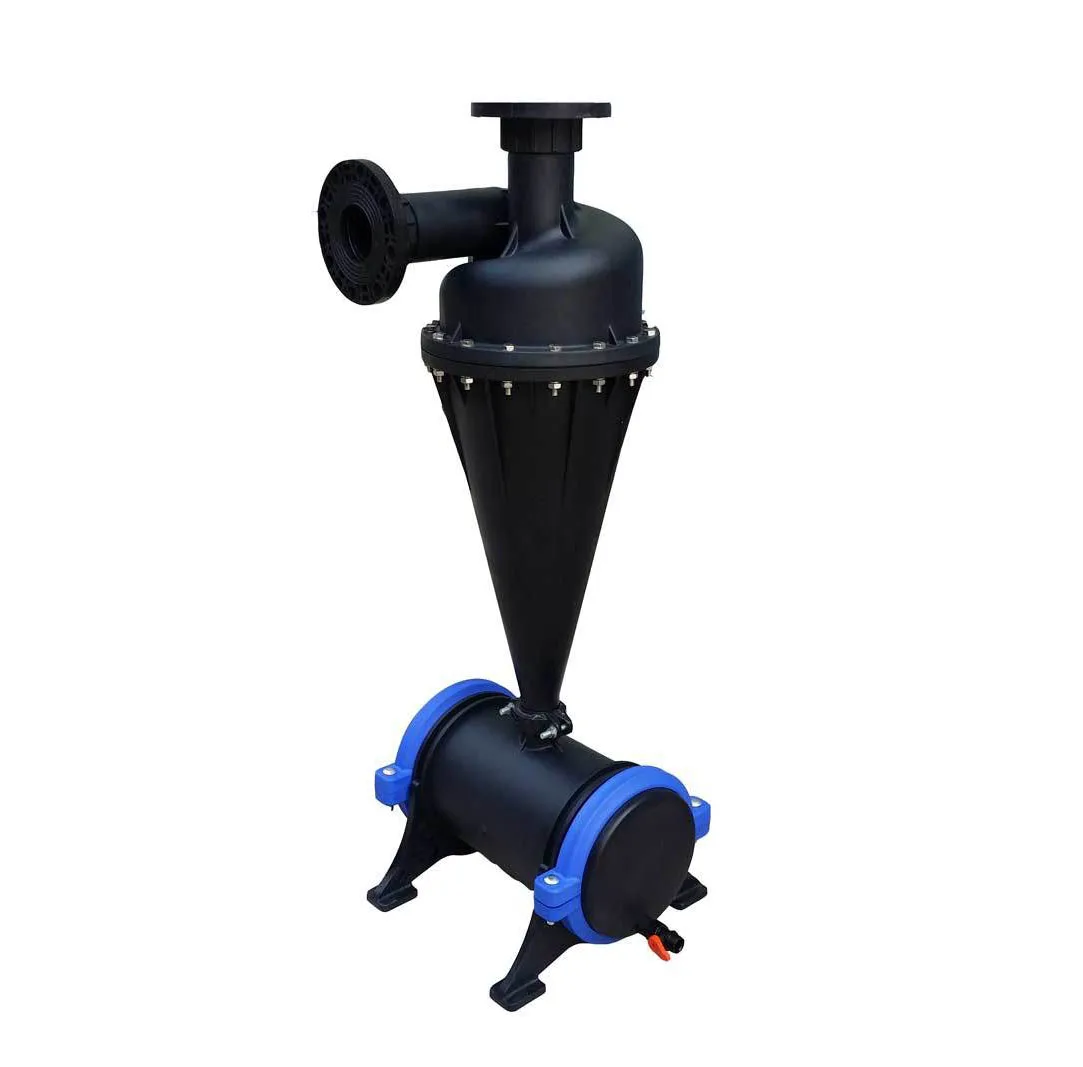

CDFS hydrocyclone water purification equipment

 Principle:

The centrifugal filter is based on the principle of centrifugal sedimentation and density difference.

When the water flow enters the device tangentially from the sand separator inlet under a certain pressure, due to the different density of sand and water, the centrifugal force and centripetal force The buoyancy and fluid drag forces cause different forces to cause the low-density clean water to rise and be discharged from the overflow port.

The dense sand is discharged from the bottom sand discharge port to achieve the purpose of sand removal. Under a certain range and conditions, the greater the inlet pressure of the sand remover, the higher the sand removal rate, and multiple units can be used in parallel.

Process flow

Raw water-agricultural irrigation centrifugal filter-fine filter-storage tank-user.

Hunan Dawning Filter System Technology Co., Ltd. has been specialized in manufacturing and marketing water filter systems since 2002. The filters are automatic back  washing filter,  self cleaning filter, sand media filter, disc filter, and so on. We could provide efficient, stable solutions for irrigation and industrial water treatment. Our products are widely used in construction, steel, electricity, petrochemical, metallurgical, pharmaceutical, paper, automotive, hotels, municipal, and other major industries. Our products have been exported to hundreds of countries and regions such as America, Canada, Chile, Australia, Italy, India, Singapore, Korea, etc. We owned 9 patents and adopted the ISO9001 and CE.  Our team is professional and always here to support you!
